2005 CHEVROLET EPICA Owners Manual

Driver Seat Tilt Adjuster
The manual drivers seat tilt
adjuster knobs are located
on the outboard side of
the seat cushion.
Turn the front knob to adjust the tilt of the front portion
of the seat cushion. Turn the rear knob to adjust the
tilt of the rear portion of the seat cushion.
Power Seat
If your vehicle has this feature, the eight-way power
seat controls are located on the outboard side of
the driver’s seat.
This allows you to move the seat up, down, forward or
rearward. It will also move the front or rear of the
seat cushion up or down, and tilt the seatback forward
or rearward.
1-3

To adjust the power seat, do the following:
Move the seat forward or
rearward by pushing and
holding the switch
toward the front or rear of
the vehicle.
Raise or lower the front of the seat cushion by pushing
the front part of the switch up or down.
Raise or lower the rear of the seat cushion by pushing
the rear part of the switch up or down.
Raise or lower the entire seat cushion by pushing the
entire switch up or down.
Adjust the angle of the seatback by pushing the upper
switch forward or rearward.
When the seat reaches the desired position, release the
switch.Manual Lumbar
To adjust the driver’s
front seat lumbar support,
use the lever located
on the outboard side of
the seatback.
Push the lever down to adjust the support for the lower
part of the seatback.
Pull the lever up to return the support to its original
position.
1-4

Heated Seats
Your vehicle may have heated front seats.
The buttons are located on
the center console above
the ashtray.
There is a button for the driver’s seat and a button for
the passenger’s seat. Press the appropriate button
to turn on the heated seat feature. The indicator in the
button will light when the feature is on. Press the
button again to turn off the heated seat.
Reclining Seatbacks
If your vehicle has a
manual reclining seatback
lever, it is located on
the outboard side of
the seat.
To adjust the seatback, lift the lever and move the
seatback to where you want it. Release the lever and
push rearward on the seatback to make sure it is locked.
Pull up on the lever and the seatback will go to an
upright position.
1-5

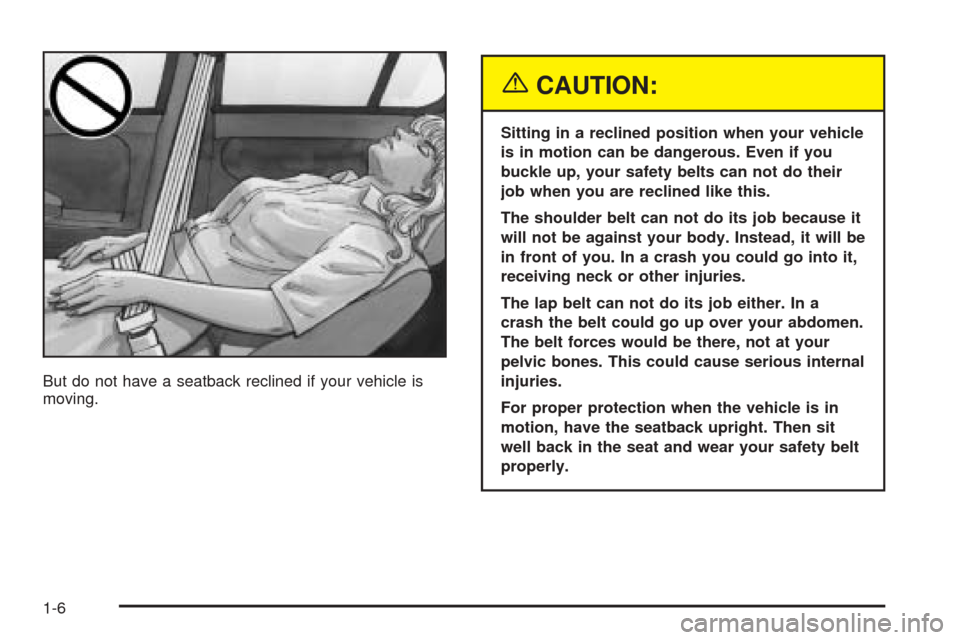

But do not have a seatback reclined if your vehicle is
moving.
{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job because it
will not be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
1-6

Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chances of a neck injury in a crash.
Pull up the head restraint in order to adjust the
position upward.Push in the release button on the head restraint in order
to adjust the position downward.
1-7

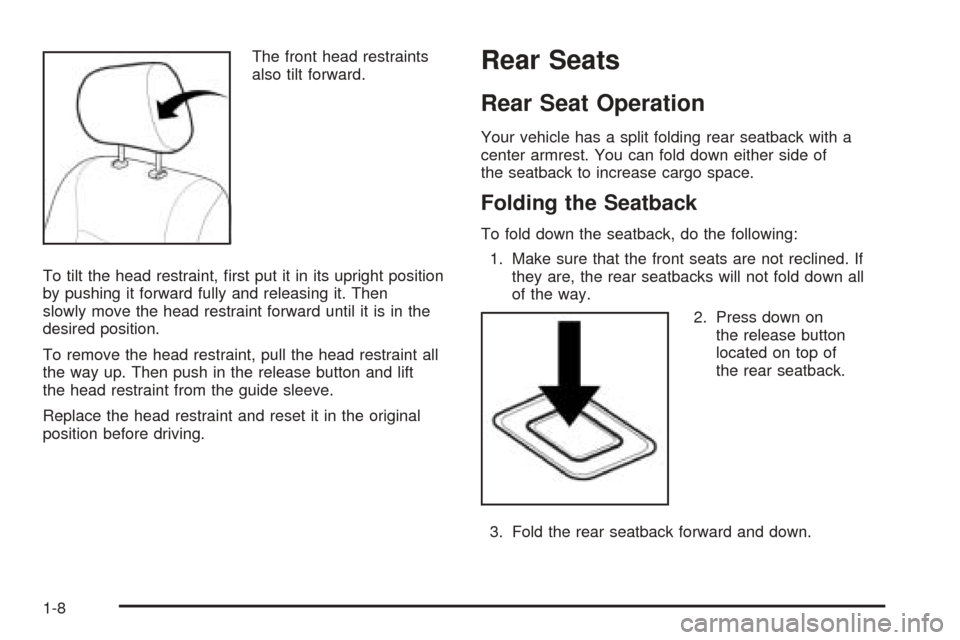

The front head restraints
also tilt forward.
To tilt the head restraint, first put it in its upright position
by pushing it forward fully and releasing it. Then
slowly move the head restraint forward until it is in the
desired position.
To remove the head restraint, pull the head restraint all
the way up. Then push in the release button and lift
the head restraint from the guide sleeve.
Replace the head restraint and reset it in the original
position before driving.Rear Seats
Rear Seat Operation
Your vehicle has a split folding rear seatback with a
center armrest. You can fold down either side of
the seatback to increase cargo space.
Folding the Seatback
To fold down the seatback, do the following:
1. Make sure that the front seats are not reclined. If
they are, the rear seatbacks will not fold down all
of the way.
2. Press down on
the release button
located on top of
the rear seatback.
3. Fold the rear seatback forward and down.
1-8

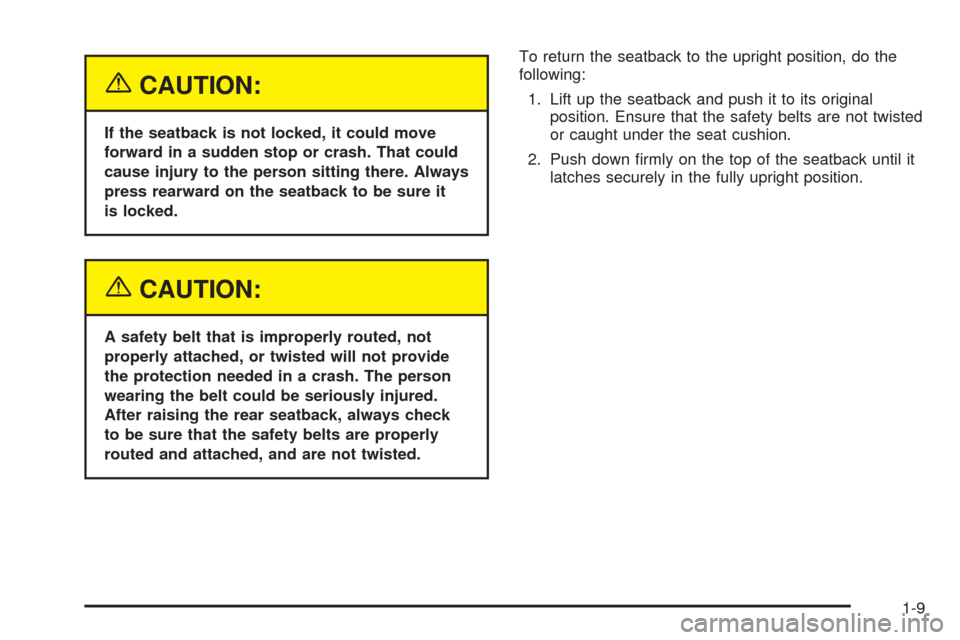

{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.To return the seatback to the upright position, do the
following:
1. Lift up the seatback and push it to its original
position. Ensure that the safety belts are not twisted
or caught under the seat cushion.
2. Push down firmly on the top of the seatback until it
latches securely in the fully upright position.
1-9

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up. See
Safety Belt Reminder
Light on page 3-32.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
1-10
