2005 CADILLAC ESCALADE EXT Owners Manual

Power Lumbar
Your vehicle’s seats may be equipped with power
lumbar.
You can increase or
decrease lumbar support
in an area of the lower
seatback with this control,
located on the outboard
sides of the front seat(s).
To increase support, press and hold the front of the
control. To decrease support, press and hold the rear
of the control. Let go of the control when the lower
seatback reaches the desired level of support.
You can also reshape the side wing area of the lower
seatback for more lateral support.
To increase support, press and hold the top of the
control. To decrease support, press and hold the bottom
of the control. Let go of the control when the lower
seatback reaches the desired level of support.Your vehicle may have a memory function which allows
seat settings to be saved and recalled. SeeMemory
Seat on page 2-69for more information.
Heated Seats
The buttons used to
control this feature are
located on the front doors.
The engine must be
running for the heated seat
feature to work.
To heat the entire seat, press the horizontal button with
the heated seat symbol. Press the button to cycle
through the temperature settings of high, medium and
low and to turn the heated seat off. Indicator lights
will glow to designate the level of heat selected,
three for high, two for medium, and one for low.
1-3

The low setting warms the seatback and cushion until
the seat temperature is near body temperature. The
medium and high settings heat the seatback and seat
cushion to a slightly higher temperature. You will be able
to feel heat in about two minutes.
To heat only the seatback, press the vertical button with
the heated seatback symbol. An indicator light on the
seatback button will glow to designate that only the
seatback is being heated. Additional presses of
the seatback button will cycle through the heat levels for
the seatback only. Press the horizontal button again
to heat the whole seat.
The heated front seats will shut off automatically when
the ignition is turned off.Reclining Seatbacks
Your vehicle’s front seatbacks have a recline feature
which is described earlier. SeePower Seats on
page 1-2.
But don’t have a seatback reclined if your vehicle is
moving.
1-4

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can not do their
job when you are reclined like this.
The shoulder belt can not do its job. In a
crash, you could go into it, receiving neck or
other injuries.
The lap belt can not do its job either. In a
crash the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety belt
properly.
Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.
Pull straight up on the head restraint to raise it and
push it down to lower it.
1-5

The front head restraints can also be tilted forward in
addition to being slid up or down. To tilt either of
the front head restraints do the following:
Pull the head restraint toward you until you hear a click.
Then let go. The head restraint will stay in this position
unless you pull it forward more until another click is
heard. There are four positions available: initial position,
rst click, second click, and third click. After the third
position (three clicks) is reached, pulling the head
restraint farther will release it back to the normal upright
position.
The rear head restraints can be slid up or down just as
the front head restraints, but they do not tilt.Rear Seats
Rear Seat Operation
The rear seat is a 60/40 split rear seat that can be
folded to give you more cargo space and access to the
folding midgate. SeeMidgate on page 2-13for more
information on operation of the folding midgate.
To fold either side of the seat do the following:
1. Push the rear head restraints all the way down.
2. Pull the seat loop
located where the
seatback and
seat cushion meet.
The seat cushion will
release and allow
you to tilt it toward the
front of the vehicle.
1-6

3. Grasp the seatback and pull it toward the front of
the vehicle. Push it down until it is at. You may
have to move the front seats forward slightly to
do this.
4. Repeat the procedure for the other side.
To return the seats to the normal position, pull the
seatback up and fold the seat cushion down.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
1-7

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she can not
wear a safety belt properly. If you are in a
crash and you are not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers’ belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt Reminder
Light on page 3-31.
In most states and in all Canadian provinces, the law
says to wear safety belts. Here is why:They work.
1-8

You never know if you will be in a crash. If you do
have a crash, you do not know if it will be a bad one.
A few crashes are mild, and some crashes can be
so serious that even buckled up, a person would not
survive. But most crashes are in between. In many
of them, people who buckle up can survive and
sometimes walk away. Without belts they could have
been badly hurt or killed.
After more than 30 years of safety belts in vehicles,
the facts are clear. In most crashes buckling up
does matter...a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast as
it goes.

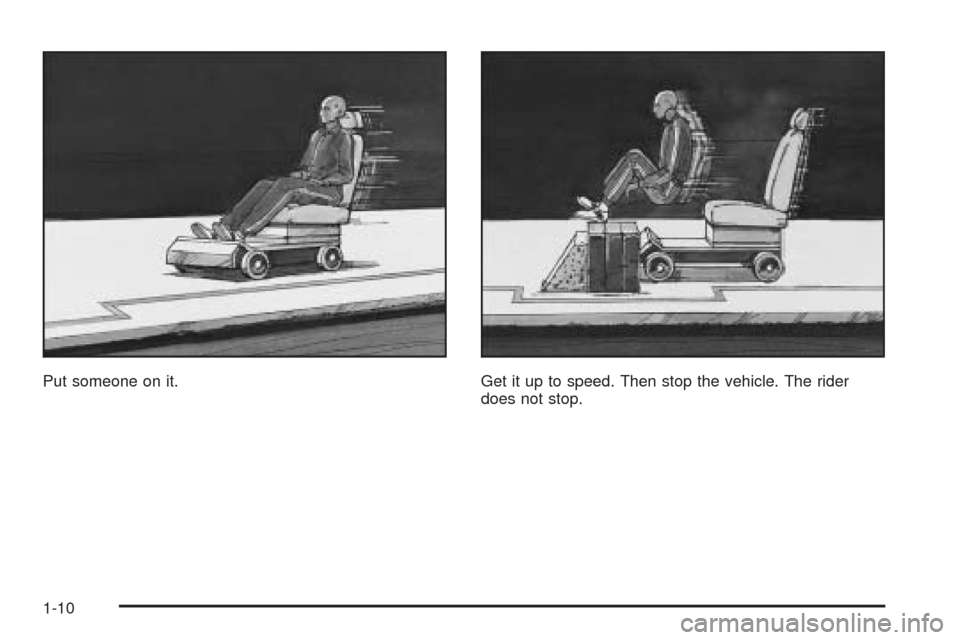

Take the simplest vehicle. Suppose it is just a seat
on wheels.
1-9

Put someone on it. Get it up to speed. Then stop the vehicle. The rider
does not stop.
1-10
