2005 BUICK RANDEZVOUS clock

Steering in Emergencies
There are times when steering can be more effective than
braking. For example, you come over a hill and nd a
truck stopped in your lane, or a car suddenly pulls out
from nowhere, or a child darts out from between parked
cars and stops right in front of you. You can avoid these
problems by braking — if you can stop in time. But
sometimes you cannot; there is not room. That is the time
for evasive action — steering around the problem.
Your vehicle can perform very well in emergencies like
these. First apply your brakes.
SeeBraking on page 4-6. It is better to remove as much
speed as you can from a possible collision. Then
steer around the problem, to the left or right depending
on the space available.An emergency like this requires close attention and a
quick decision. If you are holding the steering wheel at
the recommended 9 and 3 o’clock positions, you
can turn it a full 180 degrees very quickly without
removing either hand. But you have to act fast, steer
quickly, and just as quickly straighten the wheel
once you have avoided the object.
The fact that such emergency situations are always
possible is a good reason to practice defensive driving
at all times and wear safety belts properly.
4-13

Filling Your Tank
{CAUTION:
Fuel vapor burns violently and a fuel re can
cause bad injuries. To help avoid injuries to
you and others, read and follow all the
instructions on the pump island. Turn off your
engine when you are refueling. Do not smoke
if you are near fuel or refueling your vehicle.
Keep sparks, ames and smoking materials
away from fuel. Do not leave the fuel pump
unattended when refueling your vehicle — this
is against the law in some places. Keep
children away from the fuel pump; never let
children pump fuel.
The tethered fuel cap is located behind a hinged fuel
door on the driver’s side of the vehicle.
To remove the fuel cap, turn it slowly to the left
(counterclockwise). The fuel cap has a spring in it; if the
cap is released too soon, it will spring back to the right.While refueling, hang the
tethered fuel cap from the
hook on the fuel door.
{CAUTION:
If you spill fuel and then something ignites it,
you could be badly burned. Fuel can spray out
on you if you open the fuel cap too quickly.
This spray can happen if your tank is nearly
full, and is more likely in hot weather. Open
the fuel cap slowly and wait for any hiss noise
to stop. Then unscrew the cap all the way.
5-8

Be careful not to spill fuel. Do not top off or overll the
tank and wait a few seconds after you have nished
pumping before removing the nozzle. Clean fuel
from painted surfaces as soon as possible. See
Washing Your Vehicle on page 5-98.
When replacing the fuel cap, turn it to the right
(clockwise) until it clicks. Make sure the cap is fully
installed. The diagnostic system can determine if the fuel
cap has been left off or improperly installed. This
would allow fuel to evaporate into the atmosphere. See
Malfunction Indicator Lamp on page 3-46.
Your vehicle may also be equipped with a light that will
come on in the message center to let you know your
gas cap is open. SeeCheck Gas Cap Message
on page 3-57for more information.
{CAUTION:
If a re starts while you are refueling, do not
remove the nozzle. Shut off the ow of fuel by
shutting off the pump or by notifying the
station attendant. Leave the area immediately.
Notice:If you need a new fuel cap, be sure to get
the right type. Your dealer can get one for you.
If you get the wrong type, it may not t properly.
This may cause your malfunction indicator lamp to
light and may damage your fuel tank and emissions
system. SeeMalfunction Indicator Lamp on
page 3-46.
5-9

How to Add Coolant to the Radiator
Notice:Your engine has a specic radiator
ll procedure. Failure to follow this procedure could
cause your engine to overheat and be severely
damaged.
1. You can remove the radiator pressure cap when
the cooling system, including the radiator pressure
cap and upper radiator hose, is no longer hot.
Turn the pressure cap slowly counterclockwise until
it rst stops. Do not press down while turning the
pressure cap.
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.2. Then keep turning the pressure cap, but now push
down as you turn it. Remove the pressure cap.
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
HousingBypass Tube
5-34

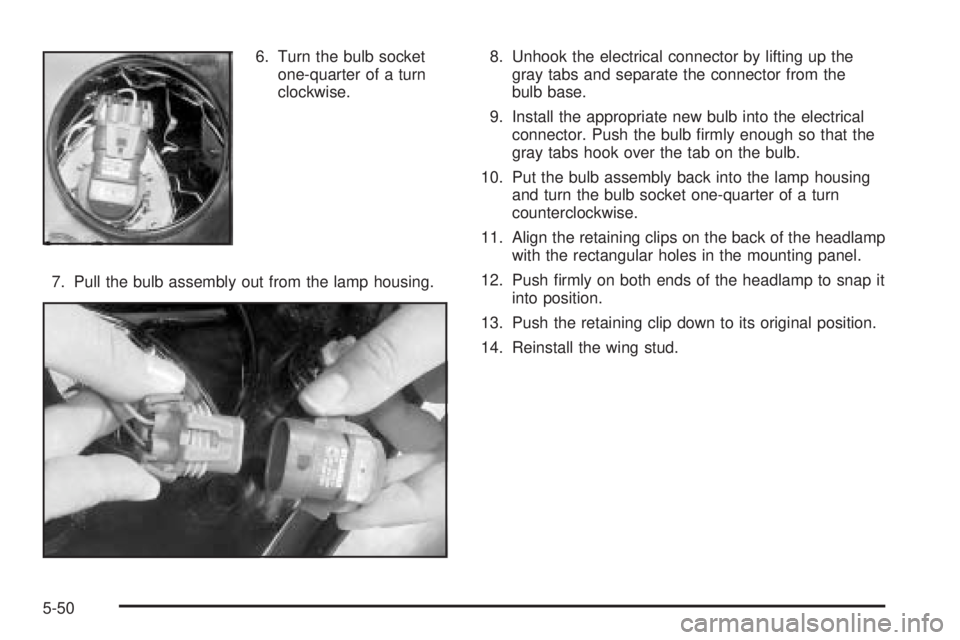

6. Turn the bulb socket
one-quarter of a turn
clockwise.
7. Pull the bulb assembly out from the lamp housing.8. Unhook the electrical connector by lifting up the
gray tabs and separate the connector from the
bulb base.
9. Install the appropriate new bulb into the electrical
connector. Push the bulb rmly enough so that the
gray tabs hook over the tab on the bulb.
10. Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
counterclockwise.
11. Align the retaining clips on the back of the headlamp
with the rectangular holes in the mounting panel.
12. Push rmly on both ends of the headlamp to snap it
into position.
13. Push the retaining clip down to its original position.
14. Reinstall the wing stud.
5-50

Front Turn Signal, Sidemarker and
Parking Lamps
To replace the front turn signal, parking or sidemarker
lamp bulbs, follow the headlamp bulb replacement
procedure and replace the appropriate bulb.
Taillamps, Turn Signal, and
Stoplamps
1. Open the liftgate. SeeLiftgate on page 2-11for
more information.
2. Remove the two
screws on the inboard
taillamp panel.3. Pull the lamp directly rearward from the vehicle.
4. Turn the bulb socket one-quarter of a turn
counterclockwise.
5. Pull the bulb assembly out from the lamp housing.
6. Unhook the electrical connector by lifting up the tabs
and separate the connector from the bulb base.
7. Install the new bulb into the electrical connector.
Push the bulb rmly enough so that the tabs hook
over the tab on the bulb.
8. Reverse the steps to reinstall.
9. Reinstall the lamp to its pocket by lining up the
mounting pin and pushing forward to set the
position.
10. Reinstall the screws removed in Step 2.
11. Close the liftgate.
5-51

Taillamps and Back-Up Lamps
This procedure is for the liftgate-mounted taillamps and
back-up lamps.
1. Open the liftgate. SeeLiftgate on page 2-11for
more information.
2. Remove the panel inside the liftgate by lifting the
tabs and pulling the panel off.
3. Remove the seven
wing nuts and the four
outboard nuts (two
at each end).
4. Gently lower the liftgate.
5. Pull the lamp assembly directly rearward from the
vehicle.A. Outboard Taillamp
B. Center Taillamp
C. Inboard Back-Up Lamp
6. Turn the bulb socket one-quarter of a turn
counterclockwise.
7. Pull the bulb assembly out from the lamp housing.
8. Pull the bulb out of the base.
9. Install the new bulb into the electrical connector.
Push the bulb rmly enough so that the tabs hook
over the tab on the bulb.
5-52

10. Put the bulb assembly back into the lamp housing
and turn the bulb socket one-quarter of a turn
clockwise.
11. Replace the applique on the liftgate.
12. Gently lift the liftgate.
13. Reinstall the seven wing nuts and the four
outboard nuts.
14. Reinstall the panel inside the liftgate by connecting
the tabs.
15. Close the liftgate.
Replacement Bulbs
Exterior Lamp Bulb Number
Front Turn Signal/Parking Lamps 3457K
Headlamps
High-beam 9005
Low-beam 9006
Liftgate-Mounted
Back-Up Lamps 921
Taillamps 161
Rear Outboard Stop/Tail/Turn 3057K
Sidemarker Lamps 168
For replacement bulbs not listed here, contact your
dealer.
Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected at least
twice a year for wear or cracking. See “Wiper Blade
Check” underOwner Checks and Services on page 6-8
for more information.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
seeNormal Maintenance Replacement Parts on
page 6-13.
Here’s how to replace the windshield wiper blades:
1. Turn the wipers on to the lowest intermittent setting.
2. Turn off the ignition while the wipers are at the
outer positions of the wipe pattern. The blades
are more accessible for removal/replacement while
in this position.
3. Pull the windshield wiper arm away from the
windshield.
5-53
