2005 BUICK PARK AVENUE glove box

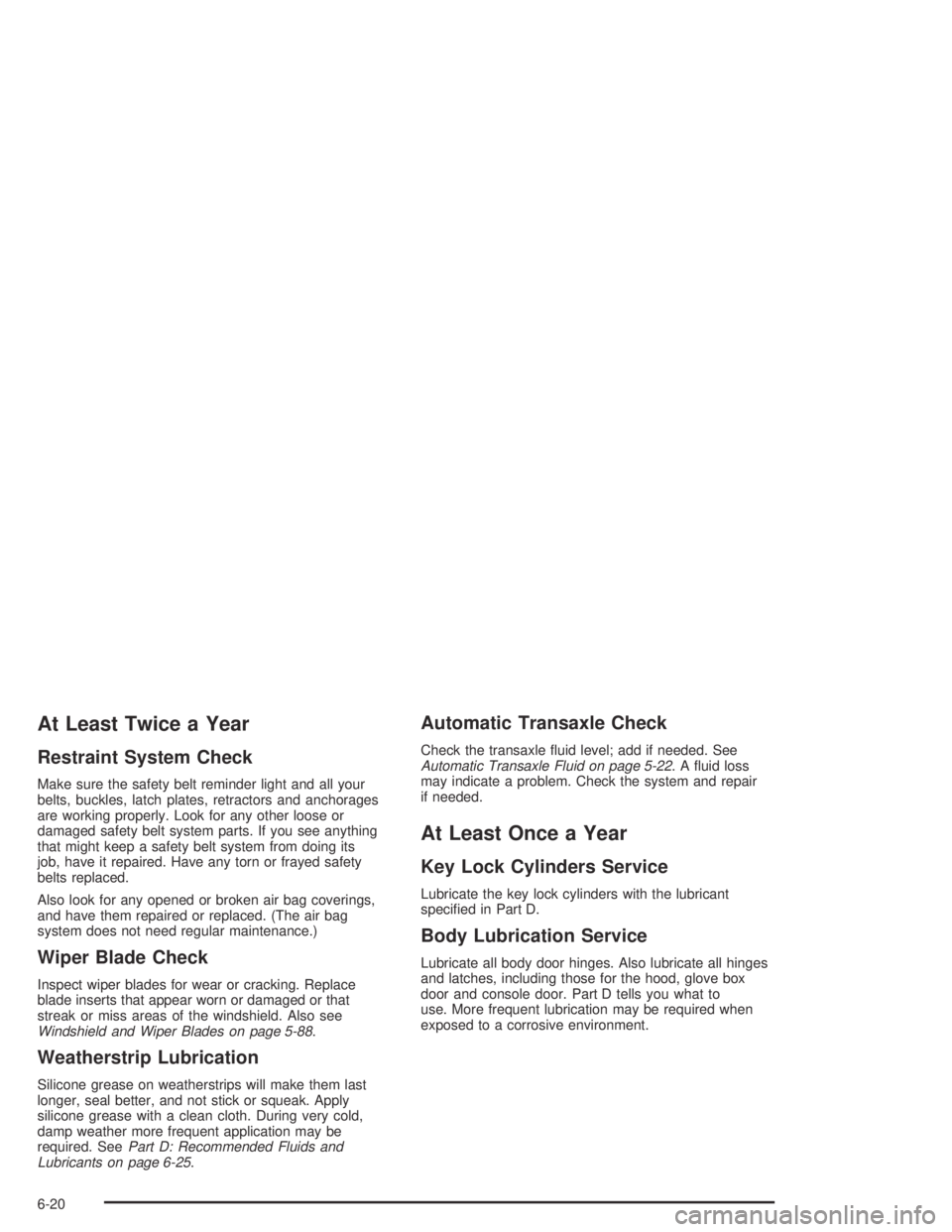

At Least Twice a Year
Restraint System Check
Make sure the safety belt reminder light and all your
belts, buckles, latch plates, retractors and anchorages
are working properly. Look for any other loose or
damaged safety belt system parts. If you see anything
that might keep a safety belt system from doing its
job, have it repaired. Have any torn or frayed safety
belts replaced.
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag
system does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace
blade inserts that appear worn or damaged or that
streak or miss areas of the windshield. Also see
Windshield and Wiper Blades on page 5-88.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. SeePart D: Recommended Fluids and
Lubricants on page 6-25.
Automatic Transaxle Check
Check the transaxle uid level; add if needed. See
Automatic Transaxle Fluid on page 5-22. A uid loss
may indicate a problem. Check the system and repair
if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specied in Part D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all hinges
and latches, including those for the hood, glove box
door and console door. Part D tells you what to
use. More frequent lubrication may be required when
exposed to a corrosive environment.
6-20

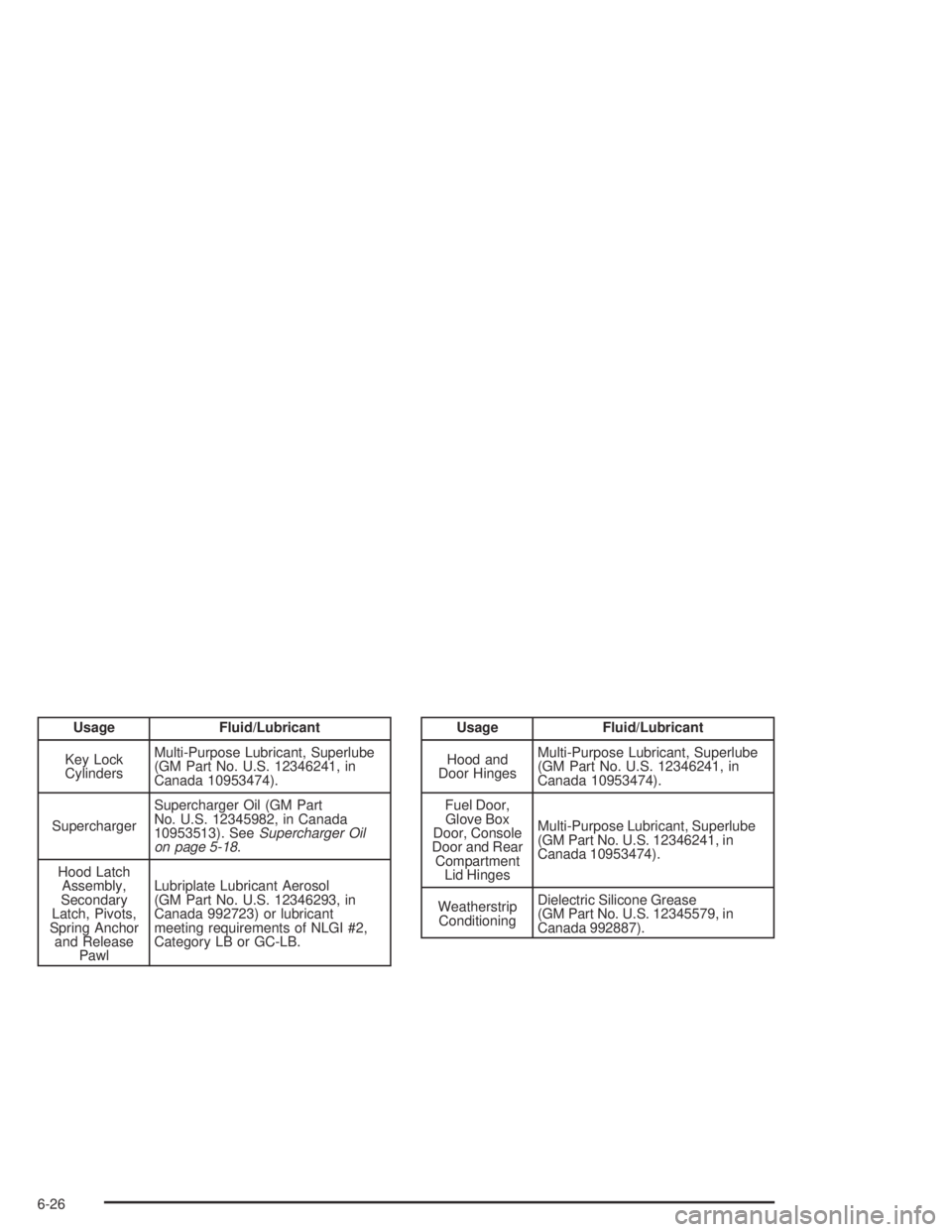

Usage Fluid/Lubricant
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
SuperchargerSupercharger Oil (GM Part
No. U.S. 12345982, in Canada
10953513). SeeSupercharger Oil
on page 5-18.
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor
and Release
PawlLubriplate Lubricant Aerosol
(GM Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.Usage Fluid/Lubricant
Hood and
Door HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Fuel Door,
Glove Box
Door, Console
Door and Rear
Compartment
Lid HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip
ConditioningDielectric Silicone Grease
(GM Part No. U.S. 12345579, in
Canada 992887).
6-26

Fuses
Auxiliary Instrument Panel Fuse Block............5-94
Fuses and Circuit Breakers...........................5-92
Main Instrument Panel Fuse Block.................5-92
Rear Compartment Fuse Block......................5-97
Underhood Fuse Block.................................5-95
G
Gage
Engine Coolant Temperature.........................3-40
Fuel..........................................................3-45
Speedometer..............................................3-35
Tachometer.................................................3-35
Garage Door Opener.......................................2-40
Garage Door Opener Compartment...................2-45
Gasoline
Octane........................................................ 5-4
Specications............................................... 5-5
Glove Box.....................................................2-44
Glove Box Lamp.............................................3-18
GM Mobility Program for Persons with
Disabilities.................................................... 7-5
H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-5
Headlamp
Aiming.......................................................5-45
Headlamps....................................................5-47
Bulb Replacement.......................................5-47
Daytime Running Lamps...............................3-15
Flash-to-Pass............................................... 3-9
Front Turn Signal Lamps..............................5-50
Halogen Bulbs............................................5-47
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-14
Head-Up Display (HUD)...................................3-19
Heated Backlite Antenna..................................3-74
Heated Seats................................................... 1-3
Heater...........................................................3-25
Highway Hypnosis...........................................4-23
Hill and Mountain Roads..................................4-23
HomeLink
®Transmitter....................................2-40
HomeLink®Transmitter, Programming................2-41
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-11
6

I
If You Are Stuck in Sand, Mud, Ice or Snow.......4-29
Ignition Positions.............................................2-22
Infants and Young Children, Restraints...............1-29
Ination -- Tire Pressure..................................5-64
Inspection
Brake System.............................................6-24
Engine Cooling System................................6-24
Exhaust System..........................................6-23
Fuel System...............................................6-23
Part C - Periodic Maintenance.......................6-23
Steering, Suspension and Front Drive Axle
Boot and Seal.........................................6-23
Throttle System...........................................6-24
Instrument Panel
Brightness..................................................3-16
Cluster.......................................................3-33
Overview..................................................... 3-4
J
Jump Starting.................................................5-41
K
Keyless Entry System....................................... 2-5
Keys............................................................... 2-3
L
Labelling, Tire Sidewall....................................5-59
Lamps
Battery Run-Down Protection.........................3-19
Cornering...................................................3-15
Courtesy....................................................3-16
Exterior......................................................3-14
Front Reading.............................................3-18
Glove Box..................................................3-18
Rear Reading.............................................3-19
Trunk.........................................................3-19
Twilight Sentinel
®........................................3-16
LATCH System
Child Restraints...........................................1-40
Securing a Child Restraint Designed
for the LATCH System..............................1-42
Leaving Your Vehicle.......................................2-13
Light
Airbag Readiness........................................3-36
Anti-Lock Brake System Warning...................3-39
Battery Warning..........................................3-37
Brake System Warning.................................3-38
Cruise Control.............................................3-44
Malfunction Indicator....................................3-40
Oil Pressure...............................................3-43
Safety Belt Reminder...................................3-36
Security.....................................................3-44
7

Securing a Child Restraint
Center Rear Seat Position............................1-44
Designed for the LATCH System...................1-42
Rear Outside Seat Position...........................1-42
Right Front Seat Position..............................1-46
Security Light.................................................3-44
Selecting the Right Schedule, Maintenance.......... 6-5
Service........................................................... 5-3
Adding Equipment to the Outside of
Your Vehicle.............................................. 5-4
Doing Your Own Work................................... 5-3
Engine Soon Light.......................................3-40
Publications Ordering Information...................7-11
Vehicle Soon Light.......................................3-44
Servicing Your Airbag-Equipped Vehicle..............1-57
Setting the Time.............................................3-55
Sheet Metal Damage.......................................5-89
Shifting Into Park (P).......................................2-30
Shifting Out of Park (P)...................................2-31
Short Trip/City Scheduled Maintenance................ 6-6
Signals, Turn and Lane-Change.......................... 3-7
Spare Tire
Installing....................................................5-76
Removing...................................................5-75
Storing.......................................................5-80
Specications, Capacities...............................5-100
Speedometer..................................................3-35
Starting Your Engine.......................................2-24
Steering........................................................4-10Steering, Suspension and Front Drive Axle
Boot and Seal Inspection..............................6-23
Steering Wheel Comfort Controls......................3-31
Steering Wheel Controls, Audio.........................3-72
Steering Wheel, Tilt Wheel................................. 3-6
Storage Areas
Center Console Storage Area........................2-46
Convenience Net.........................................2-47
Garage Door Opener Compartment................2-45
Glove Box..................................................2-44
Rear Storage Area.......................................2-47
Stuck in Sand, Mud, Ice or Snow......................4-29
Sun Visors.....................................................2-18
Sunroof.........................................................2-47
T
Tachometer....................................................3-35
TCS Warning Light..........................................3-39
Theater Dimming............................................3-17
Theft-Deterrent, Radio.....................................3-70
Theft-Deterrent Systems...................................2-18
Content Theft-Deterrent................................2-18
PASS-Key
®III .............................................2-20
PASS-Key®III Operation..............................2-20
Throttle System Inspection...............................6-24
Tilt Wheel........................................................ 3-6
Tires.............................................................5-58
12
