GETTING TO KNOW YOUR CAR
199
ENVIRONMENTAL
PROTECTION
The devices used to reduce petrol engine
emissions are:
– trivalent catalytic converter (catalytic si-
lencer);
– Lambda sensors;
– anti-evaporation system.
If one or more spark plugs are discon-
nected, do not run the engine, even for a
test.
The devices used to reduce diesel fuel en-
gine emissions are:
– oxidising catalyst;
– exhaust gas re-circulation system
(E. G. R.). Do not go near the fuel
filler with naked flames or
lit cigarettes: danger of
fire. Avoid going too near the fuel
filler with your face, to avoid in-
haling harmful vapours.
In the case of need, only
replace the fuel cap with
another genuine one, or the
efficiency of the fuel vapour re-
covery system could be adversely
affected.
Should it be not possible to open the fuel
flap electrically, use the special cable in the
boot (A-fig. 166) to open it manually.
Due to the high tempera-
tures reached during oper-
ation of the catalytic si-
lencer the vehicle should not be
parked over inflammable materials
(grass, dry leaves, pine needles,
etc.).
fig. 165
A0A0643b
fig. 166
A0A0652b
IMPORTANTThe sealing of the tank
may cause light pressurising. A little breath-
ing off, while slackening the cap is ab-
solutely normal.
After refuelling, turn the cap clockwise and
close the flap.
IMPORTANTFor your safety, before
starting the engine, also make sure that the
fuel nozzle is correctly inserted in the fuel
distributor.

IN AN EMERGENCY
241

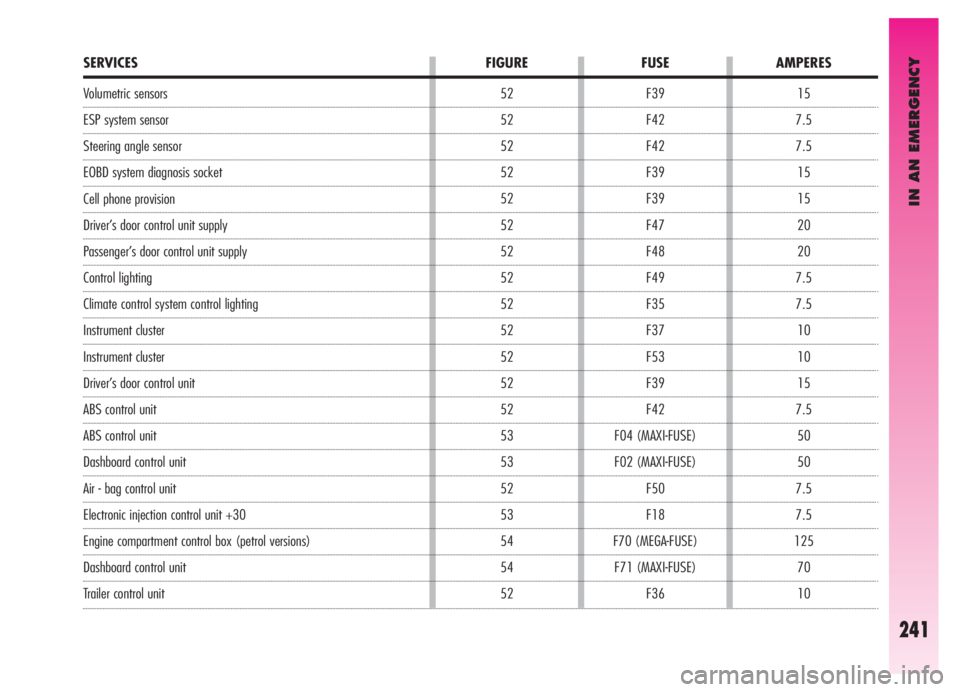

Volumetric sensors
ESP system sensor
Steering angle sensor
EOBD system diagnosis socket
Cell phone provision
Driver’s door control unit supply
Passenger’s door control unit supply
Control lighting
Climate control system control lighting
Instrument cluster
Instrument cluster
Driver’s door control unit
ABS control unit
ABS control unit
Dashboard control unit
Air - bag control unit
Electronic injection control unit +30
Engine compartment control box (petrol versions)
Dashboard control unit
Trailer control unit15
7.5
7.5
15
15
20
20
7.5
7.5
10
10
15
7.5
50
50
7.5
7.5
125
70
10 F39
F42
F42
F39
F39
F47
F48
F49
F35
F37
F53
F39
F42
F04 (MAXI-FUSE)
F02 (MAXI-FUSE)
F50
F18
F70 (MEGA-FUSE)
F71 (MAXI-FUSE)
F36 52
52
52
52
52
52
52
52
52
52
52
52
52
53
53
52
53
54
54
52
SERVICES FIGURE FUSE AMPERES

VEHICLE MAINTENANCE
260
DIESEL FUEL FILTER
(JTD16Vversions)
DRAINING CONDENSATION
WATER
The presence of water in
the supply circuit may
cause serious damage to
the entire injection system and
cause irregular running of the
engine. If the
cwarning light
turns on together with the mes-
sage on the reconfigurable multi-
function display, contact Alfa
Romeo Authorised Services as
soon as possible to have the sys-
tem relieved.
AIR CLEANER
The air cleaner is connected to the tem-
perature and air flow sensors which send
to the control unit the electric signals
needed for correct operation of the injec-
tion and ignition system.
It must therefore always be in perfect
conditions, to ensure correct operation of
the engine, low consumption and exhaust
emission levels.
If the operations con-
cerning cleaner replace-
ment described below are
not carried out correctly and with
the due precautions, they may
compromise the travelling safety
of the vehicle. You are recom-
mended to have this operation
carried out by Alfa Romeo
Authorised Services.
If the car is habitually
used in dusty areas, the
cleaner should be replaced
at shorter intervals than those
specified in the Programmed
Maintenance Schedule.
Any attempt to clean the
cleaner may damage it,
leading to serious engine
damage.

RIGHT HAND DRIVE VERSIONS
288
fig. 6
A0A0724b
RIGHT HAND DRIVE VERSIONS - DASHBOARD
1.Side swivel air vents - 2.Fixed side window air vents -3.Passenger's air bag - 4.Tailgate release button - 5.Card holder (for versions/markets where
applicable) - 6. Sound system (for versions/markets where applicable) - 7.Centre swivel air vents - 8.Fixed upper vent - 9.Glass holder (for versions/mar-
kets where applicable) - 10.Front fog light button - 11.Hazard light switch - 12.Rear fog light button - 13.Outside light control lever - 14.Speedome-
ter with display for mileage recorder, trip meter and headlamp aiming device - 15.Fuel level gauge with reserve warning light - 16.Multifunction display -
17.Engine coolant temperature gauge - 18.Rev. counter -19.Windscreen wiper control lever - 20.Bonnet opening lever - 21.Set of controls: trip meter
reset, headlamp aiming device, trip computer - 22.Ignition key and switch - 23.Horn - 24.Steering wheel locking/release lever - 25.Driver's air bag -
26.Door locking button - 27.Controls for heating, ventilation and climate control - 28.Cigar lighter/ashtray housing door - 29.Temperature sensor - 30.
Glove box.
