2005.5 Peugeot 407 C Dag Owner's Manual

64 -
04-11-2005
65
-
04-11-2005

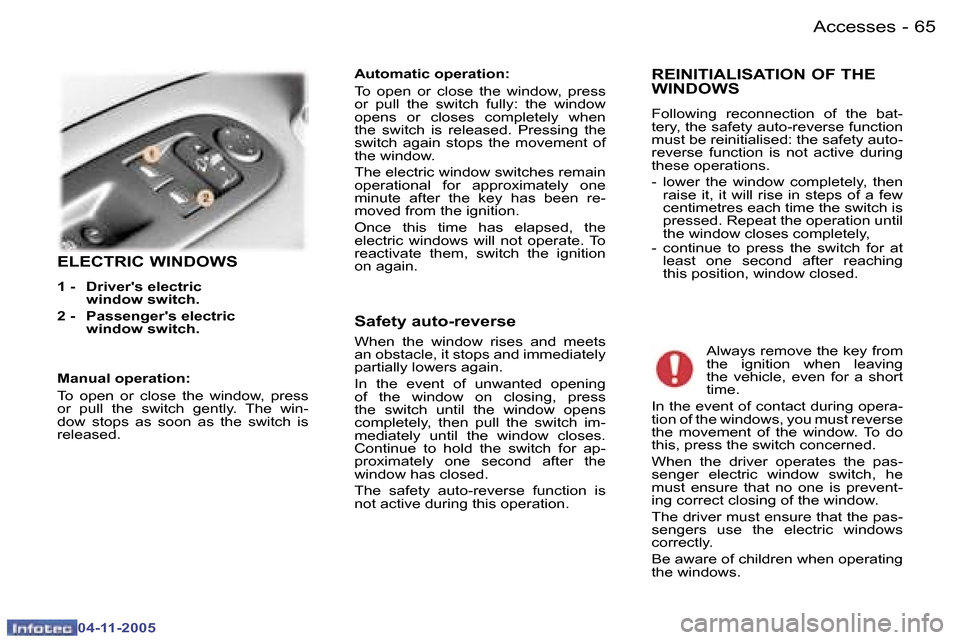

ELECTRIC WINDOWS
1 - Driver's electric
window switch.
2 - Passenger's electric
window switch. Automatic operation:
To open or close the window, press
or pull the switch fully: the window
opens or closes completely when
the switch is released. Pressing the
switch again stops the movement of
the window.
The electric window switches remain
operational for approximately one
minute after the key has been re-
moved from the ignition.
Once this time has elapsed, the
electric windows will not operate. To
reactivate them, switch the ignition
on again.
Safety auto-reverse
When the window rises and meets
an obstacle, it stops and immediately
partially lowers again.
In the event of unwanted opening
of the window on closing, press
the switch until the window opens
completely, then pull the switch im-
mediately until the window closes.
Continue to hold the switch for ap-
proximately one second after the
window has closed.
The safety auto-reverse function is
not active during this operation.
REINITIALISATION OF THE
WINDOWS
Following reconnection of the bat-
tery, the safety auto-reverse function
must be reinitialised: the safety auto-
reverse function is not active during
these operations.
- lower the window completely, then
raise it, it will rise in steps of a few
centimetres each time the switch is
pressed. Repeat the operation until
the window closes completely,
- continue to press the switch for at least one second after reaching
this position, window closed.
Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
In the event of contact during opera-
tion of the windows, you must reverse
the movement of the window. To do
this, press the switch concerned.
When the driver operates the pas-
senger electric window switch, he
must ensure that no one is prevent-
ing correct closing of the window.
The driver must ensure that the pas-
sengers use the electric windows
correctly.
Be aware of children when operating
the windows.
Manual operation:
To open or close the window, press
or pull the switch gently. The win-
dow stops as soon as the switch is
released.
Accesses

66 -
04-11-2005
67
-
04-11-2005

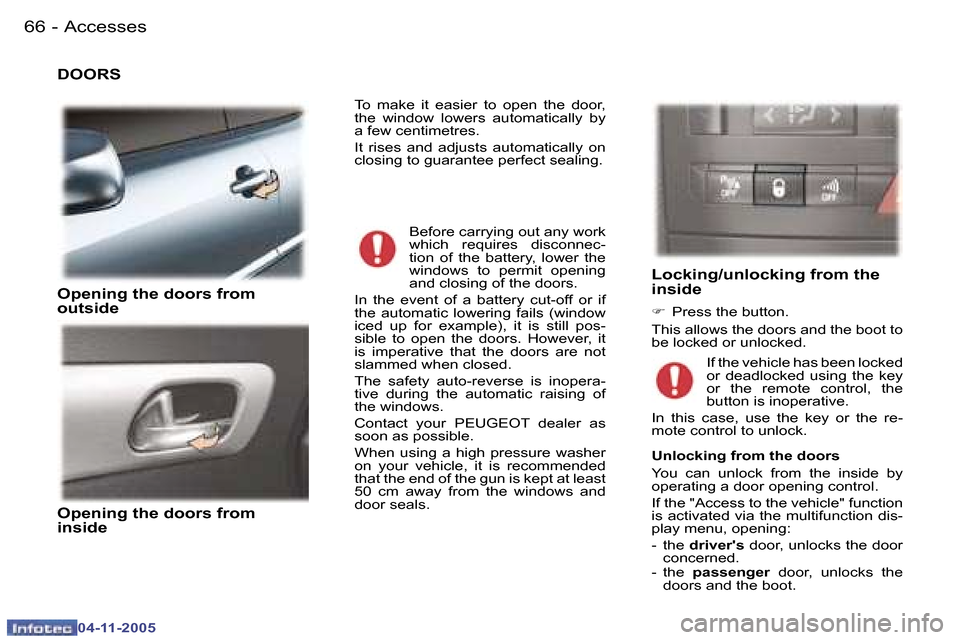

DOORS
Opening the doors from
outside
Opening the doors from
inside
Locking/unlocking from the
inside
F
Press the button.
This allows the doors and the boot to
be locked or unlocked.
To make it easier to open the door,
the window lowers automatically by
a few centimetres.
It rises and adjusts automatically on
closing to guarantee perfect sealing.
Before carrying out any work
which requires disconnec-
tion of the battery, lower the
windows to permit opening
and closing of the doors.
In the event of a battery cut-off or if
the automatic lowering fails (window
iced up for example), it is still pos-
sible to open the doors. However, it
is imperative that the doors are not
slammed when closed.
The safety auto-reverse is inopera-
tive during the automatic raising of
the windows.
Contact your PEUGEOT dealer as
soon as possible.
When using a high pressure washer
on your vehicle, it is recommended
that the end of the gun is kept at least
50 cm away from the windows and
door seals. If the vehicle has been locked
or deadlocked using the key
or the remote control, the
button is inoperative.
In this case, use the key or the re-
mote control to unlock.
Unlocking from the doors
You can unlock from the inside by
operating a door opening control.
If the "Access to the vehicle" function
is activated via the multifunction dis-
play menu, opening:
- the driver's door, unlocks the door
concerned.
- the passenger door, unlocks the
doors and the boot.
Accesses

66 -
04-11-2005
67
-
04-11-2005

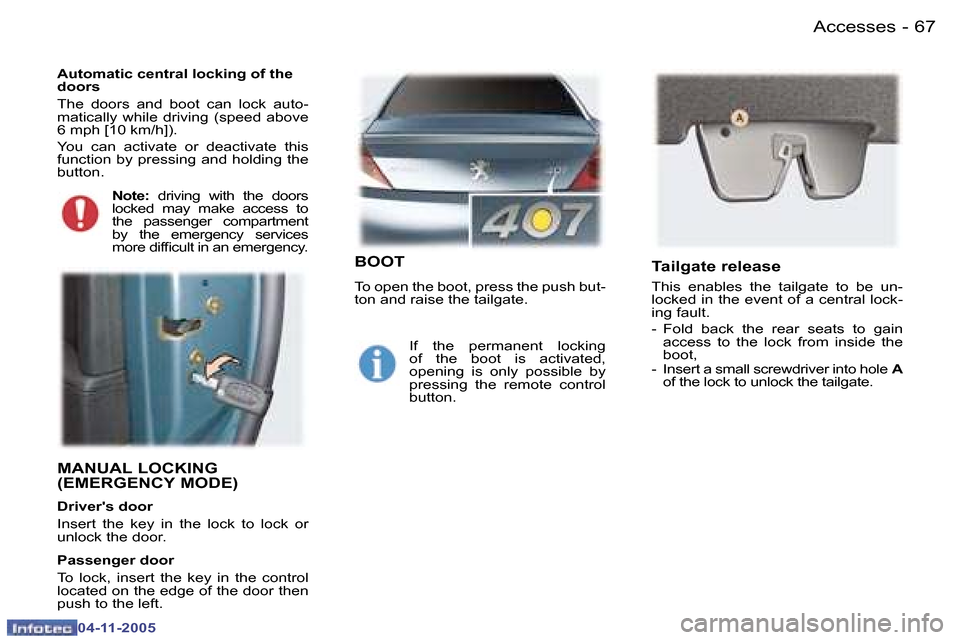

MANUAL LOCKING
(EMERGENCY MODE)
Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger door
To lock, insert the key in the control
located on the edge of the door then
push to the left.
Automatic central locking of the
doors
The doors and boot can lock auto-
matically while driving (speed above
6 mph [10 km/h]).
You can activate or deactivate this
function by pressing and holding the
button.
BOOT
To open the boot, press the push but-
ton and raise the tailgate. Tailgate release
This enables the tailgate to be un-
locked in the event of a central lock-
ing fault.
- Fold back the rear seats to gain
access to the lock from inside the
boot,
- Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Note:
driving with the doors
locked may make access to
the passenger compartment
by the emergency services
more dificult in an emergency.
If the permanent locking
of the boot is activated,
opening is only possible by
pressing the remote control
button.
Accesses

66 -
04-11-2005
67
-
04-11-2005
MANUAL LOCKING
(EMERGENCY MODE)
Driver's door
Insert the key in the lock to lock or
unlock the door.
Passenger door
To lock, insert the key in the control
located on the edge of the door then
push to the left.
Automatic central locking of the
doors
The doors and boot can lock auto-
matically while driving (speed above
6 mph [10 km/h]).
You can activate or deactivate this
function by pressing and holding the
button.
BOOT
To open the boot, press the push but-
ton and raise the tailgate. Tailgate release
This enables the tailgate to be un-
locked in the event of a central lock-
ing fault.
- Fold back the rear seats to gain
access to the lock from inside the
boot,
- Insert a small screwdriver into hole A
of the lock to unlock the tailgate.
Note:
driving with the doors
locked may make access to
the passenger compartment
by the emergency services
more dificult in an emergency.
If the permanent locking
of the boot is activated,
opening is only possible by
pressing the remote control
button.
Accesses

68 -
04-11-2005
69
-
04-11-2005

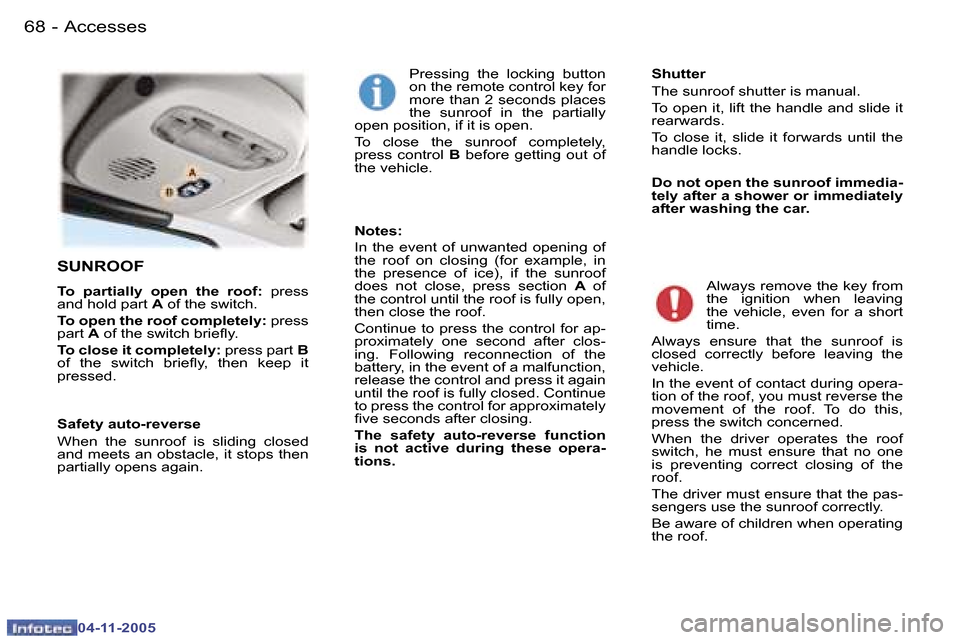

SUNROOF
To partially open the roof:
press
and hold part A of the switch.
To open the roof completely: press
part A of the switch briely.
To close it completely: press part B
of the switch briely, then keep it
pressed.
Safety auto-reverse
When the sunroof is sliding closed
and meets an obstacle, it stops then
partially opens again. Pressing the locking button
on the remote control key for
more than 2 seconds places
the sunroof in the partially
open position, if it is open.
To close the sunroof completely,
press control B before getting out of
the vehicle.
Always remove the key from
the ignition when leaving
the vehicle, even for a short
time.
Always ensure that the sunroof is
closed correctly before leaving the
vehicle.
In the event of contact during opera-
tion of the roof, you must reverse the
movement of the roof. To do this,
press the switch concerned.
When the driver operates the roof
switch, he must ensure that no one
is preventing correct closing of the
roof.
The driver must ensure that the pas-
sengers use the sunroof correctly.
Be aware of children when operating
the roof.
Notes:

In the event of unwanted opening of
the roof on closing (for example, in
the presence of ice), if the sunroof
does not close, press section A of
the control until the roof is fully open,
then close the roof.
Continue to press the control for ap-
proximately one second after clos-
ing. Following reconnection of the
battery, in the event of a malfunction,
release the control and press it again
until the roof is fully closed. Continue
to press the control for approximately
ive seconds after closing.
The safety auto-reverse function
is not active during these opera-
tions. Shutter
The sunroof shutter is manual.
To open it, lift the handle and slide it
rearwards.
To close it, slide it forwards until the
handle locks.
Do not open the sunroof immedia-
tely after a shower or immediately
after washing the car.
Accesses

68 -
04-11-2005
69
-
04-11-2005

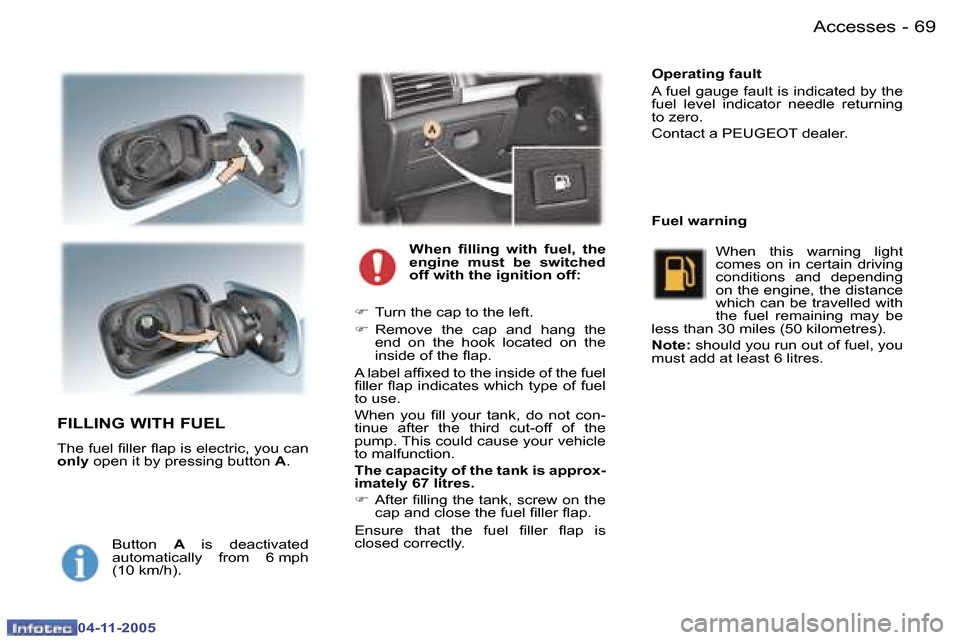

FILLING WITH FUEL
The fuel iller lap is electric, you can
only
open it by pressing button A.
Button A is deactivated
automatically from 6 mph
(10 km/h). When illing with fuel, the
engine must be switched
off with the ignition off:
Operating fault
A fuel gauge fault is indicated by the
fuel level indicator needle returning
to zero.
Contact a PEUGEOT dealer.
Fuel warning
F Turn the cap to the left.
F Remove the cap and hang the
end on the hook located on the
inside of the lap.
A label afixed to the inside of the fuel
iller lap indicates which type of fuel
to use.
When you ill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is approx-
imately 67 litres.
F After illing the tank, screw on the
cap and close the fuel iller lap.
Ensure that the fuel iller lap is
closed correctly. When this warning light
comes on in certain driving
conditions and depending
on the engine, the distance
which can be travelled with
the fuel remaining may be
less than 30 miles (50 kilometres).
Note: should you run out of fuel, you
must add at least 6 litres.
Accesses

70 -
04-11-2005
71
-
04-11-2005

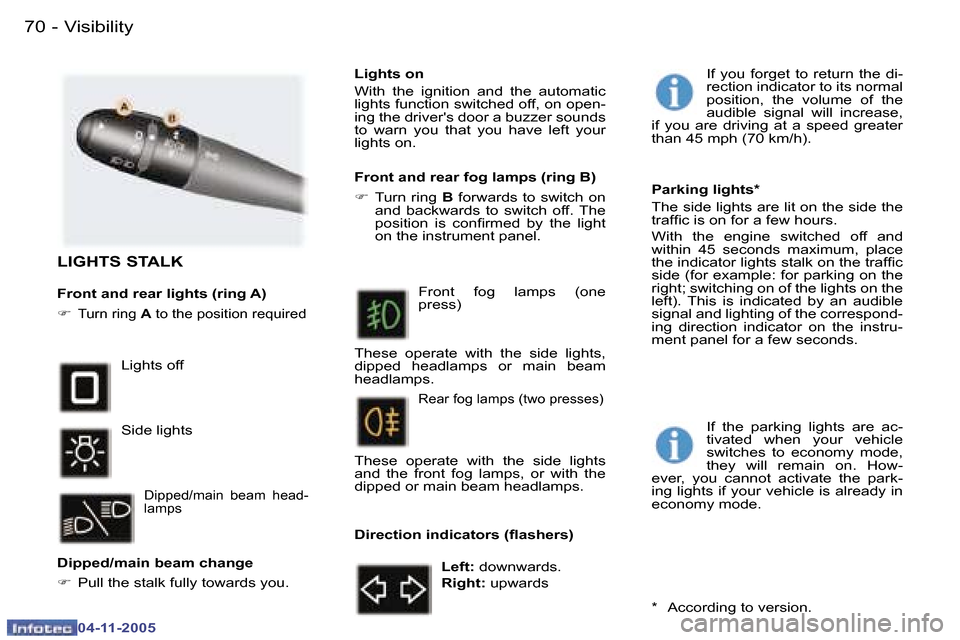

LIGHTS STALK
Front and rear lights (ring A)
F

Turn ring A to the position required
Lights off
Side lights
Dipped/main beam head-
lamps
Lights on
With the ignition and the automatic
lights function switched off, on open-
ing the driver's door a buzzer sounds
to warn you that you have left your
lights on.
Front and rear fog lamps (ring B)
F Turn ring B forwards to switch on
and backwards to switch off. The
position is conirmed by the light
on the instrument panel.
Front fog lamps (one
press)
These operate with the side lights,
dipped headlamps or main beam
headlamps.
Rear fog lamps (two presses)
These operate with the side lights
and the front fog lamps, or with the
dipped or main beam headlamps.
Left: downwards.
Right: upwards
Direction indicators (lashers) If you forget to return the di-
rection indicator to its normal
position, the volume of the
audible signal will increase,
if you are driving at a speed greater
than 45 mph (70 km/h).
Parking lights*
The side lights are lit on the side the
trafic is on for a few hours.
With the engine switched off and
within 45 seconds maximum, place
the indicator lights stalk on the trafic
side (for example: for parking on the
right; switching on of the lights on the
left). This is indicated by an audible
signal and lighting of the correspond-
ing direction indicator on the instru-
ment panel for a few seconds.
If the parking lights are ac-
tivated when your vehicle
switches to economy mode,
they will remain on. How-
ever, you cannot activate the park-
ing lights if your vehicle is already in
economy mode.
Dipped/main beam change
F Pull the stalk fully towards you.
* According to version.
Visibility

70 -
04-11-2005
71
-
04-11-2005
The timed duration must
also be set, via the multi-
function display
"Person-
alisation-Coniguration"
menu.
Automatic switching on of the
lights
Side lights and dipped beam head-
lamps switch on automatically if the
light is poor, or during operation of
the windscreen wipers. They switch
off as soon as the light becomes
bright enough or the windscreen wip-
ers stop.
To switch the function on
or off, use the multifunc-
tion display "Personali-
sation-Configuration"
menu.
Activation
Deactivation When this function is ac-
tivated, the indicator light
on the instrument panel
comes on.
When the function is deac-
tivated, the indicator light
on the instrument panel
comes on.
Cancellation:
F lash the headlamps,
F get out of the vehicle and lock it.
Manual "follow-me-home" lighting
If the automatic switching on of the
lights is not activated, the manual
"follow-me-home" lighting can be
activated.
When you leave your vehicle, the
side lights and dipped headlamps re-
main on for approximately 1 minute.
Activation:
F switch off the engine,
F lash the headlamps,
F get out of the vehicle and lock it.
Deactivation:
F lash the headlamps again,
F get out of the vehicle and lock it.
Automatic "follow-me-home"
lighting
When you leave your vehicle with

the automatic switching on of the
lights activated , the side lights and
dipped headlamps remain on for the
duration selected when the ignition is
switched off.
To activate or deactivate this func-
tion, pass via the multifunction display
"Personalisation-Configuration"
menu.
Note: in foggy weather, the
brightness sensor can detect
suficient light. As a conse-
quence, the lights will not
come on automatically.
This function is active when the vehi-
cle is supplied to the customer. If the brightness sensor does not
function correctly,
if the system is
activated, the dipped headlamps and
the side lights come on.
This indicator light comes on
on the instrument panel dis-
play, accompanied by an au-
dible signal and a message
on the multifunction display.
Contact a PEUGEOT dealer to have
the system checked.
Visibility
