2005.5 Peugeot 207 Dag Owner's Manual

3
!
ACCESSES
67

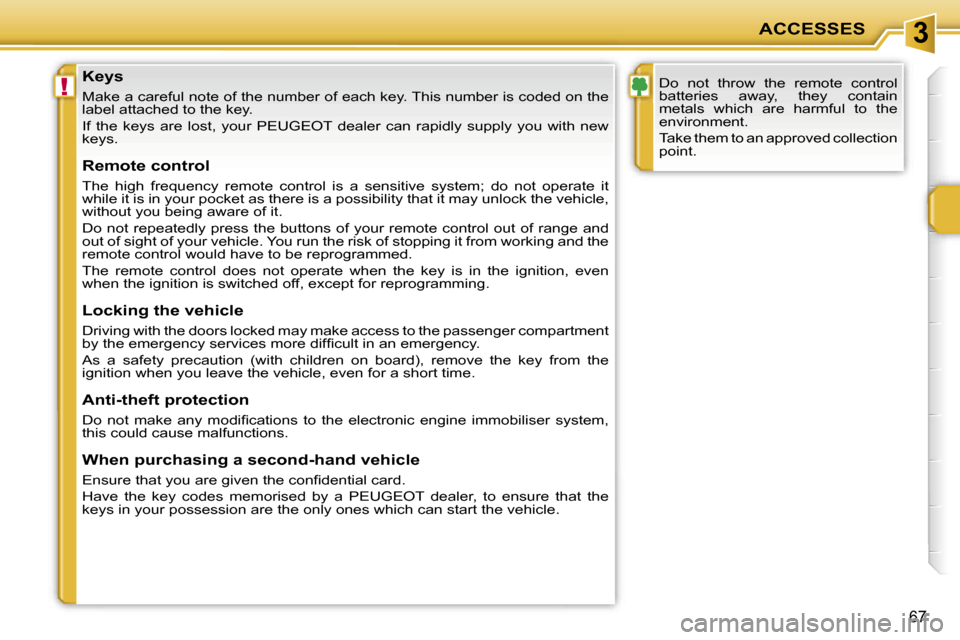

Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you wi th new
keys.
Remote control
The high frequency remote control is a sensitive system; do not op erate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reprogrammed.
The remote control does not operate when the key is in the i gnition, even
when the ignition is switched off, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartme nt
by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifications to the electronic engine immobilise r system,
this could cause malfunctions.
When purchasing a second-hand vehicle
Ensure that you are given the confidential card.
Have the key codes memorised by a PEUGEOT dealer, to ensure that t he
keys in your possession are the only ones which can start the vehicle .Do not throw the remote control
batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.

3
!i
ACCESSES
65

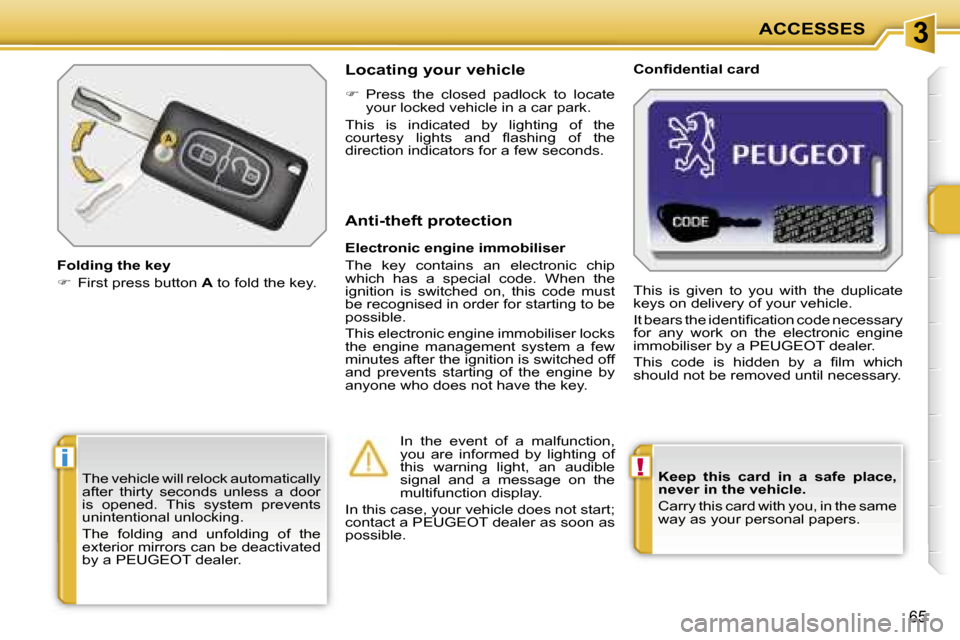

Keep this card in a safe place,
never in the vehicle.
Carry this card with you, in the same
way as your personal papers.
The vehicle will relock automatically
after thirty seconds unless a door
is opened. This system prevents
unintentional unlocking.
The folding and unfolding of the
exterior mirrors can be deactivated
by a PEUGEOT dealer.
Folding the key

First press button A to fold the key.
Locating your vehicleConfidential card
 Press the closed padlock to locate
your locked vehicle in a car park.
This is indicated by lighting of the
courtesy lights and flashing of the
direction indicators for a few seconds.
Electronic engine immobiliser
The key contains an electronic chip
which has a special code. When the
ignition is switched on, this code must
be recognised in order for starting to be
possible.
This electronic engine immobiliser locks
the engine management system a few
minutes after the ignition is switched off
and prevents starting of the engine by
anyone who does not have the key.
Anti-theft protection
This is given to you with the duplicate
keys on delivery of your vehicle.
It bears the identification code necessary
for any work on the electronic engine
immobiliser by a PEUGEOT dealer.
This code is hidden by a film which
should not be removed until necessary.
In the event of a malfunction,
you are informed by lighting of
this warning light, an audible
signal and a message on the
multifunction display.
In this case, your vehicle does not start;
contact a PEUGEOT dealer as soon as
possible.

3
i
ACCESSES
66

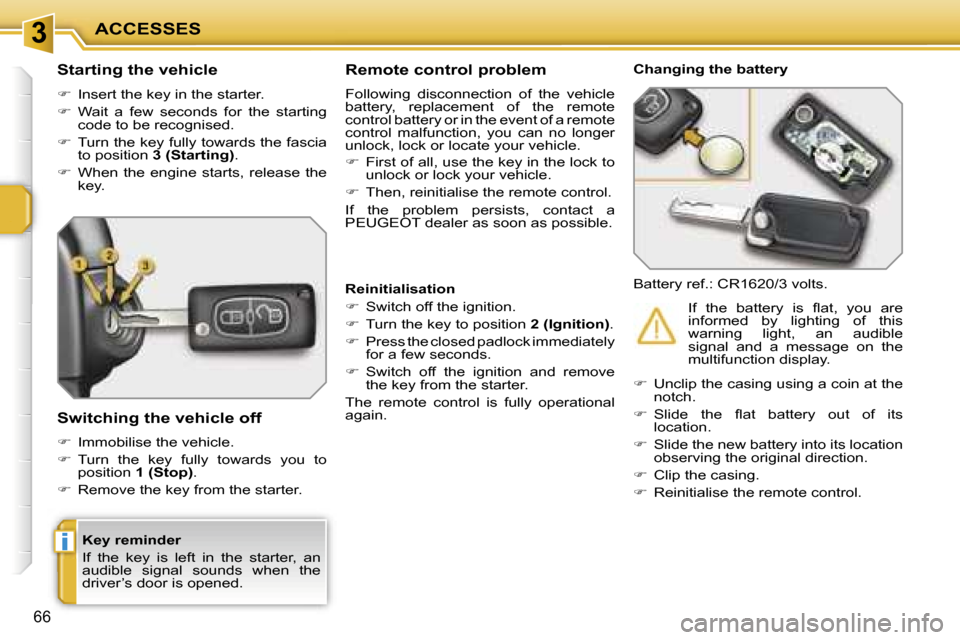

Key reminder
If the key is left in the starter, an
audible signal sounds when the
driver’s door is opened.
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting
code to be recognised.
 Turn the key fully towards the fascia
to position 3 (Starting) .
 When the engine starts, release the
key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to
position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
 First of all, use the key in the lock to
unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immediately
for a few seconds.
 Switch off the ignition and remove
the key from the starter.
The remote control is fully operational
again. 
Unclip the casing using a coin at the
notch.
 Slide the flat battery out of its
location.
 Slide the new battery into its location
observing the original direction.
 Clip the casing.
 Reinitialise the remote control. If the battery is flat, you are
informed by lighting of this
warning light, an audible
signal and a message on the
multifunction display.

3
!
ACCESSES
67
Keys
Make a careful note of the number of each key. This number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT dealer can rapidly supply you wi th new
keys.
Remote control
The high frequency remote control is a sensitive system; do not op erate it
while it is in your pocket as there is a possibility that it ma y unlock the vehicle,
without you being aware of it.
Do not repeatedly press the buttons of your remote control out of range and
out of sight of your vehicle. You run the risk of stopping it from working and the
remote control would have to be reprogrammed.
The remote control does not operate when the key is in the i gnition, even
when the ignition is switched off, except for reprogramming.
Locking the vehicle
Driving with the doors locked may make access to the passenger compartme nt
by the emergency services more difficult in an emergency.
As a safety precaution (with children on board), remove the key from the
ignition when you leave the vehicle, even for a short time.
Anti-theft protection
Do not make any modifications to the electronic engine immobilise r system,
this could cause malfunctions.
When purchasing a second-hand vehicle
Ensure that you are given the confidential card.
Have the key codes memorised by a PEUGEOT dealer, to ensure that t he
keys in your possession are the only ones which can start the vehicle .Do not throw the remote control
batteries away, they contain
metals which are harmful to the
environment.
Take them to an approved collection
point.

3
i
ACCESSES
66
Key reminder
If the key is left in the starter, an
audible signal sounds when the
driver’s door is opened.
Starting the vehicle
 Insert the key in the starter.
 Wait a few seconds for the starting
code to be recognised.
 Turn the key fully towards the fascia
to position 3 (Starting) .
 When the engine starts, release the
key.
Switching the vehicle off
 Immobilise the vehicle.
 Turn the key fully towards you to
position 1 (Stop).
 Remove the key from the starter.
Remote control problem
Following disconnection of the vehicle
battery, replacement of the remote
control battery or in the event of a remote
control malfunction, you can no longer
unlock, lock or locate your vehicle.
 First of all, use the key in the lock to
unlock or lock your vehicle.
 Then, reinitialise the remote control.
If the problem persists, contact a
PEUGEOT dealer as soon as possible. Changing the battery
Battery ref.: CR1620/3 volts.
Reinitialisation
 Switch off the ignition.
 Turn the key to position 2 (Ignition).
 Press the closed padlock immediately
for a few seconds.
 Switch off the ignition and remove
the key from the starter.
The remote control is fully operational
again. 
Unclip the casing using a coin at the
notch.
 Slide the flat battery out of its
location.
 Slide the new battery into its location
observing the original direction.
 Clip the casing.
 Reinitialise the remote control. If the battery is flat, you are
informed by lighting of this
warning light, an audible
signal and a message on the
multifunction display.

3
!
i
ACCESSES
68
ALARM
System which protects and dissuades
against the theft of your vehicle. It
provides two types of protection, exterior
and interior, as well as an anti-tamper
function.
Locking the vehicle with full
alarm
Do not make any modifications to
the alarm system, this could cause
malfunctions.In order to be taken into account,
this deactivation must be carried
out each time the ignition is
switched off.
Reactivation of the interior
protection
 Unlock the vehicle using the unlocking
button on the remote control.
The alarm is activated again with both
types of protection; the indicator light on
button A switches off.
Locking the vehicle with exterior
protection alarm only
Deactivation of the interior
protection
 Switch off the ignition.
 Within ten seconds, press button
A until the indicator light is lit
continuously.
 Get out of the vehicle.
 Lock or deadlock the vehicle using
the locking button on the remote
control.
The exterior protection alarm alone
remains activated; the indicator light on
button A flashes once per second.
Activation
 Switch off the ignition and get out of
the vehicle.
 Lock or deadlock the vehicle using
the locking button on the remote
control.
The alarm is activated; the indicator light
on button A flashes once per second.
Exterior protection
The system detects opening of the
vehicle.
The alarm is triggered if anyone tries to
enter the vehicle by forcing a door, the
boot or the bonnet.
Interior protection
The system detects any variation in the
volume in the passenger compartment.
The alarm is triggered if anyone breaks
a window or moves inside the vehicle.
If you wish to leave a pet in the vehicle
or a window partially open, deactivate
the interior protection.
Anti-tamper function
The system detects the putting out of
service of its components.
The alarm is triggered if anyone tries
to put the wires of the siren, the central
control or the battery out of service. Deactivation

Unlock the vehicle using the unlocking
button on the remote control.
The alarm is deactivated; the indicator
light on button A switches off.

3
!
ACCESSES
69

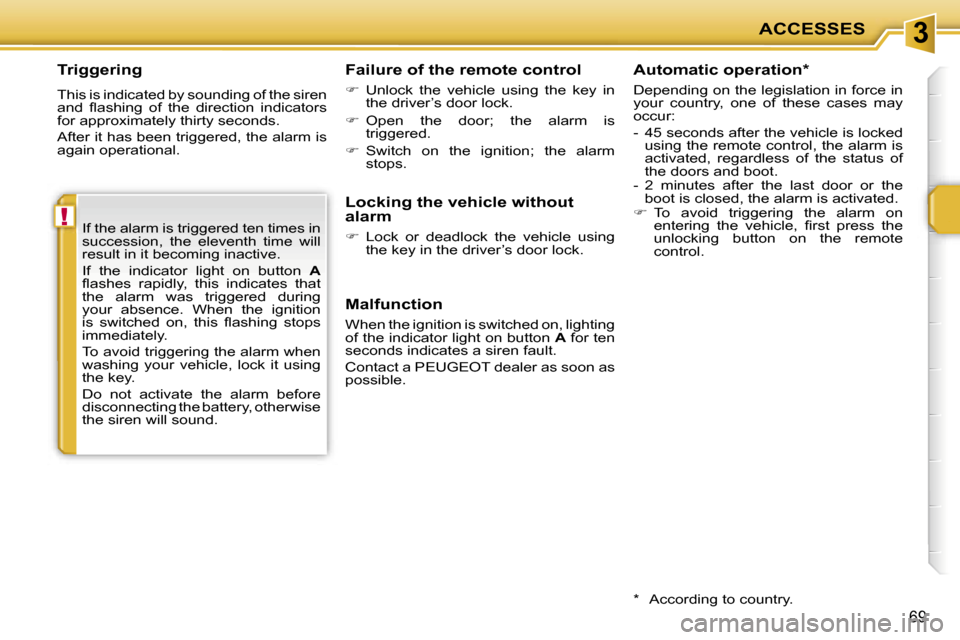

Triggering
This is indicated by sounding of the siren
and flashing of the direction indicators
for approximately thirty seconds.
After it has been triggered, the alarm is
again operational.If the alarm is triggered ten times in
succession, the eleventh time will
result in it becoming inactive.
If the indicator light on button A
flashes rapidly, this indicates that
the alarm was triggered during
your absence. When the ignition
is switched on, this flashing stops
immediately.
To avoid triggering the alarm when
washing your vehicle, lock it using
the key.
Do not activate the alarm before
disconnecting the battery, otherwise
the siren will sound.
Failure of the remote control
 Unlock the vehicle using the key in
the driver’s door lock.
 Open the door; the alarm is
triggered.
 Switch on the ignition; the alarm
stops.
* According to country.
Malfunction
When the ignition is switched on, lighting
of the indicator light on button A for ten
seconds indicates a siren fault.
Contact a PEUGEOT dealer as soon as
possible.
Locking the vehicle without
alarm
 Lock or deadlock the vehicle using
the key in the driver’s door lock.
Automatic operation*
Depending on the legislation in force in
your country, one of these cases may
occur:
- 45 seconds after the vehicle is locked using the remote control, the alarm is
activated, regardless of the status of
the doors and boot.
- 2 minutes after the last door or the boot is closed, the alarm is activated.
 To avoid triggering the alarm on
entering the vehicle, first press the
unlocking button on the remote
control.

3
i
i
ACCESSES
70
The electric window controls remain
operational for approximately
45 seconds after the ignition is
switched off or until a front door is
opened.

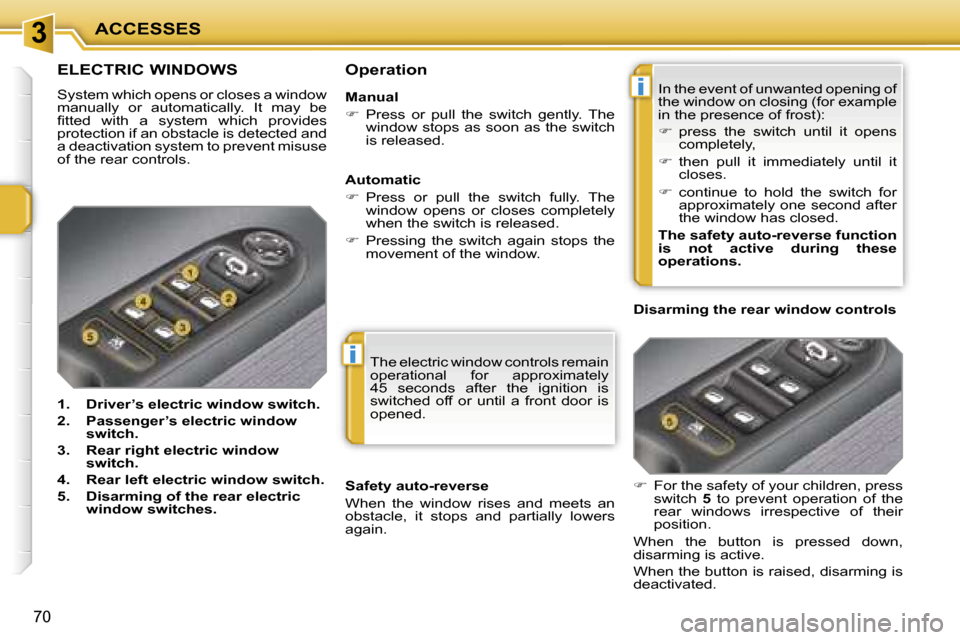

ELECTRIC WINDOWS
System which opens or closes a window
manually or automatically. It may be
fitted with a system which provides
protection if an obstacle is detected and
a deactivation system to prevent misuse
of the rear controls.
1. Driver’s electric window switch.
2. Passenger’s electric window
switch.
3. Rear right electric window
switch.
4. Rear left electric window switch.
5. Disarming of the rear electric window switches.
Operation
Manual
 Press or pull the switch gently. The
window stops as soon as the switch
is released. In the event of unwanted opening of
the window on closing (for example
in the presence of frost):

press the switch until it opens
completely,
 then pull it immediately until it
closes.
 continue to hold the switch for
approximately one second after
the window has closed.
The safety auto-reverse function
is not active during these
operations.
Safety auto-reverse
When the window rises and meets an
obstacle, it stops and partially lowers
again. Disarming the rear window controls

For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
When the button is pressed down,
disarming is active.
When the button is raised, disarming is
deactivated.
Automatic

Press or pull the switch fully. The
window opens or closes completely
when the switch is released.
 Pressing the switch again stops the
movement of the window.
