2005.5 PEUGEOT 206 Owners Manual

Familiarisation6 -
01-10-2005
7Familiarisation-
01-10-2005
Precautions regarding the
passenger air bag
For a vehicle itted with a disarming
switch :
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without releasing
the key, until the engine turns.
Starting a diesel engine
Do not press the
accelerator.
Turn the key to the
"Running" position.
If the engine is warm enough, the
pre-heat light does not come on and
you can start immediately.
If the pre-heat light comes on, wait
for it to go out before operating the
starter.
If the engine stalls, it is necessary to
return the key to the "STOP" position
before restarting.
Never race a cold engine.
Never run the engine in a
conined space.
Do not make any modiications to the
steering lock. Operating check
With the ignition on (2
nd notch
of the ignition), illumination
of this warning light,
accompanied by a message on the
multifunction display, indicates that
the passenger air bag is disarmed
(switch in the "OFF" position).
The warning light remains on
throughout the period of disarming.
FRONT AIR BAGS
Disarming the passenger air bag*
Insert the ignition key into switch 1
and turn it to:
- the ON position; the passenger air
bag is armed.
- the OFF position; the passenger air
bag is disarmed.
- disarm the air bag if you install
a rear-facing child
seat,
- arm the air bag for an adult passen-
ger.
For a vehicle not itted with a
disarming switch: - do not install a rear-facing child seat on
the front passenger
seat.
In no circumstances should you
place your feet or any other object
on the fascia.
* According to country.
: 130

Familiarisation8 -
01-10-2005
9Familiarisation-
01-10-2005
ELECTRIC WINDOWS
: 115
2. Passenger’s electric window.
3. Rear left electric window
4. Rear right electric window.
ELECTRIC MIRRORS
Turn knob 5 to the right or to the left
to select the corresponding mirror.
Move knob 5 in all four directions to
adjust.
: 116
1. Driver’s electric window
Manual operation : press or pull the
switch lightly. The window stops as
soon as the switch is released.
Automatic operation : press or
pull the switch irmly. One touch
completely opens or closes the
window.
Automatic opening and closing only
operate when the engine is running. Electric folding mirrors*
With the ignition on, turn knob
5 to
position A.

Familiarisation8 -
01-10-2005
9Familiarisation-
01-10-2005
DOORS
The boot and the rear screen cannot be opened simultaneously.
With the rear screen closed, to open the boot , pull the handle A and lift.
Front doors
Rear doors (206 SW)
LOCKING / UNLOCKING THE BOOT AND THE REAR SCREEN
(206 SW)
With the boot closed, to open the
rear screen
, press and hold the
unlocking button on the remote
control or pull the handle B, then lift
the rear screen using the windscreen
wiper arm (at C).
The lighting is switched on by
opening the boot or the rear
screen.
Note: Close the rear screen using
the windscreen wiper arm C or by
pressing the centre of the
window.
: 103
: 105

Familiarisation12 -
01-10-2005
13Familiarisation-
01-10-2005
"PORSCHE TIPTRONIC
SYSTEM" AUTOMATIC
GEARBOX
The four-speed automatic gearbox
offers the choice between the comfort
of fully automatic gear changing ,
enhanced by a sport programme
and a snow programme, or manual
gear changing .
STEERING WHEEL HEIGHT
ADJUSTMENT
When stationary, lower the handle to
unlock the steering wheel.
Adjust to the desired height and
lift the handle to lock the steering
wheel.
OPENING THE BONNET
From inside the vehicle: pull the
handle.
From the outside: lift the catch and
raise the bonnet. Secure the strut to
hold the bonnet open.
: 125
:
107
Position selection grid
F Move the lever in the grid to select
a position.
The indicator light for the position selected comes on on the
instrument panel display.

Familiarisation14 -
01-10-2005
15Familiarisation-
01-10-2005
HEATING / AIR
CONDITIONING
N° Symbol Function1 Setting the air
distribution.
2 Air intake control.
3 Temperature
adjustment.
4 Demisting the rear
screen and mirrors.
5 Air low adjustment.
6 Air conditioning
control.
:
83
: 84

Familiarisation16 -
01-10-2005

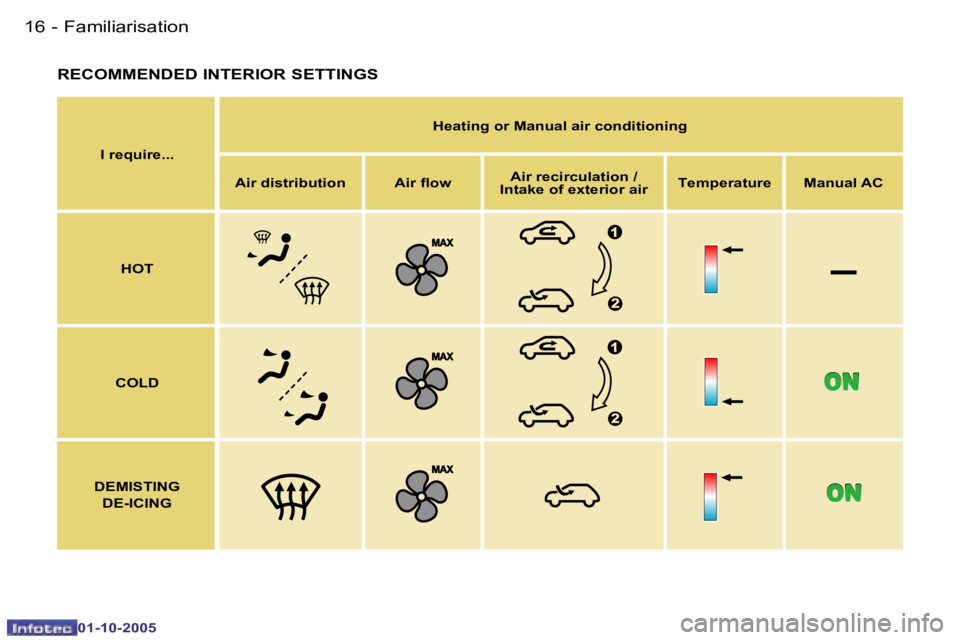

RECOMMENDED INTERIOR SETTINGS
I require...Heating or Manual air conditioning
Air distribution Air low Air recirculation /
Intake of exterior air Temperature Manual AC
HOT
–
COLD
DEMISTING DE-ICING

Familiarisation14 -
01-10-2005
15Familiarisation-
01-10-2005
AUTOMATIC AIR CONDITIONING
N° Symbol Function1 Air low adjustment.
2 Setting the air
distribution.
3 Air intake control.
4 Air conditioning
control.
5 Demisting the rear
screen and mirrors.
6 Switching off.
7 Temperature
adjustment.
8 Automatic comfort
programme.
9 Automatic visibility
programme.
:
86

Familiarisation16 -
01-10-2005
RECOMMENDED INTERIOR SETTINGS
I require...Heating or Manual air conditioning
Air distribution Air low Air recirculation /
Intake of exterior air Temperature Manual AC
HOT
–
COLD
DEMISTING DE-ICING
