2005.5 Peugeot 1007 Dag Owner's Manual

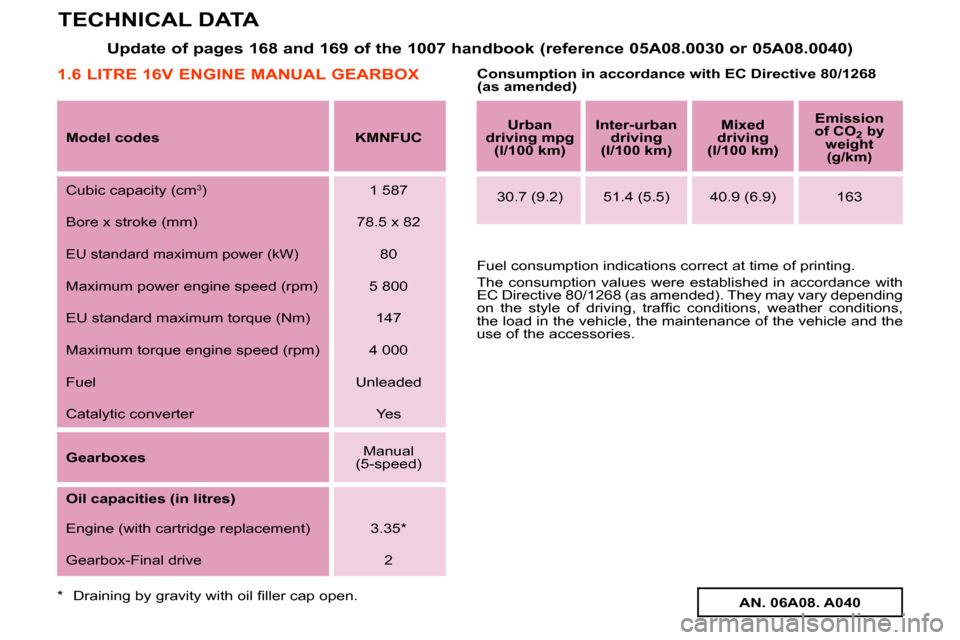

Update of pages 168 and 169 of the 1007 handbook (reference 05A08.0030 or 05A08.0040)
Model codes KMNFUC
Cubic capacity (cm
3) 1 587
Bore x stroke (mm) 78.5 x 82
EU standard maximum power (kW)80
Maximum power engine speed (rpm) 5 800
EU standard maximum torque (Nm) 147
Maximum torque engine speed (rpm) 4 000
Fuel Unleaded
Catalytic converter Yes
Gearboxes Manual
(5-speed)
Oil capacities (in litres)
Engine (with cartridge replacement) 3.35*
Gearbox-Final drive 2
* Draining by gravity with oil filler cap open. Fuel consumption indications correct at time of printing.
The consumption values were established in accordance with
EC Directive 80/1268 (as amended). They may vary depending
on the style of driving, traffic conditions, weather conditions,
the load in the vehicle, the maintenance of the vehicle a
nd the
use of the accessories. Consumption in accordance with EC Directive 80/1268
(as amended)
Urban
driving mpg (l/100 km) Inter-urban
driving
(l/100 km) Mixed
driving
(l/100 km) Emission
of
CO2 by
weight (g/km)
30.7 (9.2) 51.4 (5.5) 40.9 (6.9) 163
AN. 06A08. A040
CETTE PAGE ANNULE ET REMPLACE LA PAGE 170
1.6 LITRE 16V ENGINE MANUAL GEARBOX
TECHNICAL DATA

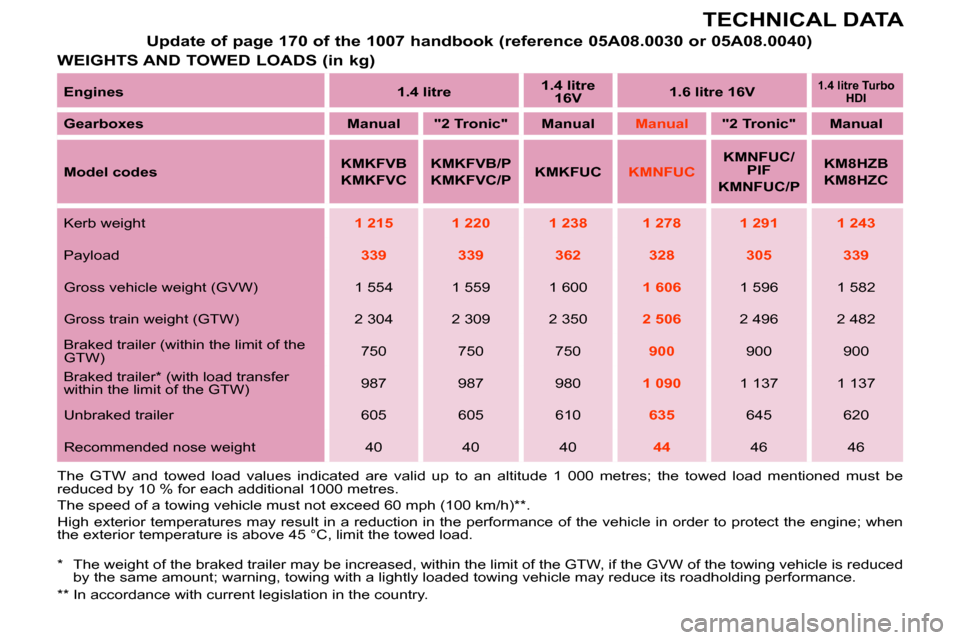

Update of page 170 of the 1007 handbook (reference 05A08.0030 or 05A08.0040)
Engines1.4 litre1.4 litre
16V 1.6 litre 16V1.4 litre Turbo
HDI
Gearboxes Manual "2 Tronic" ManualManual"2 Tronic" Manual
Model codes KMKFVB
KMKFVCKMKFVB/P
KMKFVC/P
KMKFUC
KMNFUCKMNFUC/
PIF
KMNFUC/P KM8HZB
KM8HZC
Kerb weight
1 215 1 220 1 238 1 278 1 291 1 243
Payload339 339 362 328 305 339
Gross vehicle weight (GVW) 1 554 1 559 1 6001 6061 596 1 582
Gross train weight (GTW) 2 304 2 309 2 350
2 5062 496 2 482
Braked trailer (within the limit of the
GTW) 750 750 750
900900 900
Braked trailer* (with load transfer
within the limit of the GTW) 987 987 980
1 0901 137 1 137
Unbraked trailer 605 605 610
635645 620
Recommended nose weight 40 40 40
4446 46
WEIGHTS AND TOWED LOADS (in kg)
The GTW and towed load values indicated are valid up to an altitude 1 000 metres; the towed load mentioned must b e
reduced by 10 % for each additional 1000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h )**.
High exterior temperatures may result in a reduction in the perfo rmance of the vehicle in order to protect the engine; when
the exterior temperature is above 45 °C, limit the towed loa d.
* The weight of the braked trailer may be increased, within the limit of the GTW, if the GVW of the towing vehicle is reduced
by the same amount; warning, towing with a lightly loaded towing vehicle may reduce its roadholding performance.
** In accordance with current legislation in the country.
TECHNICAL DATA
