2004 YAMAHA WOLVERINE 400 engine coolant

8-49 1. Coolant drain bolt
1. Boulon de vidange du liquide de refroidissement
1. Perno de drenaje de refrigerante
1. Trough
1. Feuille de papier repliée en forme de conduit
1. Elemento de paso
EBU13221
Changing the coolant
WARNING
_ Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always put a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap. _1. Place the ATV on a level surface.
2. Remove panels E and F. (See pages 8-25–
8-27 for panel removal and installation proce-
dures.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent cool-
ant from spilling on the footrest.)
4. Remove the front carrier and panel C. (See
pages 8-23 and 8-25 for panel removal and
installation procedures.)
U5VH61.book Page 49 Friday, May 2, 2003 2:19 PM

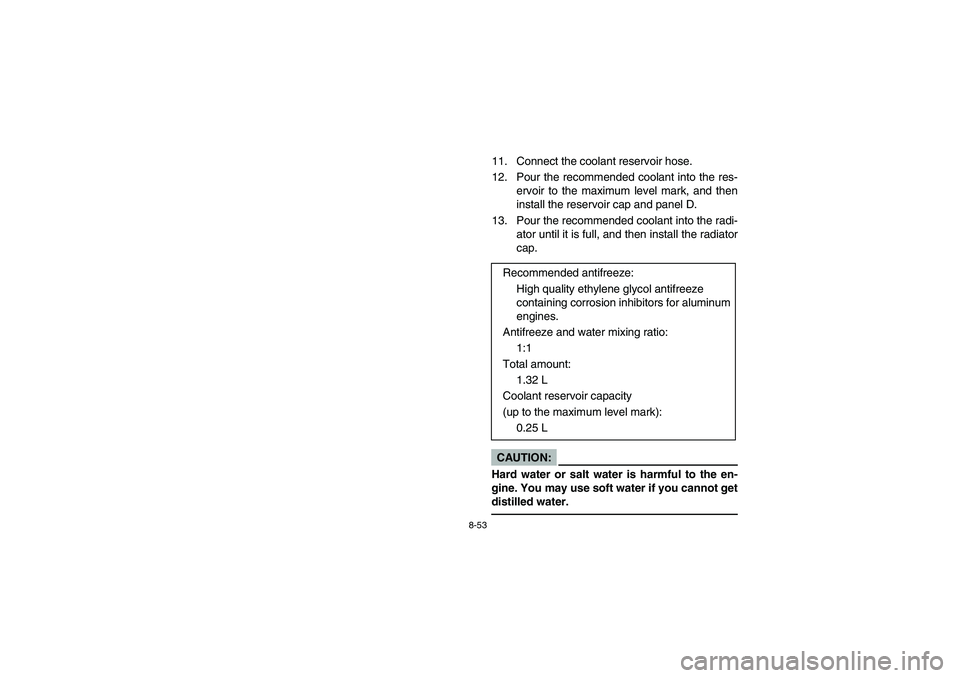

8-53
11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the res-
ervoir to the maximum level mark, and then
install the reservoir cap and panel D.
13. Pour the recommended coolant into the radi-
ator until it is full, and then install the radiator
cap.CAUTION:_ Hard water or salt water is harmful to the en-
gine. You may use soft water if you cannot get
distilled water. _
Recommended antifreeze:
High quality ethylene glycol antifreeze
containing corrosion inhibitors for aluminum
engines.
Antifreeze and water mixing ratio:
1:1
Total amount:
1.32 L
Coolant reservoir capacity
(up to the maximum level mark):
0.25 L
U5VH61.book Page 53 Friday, May 2, 2003 2:19 PM

8-55
14. Start the engine and let it idle for several min-
utes. Stop the engine, and then check the
coolant level in the radiator. If it is low, add
more coolant until it reaches the top of the ra-
diator.
15. Check for coolant leakage.NOTE:_ If any leakage is found, ask a Yamaha dealer to in-
spect the cooling system. _16. Install the panels and the front carrier.
U5VH61.book Page 55 Friday, May 2, 2003 2:19 PM

8-126
Engine overheatingNOTE:If it is difficult to get the recommended coolant, tap water can be temporarily used, provided that it is
changed to the recommended coolant as soon as possible.
WARNING
Wait for the engine and radiator to cool before removing the radiator cap. You could be burned by
hot fluid and steam blown out under pressure. Always put a thick rag over the cap when opening.
Allow any remaining pressure to escape before completely removing the cap. Wait until the
engine has cooled.
Check the coolant level in the
coolant reservoir and/or radiator.
Level is OK.Level is low, check the
cooling system for leakage.
No
leakage.Leakage.
Ask a Yamaha dealer to inspect
and repair the cooling system.Add coolant. (See NOTE.)
Restart the engine. If the engine overheats again, ask a
Yamaha dealer to inspect and/or repair the cooling system.
