2004 YAMAHA TZR50 key

EAU10150
Particularly important information is distinguished in this manual by the following notations:
IMPORTANT MANUAL INFORMATION
CAUTION A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
NOTE:A NOTE provides key information to make procedures easier or clearer.
NOTE:
This manual should be considered a permanent part of this motorcycle and should remain with it even if the
motorcycle is subsequently sold.
Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the
most current product information available at the time of printing, there may be minor discrepancies between your
motorcycle and this manual. If you have any questions concerning this manual, please consult your Yamaha dea-
ler.
s s
WARNINGFailure to follow WARNING instructions could result in severe injury or death to the
motorcycle operator, a bystander, or a person inspecting or repairing the motorcy-
cle.
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!t
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 4

CONSUMER INFORMATION.............9-1
Identification numbers ......................9-1
Frame serial number .........................9-1
Key identification number .................9-1
Model label .......................................9-2
TABLE OF CONTENTS
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 8

• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerody-
namic effects. Wind may
attempt to lift the motorcycle,
or the motorcycle may become
unstable in cross winds. These
accessories may also cause
instability when passing or
being passed by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such
accessories are not recom-
mended.Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the motorcycle’s electrical sys-
tem, an electric failure could
result, which could cause a dan-
gerous loss of lights or engine
power.
Gasoline and exhaust gas
GASOLINE IS HIGHLY FLAMMA-
BLE:
• Always turn the engine off
when refueling.
• Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
• Never refuel while smoking or
in the vicinity of an open flame.
Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within
a short time. Always operate your
motorcycle in an area that has
adequate ventilation.
Always turn the engine off before
leaving the motorcycle unatten-
ded and remove the key from the
main switch. When parking the
motorcycle, note the following:
• The engine and exhaust sys-
tem may be hot, therefore,
park the motorcycle in a place
where pedestrians or children
are not likely to touch these hot
areas.
• Do not park the motorcycle on
a slope or soft ground, other-
wise it may fall over.
• Do not park the motorcycle
near a flammable source (e.g. a
kerosene heater, or near an
open flame), otherwise it could
catch fire.
When transporting the motorcy-
cle in another vehicle, make sure
that it is kept upright and that the
fuel cock is turned to “ON” or
“RES” (for vacuum type) / “OFF”
(for manual type). If it should lean
over, gasoline may leak out of the
carburetor or fuel tank.
1
tSAFETY INFORMATION
1-4
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 12

EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
NOTE:
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10670
“f”
The 2-stroke engine oil level warning
light should come on. (See page 3-2.)
EAUM1020
“f”
The coolant temperature warning light
should come on when the key is tur-
ned to “
f”. (See page 3-2.)
EAU10680
LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.
T
o lock the steering
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.T
o unlock the steering
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU10980
Indicator lights
1. Turn signal indicator light “b”
2. Neutral indicator light “N”
3. Oil level warning light “z”
4. Coolant temperature warning light “y”
3
INSTRUMENT AND CONTROL FUNCTIONS
3-1
2 3
41
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 17

EAU11020
Turn signal indicator light “b”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.
EAU11060
Neutral indicator light “N”
This indicator light comes on when
the transmission is in the neutral posi-
tion.
EAU11120
Oil level warning light “z”
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
NOTE:
Even if the oil level is sufficient, the
warning light may flicker when riding
on a slope or during sudden accelera-
tion or deceleration, but this is not a
malfunction.
EAU11440
Coolant temperature warning light
“y”
This warning light comes on when the
engine overheats. When this occurs,
stop the engine immediately and
allow the engine to cool.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
ECA10020
CAUTION
Do not operate the engine if it is
overheated.
EAU11620
Speedometer unit
1. Speedometer/Odometer
The speedometer unit is equipped
with a speedometer and an odometer.
The speedometer shows riding spe-
ed. The odometer shows the total dis-
tance traveled.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-2
1
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 18

EAU12941
Brake pedal
1. Brake pedal
The brake pedal is on the right side of
the motorcycle. To apply the rear bra-
ke, press down on the brake pedal.
EAU13000
Fuel tank cap
1. Key over
2. Open
To remove the fuel tank cap
Insert the key into the lock and turn it
1/4 turn clockwise. The lock will be
released and the fuel tank cap can be
removed.
To install the fuel tank cap
1. Push the fuel tank cap into posi-
tion with the key inserted in the
lock.
2. Turn the key counterclockwise to
the original position, and then
remove it.
NOTE:
The fuel tank cap cannot be installed
unless the key is in the lock. In addi-
tion, the key cannot be removed if the
cap is not properly installed and loc-
ked.
EWA11140
s s
WARNING
Make sure that the fuel tank cap is
properly installed before riding.
1. Filling tube
2. Fuel level
EAU13270
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark plug
life and reduce maintenance costs.
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
13,8 L (3.03 Imp.gal)
Fuel reserve amount:
2,2 L (0.48 Imp.gal)
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
1
1 22
1
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 21

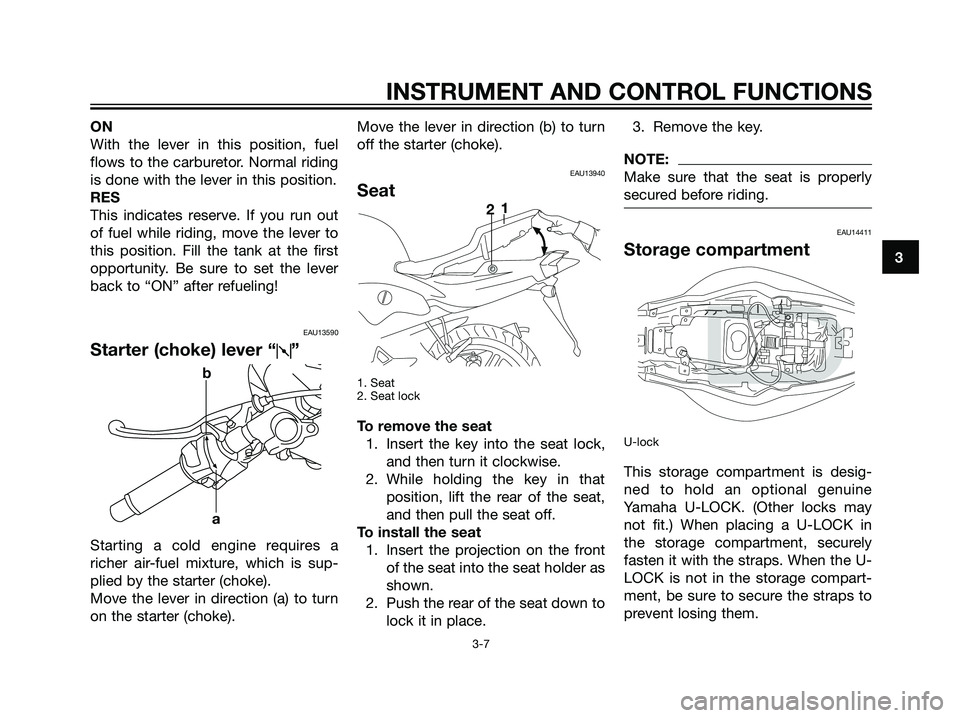

ON
With the lever in this position, fuel
flows to the carburetor. Normal riding
is done with the lever in this position.
RES
This indicates reserve. If you run out
of fuel while riding, move the lever to
this position. Fill the tank at the first
opportunity. Be sure to set the lever
back to “ON” after refueling!
EAU13590
Starter (choke) lever “q q”
Starting a cold engine requires a
richer air-fuel mixture, which is sup-
plied by the starter (choke).
Move the lever in direction (a) to turn
on the starter (choke).Move the lever in direction (b) to turn
off the starter (choke).
EAU13940
Seat
1. Seat
2. Seat lock
To remove the seat
1. Insert the key into the seat lock,
and then turn it clockwise.
2. While holding the key in that
position, lift the rear of the seat,
and then pull the seat off.
To install the seat
1. Insert the projection on the front
of the seat into the seat holder as
shown.
2. Push the rear of the seat down to
lock it in place.3. Remove the key.
NOTE:
Make sure that the seat is properly
secured before riding.
EAU14411
Storage compartment
U-lock
This storage compartment is desig-
ned to hold an optional genuine
Yamaha U-LOCK. (Other locks may
not fit.) When placing a U-LOCK in
the storage compartment, securely
fasten it with the straps. When the U-
LOCK is not in the storage compart-
ment, be sure to secure the straps to
prevent losing them.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-7
b
a
1
2
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 23

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
With the engine turned off:
1. Move the sidestand down.
2. Make sure that the engine stop switch is turned on.
3. Turn the key on.
4. Shift the transmission into the neutral position.
5. Push the start switch.
Does the engine start?
With the engine still running:
6. Move the sidestand up.
7. Keep the clutch lever pulled.
8. Shift the transmission into gear.
9. Move the sidestand down.
Does the engine stall?
After the engine has stalled:
10. Move the sidestand up.
11. Keep the clutch lever pulled.
12. Push the start switch.
Does the engine start?
The system is OK. The motorcycle can be ridden.
This check is most reliable if performed with
a warmed-up engine.
The neutral switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The sidestand switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
The clutch switch may be defective.
The motorcycle should not be ridden until
checked by a Yamaha dealer.
YES NO YES NO YES NONOTE:
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 25
