2004 YAMAHA TZR50 key

EAU16000
Starting a cold engine
In order for the ignition circuit cut-off
system to enable starting, one of the
following conditions must be met:
The transmission is in the neutral
position.
The transmission is in gear with
the clutch lever pulled and the
sidestand up.
EWA10290
s s
WARNING
Before starting the engine,
check the function of the igni-
tion circuit cut-off system
according to the procedure
described on page 3-9.
Never ride with the sidestand
down.
1. Turn the fuel cock lever to “ON”.
2. Turn the key to “ON” and make
sure that the engine stop switch
is set to “f”.
3. Shift the transmission into the
neutral position.
NOTE:
When the transmission is in the neu-
tral position, the neutral indicator light
should be on, otherwise have a
Yamaha dealer check the electrical
circuit.
4. Turn the starter (choke) on and
completely close the throttle.
(See page 3-7.)
5. Start the engine by pushing the
start switch.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
ECA11160
CAUTION
If the oil level warning light flickers
or remains on after starting, imme-
diately stop the engine, and then
check the engine oil level and the
vehicle for oil leakage. If necessary,
add engine oil, and then check thewarning light again. If the warning
light does not go off after starting
with sufficient engine oil, have a
Yamaha dealer check the electrical
circuit.
6. After starting the engine, move
the starter (choke) back halfway.
ECA11040
CAUTION
For maximum engine life, never
accelerate hard when the engine is
cold!
7. When the engine is warm, turn
the starter (choke) off.
NOTE:
The engine is warm when it responds
normally to the throttle with the starter
(choke) turned off.
5
OPERATION AND IMPORTANT RIDING POINTS
5-1
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 30

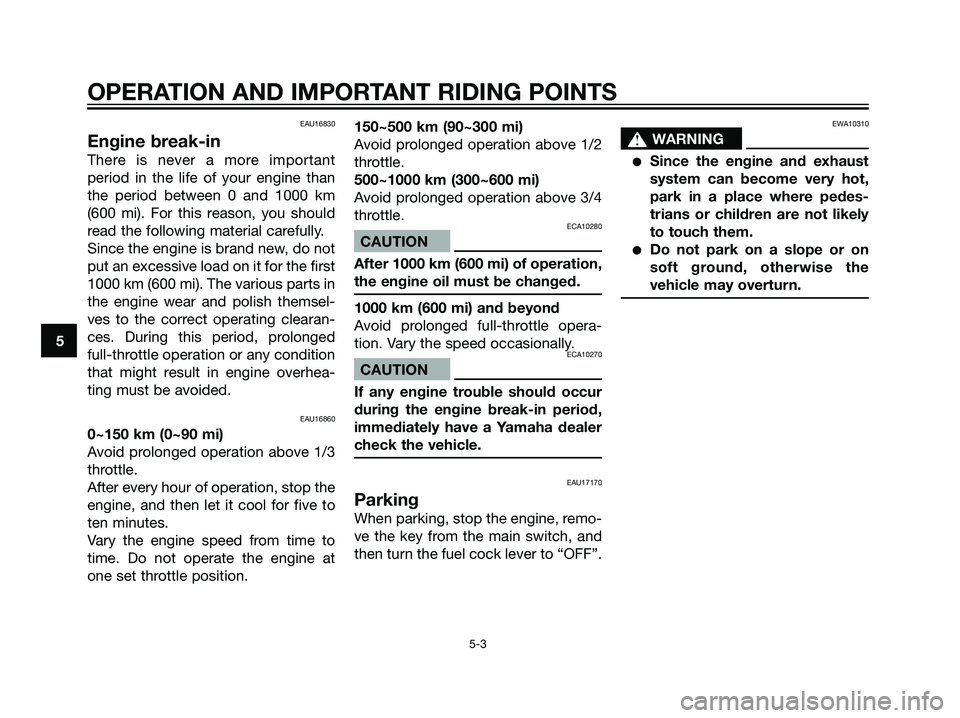

EAU16830
Engine break-in
There is never a more important
period in the life of your engine than
the period between 0 and 1000 km
(600 mi). For this reason, you should
read the following material carefully.
Since the engine is brand new, do not
put an excessive load on it for the first
1000 km (600 mi). The various parts in
the engine wear and polish themsel-
ves to the correct operating clearan-
ces. During this period, prolonged
full-throttle operation or any condition
that might result in engine overhea-
ting must be avoided.
EAU16860
0~150 km (0~90 mi)
Avoid prolonged operation above 1/3
throttle.
After every hour of operation, stop the
engine, and then let it cool for five to
ten minutes.
Vary the engine speed from time to
time. Do not operate the engine at
one set throttle position.150~500 km (90~300 mi)
Avoid prolonged operation above 1/2
throttle.
500~1000 km (300~600 mi)
Avoid prolonged operation above 3/4
throttle.
ECA10280
CAUTION
After 1000 km (600 mi) of operation,
the engine oil must be changed.
1000 km (600 mi) and beyond
Avoid prolonged full-throttle opera-
tion. Vary the speed occasionally.
ECA10270
CAUTION
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
EAU17170
Parking
When parking, stop the engine, remo-
ve the key from the main switch, and
then turn the fuel cock lever to “OFF”.
EWA10310
s s
WARNING
Since the engine and exhaust
system can become very hot,
park in a place where pedes-
trians or children are not likely
to touch them.
Do not park on a slope or on
soft ground, otherwise the
vehicle may overturn.
5
OPERATION AND IMPORTANT RIDING POINTS
5-3
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 32

EWA10760
s s
WARNING
Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes
severe burns. Avoid any con-
tact with skin, eyes or clothing
and always shield your eyes
when working near batteries.
In case of contact, administer
the following FIRST AID.
• EXTERNAL: Flush with plenty
of water.
• INTERNAL: Drink large quan-
tities of water or milk and
immediately call a physician.
• EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive
hydrogen gas. Therefore,
keep sparks, flames, cigaret-
tes, etc., away from the bat-
tery and provide sufficient
ventilation when charging it in
an enclosed space.
KEEP THIS AND ALL BATTE-
RIES OUT OF THE REACH OF
CHILDREN.
To store the battery
1. If the motorcycle will not be used
for more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
2. If the battery will be stored for
more than two months, check it
at least once a month and fully
charge it if necessary.
3. Fully charge the battery before
installation.
4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals.
ECA10630
CAUTION
Always keep the battery char-
ged. Storing a discharged bat-
tery can cause permanent bat-
tery damage.
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is
required. Using a conventional
battery charger will damage
the battery. If you do not have
access to a sealed-type (MF)
battery charger, have a Yamaha
dealer charge your battery.
EAU23480
Replacing the fuse
1. Fuse
The fuse box is located under the
seat. (See page 3-7.)
If the fuse is blown, replace it as
follows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
1
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 52

2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
ECA10640
CAUTION
Do not use a fuse of a higher ampe-
rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuits to check if the
devices operate.
4. If the fuse immediately blows
again, have a Yamaha dealer check
the electrical system.
EAU23800
Replacing the headlight bulb
This model is equipped with a quartz
bulb headlight. If the headlight bulb
burns out, replace it as follows.
1. Remove the headlight bulb cover,
and then disconnect the head-
light lead connectors.
2. Unhook the headlight bulb hol-der, and then remove the defecti-
ve bulb.
EWA10790
s s
WARNING
Headlight bulbs get very hot. The-
refore, keep flammable products
away from a lit headlight bulb, and
do not touch the bulb until it has
cooled down.
3. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
ECA10660
CAUTION
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency of
the glass, the luminosity of the
bulb, and the bulb life will be adver-
sely affected. Thoroughly clean off
any dirt and fingerprints on the
headlight bulb using a cloth mois-
tened with alcohol or thinner.
4. Connect the headlight lead con-
nectors, and then install the bulb
cover.
5. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24281
Replacing a turn signal light
bulb or the tail/brake light
bulb
1. Remove the lens by removing the
screws.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
Specified fuse:
10 A
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 53

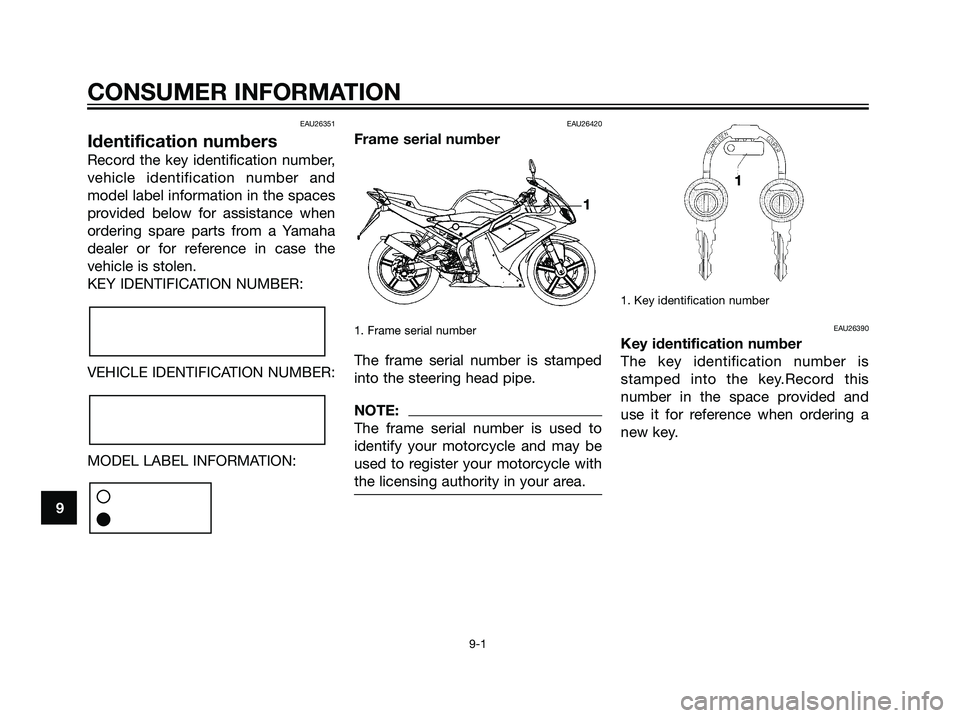

EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and
model label information in the spaces
provided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the
vehicle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION NUMBER:
MODEL LABEL INFORMATION:
EAU26420
Frame serial number
1. Frame serial number
The frame serial number is stamped
into the steering head pipe.
NOTE:
The frame serial number is used to
identify your motorcycle and may be
used to register your motorcycle with
the licensing authority in your area.
1. Key identification number
EAU26390
Key identification number
The key identification number is
stamped into the key.Record this
number in the space provided and
use it for reference when ordering a
new key.
9
CONSUMER INFORMATION
9-1
11
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 64

AAdjusting the brake pedal position and
free play .................................................6-13
Adjusting the carburetor ............................6-9
Adjusting the clucth lever free play .........6-12
Adjusting the engine idling speed .............6-9
Adjusting the rear brake light switch .......6-13
Adjusting the throttle cable free play .........6-9
BBattery......................................................6-19
Brake lever .................................................3-4
Brake pedal ................................................3-5
CCare............................................................7-1
Cast wheels .............................................6-12
Catalytic converter .....................................3-6
Clucht lever ................................................3-4
Controls and instruments ..........................2-3
Changing the brake fluid..........................6-15
Checking and lubricating the brake and
cluctch levers.........................................6-18
Checking and lubricating the brake
and shift pedals .....................................6-17
Checking and lubricating the cables .......6-17
Checking and lubricating the sidestand ..6-18
Checking the brake fluid level .................6-14
Checking the front fork ............................6-18
Checking the spark plug ............................6-6
Checking the steering ..............................6-19
Checking the wheel bearings ..................6-19
D2-stroke engine oil ........................................3-6
Drive Chain slack........................................6-16
EEngine break-in ..........................................5-3
Engine overheating ..................................6-25
FFrame serial number ..................................9-1
Front brake pads......................................6-14
Fuel cock....................................................3-6
Fuel tank cap .............................................3-5
HHandlebar switches ...................................3-3
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ....................3-8
Indicator lights ...........................................3-1
KKey identification number ..........................9-1
LLeft view .....................................................2-1
MMain switch/steering lock ..........................3-1
Model label ................................................9-2
OOwner’s tool kit ..........................................6-1
PParking .......................................................5-3
Periodic maintenance and lubrication
chart .........................................................6-2
Pre-operation check list .............................4-2
RRear brake pads ......................................6-14
Removing and installing cowlings .............6-5
Replacing a turn signal light bulb or the
tail/brake light bulb ................................6-21Replacing the fuse ...................................6-20
Replacing the headlight bulb ...................6-21
Replacing the license plate light bulb......6-22
Right view ..................................................2-2
SSeat ............................................................3-7
Shift pedal ..................................................3-4
Shifting .......................................................5-2
Sidestand ...................................................3-8
Speedometer unit ......................................3-2
Starter (choke) lever ...................................3-7
Starting a cold engine ................................5-1
Storage.......................................................7-2
Storage compartment ................................3-7
Supporting the mortorcycle .....................6-22
TTachometer ................................................3-3
Tips for reducing fuel consumption ...........5-2
Tires .........................................................6-10
To check the coolant level .........................6-8
Transmission oil .........................................6-6
Troubleshooting .......................................6-23
Troubleshooting charts ............................6-24
INDEX
5WX-F8199-E1.qxd 14/12/2004 15:05 Página 66
