PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17701
Periodic maintenance and lubrication chart NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.
From 50000 km, repeat the maintenance intervals starting from 10000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
1*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km
4 Air filter elementReplace.√
5ClutchCheck operation.
Adjust.√√√√√
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
5VXE1.book Page 2 Monday, February 9, 2004 5:39 PM
Page 42 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50000 km
13*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20000 km
14*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
15 Sidestand, centerstandCheck operation.
Lubricate.√√√√ √
16*Sidestand switchCheck operation.√√√√√ √
17*Front forkCheck operation and for oil leakage.√√√√
18*Shock absorber assem-
blyCheck operation and shock absorber for oil leakage.√√√√
19*Electronic fuel injectionAdjust engine idling speed and synchronization.√√√√√ √
20 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
21Engine oil filter car-
tridgeReplace.√√√
22*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 102030405VXE1.book Page 3 Monday, February 9, 2004 5:39 PM
Page 43 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU18670
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.Replace the brake hoses every four years and if cracked or damaged.
23 Drive chainCheck chain slack.
Make sure that the rear wheel is properly aligned.
Clean and lubricate. Every 800 km and after washing the motorcycle or
riding in the rain
24*Front and rear brake
switchesCheck operation.√√√√√ √
25Moving parts and ca-
blesLubricate.√√√√ √
26*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
27*Air induction systemCheck the air cut-off valve, reed valve, and hose for dam-
age.
Replace the entire air induction system if necessary.√√√√ √
28*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
5VXE1.book Page 4 Monday, February 9, 2004 5:39 PM
Page 44 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
EAU18771

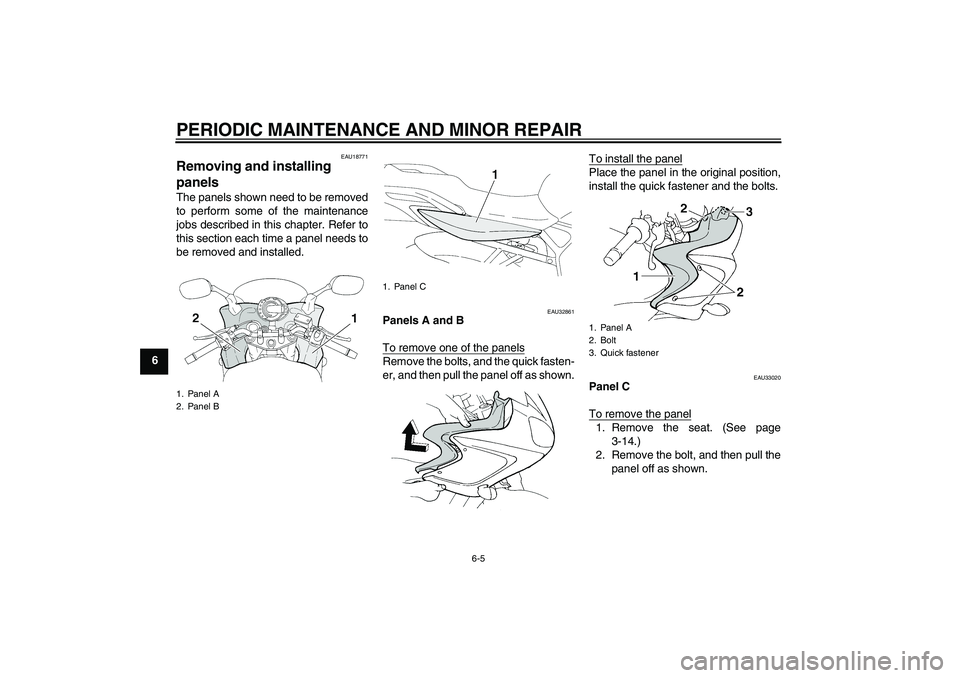

Removing and installing
panels The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU32861
Panels A and B
To remove one of the panelsRemove the bolts, and the quick fasten-
er, and then pull the panel off as shown.To install the panel
Place the panel in the original position,
install the quick fastener and the bolts.
EAU33020
Panel C
To remove the panel1. Remove the seat. (See page
3-14.)
2. Remove the bolt, and then pull the
panel off as shown.
1. Panel A
2. Panel B
1. Panel C
1. Panel A
2. Bolt
3. Quick fastener
5VXE1.book Page 5 Monday, February 9, 2004 5:39 PM
Page 45 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6 To install the panel
1. Place the panel in the original posi-
tion, and then install the bolt.
2. Install the seat.
EAU19651
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be defective. Do
not attempt to diagnose such problems
yourself. Instead, have a Yamaha deal-
er check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
1. Panel C
2. Bolt
Specified spark plug:
NGK/CR9EK
1. Spark plug gap
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.5 ft·lbf)
5VXE1.book Page 6 Monday, February 9, 2004 5:39 PM
Page 46 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
NOTE:If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.CAUTION:
ECA10840
Do not use any tools to remove or in-
stall the spark plug cap, otherwise
the ignition coil coupler may get
damaged. The spark plug cap may
be difficult to remove because the
rubber seal on the end of the cap fits
tightly. To remove the spark plug
cap, simply twist it back and forth
while pulling it out; to install it, twistit back and forth while pushing it in.
EAU32850
Engine oil and oil filter
cartridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles.4. Remove the engine oil dipstick and
wipe it clean, insert it back into the
hole (without screwing it in), and
then remove it again to check the
oil level.
1. Dipstick
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
5VXE1.book Page 7 Monday, February 9, 2004 5:39 PM
Page 47 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
NOTE:The engine oil should be between theminimum and maximum level marks.
5. If the engine oil is at or below the
minimum level mark, remove the
oil filler cap, and then add sufficient
oil of the recommended type to
raise it to the correct level.
6. Insert and tighten the engine oil
dipstick, and then install and tight-
en the oil filler cap.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:
Skip steps 4–10 if the oil filter cartridgeis not being replaced.
4. Remove the oil filter cartridge with
an oil filter wrench.
NOTE:An oil filter wrench is available at aYamaha dealer.
5. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.NOTE:Make sure that the O-ring is properlyseated.
6. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.
1. Engine oil drain bolt
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
5VXE1.book Page 8 Monday, February 9, 2004 5:39 PM
Page 48 of 90
PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
67. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.
8. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
2.50 L (2.64 US qt) (2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt) (2.46 Imp.qt)
