and should never be rotated from one side of the vehicle to the other.

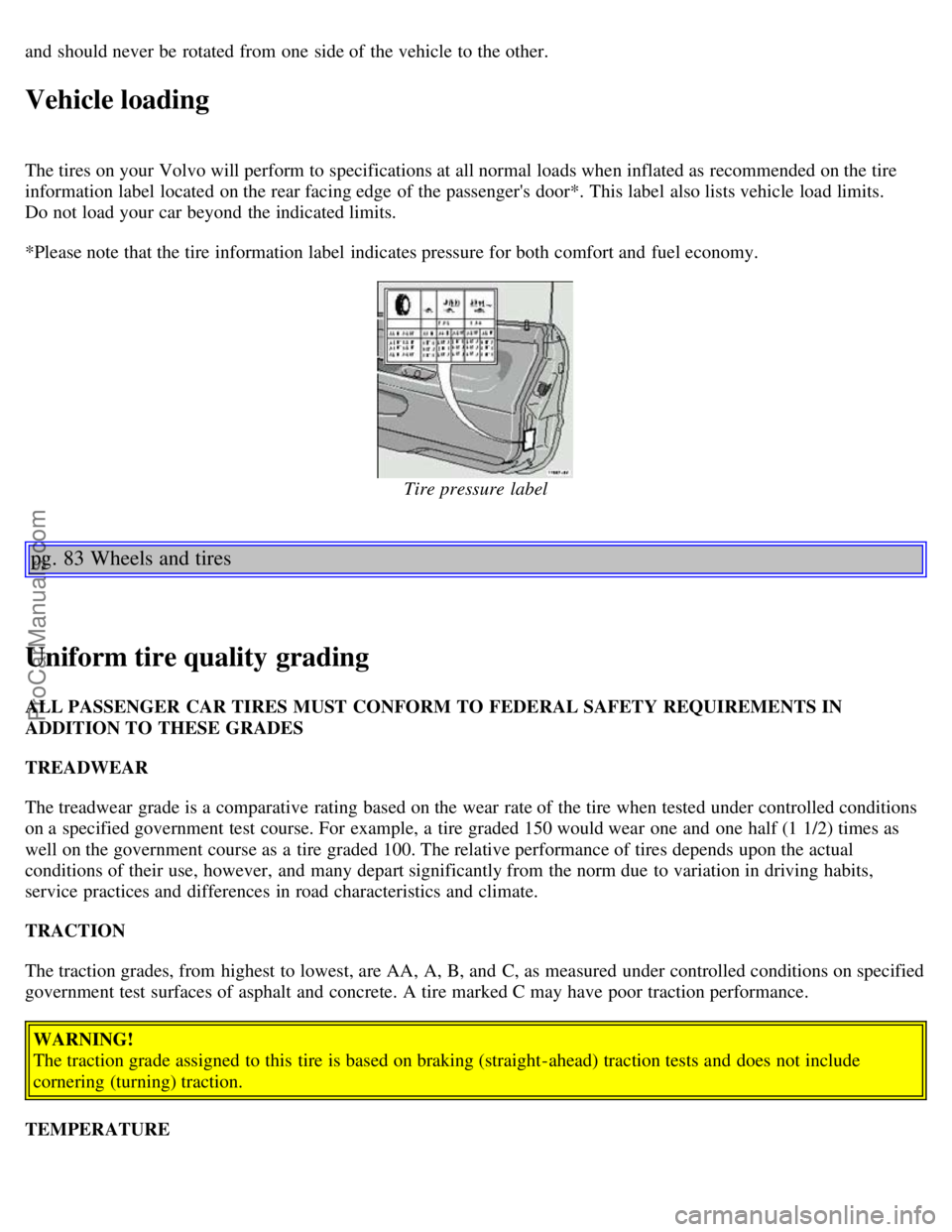

Vehicle loading
The tires on your Volvo will perform to specifications at all normal loads when inflated as recommended on the tire
information label located on the rear facing edge of the passenger's door*. This label also lists vehicle load limits.
Do not load your car beyond the indicated limits.
*Please note that the tire information label indicates pressure for both comfort and fuel economy.
Tire pressure label
pg. 83 Wheels and tires
Uniform tire quality grading
ALL PASSENGER CAR TIRES MUST CONFORM TO FEDERAL SAFETY REQUIREMENTS IN
ADDITION TO THESE GRADES
TREADWEAR
The treadwear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions
on a specified government test course. For example, a tire graded 150 would wear one and one half (1 1/2) times as
well on the government course as a tire graded 100. The relative performance of tires depends upon the actual
conditions of their use, however, and many depart significantly from the norm due to variation in driving habits,
service practices and differences in road characteristics and climate.
TRACTION
The traction grades, from highest to lowest, are AA, A, B, and C, as measured under controlled conditions on specified
government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.WARNING!
The traction grade assigned to this tire is based on braking (straight-ahead) traction tests and does not include
cornering (turning) traction.
TEMPERATURE
ProCarManuals.com
Bulb failure warning17,19
Bulbs130
C
Capacities129
Catalytic converter123
Central locking system44
Chains (snow)81
Changing a wheel86
Child booster cushion12
Child safety12
Cleaning the convertible top107
Climate control systems34
Clock16
Clock - resetting25
Clutch fluid118
Clutch interlock65
Convertible top - cleaning107
Convertible top - electrically operated40
Convertible top - manually raising102
Coolant - checking/changing120
Coolant level sensor19
Coolant level warning light17
Cooling system69,128
Courtesy lights - exterior20
Courtesy lights - front51
Cruise control29
D
Daytime running lights24
Demister - rear window23
Dimensions131
Distributor ignition system128
Diversity antenna189
Doors and locks43
Driving economy63
Driving mode W67, 77
E
EBD (Electronic Brake-force Distribution)75
ECC - Electronic Climate Control34, 35
Electrical system69,130
Electrically heated front seats30
Electrically operated convertible top40
Electrically operated front seats47
Electrically operated windows36
Electronic Brake Distribution (EBD)75
