2004 TOYOTA SIENNA stop start

04 SIENNA_U (L/O 0408)
199
2004 SIENNA from Aug. ’04 Prod. (OM45422U)

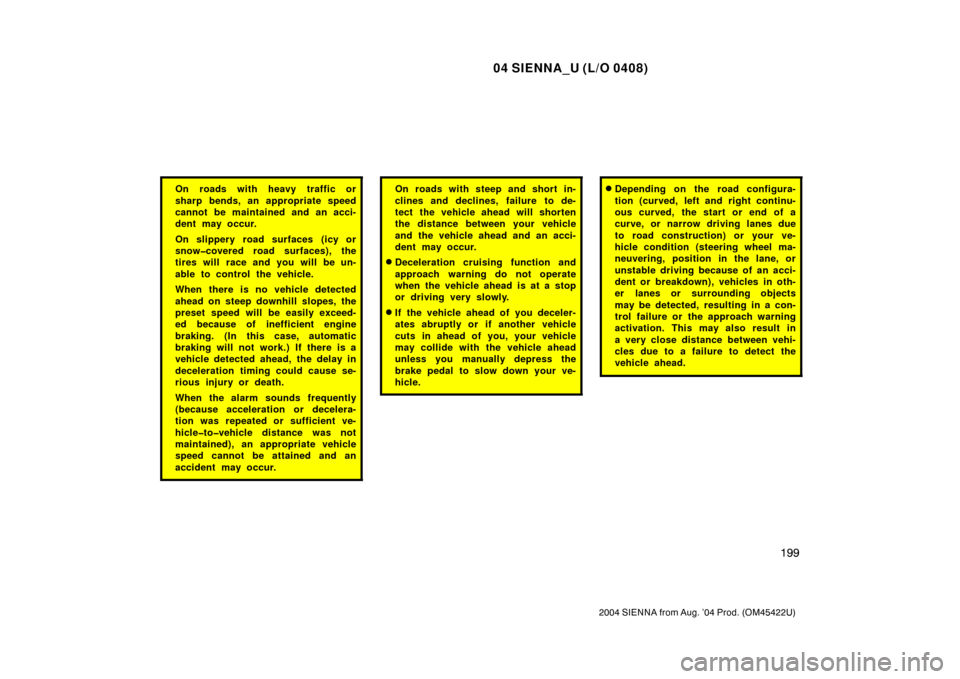

On roads with heavy traffic or
sharp bends, an appropriate speed
cannot be maintained and an acci-
dent may occur.
On slippery road surfaces (icy or
snowcovered road surfaces), the
tires will race and you will be un-
able to control the vehicle.
When there is no vehicle detected
ahead on steep downhill slopes, the
preset speed will be easily exceed-
ed because of inefficient engine
braking. (In this case, automatic
braking will not work.) If there is a
vehicle detected ahead, the delay in
deceleration timing could cause se-
rious injury or death.
When the alarm sounds frequently
(because acceleration or decelera-
tion was repeated or sufficient ve-
hicletovehicle distance was not
maintained), an appropriate vehicle
speed cannot be attained and an
accident may occur.On roads with steep and short in-
clines and declines, failure to de-
tect the vehicle ahead will shorten
the distance between your vehicle
and the vehicle ahead and an acci-
dent may occur.
Deceleration cruising function and
approach warning do not operate
when the vehicle ahead is at a stop
or driving very slowly.
If the vehicle ahead of you deceler-
ates abruptly or if another vehicle
cuts in ahead of you, your vehicle
may collide with the vehicle ahead
unless you manually depress the
brake pedal to slow down your ve-
hicle.
Depending on the road configura-
tion (curved, left and right continu-
ous curved, the start or end of a
curve, or narrow driving lanes due
to road construction) or your ve-
hicle condition (steering wheel ma-
neuvering, position in the lane, or
unstable driving because of an acci-
dent or breakdown), vehicles in oth-
er lanes or surrounding objects
may be detected, resulting in a con-
trol failure or the approach warning
activation. This may also result in
a very close distance between vehi-
cles due to a failure to detect the
vehicle ahead.

04 SIENNA_U (L/O 0408)
207
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
If “E3” appears on the display, a system
malfunction has been detected.
If this code appears, stop your vehicle in
a safe place, turn the ignition off, and
then restart it to reset the system. If the
setting still cannot be made or the same
code appears again, the system might
have malfunctioned. Although there is no
problem to continue driving, please con-
tact your Toyota dealer. This mode allows you to cruise at a
desired speed over about 45 km/h (28
mph) with your foot off the accelerator
pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.

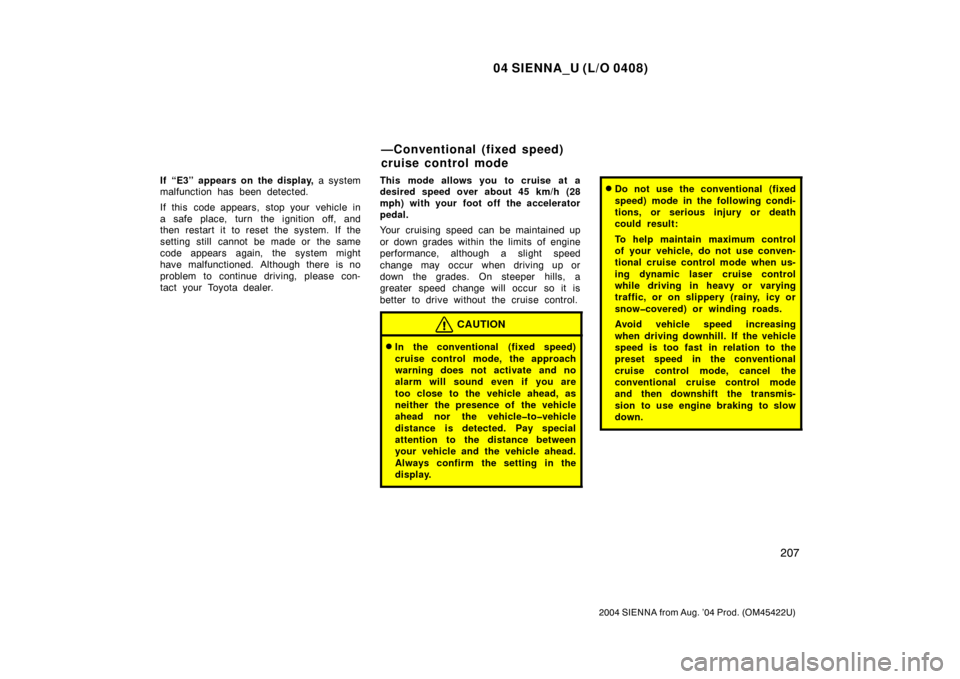

CAUTION
In the conventional (fixed speed)
cruise control mode, the approach
warning does not activate and no
alarm will sound even if you are
too close to the vehicle ahead, as
neither the presence of the vehicle
ahead nor the vehicletovehicle
distance is detected. Pay special
attention to the distance between
your vehicle and the vehicle ahead.
Always confirm the setting in the
display.
Do not use the conventional (fixed
speed) mode in the following condi-
tions, or serious injury or death
could result:
To help maintain maximum control
of your vehicle, do not use conven-
tional cruise control mode when us-
ing dynamic laser cruise control
while driving in heavy or varying
traffic, or on slippery (rainy, icy or
snowcovered) or winding roads.
Avoid vehicle speed increasing
when driving downhill. If the vehicle
speed is too fast in relation to the
preset speed in the conventional
cruise control mode, cancel the
conventional cruise control mode
and then downshift the transmis-
sion to use engine braking to slow
down.
—Conventional (fixed speed)
cruise control mode

04 SIENNA_U (L/O 0408)
220
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
To scan the preset stations:
Push and hold “” or “” side of the
“SCAN” button until you hear a beep. The
radio will tune in the next preset station
up or down the band, stay there for 5
seconds, and then move to the next pre-
set station. To stop scanning, push this
button again.
To scan all the frequencies:
Quickly push and release “ ” or “ ” side
of the “SCAN” button. The radio will find
the next station up or down the station
band, stay there for 5 seconds, and then
scan again to the next station. To stop
scanning, push this button again.
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “ ” or “ ” side
of the “SCAN” button. “SCAN” will appear
on the display and the player will scan up
or down all the tracks on the disc you are
listening to. To stop scanning, push this
button again. If the player scanned all the
tracks on the disc, it will stop scanning.
The discs in the compact disc changer
can be scanned up only. With compact disc changer only—
Scanning the first tracks of all the discs
in the magazine:
Push “
” side of the “SCAN” button until
you hear a beep. “
·SCAN” will appear
on the display and the player will scan up
the first track of the next disc. To stop
scanning, push this button again. If the
player has scanned all the di scs, it will
stop scanning.
SEEK·TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “ ” or “ ” side of the
“SEEK·TRACK” button. Do this again to
find the station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play. When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.
Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the
“SEEK·TRACK” button until the number of
the track you want to listen to appears on
the display. If you want to return to the
beginning of the current track, quickly
push the down side of the button one
time.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the
“SEEK·TRACK” button.

04 SIENNA_U (L/O 0408)
226
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
RDS (Radio Data System)
Your audio system is equipped with Radio
Data System (RDS). RDS station providing
good reception is automatically selected if
current reception worsens.
The “RDS” button turns the RDS on and
off. This button is operational except in
AM mode.
To turn on the RDS, push and hold this
button until you hear a beep and “RDS”
will appear on the display. At this time,
the radio starts to search the RDS sta-
tions and “RDS SEARCH” will flash on the
display.
Quickly push and release this button when
the RDS turns on, the radio starts to
search the RDS stations and “RDS
SEARCH” will flash on the display.
When the RDS stations are found,
“FOUND” and the number of the RDS sta-
tions will appear on the display, and you
will hear two beeps. The stations will be
preset to the preset buttons.
If the RDS stations can not be found, “NO
RDS ST” will appear on the display and
you will hear a beep, and the display
returns to the previous mode.
To turn the RDS off, push the button until
you hear a beep again.RPT (Repeat)
Cassette player
Push “RPT” (preset button 2) while the
track is playing. “
” will appear on
the display. When the track ends, it will
automatically rewind and replay. To turn
off the repeat feature, push this button
again.
There must be at least 3 seconds of blank
space between tracks in order for the re-
peat feature to work correctly.
Compact disc player
There are two repeat features—you can
either replay a disc track or a whole com-
pact disc.
Repeating a track:
Quickly push and release “RPT” (preset
button 2) while the track is playing.
“
” will appear on the display. When
the track ends, it will automatically replay.
To turn off the repeat feature, push this
button again. Repeating a disc:
Push and hold “RPT” (preset button 2)
until you hear a beep. “
” will ap-
pear on the display. The player will repeat
all the tracks on the disc you are listening
to. When the disc ends, the player will
automatically go back to the first track on
the disc and replay. To turn off the repeat
feature, push this button again.
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “ ” or “ ” side of the
“SCAN” button until you hear a beep. The
radio will tune in the next preset station
up or down the band, stay there for 5
seconds, and then move to the next pre-
set station. To stop scanning, push this
button again.
To scan all the frequencies:
Quickly push and release “ ” or “ ” side
of the “SCAN” button. The radio will find
the next station up or down the station
band, stay there for 5 seconds, and then
scan again to the next station. To stop
scanning, push this button again.

04 SIENNA_U (L/O 0408)
227
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Compact disc player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “” or “ ” side
of the “SCAN” button. “SCAN” will appear
on the display and the player will scan up
or down all the tracks on the disc you are
listening to. To stop scanning, push this
button again. If the player scanned all the
tracks on the disc, it will stop scanning.
The discs in the compact disc changer of
separate unit can be scanned up only.
Scanning the first tracks of all the discs
in the magazine:
Push “ ” or “ ” side of the “SCAN” but-
ton until you hear a beep. “
·SCAN” will
appear on the display and the player will
scan up or down the first track of the
next disc. To stop scanning, push this
button again. If the auto changer has
scanned all the di scs, it will stop scan-
ning.
The discs in the compact disc changer of
separate unit can be scanned up only. SEEK·TRACK (Seeking/Track up/down)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release “
” or “ ” side of the
“SEEK·TRACK” button. Do this again to
find the station after that.
Cassette Player
Use this button to skip up or down to
locate a song or recording.
You can select up to nine recordings (in-
cluding current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When the beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken word, live, or classical
recordings. Compact disc player
Use this button to skip up or down to a
different track.
Push “
” or “ ” side of the
“SEEK·TRACK” button until the number of
the track you want to listen to appears on
the display. If you want to return to the
beginning of the current track, quickly
push the down side of the button one
time.
Vehicles with rear seat entertainment sys-
tem—
While the DVD player is in operation, the
chapter or track can be changed by push-
ing the “ ” or “ ” side of the
“SEEK·TRACK” button.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.
TA P E
Push the “TAPE” button to play a cassette
tape.

04 SIENNA_U (L/O 0408)
231
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
1. Volume control switch
Push “+” to increase the volume. The vol-
ume continues to increase while the
switch is being pushed.
Push “ −” to decrease the volume. The
volume continues to decrease while the
switch is being pushed.
2. “ ” switch
Radio
This switch has the following features—
To select a preset station:
Quickly push and release the “ ” or “ ”
side of the switch. Do this again to select
the next preset station.
To seek a station:
Push and hold the “ ” or “” side of the
switch until you hear a beep. Do this
again to find the next station. If you push
the switch on either side during the seek
mode, seeking will be cancelled.
To step up or down the frequency, push
and hold the switch even after you hear
a beep. When you release from the
switch, the radio will begin seeking up or
down for a station. Do this again to find
the next station. Cassette player
This switch has the following features—
To skip to a different track in either direc-
tion:
Quickly push and release the “
” or “ ”
side of the switch. “FF 1” or “REW 1” will
appear on the display.
Next, push either side of the track switch
until the track you want to listen to is set.
If you push the switch ten times, the skip
function will turn off. (You can skip up to
nine tracks at a time.)
When counting the number of the tracks
you want to rewind, remember to count
the current track as well. For example, if
you want to rewind to a song that is two
tracks before the song you are listening
to, push the “ ” side of the switch three
times.
If you push the track switch further than
you wanted to, push the other side of the
switch. The track number will be in-
creased or reduced.
The track number you select is not valid
if it is higher than the number of the
tracks remaining on the current side of
the cassette.When the tape reaches to the begin-
ning, the player will automatically start
playing that side.
After the tape reaches to the end, the
player will automatically reverse and
start playing the other side.
There must be at least 3 seconds of blank
space between tracks for the track switch
to work correctly. In addition, the feature
may not work well with some spoken, live,
or classical recordings.
To fast forward or reverse:
Push and hold the “ ” side of the switch
to fast forward a cassette tape. “FF” will
appear on the display. Push and hold the
“  ” side of the switch to rewind a tape.
“REW” will appear on the display.
To stop the tape while it is fast forward-
ing, push the “ ” side of the switch. To
stop the tape while it is rewinding, push
the “ ” side of the switch.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.

04 SIENNA_U (L/O 0408)
237
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Compact disc player
Compact disc changer only—
Use this button to select a disc you want
to listen to.
Push the “
” or “” (DISC/CH/PROG)
button until the number of the disc you
want to listen to appears on the display.
2. “
” and “” (TUNE/TRACK) buttons
Radio
Push the “
” or “” (TUNE/TRACK) but-
ton to tune or seek.
Tuning:
Quickly push and release the “
” or “”
(TUNE/TRACK) button. Each time you
push the button, the radio will step up or
down to another frequency. If you push
and hold the button, and the radio will go
into the seek mode.
Seeking:
Push and hold the “
” or “” (TUNE/
TRACK) button. The radio will seek up or
down for a station of the nearest frequen-
cy and will stop on reception. Each time
you push the button, the stations will be
searched one after another. Cassette tape player
This button has the following features—
To fast forward or reverse:
Push and hold the “
” (TUNE/TRACK)
button until “FF” will appears on the dis-
play to forward a tape. Push and hold the
“
” (TUNE/TRACK) button until “REW”
appears on the display to rewind a tape.
To stop the tape while it is fast forward-
ing, push “
” (TUNE/TRACK) button. To
stop the tape while it is rewinding, push
“
” (TUNE/TRACK) button.
If a tape rewinds completely, the cassette
player will stop and then play that same
side. If a tape fast forwards completely,
the cassette will play the other side of the
tape using the auto −reverse feature.
To skip up or down to locate a song or
recording.
You can select up to nine recordings (in-
cluding current one).
Push the “
” or “” (TUNE/TRACK) but-
ton. “FF 1” or “REW 1” will appear on the
display.
Next, push either side of the track button
until the number on the display reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off. For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.
Compact disc player
This button has the following features—
To skip up or down to a different track:
Push the “
” or “” (TUNE/TRACK) but-
ton until the number of the track you want
to listen to appears on the display. If you
want to return to the beginning of the
current track, quickly push the “
”
(TUNE/TRACK) button one time.
To fast forward or reverse:
Push and hold the “
” or “” (TUNE/
TRACK) button to fast forward or reverse
within a compact disc. When you release
the button, the compact disc player will
resume playing.

04 SIENNA_U (L/O 0408)
255
2004 SIENNA from Aug. ’04 Prod. (OM45422U)
Cassette tape player
Push the “
” or “” side of the “DISC/
CH/PROG” button to select the other side
of a cassette tape. The screen indicates
which side is currently selected. (“
” indi-
cates the top side, “
” indicates the bot-
tom side.)
Auto −reverse feature: After the cassette
player reaches the end of a tape side, it
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding. 2. “TUNE/TRACK” button
Radio
Push the “
” or “” side of the “TUNE/
TRACK” button to tune or seek.
Tuning:
Quickly push and release the “
” or “”
side of the “TUNE/TRACK” button. Each
time you push the button, the radio will
step up or down to another frequency. If
you push and hold the button, and the
radio will go into the seek mode.
Seeking:
Push and hold the “
” or “” side of the
“TUNE/TRACK” button. The radio will seek
up or down for a station of the nearest
frequency and will stop on reception. Each
time you push the button, the stations will
be searched one after another.
Cassette tape player
To fast forward a cassette tape, push and
hol d the “
” side of the “TUNE/TRACK”
button until “FF” appears on the screen.
Push and hold the “
” side of the “TUNE/
TRACK” button until “REW” appears on
the screen to rewind a tape.
Use this button to skip up or down to
locate a song or recording. You can select up to nine recordings (in-
cluding current one).
Push the “
” or “” side of the “TUNE/
TRACK” button. “FF 1” or “REW 1” will
appear on the screen.
Next, push either side of the track button
until the number on the screen reaches
the number of tracks you want to skip. If
you push the button 10 times, the skip
feature will be turned off.
For the skip feature to work correctly a
blank space of at least 3 seconds is con-
sidered to be a start of a recording.
When a beginning of a tape is reached,
the player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.
In addition, the feature may not work well
with some spoken, live, or classical re-
cordings.
