DISPLAYING OPERATION SWITCHES
If you touch the part where switches are not
located while you are watching video on the
video CD, video CD operation switches will
appear.
“Page2” switch: Use this switch to display
the operation switches on the second page.
“Page1” switch: Use this switch to display
the operation switches on the top page.“Hide Buttons” switch: Use this switch to
turn off the operation switches from the dis-
play.
If “
” appears on the display when you touch
the switch, the operation is not permitted.
DESCRIPTION OF EACH SWITCH
Switches on top page
“Sel. Number” switch: The track or number
search screen appears. (See “SEARCHING
BY TRACK” on page 144.)
“Prev. Page” switch: When you touch this
switch while the disc menu is displayed, the
previous page appears on the screen. If you
touch this switch while the player is playing
video, the previous track is searched and
played.
“Next Page” switch: When you touch this
switch while the disc menu is displayed, the
next page appears on the display. If you
touch this switch while the player is playing
video, the next track is searched and played.
“Main/Sub” switch: A multiplex transmis-
sion changing switch. The mode changes
from Main/Sub to Main, to Sub and back to
Main/Sub by touching this switch.
Switches on second page
“
” switch: Use this switch to pause the
video screen. When you touch this switch
again, the video screen advance frame by
frame.
“” switch: Touch this switch to fast re-
verse during playback.
“” switch: Touch this switch during pause
to resume playing.
“” switch: Touch this switch to fast for-
ward during the playback and start playing
slowly during pause.

144
SEARCHING BY TRACK
Enter the track numbers using “”, “+”
and “+10” switches and touch “Enter”.
The player starts playing video for that
title number.
You can select a track number by pushing “”
or “” on the “SEEK·TRACK” button.
Touch “Back”, and the previous screen re-
turns.
(g) If the player malfunctions
If the player or another unit equipped with the
player malfunction, your audio system will
display one of the six following messages.
If “DISC CHECK” appears on the display:
It indicates that the disc dirty, damaged, or it
was inserted upside down. Clean the disc or
insert it correctly. If a disc which is not play-
able is inserted, “DISC CHECK” will also ap-
pear on the screen. For appropriate discs for
this player, see “Car audio system operating
hints” on page 146.If “REGION CODE ERROR” appears on
the display: It indicates that the DVD region
code is not set properly.
If “DVD ERROR” appears on the display:
It indicates that the inside of the player unit
may be too hot due to the very high ambient
temperature. Remove the magazine from the
player and allow the player to cool down.
If the malfunction is not rectified: Take
your vehicle to your dealer.
(h) DVD player and DVD video disc infor-
mation
DVD VIDEO DISCS
This DVD player conforms to NTSC color
TV formats. The DVD video disc conform-
ing to another formats such as PAL or SE-
CAM cannot be used.
Region codes: Some DVD video discs have
a region code indicating a country where you
can use the DVD video disc on this DVD
player. If the DVD video disc is not labeled as
“ALL” or “1”, you cannot use it on this DVD
player. If you attempt to play an inappropriate
DVD video disc on this player, “REGION
CODE ERROR” appears on the screen.
Even if the DVD video disc does not have a
region code, there is a case that you cannot
use it.Marks shown on DVD video discs:
Indicates NTSC
format of color TV.
Indicates the number
of audio tracks.
Indicates the number
of language subtitles.
Indicates the number
of angles.
Indicates the screen to
be selected.
Wide screen: 16:9
Standard: 4:3
Indicates a region code by
which this video disc can be
played.
ALL: in all countries
Number: region code

152Page

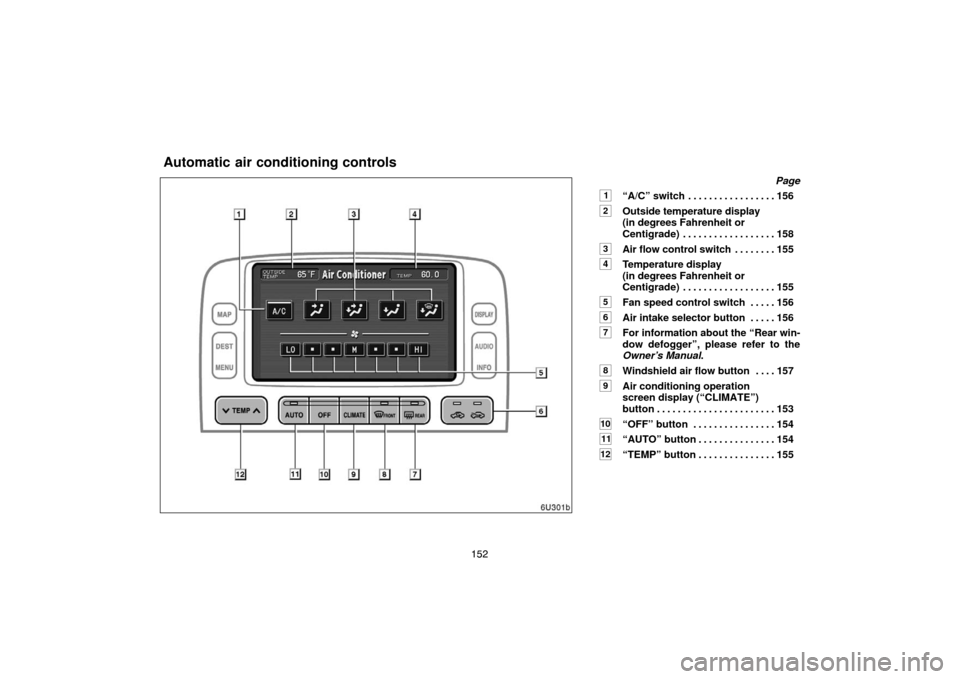

1“A/C” switch 156. . . . . . . . . . . . . . . . .
2Outside temperature display
(in degrees Fahrenheit or
Centigrade) 158. . . . . . . . . . . . . . . . . .
3Air flow control switch 155. . . . . . . .
4Temperature display
(in degrees Fahrenheit or
Centigrade) 155. . . . . . . . . . . . . . . . . .
5Fan speed control switch 156. . . . .
6Air intake selector button 156. . . . .
7For information about the “Rear win-
dow defogger”, please refer to the
Owner’s Manual.
8Windshield air flow button 157. . . .
9Air conditioning operation
screen display (“CLIMATE”)
button 153. . . . . . . . . . . . . . . . . . . . . . .
10“OFF” button 154. . . . . . . . . . . . . . . .
11“AUTO” button 154. . . . . . . . . . . . . . .
12“TEMP” button 155. . . . . . . . . . . . . . .
Automatic air conditioning controls

153
Air flow selection
The automatic air conditioning automati-
cally maintains the set temperature.
In the automatic operation mode, the air con-
ditioning selects the most suitable fan speed,
air flow, air intake and on−off the air condition-
ing according to the temperature. The ignition
key must be in the “ON” position.
“CLIMATE”: Push this button to display
switches for automatic air conditioning con-
trols.
NOTICE
To prevent the battery from being dis-
charged, do not leave the air condition-
ing on longer than necessary when the
engine is not running.6U302 paste

154
(a) Climate control
SETTING OPERATION automatic control
1. Push the “AUTO” button.
An indicator light will illuminate to show that
the automatic operation mode has been se-
lected.
Air flow quantity, switching of the diffusers,
on−off of the air conditioning and switching of
the air intake between RECIRCULATED and
FRESH mode are automatically adjusted.
When you press the “AUTO” button with the
air intake mode at FRESH, internal circulation
may be applied for maximum cooling. The op-
eration status is shown by each indicator and
display.When one of the manual control switches is
depressed while operating in automatic
mode, the operation corresponding to the de-
pressed switch is set. Other conditions con-
tinue to be adjusted automatically.
Push the “OFF” button to turn the air condi-
tioning system off.
INFORMATION
This automatic control has additional
function as described below, when
the “AUTO” button is pushed.
The fan speed is stopped for a little
while until warm air preparation, when
outside temperature is cold like a win-
ter season in the “Floor” or “Bilevel”
air flow mode. If quick removal for ex-
terior frost, fog and inside fog on the
windshield is desired, use the high
fan speed setting after the “Wind-
shield” air flow mode has been se-
lected.
The fan speed is stopped few sec-
onds until cool air preparation, when
outside temperature is hot like a sum-
mer season in the “Panel” or “Bilev-
el” air flow mode.
The internal circulation may be ap-
plied for maximum cooling in the au-
tomatic operation mode, when out-
side temperature is hot like a summer
season.
If fresh outside air is desired into the
vehicle, push the air intake control
button to select the FRESH mode.

157 If the system is used for ventilation, heating in
dry weather or removing frost or exterior fog
on the windshield, turn the air conditioning off
once it is no longer required. This will improve
fuel economy. The air conditioning can be
used for year−round automatic temperature
control including cooling and dehumidifying
operation.
If the air conditioning compressor does not
operate, the display light of the “A/C” switch
will blink. If the display light of the “A/C” switch
blinks even when the “A/C” switch is touched
again, have the compressor checked by your
nearest dealer.
If the engine coolant temperature becomes
extremely high, the air conditioning may shut
off automatically to resolve emergency situa-
tion for engine cooling. This is not a malfunc-
tion. When the engine coolant temperature is
lowered, the air conditioning comes on auto-
matically.
(b) Windshield defogging
and defrosting
To remove interior fog on the
windshield —
Push the windshield air flow button.
To remove frost or exterior fog on the
windshield —
1. Push the “TEMP” button to set the maxi-
mum temperature.
2. Push the windshield air flow button.
3. Touch the fan speed control switch on the
right side to obtain a maximum air flow.
4. Leave the “A/C” switch off.When the windshield air flow button is
pushed, air flows mainly from the windshield
vents and turns on the defogging function with
the purpose of clearing the front view.
Pushing this button once again returns the air
flow mode to the last one used.
This button allows the air intake to select the
FRESH mode automatically. This is to clean
up the front view more quickly. If you want to
return the setting to the RECIRCULATED
mode, push the air intake control button once
again.
Touch the “A/C” switch for dehumidified heat-
ing or cooling. This setting clears the front
view more quickly.CAUTION
Do not use the windshield air flow but-
ton during cooled air operation in ex-
tremely humid weather. The difference
between the temperature of the outside
air and that of the windshield could
cause the outer surface of the wind-
shield to fog up blocking your vision.

158
(c) Outside temperature
display
Outside temperature is displayed on the
screen.
The displayed temperature ranges from
−30
C (−22
F) up to 50
C (122
F). If the
temperature does not appear on the display
or it shows “− − −”, take your vehicle to your
dealer.
(d) Operating tips
To cool off your vehicle after it has been
parked in the hot sun, drive with the win-
dows open for a few minutes. After the ex-
cess heat has blown away, close the win-
dows. This vents the hot air, allowing the
air conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front of
the windshield are not blocked (by leaves
or snow, for example).
If air flow control is not satisfactory, check
the side vents. (See “(e) Side vents”.)
On humid days, do not blow cold air on the
windshield. The windshield could fog up
because of the difference in air tempera-
ture on the inside and outside of the wind-
shield.
Keep the area under the front seats clear
to allow air to circulate throughout the ve-
hicle.
On cold days, set the fan speed to high for
a minute to help clear the intake ducts of
snow or moisture. This can reduce the
amount of fogging on the windows.
When driving on dusty roads, close all win-
dows. If dust thrown up by the vehicle is
still drawn into the vehicle after closing the
windows, it is recommended that the air in-
take control button be set to the FRESH
mode to take in the fresh air and the fan
speed selector to any setting except OFF.
If following another vehicle on a dusty
road, or driving in windy and dusty condi-
tions, it is recommended that the air intake
be temporarily set to the RECIRCULATED
mode, which will close off the outside pas-
sage and prevent outside air and dust
from entering the vehicle interior.
