2004 TOYOTA ECHO Owners Manual

1852004 ECHO from Aug. ’03 Prod. (OM52526U)

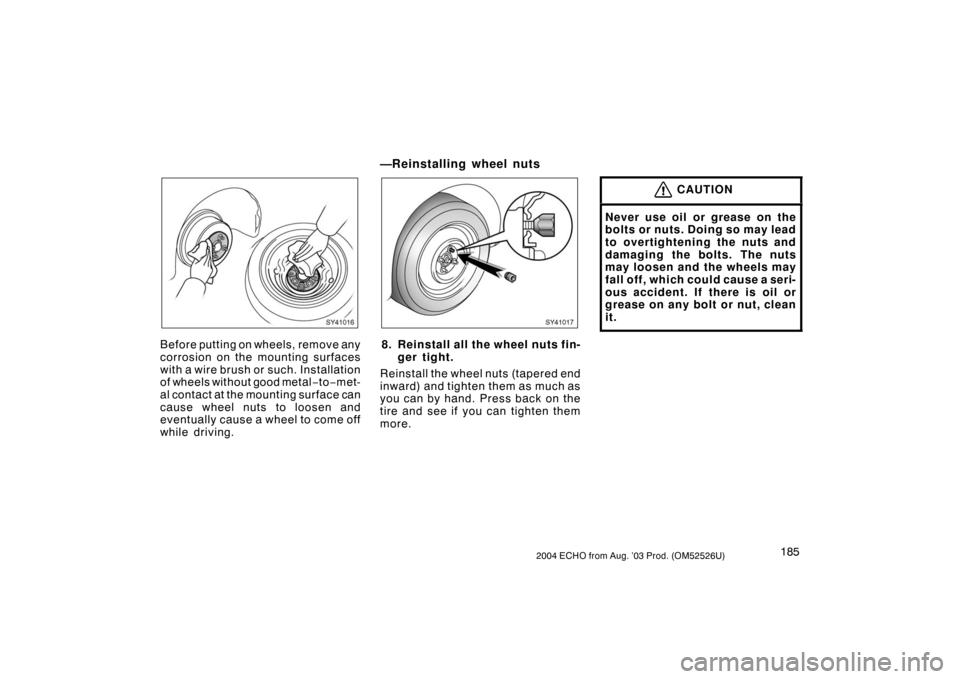

SY41016
Before putting on wheels, remove any
corrosion on the mounting surfaces
with a wire brush or such. Installation
of wheels without good metal−to−met-
al contact at the mounting surface can
cause wheel nuts to loosen and
eventually cause a wheel to come off
while driving.
—Reinstalling wheel nuts
SY41017
8. Reinstall all the wheel nuts fin-
ger tight.
Reinstall the wheel nuts (tapered end
inward) and tighten them as much as
you can by hand. Press back on the
tire and see if you can tighten them
more.
CAUTION
Never use oil or grease on the
bolts or nuts. Doing so may lead
to overtightening the nuts and
damaging the bolts. The nuts
may loosen and the wheels may
fall off, which could cause a seri-
ous accident. If there is oil or
grease on any bolt or nut, clean
it.

1862004 ECHO from Aug. ’03 Prod. (OM52526U)
—Lowering your vehicle
SU41127
9. Lower the vehicle completely
and tighten the wheel nuts.
Turn the jack handle counterclock-
wise to lower the vehicle.
Use only the wheel nut wrench to
tighten the nuts. Do not use other
tools or any additional leverage other
than your hands, such as a hammer,
pipe or your foot. Make sure the
wrench is securely engaged over the
nut.
Tighten each nut a little at a time in
the order shown. Repeat the process
until all the nuts are tight.
CAUTION
When lowering the vehicle,
make sure all portions of your
body and all other persons
around will not be injured as
the vehicle is lowered to the
ground.
Have the wheel nuts tightened
with torque wrench to 103 N·m
(10.5 kgf·m, 76 ft·lbf), as soon
as possible after changing
wheels. Otherwise, the nuts
may loosen and the wheels
may fall off, which could cause
a serious accident.
SY41019
10.Reinstall the wheel ornament.
1. Put the wheel ornament into posi-
tion.
On some models, align the cutout
of the wheel ornament with the
valve stem as shown.
2. Press hand firmly on one side of
wheel ornament and then firmly
tap the other side around the edge
of wheel ornament with the heel
of your hand to snap into place.
—Reinstalling wheel ornament
(steel wheel)

1872004 ECHO from Aug. ’03 Prod. (OM52526U)
CAUTION
Take due care in handling the or-
nament to avoid unexpected per-
sonal injury.
—After changing wheels
11. Check the air pressure of the re-
placed tire.
Adjust the air pressure to the specifi-
cation designed in Section 8. If the
pressure is lower, drive slowly to the
nearest service station and fill to the
correct pressure.
Do not forget to reinstall the tire infla-
tion valve cap as dirt and moisture
could get into the valve core and
possibly cause air leakage. If the cap
is missing, have a new one put on as
soon as possible.
12.Restow all the tools, jack and
flat tire securely.
As soon after changing wheels as
possible, tighten the wheel nuts to the
torque specified in Section 8 with a
torque wrench and have a technician
repair the flat tire.CAUTION
Before driving, make sure all the
tools, jack and flat tire are se-
curely in place in their storage
location to reduce the possibility
of personal injury during a colli-
sion or sudden braking.

1882004 ECHO from Aug. ’03 Prod. (OM52526U)
SU41034
Aluminum wheels:
Remove the wheel ornament from the
flat tire before restowing the flat tire.
If your vehicle becomes stuck in snow,
mud, sand, etc., then you may attempt
to rock the vehicle free by moving it
forward and backward.
CAUTION
Do not attempt to rock the vehicle
free by moving it forward and back-
ward if people or objects are any
where near the vehicle. During the
rocking operation the vehicle may
suddenly move forward or backward
as it becomes unstuck, causing injury
or damage to nearby people or ob-
jects.
NOTICE
If you rock your vehicle, observe the
following precautions to prevent dam-
age to the transmission and other
parts.
Do not depress the accelerator ped-
al while shifting the selector lever
or before the transmission is com-
pletely shifted to forward or reverse
gear.
Do not race the engine and avoid
spinning the wheels.
If your vehicle remains stuck after
rocking the vehicle several times,
consider other ways such as tow-
ing.
If your vehicle becomes stuck

1892004 ECHO from Aug. ’03 Prod. (OM52526U)
SU41054b
(a) Towing with wheel lift type truck—
—From rear
(b) Using flat bed truck —From frontIf towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice. In consultation with them, have
your vehicle towed using either (a) or
(b).
Only when you cannot receive a towing
service from a Toyota dealer or com-
mercial tow truck service, tow your ve-
hicle carefully in accordance with the
instructions given in “—Emergency
towing” in this Section.
Proper equipment will help ensure that
your vehicle is not damaged while being
towed. Commercial operators are generally
aware of the state/provincial and local
laws pertaining to towing.
Your vehicle can be damaged if it is
towed incorrectly. Although most operators
know the correct procedure, it is possible
to make a mistake. To avoid damage to
your vehicle, make sure the following few
precautions are observed. If necessary,
show this page to the tow truck driver.
TOWING PRECAUTIONS:
Use a safety chain system for all towing,
and abide by the state/provincial and local
laws. The wheels and axle on the ground
must be in good condition. If they are
damaged, use a towing dolly.(a) Towing with wheel lift type truck
From front—Release the parking brake.
NOTICE
When lifting wheels, take care to en-
sure adequate ground clearance for
towing at the opposite end of the
raised vehicle. Otherwise, the bumper
and/or underbody of the towed vehicle
will be damaged during towing.
From rear—
Manual transmission:
We recommend using a towing dolly
under the front wheels. If you do not
use a towing dolly, place the ignition
key in the “ACC” position and put the
transmission in neutral.
NOTICE
Do not tow with the key removed or
in the “LOCK” position when towing
from the rear without a towing dolly.
The steering lock mechanism is not
strong enough to hold the front
wheels straight.
If your vehicle needs to be
towed—

1902004 ECHO from Aug. ’03 Prod. (OM52526U)
Automatic transmission:
Use a towing dolly under the front
wheels.
NOTICE
Never tow a vehicle with an automatic
transmission from the rear with the
front wheels on the ground, as this
may cause serious damage to the
transmission.
(b) Using flat bed truck
SU41022
(c) Towing with sliding type
truck
(c) Towing with sling type truck
NOTICE
Do not tow with sling type truck, ei-
ther from the front or rear. This may
cause body damage.
—Emergency towing
SU41023b
Front
SU41024a
Rear

1912004 ECHO from Aug. ’03 Prod. (OM52526U)
If towing is necessary, we recommend
you to have it done by your Toyota
dealer or a commercial tow truck ser-
vice.
If a towing service is not available in
an emergency, your vehicle may be
temporarily towed by a cable or chain
secured to either the emergency towing
eyelet on the front of the vehicle or to
the left emergency towing eyelet under
the rear of the vehicle. Use extreme
caution when towing vehicles.
Vehicles with an automatic transmis-
sion, use only the front towing eyelet
when towing your vehicle.
To install the front towing eyelet, see
“—Installing front towing eyelet” on page
192 in this Section.
NOTICE
Only use specified towing eyelet;
otherwise your vehicle may be dam-
aged.
Vehicles with an automatic trans-
mission, never tow a vehicle from
the rear with four wheels on the
ground. This may cause serious
damage to the transmission.
A driver must be in the vehicle to steer
it and operate the brakes.
Towing in this manner may be done only
on hard−surfaced roads for a short dis-
tance and at low speeds. Also, the
wheels, axles, drive train, steering and
brakes must all be in good condition.
CAUTION
Use extreme caution when towing
vehicles. Avoid sudden starts or er-
ratic driving maneuvers which
would place excessive stress on the
emergency towing eyelets and tow-
ing cable or chain. The eyelets and
towing cable or chain may break
and cause serious injury or dam-
age.
In case of installing the front eyelet
on the vehicle, be sure to tighten
the front eyelet securely. If the eye-
let is loose, it may come off when
towing and result in death or seri-
ous injury to the passenger in the
front vehicle or damage to that ve-
hicle.
NOTICE
Use only a cable or chain specifi-
cally intended for use in towing ve-
hicles. Securely fasten the cable or
chain to the towing eyelet provided.
Do not use the right rear eyelet. It
is not designed for towing.
Before towing, release the parking brake
and put the transmission in neutral (manu-
al) or “N” (automatic). The key must be
in “ACC” (engine off) or “ON” (engine run-
ning).
CAUTION
If the engine is not running, the pow-
er assist for the brakes and steering
will not work so steering and braking
will be much harder than usual.

1922004 ECHO from Aug. ’03 Prod. (OM52526U)
SN41005a
1. Remove the front towing eyelet as
shown in the illustrations.
SN41002a
2. Remove the front towing eyelet cover
on the front bumper, using a flat−
bladed screwdriver which is wrapped
with a cloth.
SN41003a
3. Secure the front towing eyelet to the
hole on the bumper by turning clock-
wise.
—Installing front towing eyelet
