2004 AVALON from Aug. ’04 Prod. (OM41412U)
Exhaust system
If you notice any change in the sound of
the exhaust or smell exhaust fumes, have
the cause located and corrected immedi-
ately. (See “Engine exhaust cautions” in
Section 2.)
INSIDE THE VEHICLE
Items listed below should be checked
regularly, e.g. while performing periodic
services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail
lights, turn signal lights, and other lights
are all working. Check headlight aim.
Service reminder indicators and warning
buzzers
Check that all service reminder indicators
and warning buzzers function properly.
Steering wheel
Check that it has the specified free play.
Be alert for changes in steering condition,
such as hard steering or strange noise.
Seats
Check that all front seat controls such as
seat adjusters, seatback recliner, etc. op-
erate smoothly and that all latches lock
securely in any position. Check that the
head restraints move up and down
smoothly and that the locks hold securely
in any latched position.Seat belts
Check that the seat belt system such as
buckles, retractors and anchors operate
properly and smoothly. Make sure the belt
webbing is not cut, frayed, worn or dam-
aged.
Accelerator pedal
Check the pedal for smooth operation and
uneven pedal effort or catching.
Brake pedal
Check the pedal for smooth operation and
that the pedal has the proper clearance.
Check the brake booster function.
Brakes
In a safe place, check that the brakes do
not pull to one side when applied.
Parking brake
Check that the pedal has the proper travel
and that, on a safe incline, your vehicle
is held securely with only the parking
brake applied.
Automatic transmission “Park” mecha-
nism
Check the lock release button of the se-
lector lever for proper and smooth opera-
tion. On a safe incline, check that your
vehicle is held securely with the selector
lever in “P” position and all brakes re-
leased.
OUTSIDE THE VEHICLE
Items listed below should be performed
from time to time, unless otherwise
specified.
Fluid leaks
Check underneath for leaking fuel, oil, wa-
ter or other fluid after the vehicle has
been parked for a while. If you smell fuel
fumes or notice any leak, have the cause
found and corrected immediately.
Doors and engine hood
Check that all doors including trunk lid
operate smoothly and all latches lock se-
curely. Make sure the engine hood sec-
ondary latch secures the hood from open-
ing when the primary latch is released.
Tire inflation pressure
Check the pressure with a gauge ev-
ery two weeks, or at least once a
month. See Section 72 for additional
information.
Tire surface and wheel nuts
Check the tires carefully for cuts,
damage or excessive wear. See Sec-
tion 72 for additional information.
When checking the tires, make sure
no nuts are missing, and check the
nuts for looseness. Tighten them if
necessary.

’04 AVALON U (L/O 0408)
311
2004 AVALON from Aug. ’04 Prod. (OM41412U)
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.Light bulbsBulb
No.WTy p e
Headlights
(low beam)900651A
Headlights
(high beam)900560B
Front fog lights900651A
Front turn
signal/parking
lights
1157NA27/8C
Rear turn signal
lights—21D
Stop/tail lights744321/5E
Rear side
marker lights1943.8E
Backup lights92118E
Tail lights1685E
License plate
lights1685E
High mounted
stoplight92118E
Interior light—7F
Front personal
lights—7F
Light bulbsBulbNo.WTy p e
Rear personal
lights—5F
Vanity lights—2F
Glove box light—1.2E
Door courtesy
lights—6F
Trunk light—3F
A: HB4 halogen bulbs
B: HB3 halogen bulbs
C: Single end bulbs
D: Wedge base bulbs (amber)
E: Wedge base bulbs (clear)
F: Double end bulbs

’04 AVALON U (L/O 0408)
313
2004 AVALON from Aug. ’04 Prod. (OM41412U)
If either the left or right front fog or
front turn signal/parking lights burns
out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog or
front turn signal/parking light bulbs
by yourself. You may damage the ve-
hicle.
Use a flatbladed screwdriver which is

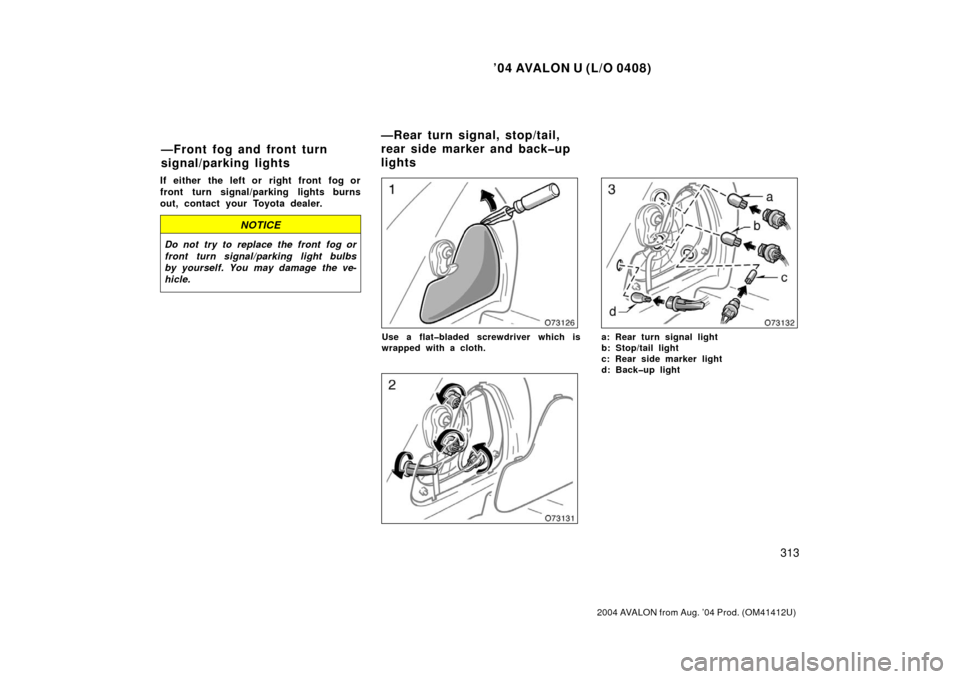

wrapped with a cloth.a: Rear turn signal light
b: Stop/tail light
c: Rear side marker light
d: Backup light
—Front fog and front turn
signal/parking lights—Rear turn signal, stop/tail,
rear side marker and backup
lights

’04 AVALON U (L/O 0408)
323
2004 AVALON from Aug. ’04 Prod. (OM41412U)
Engine compartment
Engine compartment
Fuses (type A)1. HEAD RH UPR 10 A: No circuit
2. HEAD LH UPR 10 A: No circuit
3. HEAD RH LWR 15 A: Righthand
headlight (low beam)
4. HEAD LH LWR 15 A: Lefthand head-
light (low beam)
5. ABS NO.4 5 A: Vehicle stability control
system
6. DRL 7.5 A: Daytime running light sys-
tem
7. SPARE 30 A: Spare fuse
8. SPARE 15 A: Spare fuse
Instrument panel
9. SPARE 25 A: Spare fuse
10. SPARE 10 A: Spare fuse
11. ALTS 5 A: Charging system
12. DCC 30 A: “DOME”, “ECUB” and
“RADIO” fuses
13. SECURITY 10 A: Theftdeterrent sys-
tem
14. HAZ 15 A: Turn signal lights
15. A/F 25 A: Air/fuel sensor
16. DOOR NO.2 15 A: Power door lock
system
17. HORN 10 A: Horn, theftdeterrent sys-
tem
Fuses

’04 AVALON U (L/O 0408)
324
2004 AVALON from Aug. ’04 Prod. (OM41412U)
18. AM2 10 A: SRS airbag system, multi-
port fuel injection system/sequential
multiport fuel injection system, starter
system, charging system, air/fuel sen-
sor, fuel pump
19. EFI NO.2 7.5 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, air flow meter, oxygen
sensor, evaporative emission control
system, throttle positi oner control sys-
tem, engine control system
20. ABS NO.3 25 A: Antilock brake sys-
tem
21. ABS NO.2 25 A: Vehicle stability con-
trol system
22. EFI NO.1 15 A: Multiport fuel injection
system/s equential multiport fuel injec-
tion system, fuel pump
23. IG2 15 A: Multiport fuel injection sys-
tem/sequential multiport fuel injection
system
24. HEAD LH UPR 10 A: Lefthand head-
light (high beam), high beam indicator
light
25. HEAD RH UPR 10 A: Righthand
headlight (high beam)
26. ECUIG NO.1 5 A: Electric cooling
fans 27. ECUB 7.5 A:
Air conditioning system,
theft deterrent system, power seats,
meters, power windows (for driver and
front passenger), multiplex communica-
tion system
28. TAIL 10 A: Parking lights, license plate
lights, tail lights, rear side marker
lights, rear light failure warning light,
engine control system
29. SEAT HTR 20 A: Seat heaters
30. FR P/W 20 A: Power window (for front
passenger)
31. GAUGE NO.1 10 A: Vehicle stability
control system, rear window defogger,
cruise control system, shift lock sys-
tem, antilock brake system, auto anti
glare inside rear view mirror, automatic
light control system, power seats, rear
light failure warning light, automatic
transmission indicator lights, power out-
let, power window (for driver), brake
system warning light, electric moon
roof
32. HTR 10 A: Air conditioning system
33. FOG 15 A: Front fog lights
34. TURN 7.5 A: Turn signal lights
35. A/C 10 A: Air conditioning system
36. RADIO 15 A: Audio system, multiin-
formation display 37. PANEL 5 A:
Gauges and meters, audio
system, cigarette lighter, air c ondition-
ing system, emergency flasher, elec-
tronically controlled automatic transmis-
sion system, power rear view mirrors,
multiinformation display, glove box
light, instrument panel lights, instrument
panel light control, power outlet
38. FL P/W 25 A: Power window (for driv-
er)
39. PWR OUTLET NO.1 15 A: Power out-
let (ACC)
40. ECUACC 5 A: Audio system, power
rear view mirrors, multiinformation dis-
play, shift lock system, multiplex com-
munication system
41. SRSACC 10 A: SRS airbag system
42. MIR HTR 10 A: Outside rear view mir-
ror defoggers, engine control system
43. PWR OUTLET NO.2 15 A: Power out-
let (IG)
44. GAUGE NO.2 10 A: Backup lights
45. OBDII 7.5 A: Onboard diagnosis sys-
te

m
46. STOP 15 A: Stop lights, high mounted
stoplight, antilock brake system, shift
lock system, cruise control system, ve-
hicle stability control system, engine
control system
