2004 TOYOTA AVALON ECO mode

’04 AVALON U (L/O 0408)
157
2004 AVALON from Aug. ’04 Prod. (OM41412U)
AM
Push “AM” to turn on the radio and select
the AM band. “AM” will appear on the
display.
If the audio system is off, you can turn
on the radio by pushing “AM”. Also, push
“AM” to switch from cassette or compact
disc operation to AM.
AUDIO CTRL / MODE (Audio control
and mode adjustment)
Each time you push the AUDIO CONTROL
knob, the mode changes. To adjust the
tone and balance, turn the knob.
BASS: Adjusts lowpitched tones. The dis-
play ranges from 5 to 5.
MID: Adjusts midpitched tones. The dis-
play ranges from 5 to 5.
TREBLE: Adjusts highpitched tones. The
display ranges from 5 to 5.
BALANCE: Adjusts the sound balance be-
tween the right and left speakers. The
display ranges from 7 to 7.
FADER: Adjusts the sound balance be-
tween the front and rear speakers. The
display ranges from 7 to 7.CD (Compact Disc)
Push “CD” while in radio or cassette
mode to switch to compact disc mode. If
the audio system is off, pressing “CD” will
turn on the compact disc player. A disc
must be loaded in the player.
When the audio is set into compact disc
operation, the display shows the track or,
track and disc number currently being
played.
If the player or another unit equipped with
the player malfunctions, your audio system
will display one of the six following error
messages.
Error codes
“WAIT”:
The compact disc player unit
may be too hot due to temperature. Allow
the player to cool down.
“ERR 1”: The disc may be dirty, damaged
or inserted incorrectly (upside down).
Clean disc and reinsert.
“ERR 2”: The compact disc player is
empty. Load disc and retry.
“ERR 3” or “ERR 4”: This indicates in-
ternal error. Reload discs.
“OPEn”: The compact disc changer lid is
open. Close the compact disc changer lid. If the malfunction still exists,
take your
vehicle to your Toyota dealer.
DISC
By using this button, you can select a
disc you wish to listen to.
Push either side of the button until the
number of the disc you want to listen
appears on the display.
Dolby
B NR∗
If you are listening to a tape that was
recorded with Dolby  B Noise Reduction,
push the “
” button. The “ B” will
appear on the display. Push the button
again to turn off Dolby B NR.
The Dolby NR mode reduces tape noise
by about 10 dB. For best sound reproduc-
tion, play your tapes with this button on
or off according to the mode used for
recording the tape.
∗: Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation. “DOLBY” and the
double D symbol
are trademarks of Dolby Laboratories
Licensing Corporation.

’04 AVALON U (L/O 0408)
158
2004 AVALON from Aug. ’04 Prod. (OM41412U)
FM
Push “FM” to turn on the radio to FM
band. “FM1” or “FM2” will appear on the
display. This system allows you to set
twelve FM stations, two for each of the
six preset button.
If the audio system is off, you can turn
on the radio by pushing “FM”. Also, push
“FM” to switch from cassette or compact
disc operation to FM.
LOAD
This button is used to load the compact
discs in the compact disc changer which
is integrated with the radio and cassette
player. This compact disc changer can
store up to 6 discs.
The key must be in the “ACC” or “ON”
position for the load function.
Loading one compact disc only—
To load one compact disc only, quickly
push and release the button. If you hold
the button too long (if the audio system
is on at this time, you hear a beep.), the
mechanism will change to the mode for
loading multiple compact discs. After
pushing the button, insert a compact disc.
After the disc is loaded, the shutter of the
slot will close. If no compact disc is inserted, the shutter
will close after 15 seconds.
Loading multiple compact di
scs—
To load multiple compact discs, push and
hold the button (until you hear a beep
when the audio system is on). After push-
ing the button, insert the first compact
disc. After the disc is loaded, the shutter
of the slot will close. After a few seconds,
the shutter will automatically open again
so the next disc can be inserted. The
same process can be applied for loading
the rest of the discs.
If no compact disc is inserted, the shutter
will close after 15 seconds. MSG (Message)
This button is operational only in RDS
mode.
When an RDS radio station transmits a
text message, “MSG” will be displayed. At
this time, push “MSG” button to view the
text message. The message display will
be canceled if any button that affects the
display is pushed. To view the message
again, push the “MSG” button again. After
the entire message has been displayed,
the message will disappear.
The RDS audio system has memory to
store three 64 character messages. To
store a message in memory, push and
hold the “MSG” button until you hear a
beep.
If 3 messages are already stored in
memory, the oldest message will be over-
written by the new message.
To recall a radio text message, push the
“MSG” button momentarily. This will dis-
play the most recent message. A second
push of the “MSG” button while the most
stored message(s) are displayed begins
with the newest one.

’04 AVALON U (L/O 0408)
159
2004 AVALON from Aug. ’04 Prod. (OM41412U)
If no messages have been stored, or if
there are no more messages to be re-
called, “NO MSG STORED” will appear on
the display, and the message display will
be canceled. The display then returns to
show the program service name. The
message display will be canceled if you
activate any function that affects the dis-
play.
Message display can be canceled by
pressing any of the following buttons:
“AM”, “FM”, “CD”, “TAPE”, “LOAD”,
“SEEK”, “TUNE”, any preset, “SCAN”, any
audio control, “RDS”, “SRCH” or “ TYPES>”. If the current station is not a
traffic program and traffic announcements
is off, pushing “TRAF” will cancel the dis-
play. The message will be canceled after
the entire message has been displayed.
PROG (Program)
The “
” button switches the side of
the cassette being played. The display in-
dicates which side is currently selected
(“ ” indicates top side, “ ” indicates bot-
tom side).
Autoreverse feature: After the cassette
reaches the end of a tape, it automatically
reverses and begins to play the other
side. This feature works both in play and
fastforward mode. (Program Types)
This button is operational only in RDS
mode.
This button is used for program type
(PTY) search of RDS stations. 32 program
types are available as listed here.
By pushing this button, RDS turns on in
FM mode and “RDS” will be displayed. If
the program type search is not already
performed, the radio will start a program
type search (see “SRCH” for details). If a
program type search has already been
performed, the last active program type
will be tuned.
If you are already in FM type mode and
a program type is not already being dis-
played, pushing this button will recall the
display for the current program type.
After a program type is being displayed,
subsequent pushes of this button within 3
seconds will toggle through the available
program types. Pushing the right or left
arrows repeatedly will increment or decre-
ment the display through the available pro-
gram types in alphabetical order.
Program Type List
The following program type names are
available. After a program type search,
the radio will display one of the following
program types for 3 seconds, then the
program type name for 3 seconds (if
available). After that, it will display the
first 8 characters of the program service
name of the current station.
Program types included are
Adlt Hit (Adult Hits)
Alert! (Emergency message)
Classicl (Classical)
Cls Rock (Classic Rock)
College
Country
Inform (Information)
Jazz
Language
News
Nostalga (Nostalgia)
Oldies
Persnlty (Personality)
Public
R & B (Rhythm and Blues)
Rel Musc (Religious Music)

’04 AVALON U (L/O 0408)
162
2004 AVALON from Aug. ’04 Prod. (OM41412U)
SCAN
Radio
You can either scan all the frequencies on
a band or scan only the preset stations
for that band.
To scan the preset stations:
Push and hold “SCAN” until you hear a
beep. The radio will tune in the next pres-
et station up the band, stay there for 5
seconds, and then move to the next pre-
set station. To select a station, push
“SCAN” again.
To scan all the frequencies:
Quickly push and release “SCAN”. The
radio will find the next station up the sta-
tion band, stay there for 5 seconds, and
then scan again to the next preset. To
select a station, push “SCAN” again. If
you hear a beep, the radio will scan the
preset stations.Compact Disc Player
There are two scan features—you can ei-
ther scan the tracks on a specific disc or
scan the first tracks of all the discs in the
magazine.
Scanning the tracks on a disc:
Quickly push and release “SCAN”. “SCAN”
will appear on the display and the player
will scan all the tracks on the disc you
are listening to. If you hear a beep, the
player will scan the first track of all the
discs in the magazine. To select a track,
push “SCAN” again. If the player scanned
all the tracks on the disc, it will stop
scanning.
Scanning the first track of all the discs in
the magazine:
Push “SCAN” until you hear a beep.
“DSCAN” will appear on the display and
the player will scan the first track of the
next disc. To select a disc, push the
“SCAN” again. If the player has scanned
all the discs, it will stop sc
anning.SEEK (Seeking)
Radio
In the seek mode, the radio finds and
plays the next station up or down the
station band.
To seek the next station, quickly push and
release the “
” or “ ” side of “SEEK”.
Do this again to find the station after that.
If you push and hold the “ ” or “ ” side
of “SEEK”, the radio will continue seeking
up or down for stations and will stop at
the next station that it finds after the but-
ton is released. Press the button again to
resume the search.
Cassette Player
By using this button you can skip up or
down to locate a song or recording.
You can select up to 9 recordings (includ-
ing current one).
A blank space of at least 3 seconds is
considered to be a start of a recording.
When beginning of a tape is reached, the
player automatically resumes play.
When the end of the tape is reached, the
player automatically reverses sides and
resumes normal play.

’04 AVALON U (L/O 0408)
163
2004 AVALON from Aug. ’04 Prod. (OM41412U)
In addition, the feature may not work well
with some spoken word, live, or classical
recordings.
SRCH (Search)
This feature is available only in RDS
mode.
This button allows you to search all avail-
able RDS stations out of the entire FM
band and sort them by program type (see
“” for details on program
types).
By pushing this button, RDS is turned on
if it was off (“RDS” will display). The radio
is switched to FM type mode. During the
program type search, “SEARCHING....” will
show on the display. Also at this time,
“FM” and “TYPE” will appear on the dis-
play to indicate that the preset buttons are
for program type.
After searching for all available RDS sta-
tions, the radio will activate the previously
used program type. If the previously used
program type is not available, or if the
radio has not yet performed a program
type search, the radio will activate the
first available program type, in alphabeti-
cal order, that has stations in memory.
The radio will preset the stations of the
current program type into the preset but-
tons. If more than 6 stations of a program type
are found, the radio will create a second
bank of presets, such as “Rock 1” and
“Rock 2”. These are accessible through
the “” button. If more than
12 stations are found, the radio will load
the 12 strongest stations signal of the
program type into the presets.
After the search is complete, the radio will
display the number of RDS stations found
for 3 seconds: for example, “Found 19
RDS.” The radio will then display the se-
lected program type for 3 seconds: for
example, “ROCK”. After the program type
has been displayed for 3 seconds, the
radio will display the program type name
for 3 seconds. After that, the radio will
display the program service name.
Day mode (headlights off): The radio will
only display the number of presets that
have a frequency for the selected program
type. For example, if program type Rock
is selected, and there are three rock sta-
tions, only preset numbers 1, 2 and 3 will
be displayed. The remaining preset num-
bers will not be displayed and the remain-
ing preset button(s) will have no function.
Night mode (headlights on): In addition to
the display described for day mode, the
radio will illuminate the jewels of the pre-
sets that have stations available. The re-
maining preset button(s) will have no func-
tion.
A type search in progress can be can-
celed by pushing the following buttons:
“SEEK”, “TUNE”, “SCAN”, “AM”, “FM”, any
preset button, “CD” (if CD mode is avail-
able), “TAPE” (if tape mode is available),
“RDS”, “SRCH”, “”,
“TRAF” or “LOAD”. If any of these buttons
is pressed, the search will be canceled
and the appropriate function started. In-
serting a tape will also cancel the search.
If no RDS stations are found, “FOUND 0
RDS” will display and the radio will return
to the previous FM mode and frequency.
ST (Stereo reception) display
Your radio automatically changes to stereo
reception when a stereo broadcast is re-
ceived. “ST” appears on the display. If the
signal becomes weak, the radio reduces
the amount of channel separation to prev-
ent the weak signal from creating noise.
If the signal becomes extremely weak, the
radio switches from stereo to mono recep-
tion.

’04 AVALON U (L/O 0408)
175
2004 AVALON from Aug. ’04 Prod. (OM41412U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.

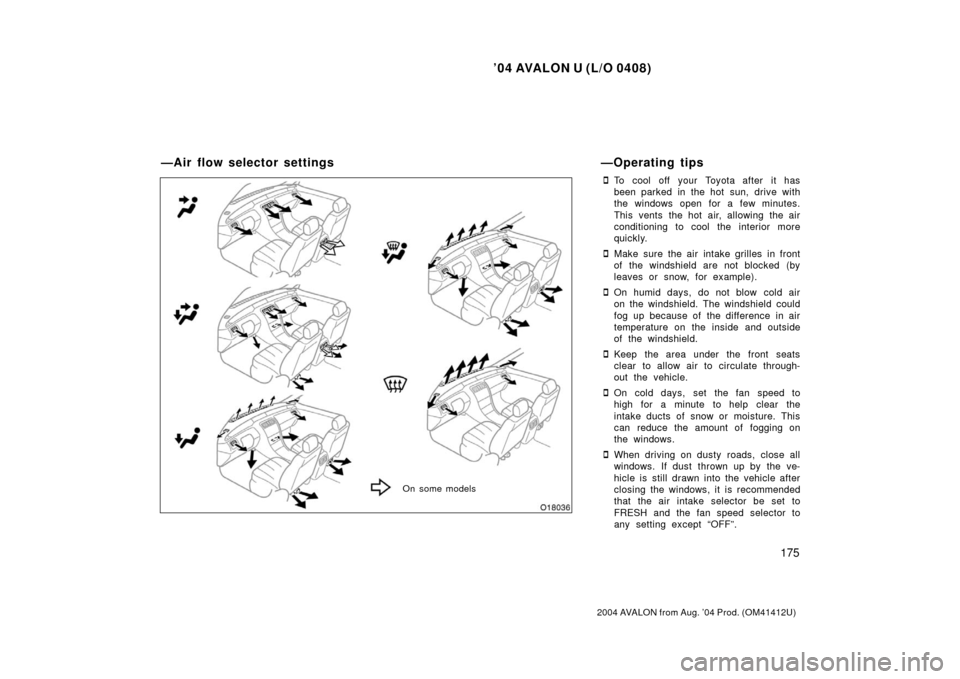

—Air flow selector settings
On some models
—Operating tips

’04 AVALON U (L/O 0408)
178
2004 AVALON from Aug. ’04 Prod. (OM41412U)
1. “AUTO” button
2. “OFF” button
3. Air intake selector
4. Windshield air flow button
5. “A/C” button
6. “DUAL” button
7. Temperature selector (Only for the independent mode that
display shows “DUAL”; mainly for front
passenger and secondarily for driver)
8. “MODE” button (air flow selector)
9. Fan speed selector
10. Temperature selector (At the independent mode that display
shows “DUAL”; mainly for driver and
secondarily for front passenger)
(At the linked mode that display does
not show “DUAL”; for driver)
Automatic air conditioning system—
—Controls

’04 AVALON U (L/O 0408)
182
2004 AVALON from Aug. ’04 Prod. (OM41412U)
To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
Make sure the air intake grilles in front
of the windshield are not blocked (by
leaves or snow, for example).
On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
On cold days, set the fan speed to
high for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
When driving on dusty roads, close all
windows. If dust thrown up by the ve-
hicle is still drawn into the vehicle after
closing the windows, it is recommended
that the air intake selector be set to
FRESH and the fan speed selector to
any setting except “OFF”.
On some models

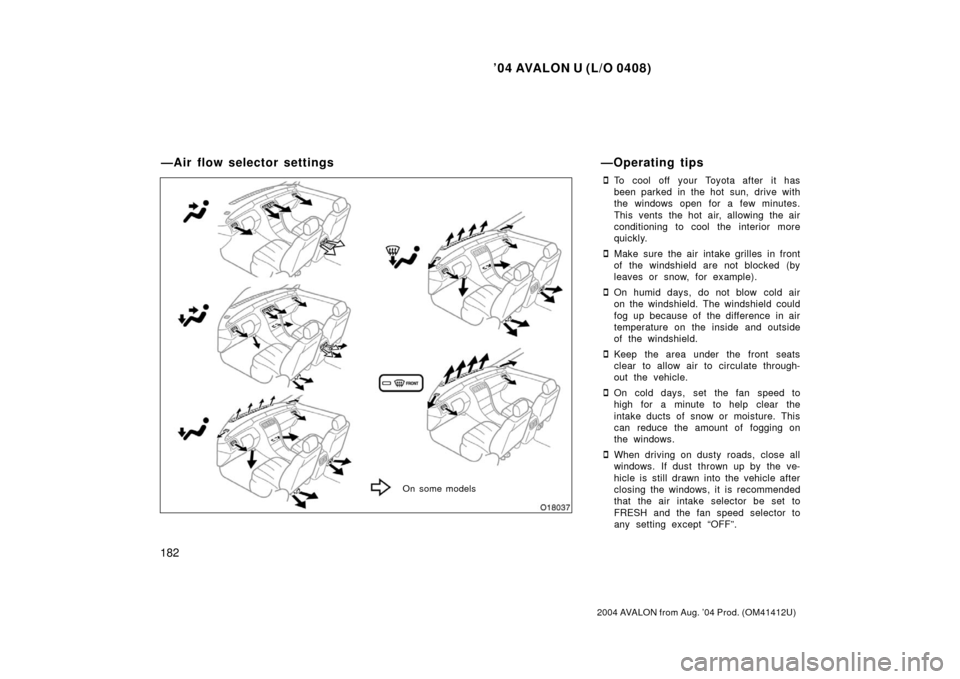

—Air flow selector settings—Operating tips
