2004 TOYOTA AVALON clock

AVALON_Navi_U (L/O 0408)
vi
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
Display, symbols and switches
Northup or headingup symbol and
scale of map
Indicates a map view with north up or
heading up. Touching this symbol
changes the map orientation. The figure
also indicates the map scale. For
details, see page 46.
Clock
The digital clock
indicates the time. For
details, see page 110.
Distance and time to destination
Displays the distance and the
estimated travel time to the
destination. The direction will be
indicated when your vehicle is off
the route. For details, see page 31.
Operation guide
To display the switch
function on each screen. Current vehicle position mark
To indicate the current position,
see page 35 for details.
Signal reception
portion
Receives the signals
from the remote
controller. For details,
see page 2.
Outside temperature
display
The display indicates the
outside temperatures.
For details, see page
111.

AVALON_Navi_U (L/O 0408)
109
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
OTHER FUNCTIONS
Other functions
Clock adjustment11 0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside temperature display111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trip information111 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen adjustment11 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION IV

AVALON_Navi_U (L/O 0408)
11 0
2004 AVALON Navigation from Aug. ’04 Prod. (OM41413U)
4NO011

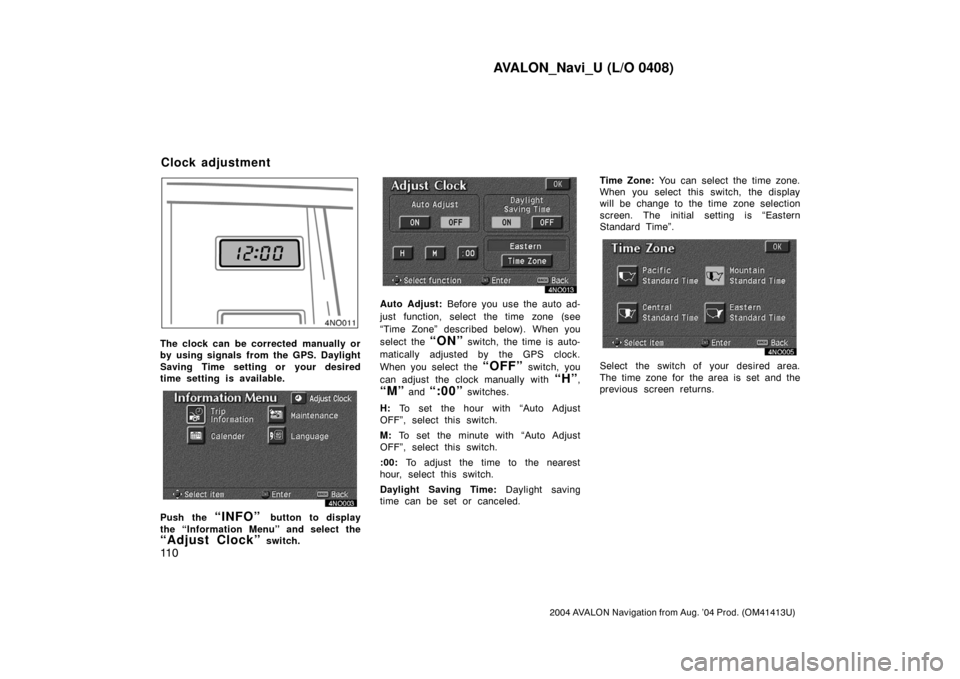

The clock can be corrected manually or
by using signals from the GPS. Daylight
Saving Time setting or your desired
time setting is available.
Push the “INFO” button to display
the “Information Menu” and select the
“Adjust Clock” switch.
Auto Adjust: Before you use the auto ad-
just function, select the time zone (see
“Time Zone” described below). When you
select the
“ON” switch, the time is auto-
matically adjusted by the GPS clock.
When you select the
“OFF” switch, you
can adjust the clock manually with
“H”,
“M” and “:00” switches.
H: To set the hour with “Auto Adjust
OFF”, select this switch.
M: To set the minute with “Auto Adjust
OFF”, select this switch.
:00: To adjust the time to the nearest
hour, select this switch.
Daylight Saving Time: Daylight saving
time can be set or canceled.Time Zone: You can select the time zone.
When you select this switch, the display
will be change to the time zone selection
screen. The initial setting is “Eastern
Standard Time”.
Select the switch of your desired area.
The time zone for the area is set and the
previous screen returns.
Clock adjustment
