DRIVING TIPS
The technical prerequisites
for low fuel consumption and efficiency we-
re „built in“ at the factory. Particular impor-
tance was placed on the lowest possible
effect on the environment. To retain and
make the best possible use of these char-
acteristics attention should be paid to the
following points:
The prescribed maintenance opera-tions should be carried out exactly
as specified in the Service Schedule.
Having your car serviced by a Škoda Dealer
at the specified intervals not only ensures
that it is always in proper roadworthy con-
dition but that it operates economically, with
minimal environmental impact and provides
you with many years of motoring.
Check the tyre pressures every 4 weeks.
Low tyre pressures increase the rolling re-
sistance. This not only increases the fuel
consumption and tyre wear, but the han-
dling is also impaired.
Do not carry any unnecessary loadsin the luggage compartment.
The weight of the car has a major effect on
fuel consumption, particularly when driving
in towns where you frequently have to ac-
celerate. The rule of thumb which applies
is that every 100 kilograms of weight in-
creases fuel consumption by about 1 litre/
100 km (1 litre/62 miles).
Do not fit the roof rack unless it is
really needed.
Particularly at high speeds the increased
air resistance makes itself felt in higher fuel
consumption.
Electrical consumers should onlybe switched on when they are ac-
tually required.
Heated rear window, fog lights etc. have a
considerable energy demand. The higher
alternator load also increases the fuel con-
sumption. For instance, over a period of 10
hours, the heated rear window will increase
fuel consumption by approximately 1 litre.
Keep a frequent check on your fuel consumption.
The fuel consumption should be checked
each time the tank is filled up. By doing this
inconsistencies on the vehicle which lead
to increased fuel consumption can be de-
tected sooner. Check the oil level each time you refuel.
The oil consumption depends to a great
extent on the engine load and speed. De-
pending on the style of driving the con-
sumption can be as much as 0.5 litre/
1000 km.
It is normal for the oil consumption of a new
engine to reach its lowest level after a cer-
tain mileage has been covered. The con-
sumption cannot be properly assessed until
the vehicle has run approx. 5000 km.
This also applies to the fuel consumption
and the engine output.

130GENERAL MAINTENANCEWashing the carThe best protection for your car against
harmful environmental influences is fre-
quent washing and polishing.
How often your car requires to be treated
depends among other factors on how fre-
quently you use the car, where you park it
(garage, in the open, below trees etc.), the
time of year, the weather conditions and
other environmental influences.
The longer bird droppings, insect residues,
tree resin, road and industrial dust, tar
stains, soot particles, road salt and other
aggressive deposits remain on the paint-
work of your car, the more extreme will be
their destructive effect. High temperatures
caused by strong sun’s rays, intensify the
caustic effect. It may therefore be neces-
sary to wash the car once a week, but once
a month may also be sufficient with appro-
priate waxing.
It is essential to also thoroughly wash the
underside of the car after the end of the
winter period.Automatic car washes
The paintwork of your car is sufficiently re-
sistant to enable the car to be washed nor-
mally in automatic car washing plants with-
out any problems. The effect on the paint-
work, though, also depends greatly on the
design of the car wash, the filtering of the
washing water, the type of wash and care
products used etc. If the paintwork appears
mat after a car wash or even has scratches,
you should contact the operator of the plant.
If necessary, change the car wash you use.
Notes


Before washing your car in an automatic
car wash, there are no special precautions
necessary other than the usual measures
(closing windows and sliding roof, folding
down roof aerial etc.).
Warning
Do not tighten roof aerial in the lower
position

It is best to contact the operator of the
car wash if your car has any particular spe-
cial fittings - e.g. spoiler, roof rack, mobile
phone aerial etc.


After washing your car in an automatic car
wash with wax preservative, wipe the lips of
the windscreen wiper blades clean and also
clean the windscreen (also the rear window
on models fitted with rear window wiper).
Washing your car by hand
As a protection for the environment,
your car should only be washed at
washbays provided for this purpose.
Local regulations may in fact forbidwashing cars in certain areas outside ofsuch facilities.
First of all soften the dirt with plenty of wa-
ter and rinse off as well as possible.
Then, clean the car with a soft sponge,
washing glove or brush starting on the roof
and working down, applying only slight
pressure. Use a car wash shampoo only
for particularly stubborn dirt.
Thoroughly wash out the sponge or glove
at short intervals.
Clean wheels and door sills etc. last. Use
a second sponge if possible for such ar-
eas.
After washing the car, rinse it thoroughly
with water and finally chamois dry.

131
GENERAL MAINTENANCE
Notes

The car should not be standing in bright
sunshine when it is washed.

If a hose is used to spray down the car,
do not aim the jet of water directly at the
door locks and body panel gaps - otherwise
they may freeze up in winter.Washing the car with high-pressure
cleaners
It is essential to follow the instructions
for using high-pressure cleaners - particu-
larly as regards the pressure and spraying
distance.

Do not use round spray nozzles or so-
called „dirt shifters“!

The temperature of the water should not
be more than 60 °C.
WarningTyres must never be cleaned with
round jet nozzles. Damage may occur
even if only sprayed for a short time
or from a relatively large distance.WaxingGood wax treatment protects the paintwork
of your car from the environmental influ-
ences listed on the previous page under
„Washing the car“ and also from slight me-
chanical damage. The vehicle must be treated with a high-
quality hard wax polish at the latest, when
no more drops form on the clean paintwork.
Do not apply a new film of wax protection
until the body surface is dry. Even if a wax
preserver is used regularly, it is recom-
mended to protect the paintwork at least
twice a year with hard wax.
Warning
Never treat the windscreen or win-
dows with wax.
PolishingPolishing is only necessary if the paintwork
has become unattractive and it is no longer
possible to achieve a gloss with a wax pre-
server. If the polish used does not contain
any preserving elements, the paintwork
should then be treated with wax preserver.
Note
Mat painted parts and plastic parts must
not be treated with polish or hard wax.
We recommend using the products from
the Škoda range.
Do not polish the paintwork of the vehicle
in a dusty environment, otherwise the
paintwork can be scratched.
Paint damageMinor paint damage such as scratches,
rubs or stone chips, should be treated im-
mediately with paint (Škoda touch-up pen
or spray can) before rust can form.
This repair work can also of course be car-
ried out by a Škoda Dealer. The colour
code is stated on the car data sticker, see
page 181.WindowsUse only a plastic scraper to remove snow
and ice from windows and mirrors. The
scraper should not be moved back and for-
ward, but only pushed in one direction in
order to avoid scratches caused by dirt.
Residues of rubber, oil, grease, wax or sili-
cone sealant can be removed with a wind-
screen cleaner or special silicone remover.
The windows should also be cleaned at
regular intervals from the inside.
Do not use the same chamois leather for
drying the windows and for the paintwork
because residues of wax preservers will
cause smears on the surface of the win-
dows.
Never remove snow or ice from the win-
dows with warm or hot water - risk of
formation of cracks in the glass!

132GENERAL MAINTENANCEDo not affix any stickers from the inside
over the heating circuit to avoid damaging
the heating circuit of the rear window
heater .
Models fitted with all-wheel drive:
The adhesive sticker for identifying 4x4 mo-
dels on the rear window must only be re-
moved by a Škoda Dealer using a special
technology otherwise the rear window
heater might be damaged.Door, window , bonnet/tailgate sealsThe rubber seals remain supple and last
longer if they are treated from time to time
with a light film of a rubber care product.
They also will not then freeze up in winter!Plastic parts and synthetic leatherExterior plastic parts are cleaned by wash-
ing in a normal way and interior parts by
using a damp cloth. Should this not be ad-
equate, plastic parts and synthetic leather
must only be treated with special solvent-
free plastic cleaning and care products.
We recommend using a cleaning product
from Škoda original accessories offered by
your Škoda dealer.
Note
Solvent-free cleaners attack the material
and can damage it.
Upholstery cloth and cloth trimUpholstery cloth and cloth trim on the doors,
rear shelf, luggage compartment cover, head-
lining etc. are treated with special cleaning
products or with dry foam and a soft brush.Cleaning seat beltsKeep belts clean! If the belt webbing is
very dirty, this may prevent the inertia reel
belt from retracting properly.
Wash dirty belt webbing only with a mild
soap solution without taking the seat belts
out of the car.
Note
Dry inertia reel belts completely before re-
tracting.
Warning
Do not have the belts dry-cleaned be-
cause dry-cleaning products damage
the webbing material. Ensure that the
belts do not come into contact with
corrosive fluids.
Chrome partsFirst clean the chrome parts with a damp
cloth and then polish them with a soft, dry
cloth.
If it does not prove to be adequate, use a
chrome care product from Škoda original
accessories.
NoteDo not polish the chrome parts in a dusty en-
vironment, otherwise they can be scratched.Natural leatherLeather should be treated from time to time
in accordance with the instructions below,
depending on the amount of use. It is im-
portant to ensure that the leather must
not be treated on any account with sol-
vents, floor wax, shoe cream, stain re-
mover or similar products.
For normal cleaning of leather-trim steer-
ing wheels, leather seat covers etc., slightly
moisten a cotton or woollen cloth with wa-
ter and clean the soiled surfaces of the
leather. Severe soiling can be cleaned with
a mild soap solution (2 soup-spoonfuls of
neutral soap to 1 litre of water). It is very
important to ensure that the leather is not
moistened through at any point and that
no water is able to trickle through the stitch-
ing. Wipe the leather dry finally with a soft,
dry cloth.

149
GENERAL MAINTENANCE
Driving in winterThe battery is exposed to particular stresses
in winter. In addition, at low temperatures, it
is only capable of providing part of the start-
ing power which it has at normal tempera-
tures.A discharged battery may already freeze
at a few degrees below zero.
We therefore recommend having the bat-
tery inspected and, if necessary, charged
before the start of the winter. This is best
done by a Škoda Dealer.Charging batterySwitch off the ignition and all electrical com-
ponents before charging the battery.
It is not normally necessary to disconnect
the cables from the electrical system when
charging with low amperages (e.g. with a
mini charger). Always follow the instructions
of the charger manufacturer in this case.
Recharge the battery by using a charg-
ing current of 1/10 of the battery rated
capacity in A (or less) until the battery is
fully charged.
A battery charger with a constant charg-
ing voltage of 14.4 V can also be used
for recharging; the recharging duration
is max. 30 hours, according to battery
discharge. Both connection cables should be taken
off
, however, for quick-charging (only in
exceptional cases), in other words charg-
ing with high amperages.
Pay attention to the following points:

The vent plugs of the battery should
not be opened for charging.

Never charge a frozen or thawed bat-
tery - risk of explosion and caustic
burns! Replace a frozen battery.

The power cable of the charger should
not be plugged in until after the terminal
clamps of the charger have been properly
connected to the battery terminals:
red terminal
= positive (+)
black terminal
= negative (-).

After charging, install battery and re-con-
nect correctly - first of all positive (+), then
negative cable (-).
If the indication in the window is green, the
battery is properly charged. If, on the other
hand, the indication is dark, the battery re-
quires to be charged.
If the magic eye is colourless or yellow, this
indicates insufficient electrolyte level.
Please have the battery checked by a
Škoda dealer.
The battery must be topped up with distilled
water. If the battery is 5 years or older, we
recommend replacing it. Have the electro-
lyte level inspected and adjusted to the
correct level by a Škoda dealer.

151
GENERAL MAINTENANCE
Windscreen washer system
The windscreen washer reservoir is located
in the right of the engine compartment. It
holds about 3 litres, or about 5.5 litres in
the case of models with a headlight washer
system.
If the vehicle is equipped with headlight
washer system, it is necessary to only
use certain fluids which do not corrode
any polycarbonate connections.
Filling reservoirWhen topping up windscreen washer
fluid, do not remove the sieve from the
reservoir. Impurities might otherwise
affect proper operation of the wind-
screen washer system.
We recommend always adding a wind-
screen cleaner with wax-dissolving proper-
ties to the water (in winter with antifreeze
protection) as clear water is not generally
sufficient to quickly and intensively clean
the windscreen and the headlight lenses.
Refer to the mixing instructions on the wind-
screen cleaner pack.
Note
Should windscreen cleaner with antifreeze
protection not be available in exceptional
cases, it is also possible to add methylated
spirits (the concentration of methylated
spirits must not be higher than 15 %). Note
in this case, however, that the antifreeze
protection of this concentration is only down
to -5 °C at the most.
Even if your vehicle has heated windscreen
washer* nozzles, in winter you should al-
ways add antifreeze protection to the wa-
ter.
On no account use radiator antifreeze pro-
tection or other additives!
Windscreen wiper bladesThe windscreen wiper blades at the front
and rear must be in proper condition if they
are to ensure clear visibility. Wiper blades
must not be dirtied by dust, insect residues
and wax preservative.
To avoid smears, the windscreen wiper
blades should be cleaned regularly with a
windscreen cleaner. If they are very dirty,
e.g. insect residues, the wiper blades can
also be cleaned with a sponge or cloth.
If the wiper blades rub or „smear“, this may
be caused by wax residues on the wind-
screen as a result of washing the car in an
automatic car wash. For this reason, each
time after washing the car in a car wash
with wax treatment, remove the wax from
the lips of the wiper rubbers and from the
windshield and rear window.
In frosty conditions, check that the wiper
blades are not frozen to the glass before
switching the wipers on for the first time.
For safety reasons, the windscreen wiper
blades should be replaced twice a year.
Windscreen wiper blades are available
from Škoda Dealers.

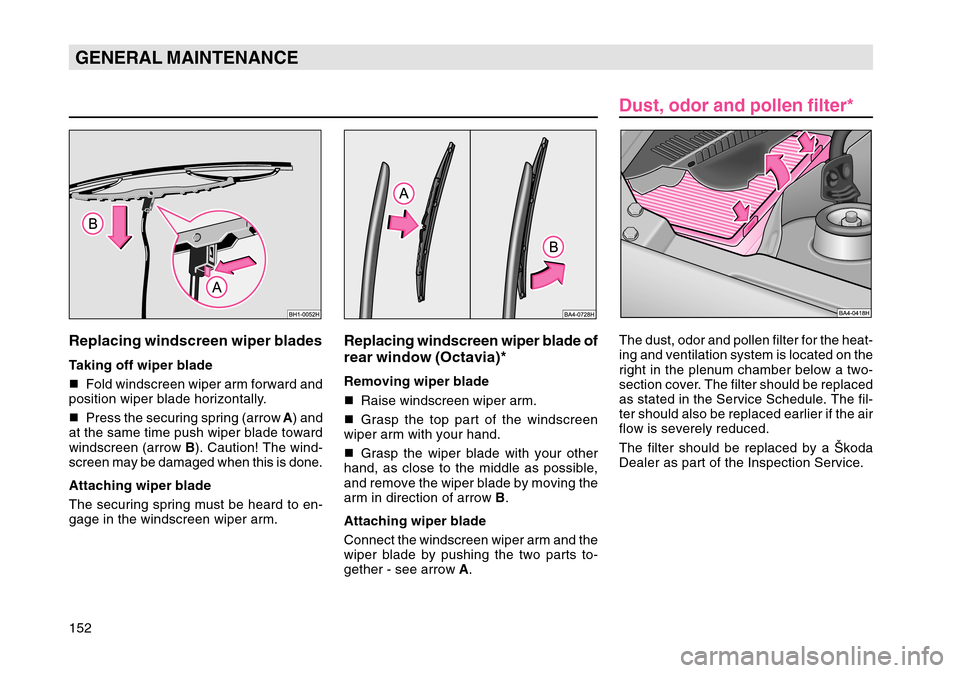

152GENERAL MAINTENANCEReplacing windscreen wiper bladesTaking off wiper blade

Fold windscreen wiper arm forward and
position wiper blade horizontally.

Press the securing spring (arrow A) and
at the same time push wiper blade toward
windscreen (arrow B). Caution! The wind-
screen may be damaged when this is done.
Attaching wiper blade
The securing spring must be heard to en-
gage in the windscreen wiper arm.
Replacing windscreen wiper blade of
rear window (Octavia)*Removing wiper blade

Raise windscreen wiper arm.

Grasp the top part of the windscreen
wiper arm with your hand.

Grasp the wiper blade with your other
hand, as close to the middle as possible,
and remove the wiper blade by moving the
arm in direction of arrow B.
Attaching wiper blade
Connect the windscreen wiper arm and the
wiper blade by pushing the two parts to-
gether - see arrow A.
Dust, odor and pollen filter*The dust, odor and pollen filter for the heat-
ing and ventilation system is located on the
right in the plenum chamber below a two-
section cover. The filter should be replaced
as stated in the Service Schedule. The fil-
ter should also be replaced earlier if the air
flow is severely reduced.
The filter should be replaced by a Škoda
Dealer as part of the Inspection Service.

168DO-IT-YOURSELFFuse assignment
No. Electrical component A
1 - Mirror and spray nozzle heater,relay for cigarette lighter
el. seats ........................................ 10
2 - Turn signal lights .......................... 10
3 - Stowage compartment light ............ 5
4 - Licence plate lights ......................... 5
5 - Seat heaters, Climatronic, Navi- gation system, recirculated air
flap, multifunction steering
wheel, exterior mirror heaters ..... 7.5
6 - Central locking control unit ............. 5
7 - Reversing lights, parking aid ........ 10
8 - Mobile phone .................................. 5
9 - ABS/ESP ......................................... 5
10 - Petrol engine: control unit ............ 20
Diesel engine: control unit .............. 5No. Electrical component A
11 - Dash panel insert, selector lever
lock solenoid (automatic
gearbox) .......................................... 5
12 - Power supply for diagnosis, mobile phone ............................... 7.5
13 - Brake lights ................................... 10
14 - Interior light, central locking ......... 10
Interior light (without central
locking) ......................................... 10
15 - Instrument cluster, automatic gearbox, steering lock angle
sensor, rear-view mirrors ................ 5
16 - Air conditioning, electric water pump ............................................. 10
17 - Police .............................................. 5
18 - Right main beam .......................... 10
19 - Left main beam ............................. 10
20 - Right low beam, headlight range control ................................. 15
21 - Left low beam ............................... 15
22 - Right parking light ........................... 5
23 - Left parking light ............................. 5
24 - Wiper system, washer pump ........ 20
25 - Heater fan ..................................... 25
26 - Rear window heater ...................... 25
27 - Rear window wiper ....................... 15
28 - Fuel pump ..................................... 15
29 - Petrol engine - engine electronics, ignition ....................... 15
Diesel engine - engine
electronics .................................... 10 No. Electrical component A
30 - Power sliding/tilting roof
............... 20
31 - Automatic gearbox ........................ 20
Haldex coupling .............................. 5
32 - Petrol engine - injectors ............... 10
Diesel engine - injection pump,
control unit .................................... 30
33 - Headlight cleaning system ........... 20
34 - Petrol engine - engine electronics .................................... 10
Diesel engine - engine
electronics .................................... 10
35 - Trailer socket, socket in luggage compartment ............... 30
36 - Fog lights ...................................... 15
37 - S contact
1)................................... 10
38 - Luggage compartment light, central locking, remote fuel
filler flap release ........................... 15
39 - Hazard warning signals ................ 15
40 - Horn .............................................. 20
41 - Cigarette lighter ............................ 15
42 - Radio ............................................. 15
43 - Petrol engine: engine electronics .................................... 10
Diesel engine: engine
electronics .................................... 10
44 - Seat heaters ................................. 15
1)For electrical components which can be oper-
ated after switching off the ignition provided the
ignition key is not withdrawn, e.g. radio.
