28CONTROLS AND EQUIPMENT
Attachment of floor covering of
luggage compartment (Estate)A hook is attached to the loop of the floor
covering of the luggage compartment.
It is possible, if necessary, to attach the
raised floor covering with the hook to the
opening in the tailgate - see arrow - for ex-
ample to gain access to the spare wheel.
On no account exceed the permis-
sible axle loads and the permissible
gross weight of the vehicle - risk of
accident!
Never transport occupants in the
luggage compartment. The air circulation in the interior of the car
helps to prevent the windows from misting
up.
Stale air is diverted via the outlet nozzles
into the lateral trim panels of the luggage
compartment.
Check for yourself that the outlet nozzles
are not covered.
Page 33 of 189
32CONTROLS AND EQUIPMENTLuggage compartment cover

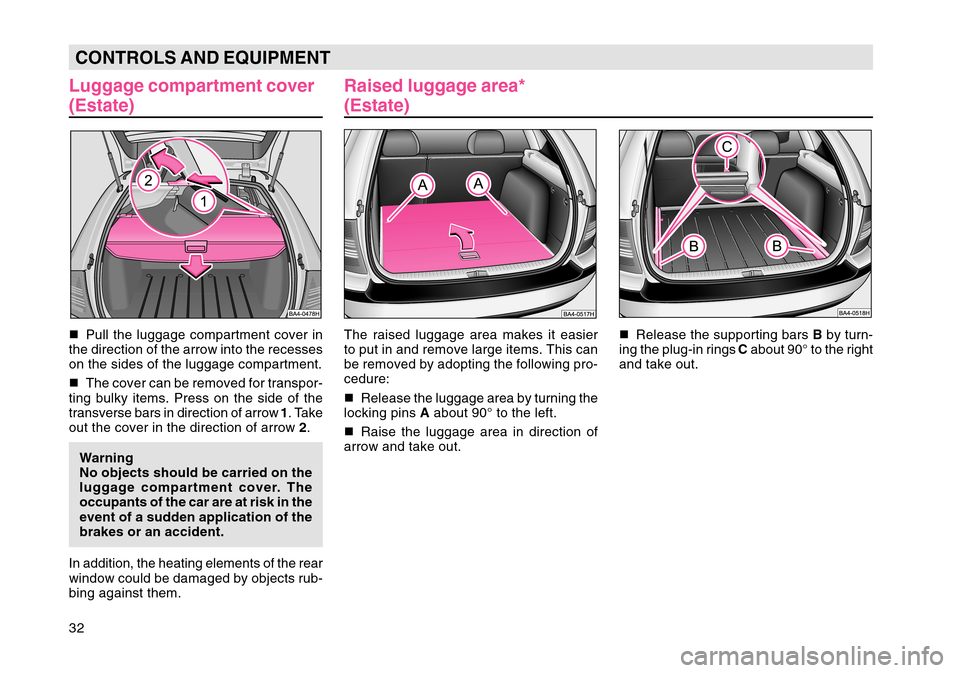

(Estate)Pull the luggage compartment cover in
the direction of the arrow into the recesses
on the sides of the luggage compartment.
The cover can be removed for transpor-
ting bulky items. Press on the side of the
transverse bars in direction of arrow 1. Take
out the cover in the direction of arrow 2.
Warning
No objects should be carried on the
luggage compartment cover. The
occupants of the car are at risk in the
event of a sudden application of the
brakes or an accident.
In addition, the heating elements of the rear
window could be damaged by objects rub-
bing against them.
Raised luggage area*
(Estate)The raised luggage area makes it easier
to put in and remove large items. This can
be removed by adopting the following pro-
cedure:
Release the luggage area by turning the
locking pins A about 90° to the left.
Raise the luggage area in direction of
arrow and take out.
Release the supporting bars B by turn-
ing the plug-in rings C about 90° to the right
and take out.
Page 64 of 189
63
CONTROLS AND EQUIPMENT
Fog lights*The fog lights are switched on by pull-
ing the switch into position A.
The fog lights come on if the side lights,
low or main beam are switched on.Rear fog lightThe rear fog light is switched on by pull-
ing the switch into position B.
The rear fog light comes on if the low or
main beam is selected or if the front fog
lights are switched on (depends on the
national version). The rear fog light should
only be switched on if visibility is poor, be-
cause of the risk of dazzling a driver be-
hind.
Notes
The rear fog light is incorporated in the
rear light of the driver’s side.
The electrical system of the towing de-
vice fitted for certain countries is designed
to automatically switch off the rear fog light
of the car when towing a trailer fitted with a
rear fog light.
1 - Hazard warning system
2 - Rear window heater/Exte-
rior mirror heater
3 - ESP/TCS*
(The switch applies to the
ESP or TCS, depending on the sys-
tem fitted. See pages 64 and 65 for
further information on ESP and TCS.
4 - Thumbwheel for front seat heater*
5 - Remote fuel filler flap re- leased from driver’s seat*
1 - Hazard warning systemIf the hazard warning system is switched
on, all the turn signal lights of the car flash
at the same time. The warning light for the
turn signals and the warning light in the
switch also flash. The system operates
even if the ignition is switched off.2 - Rear window heaterThe heating operates only if the ignition is
switched on. When the heater is operating,
the warning light in the switch comes on.
After the rear window heater is switched on,
the heaters of the exterior mirrors are also
switched on on models fitted with power
windows.
The rear window heater switches off au-
tomatically after 20 minutes.
If you press the switch once again, the
rear window heater is switched on perma-
nently - the automatic deactivation is thus
deactivated.
As soon as the rear window is clear, switch off the heater. The reduced
current consumption improves your fuel consumption - see also page 118.
2
Page 73 of 189
72CONTROLS AND EQUIPMENTAfter the ignition is switched off, you have
to re-activate the rain sensor. To do this,
move the lever into position 0 and then back
again into position 1.
Warning
Do not use the windscreen washer
system at low temperatures, without
heating the windscreen beforehand.
Otherwise the window cleaner could
freeze on the windscreen and restrict
the view to the front.Headlight washer system*When the side lights, low beam or main
beam are switched on, the headlight lenses
are also washed every time the windscreen
is washed.
There is a time delay of about 3 second af-
ter operating the lever (position 5) before
the headlights are washed.
Stubborn dirt (such as insect residues)
should be removed from the headlight
lenses at regular intervals, for example
when refuelling.
In winter, also clean off any snow on the
washer nozzles or use de-icing spray to re-
move the ice to ensure proper operation.
Rear window Intermittent wipe
Stalk in position 6.
The wiper operates every 6 seconds.
Automatic wash/wipe*
Push down stalk away from steering wheel
into position 7. The washer system and the
wiper operate so long as the stalk remains
in this position.
Release stalk. The washer system no lon-
ger operates and the wiper performs a fur-
ther 1 to 3 sweeps (depending on the length
of the washing operation).
The stalk remains in position 6 after be-
ing released.
Switching off intermittent wipe
Stalk in position 0.
Heating and ventilationControlsRotary control A - temperature selection
clockwise - increases heat output
anti-clockwise - decreases heat output
Rotary switch B - blower and shutting-
off air supply
The quantity of air which flows through the
heater is regulated with rotary switch B.
The air supply can be regulated in four
stages.
The blower is switched off in position 0. To
switch off the fresh air supply press button
D , see below. The air supply should only
be switched off for a short time as the win-
dows may mist up.
Page 74 of 189
73
CONTROLS AND EQUIPMENT
Rotary control C - air distribution
The air distribution to the vents is regulated
with the rotary control.
Pushbutton D - recirculated air mode
The recirculated air mode in the car is
switched on by pressing the button D.
The symbol on the pushbutton comes on.
Switch off by once again pressing the
pushbutton.
We recommend the recirculated air
mode should only be selected for a short
time, however, as no fresh air is sup-
plied, the windows may mist up.
For safety reasons, it is not possible
to press pushbutton D if the rotary
control C is in the position .................or is close to this position.
Air ventsHeated or non-heated fresh air flows out of
all the vents depending on the position of
the rotary control A.
The air distribution to the vents is regulated
with the rotary control C.
The vents 3 and 4 can also be closed and
opened individually with the vertical thumb-
wheel:
Vent closed - vertical thumbwheel of air
outlet vent in position E and G
Vent open fully - vertical thumbwheel of air
outlet vent in position F.It is also possible to alter the direction of the
air flow with the horizontal and vertical
thumbwheels of the air outlet vents 3 and 4.
The rear footwell vents are regulated to-
gether with the vents 5.
On models with another type of dash panel,
the air vents are regulated in a similar way.Defrosting windscreen and side
windows Rotary switch B to position 4
Rotary control A fully to the right
and C to ............................................. Close vents 3.
Warm air can be directed additionally to
the side windows through vents 4.
Page 75 of 189
74CONTROLS AND EQUIPMENTDemisting windscreen and side
windowsIf the windows mist up due to high air hu-
midity (e.g. when it is raining) we recom-
mend the following settings:
Rotary switch B to position 2 or 3
Rotary control A, if necessary, in heat-
ing range
Rotary control C to ........................ Close vents 3
Warm air can additionally be directed to
the side windows through vents 4.Heating up interior quickly Rotary switch B to position 4
Rotary control A fully to the right
Rotary control C to ........................ Open vents 3 and 4
Switch over to recirculated air with
pushbutton D (air conditioning off)
Heating interior comfortablyIf the windows mist up due to high air humi-
dity, e.g. when it is raining, we recommend
the following settings:
Rotary switch B to position 2 or 3
Rotary control A, if necessary, in heat-
ing range
Rotary control C to ........................ Rotary control C, depending
on desired air distribution, to .............or to ....................................................Close vents 3
Open vents 4
Ventilation (fresh air mode)At the following settings, unheated fresh air
flows out of vents 3 and 4:
Pushbutton D must not be set to „recircu-
lated air“
Rotary switch B to desired position
Rotary control A fully to the left
Rotary control C to ........................ Open vents 3 and 4
The rotary control C can also be turned into
other positions, if desired.
Page 76 of 189
75
CONTROLS AND EQUIPMENT
General notesThe air inlet in front of the windscreen
should be kept free of ice, snow and leaves
to ensure the heating and ventilation sys-
tem can operate properly.
All the controls can be set to any desired
intermediate position, except blower switch
B in the blower positions 1 - 4.
The blower should always be set to run
when driving at low speeds in order to pre-
vent the windows from misting up.
The heat output depends on the cool-
ant temperature - full heat output is there-
fore only available when the engine is
warm.
The stale air flows out of the car through
the vent openings behind the right side trim
panel of the luggage compartment. The air conditioning system is a combined
cooling and heating system which offers
maximum comfort during all seasons of the
year.
The air conditioner operates only when the
engine is running, at an ambient tempera-
ture above about +5 °C and the blower
speed between 1 and 4.
If the air conditioning system is operating,
this reduces not only the temperature in-
side the car but also the air humidity.
This enhances the comfort of the car occu-
pants if the humidity of the ambient air is
high.
ControlsOn models with another type of dash panel,
the air vents are regulated in a similar way.
Rotary control A - temperature selection
clockwise - increases heat output
anti-clockwise - decreases heat output
Rotary switch B - blower
The air flow can be regulated with the ro-
tary switch
B.
The air flow can be set in four stages.
Blower and air conditioner are switched off
in position 0. Pushbutton E (recirculated air
mode)should be operated to prevent pol-
luted outside air (odours) entering the car.
Rotary control C - air distribution
Distributes air to the air outlet vents.
Air conditioning*
Page 77 of 189
76CONTROLS AND EQUIPMENTPushbutton D - switching air conditioner
on and off
The system can be switched on by press-
ing the button D only when the engine is
running.
An indicator light in the pushbutton comes
on when the air conditioner is operating.
The air conditioner is switched off by again
pressing the pushbutton.
Pushbutton E - recirculated air mode
The recirculated air mode in the passen-
ger compartment is switched on by press-
ing the pushbutton E.
The indicator light in the pushbutton comes
on.
The recirculated air mode is switched off
by again pressing the pushbutton.
The recirculated air mode can be selected
with and without the air conditioner. The
recirculated air mode must only be selected
for a short time , however, as no fresh air
is supplied to the interior and the windows
may mist up if the air conditioner is switched
off.
Pushbutton E cannot be pressed if the
rotary control C
is in the position .................................or close to this position.
Air ventsHeated or non-heated fresh or cooling air
flows out of all the opened vents depend-
ing on the position of the rotary controls A,
B , C and pushbuttons D and E.
The vents are controlled with the rotary
control C.
The vents 3 and 4 can also be closed and
opened individually with the vertical thumb-
wheel:
Vent closed - vertical thumbwheel of air
outlet vent in position 6 or 8
Vent open fully - vertical thumbwheel of air
outlet vent in position 7.It is also possible to alter the direction of the
air flow with the horizontal and vertical
thumbwheels of the air outlet vents 3 and 4.
The rear footwell vents are controlled to-
gether with vents 5.Defrosting windscreen and side
windows Rotary switch B to position 4.
Rotary control A fully to the right
and C to ............................................. Close vents 3.
Open vents 4.
