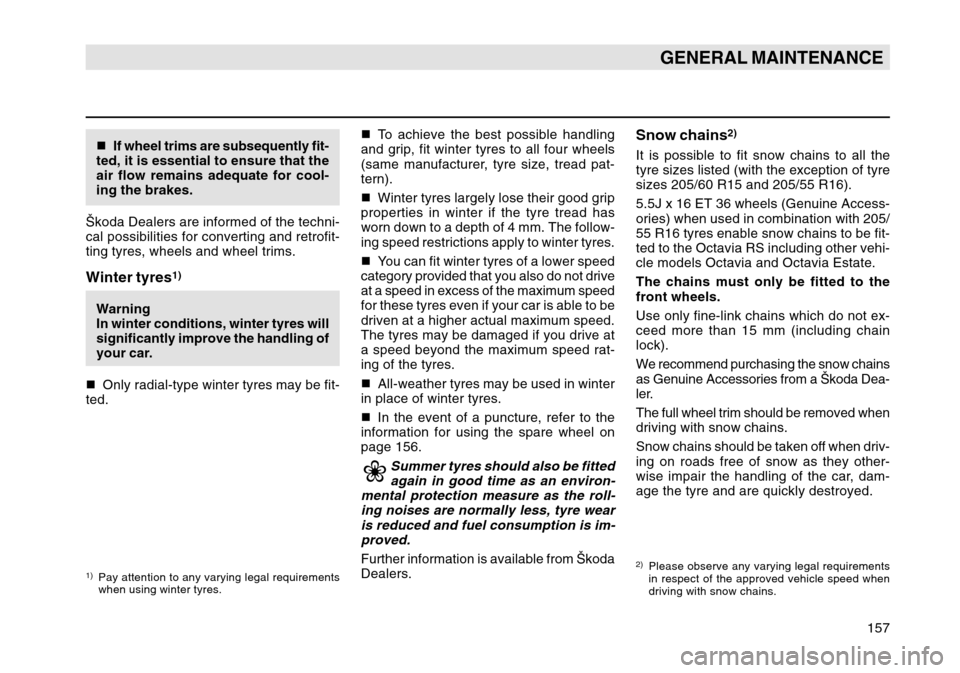

2004 SKODA OCTAVIA TOUR ESP

157
GENERAL MAINTENANCE

If wheel trims are subsequently fit-
ted, it is essential to ensure that the
air flow remains adequate for cool-
ing the brakes.
Škoda Dealers are informed of the techni-
cal possibilities for converting and retrofit-
ting tyres, wheels and wheel trims.Winter tyres
1)
Warning
In winter conditions, winter tyres will
significantly improve the handling of
your car.

Only radial-type winter tyres may be fit-
ted.1)Pay attention to any varying legal requirements
when using winter tyres.
Snow chains
2)
It is possible to fit snow chains to all the
tyre sizes listed (with the exception of tyre
sizes 205/60 R15 and 205/55 R16).
5.5J x 16 ET 36 wheels (Genuine Access-
ories) when used in combination with 205/
55 R16 tyres enable snow chains to be fit-
ted to the Octavia RS including other vehi-
cle models Octavia and Octavia Estate.
The chains must only be fitted to the
front wheels.
Use only fine-link chains which do not ex-
ceed more than 15 mm (including chain
lock).
We recommend purchasing the snow chains
as Genuine Accessories from a Škoda Dea-
ler.
The full wheel trim should be removed when
driving with snow chains.
Snow chains should be taken off when driv-
ing on roads free of snow as they other-
wise impair the handling of the car, dam-
age the tyre and are quickly destroyed.2)Please observe any varying legal requirements
in respect of the approved vehicle speed when
driving with snow chains.

To achieve the best possible handling
and grip, fit winter tyres to all four wheels
(same manufacturer, tyre size, tread pat-
tern).

Winter tyres largely lose their good grip
properties in winter if the tyre tread has
worn down to a depth of 4 mm. The follow-
ing speed restrictions apply to winter tyres.

You can fit winter tyres of a lower speed
category provided that you also do not drive
at a speed in excess of the maximum speed
for these tyres even if your car is able to be
driven at a higher actual maximum speed.
The tyres may be damaged if you drive at
a speed beyond the maximum speed rat-
ing of the tyres.

All-weather tyres may be used in winter
in place of winter tyres.

In the event of a puncture, refer to the
information for using the spare wheel on
page 156.
Summer tyres should also be fitted again in good time as an environ-
mental protection measure as the roll-
ing noises are normally less, tyre wearis reduced and fuel consumption is im-proved.
Further information is available from Škoda
Dealers.

158GENERAL MAINTENANCE
Motoring abroadPlease give consideration to the following
points when driving abroad with your car:

If your car is fitted with a petrol engine
and catalytic converter, it is important that
unleaded petrol is available on your route -
see also page 128. Information regarding
the availability of unleaded petrol can be
obtained from automobile associations.

In certain countries it is also possible that
the Škoda Dealership network is not fully
developed. Certain replacement parts may
therefore not be available or the personnel
of the Škoda Dealer may be able to carry
out repair work only to a limited extent.
ŠKODA AUTO a. s. in the Czech Republic
and the relevant importers will gladly pro-
vide you with the necessary information re-
garding preparing your car technically for
motoring abroad, the servicing required and
repair facilities.
The addresses of the Škoda dealers in
the @! can be found in the brochure
„Škoda dealers in @!“.
For all other countries, you will find a
contact address in the brochure „Trav-
elling assistant“ or in the local „ Work-
shop listing“.
Masking over headlightsAdapt your headlights for using the car in
countries in which the traffic drives on the
left-hand side: If you use your car in coun-
tries in which traffic drives on the left-hand
side of the road, other road users coming
toward you may be dazzled when you use
the headlights of your car which has been
designed for driving on the right-hand side
of the road. In order to eliminate this prob-
lem, you should mask over the left-hand
wedge-shaped areas of the headlight
lenses with an opaque adhesive strip.
The illustrations show how to mask over the
headlights of a car designed for driving on
the right-hand side of the road, when it is
used in a country in which traffic drives on
the left.
Adapting headlights with gas dis-
charge lamps* (applies to left-hand
and right-hand drive models)If you use your car in countries in which traf-
fic drives on the left-hand side of the road,
other road users coming toward you may
be dazzled when you use the headlights of
your car which has been designed for driv-
ing on the right-hand side of the road.
In order to eliminate this problem, the head-
lights must be adapted.
This adaptation is achieved by switching
over the shroud for low beam in the head-
light module.
This measure is carried out by your Škoda
Dealer. He can also provide you with more
detailed information on this matter.
Adapting the headlights with gas discharge
lamps is not a substitute for headlights
which are designed for driving on the right
or on the left, respectively.

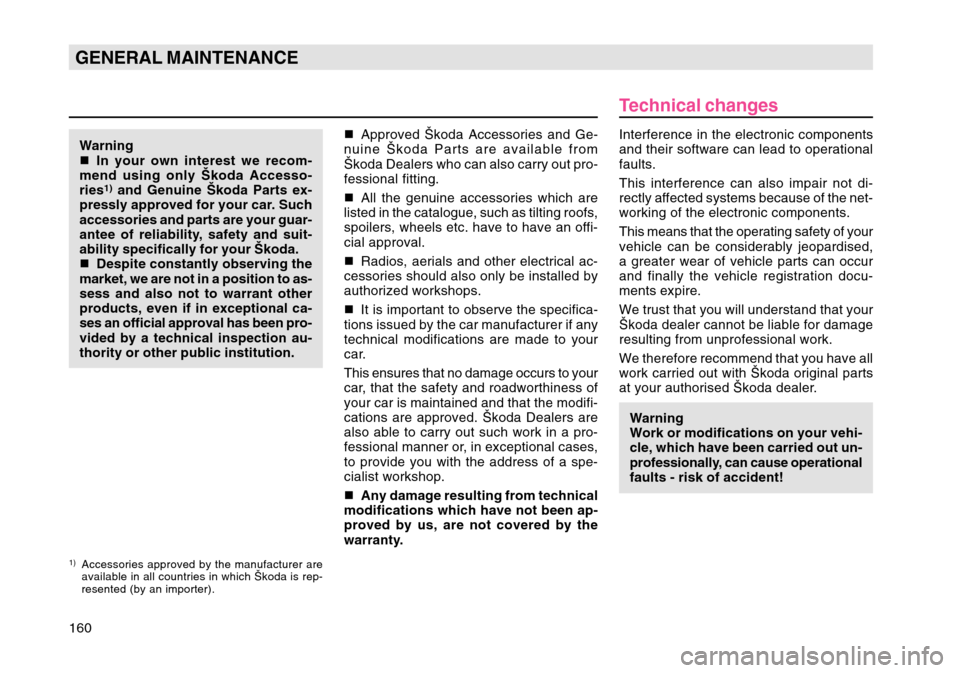

160GENERAL MAINTENANCEWarning

In your own interest we recom-
mend using only Škoda Accesso-
ries
1) and Genuine Škoda Parts ex-
pressly approved for your car. Such
accessories and parts are your guar-
antee of reliability, safety and suit-
ability specifically for your Škoda.

Despite constantly observing the
market, we are not in a position to as-
sess and also not to warrant other
products, even if in exceptional ca-
ses an official approval has been pro-
vided by a technical inspection au-
thority or other public institution.
1)Accessories approved by the manufacturer are
available in all countries in which Škoda is rep-
resented (by an importer).

Approved Škoda Accessories and Ge-
nuine Škoda Parts are available from
Škoda Dealers who can also carry out pro-
fessional fitting.

All the genuine accessories which are
listed in the catalogue, such as tilting roofs,
spoilers, wheels etc. have to have an offi-
cial approval.

Radios, aerials and other electrical ac-
cessories should also only be installed by
authorized workshops.

It is important to observe the specifica-
tions issued by the car manufacturer if any
technical modifications are made to your
car.
This ensures that no damage occurs to your
car, that the safety and roadworthiness of
your car is maintained and that the modifi-
cations are approved. Škoda Dealers are
also able to carry out such work in a pro-
fessional manner or, in exceptional cases,
to provide you with the address of a spe-
cialist workshop.

Any damage resulting from technical
modifications which have not been ap-
proved by us, are not covered by the
warranty.
Technical changesInterference in the electronic components
and their software can lead to operational
faults.
This interference can also impair not di-
rectly affected systems because of the net-
working of the electronic components.
This means that the operating safety of your
vehicle can be considerably jeopardised,
a greater wear of vehicle parts can occur
and finally the vehicle registration docu-
ments expire.
We trust that you will understand that your
Škoda dealer cannot be liable for damage
resulting from unprofessional work.
We therefore recommend that you have all
work carried out with Škoda original parts
at your authorised Škoda dealer.
Warning
Work or modifications on your vehi-
cle, which have been carried out un-
professionally, can cause operational
faults - risk of accident!

168DO-IT-YOURSELFFuse assignment
No. Electrical component A
1 - Mirror and spray nozzle heater,relay for cigarette lighter
el. seats ........................................ 10
2 - Turn signal lights .......................... 10
3 - Stowage compartment light ............ 5
4 - Licence plate lights ......................... 5
5 - Seat heaters, Climatronic, Navi- gation system, recirculated air
flap, multifunction steering
wheel, exterior mirror heaters ..... 7.5
6 - Central locking control unit ............. 5
7 - Reversing lights, parking aid ........ 10
8 - Mobile phone .................................. 5
9 - ABS/ESP ......................................... 5
10 - Petrol engine: control unit ............ 20
Diesel engine: control unit .............. 5No. Electrical component A
11 - Dash panel insert, selector lever
lock solenoid (automatic
gearbox) .......................................... 5
12 - Power supply for diagnosis, mobile phone ............................... 7.5
13 - Brake lights ................................... 10
14 - Interior light, central locking ......... 10
Interior light (without central
locking) ......................................... 10
15 - Instrument cluster, automatic gearbox, steering lock angle
sensor, rear-view mirrors ................ 5
16 - Air conditioning, electric water pump ............................................. 10
17 - Police .............................................. 5
18 - Right main beam .......................... 10
19 - Left main beam ............................. 10
20 - Right low beam, headlight range control ................................. 15
21 - Left low beam ............................... 15
22 - Right parking light ........................... 5
23 - Left parking light ............................. 5
24 - Wiper system, washer pump ........ 20
25 - Heater fan ..................................... 25
26 - Rear window heater ...................... 25
27 - Rear window wiper ....................... 15
28 - Fuel pump ..................................... 15
29 - Petrol engine - engine electronics, ignition ....................... 15
Diesel engine - engine
electronics .................................... 10 No. Electrical component A
30 - Power sliding/tilting roof
............... 20
31 - Automatic gearbox ........................ 20
Haldex coupling .............................. 5
32 - Petrol engine - injectors ............... 10
Diesel engine - injection pump,
control unit .................................... 30
33 - Headlight cleaning system ........... 20
34 - Petrol engine - engine electronics .................................... 10
Diesel engine - engine
electronics .................................... 10
35 - Trailer socket, socket in luggage compartment ............... 30
36 - Fog lights ...................................... 15
37 - S contact
1)................................... 10
38 - Luggage compartment light, central locking, remote fuel
filler flap release ........................... 15
39 - Hazard warning signals ................ 15
40 - Horn .............................................. 20
41 - Cigarette lighter ............................ 15
42 - Radio ............................................. 15
43 - Petrol engine: engine electronics .................................... 10
Diesel engine: engine
electronics .................................... 10
44 - Seat heaters ................................. 15
1)For electrical components which can be oper-
ated after switching off the ignition provided the
ignition key is not withdrawn, e.g. radio.

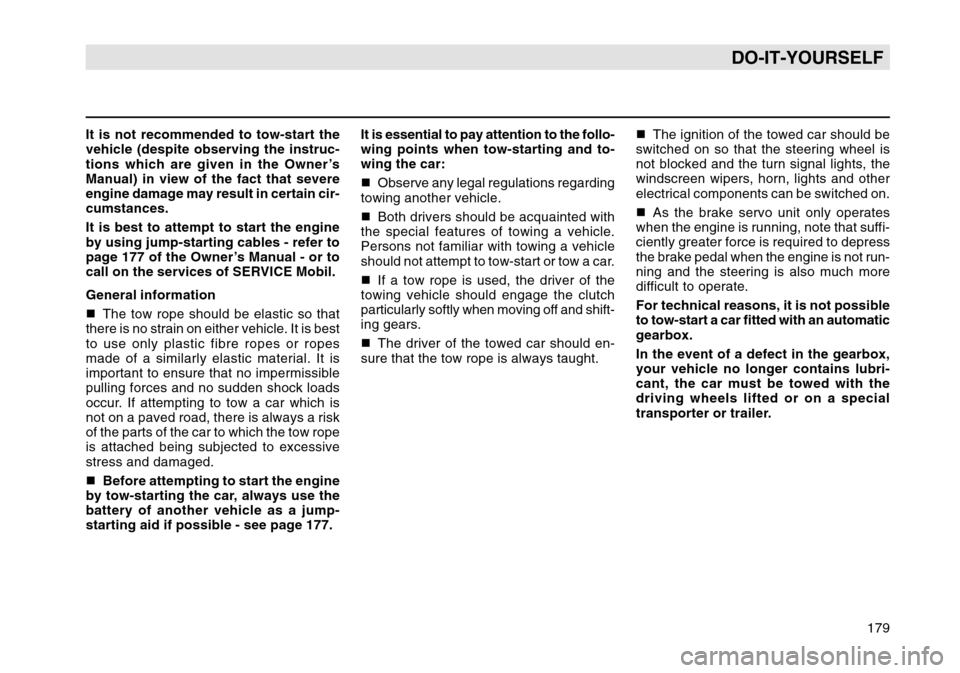

179
DO-IT-YOURSELF
It is not recommended to tow-start the
vehicle (despite observing the instruc-
tions which are given in the Owner’s
Manual) in view of the fact that severe
engine damage may result in certain cir-
cumstances.
It is best to attempt to start the engine
by using jump-starting cables - refer to
page 177 of the Owner’s Manual - or to
call on the services of SERVICE Mobil.
General information

The tow rope should be elastic so that
there is no strain on either vehicle. It is best
to use only plastic fibre ropes or ropes
made of a similarly elastic material. It is
important to ensure that no impermissible
pulling forces and no sudden shock loads
occur. If attempting to tow a car which is
not on a paved road, there is always a risk
of the parts of the car to which the tow rope
is attached being subjected to excessive
stress and damaged.

Before attempting to start the engine
by tow-starting the car, always use the
battery of another vehicle as a jump-
starting aid if possible - see page 177. It is essential to pay attention to the follo-
wing points when tow-starting and to-
wing the car:


Observe any legal regulations regarding
towing another vehicle.

Both drivers should be acquainted with
the special features of towing a vehicle.
Persons not familiar with towing a vehicle
should not attempt to tow-start or tow a car.

If a tow rope is used, the driver of the
towing vehicle should engage the clutch
particularly softly when moving off and shift-
ing gears.

The driver of the towed car should en-
sure that the tow rope is always taught.

The ignition of the towed car should be
switched on so that the steering wheel is
not blocked and the turn signal lights, the
windscreen wipers, horn, lights and other
electrical components can be switched on.

As the brake servo unit only operates
when the engine is running, note that suffi-
ciently greater force is required to depress
the brake pedal when the engine is not run-
ning and the steering is also much more
difficult to operate.
For technical reasons, it is not possible
to tow-start a car fitted with an automatic
gearbox.
In the event of a defect in the gearbox,
your vehicle no longer contains lubri-
cant, the car must be towed with the
driving wheels lifted or on a special
transporter or trailer.

183
ALPHABETICAL INDEX
Engine oil, 138- Specification, 138
Engine oil, 59, 118, 138
Engine oil, 59, 119, 138
EPC, 57, 60
ESP, 60, 64
Exterior mirror, 16FFault display, 50
Fire extinguisher, 166
First-aid box, 161
Fog lights, 57, 63
Fog lights, 63
Four-wheel drive models, 123
Fresh air, 78
Friendly way, 118
Front airbag, 103
Front passenger airbag switch, 107
Fuel consumption, 119
Fuel reserve, 49, 58
Fuel, 49, 58, 65, 119, 128
Fuses, 167HHandbrake, 36
Hands-free system, 37
Hazard warning light system, 63
Hazard warning light system, 63
Head restraints, 18, 95
- Adjusting head restraints, 18, 95 - Adjusting height, 18, 95
Headlamp beam adjustment, 66
Headlight flasher, 5
Headlight flasher, 67
Headlights - masking over, 158
Heating, 72
Hydraulic oil, 141
CHChild safety locks, 8
Child safety, 111
Child seat, 111
Chrome parts, 132IIdentification data, 181
Ignition lock, 43 - Steering lock, 44
Immobiliser, 7, 61
Indicators, 48
Information display, 53
Instrument lighting, 62
Interior light, 87
Interior lights, 88
Interlock, 101
ISOFIX system, 116
Isofix, 116JJump-starting, 177
KKeys, 6LLashing eyes, 29
Lights, 62 - Warning lights, 56
- Parking lights, 67
- Turn signal lights, 67
- Changing a bulb, 169
Loading area cover, 32
Loading area increased (Estate), 32
Locking the car, 8
Low beam, 62
Low beam, 62
Luggage compartment cover (Estate), 32
Luggage compartment cover, 26
Luggage compartment lights, 89
Luggage compartment, 11, 27MManual shifting of gears, 38
Mobile phone, 37, 159
Mobile phones and two-way radio systems, 159
MSR, 123
Multifunction display (MFD), 50
Multifunction steering wheel, 70
Multifunction switch, 67
