2004 SKODA OCTAVIA TOUR ESP

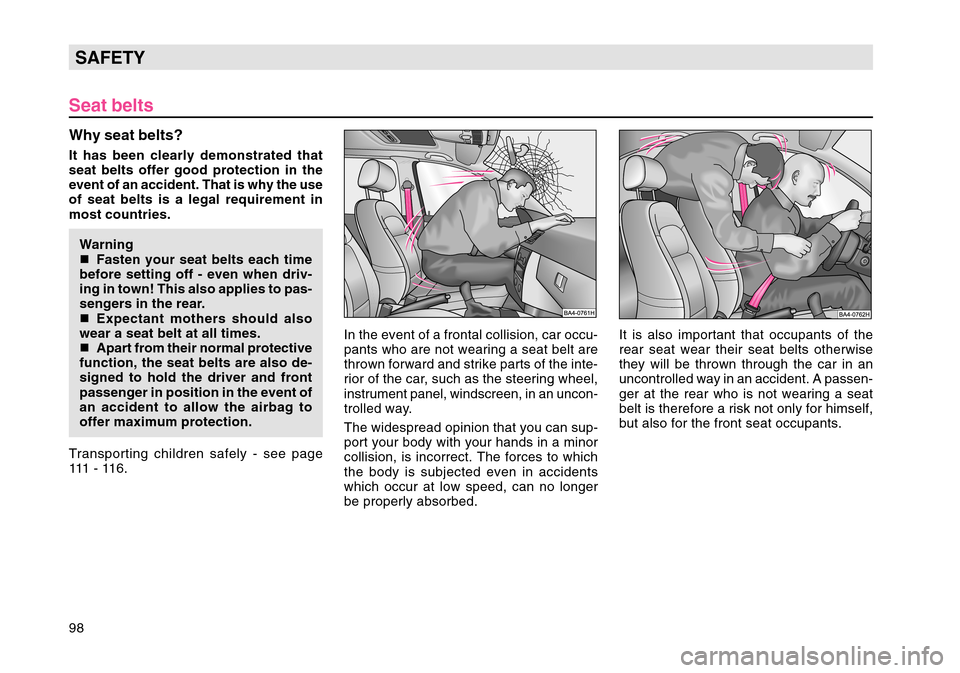

98SAFETYSeat beltsWhy seat belts?It has been clearly demonstrated that
seat belts offer good protection in the
event of an accident. That is why the use
of seat belts is a legal requirement in
most countries.Warning

Fasten your seat belts each time
before setting off - even when driv-
ing in town! This also applies to pas-
sengers in the rear.

Expectant mothers should also
wear a seat belt at all times.

Apart from their normal protective
function, the seat belts are also de-
signed to hold the driver and front
passenger in position in the event of
an accident to allow the airbag to
offer maximum protection.
Transporting children safely - see page
111 - 11 6 . In the event of a frontal collision, car occu-
pants who are not wearing a seat belt are
thrown forward and strike parts of the inte-
rior of the car, such as the steering wheel,
instrument panel, windscreen, in an uncon-
trolled way.
The widespread opinion that you can sup-
port your body with your hands in a minor
collision, is incorrect. The forces to which
the body is subjected even in accidents
which occur at low speed, can no longer
be properly absorbed.It is also important that occupants of the
rear seat wear their seat belts otherwise
they will be thrown through the car in an
uncontrolled way in an accident. A passen-
ger at the rear who is not wearing a seat
belt is therefore a risk not only for himself,
but also for the front seat occupants.

107
SAFETY
As soon as you no longer use the child
safety seat, you should reactivate the
front passenger airbag.
If using a child seat, please read the sec-
tion headed „Safety of Children“ on page
111 .
The operational readiness of the airbag
system is monitored electronically even if
the passenger airbag is deactivated.
If the airbag was switched off with a diag-
nostic unit , the warning light comes on in
the dash panel insert for about 3 seconds
after the ignition is switched on and then
flashes for a further 12 seconds.
If the airbag was deactivated with an
Airbag switch* in the glove box, the airbag
warning light comes on in the dash panel
insert for about 3 seconds and the deacti-
vation of the airbag is signaled if the warn-
ing light “AIRBAG “ OFF” comes on in the
interior light - see page 108.
Switch for front passenger airbags*You can deactivate the passenger-side
front airbag and if the vehicle is equipped
with side airbags, also the passenger-side
side airbag with the switch
The airbag(s) may be deactivated only if,
in exceptional cases, it is necessary to in-
stall a child seat on the front passenger
seat.
It is preferable to place the child seat al-
ways at the rear.
For safety reasons the driver of the car is
under the obligation to have the airbag
switched on when driving.
Warning
Deactivate the airbag only when the
ignition is switched off! Failure to ob-
serve this instruction may result in a
fault in the airbag system and con-
sequently cause subsequent deploy-
ment of the airbag.
Deactivating airbag
Switch the ignition off.

Use the ignition key to turn the airbag
switch -arrow- into the „OFF“ position. The
ignition key must be in the vertical position.

Check whether the airbag warning light
in the interior lighting (front) lights up when
the ignition is switched on.
Warning
The driver of the car is responsible
for ensuring that the airbag is deacti-
vated or activated.

108SAFETYSwitching on airbag
Switch the ignition off.

Use the ignition key to turn the airbag
switch - arrow - into the „ON“ position. The
ignition key must be in the horizontal posi-
tion.

Check whether the airbag warning light
in the interior lighting (front) goes out when
the ignition is switched on.
After activating the airbag and then switch-
ing on the ignition, the airbag warning light
comes on for about 3 seconds.
Warning
The driver of the car is responsible
for ensuring that the airbag is deac-
tivated or activated.
„Airbag OFF“ warning light
(airbag deactivated)*The warning light is located in the front in-
terior lighting of the car.
Each time the ignition is switched on, the
warning light comes on in the dash panel
for a few seconds (self diagnosis).
The warning light comes on if the passen-
ger- side airbag or also the side airbag has
been deactivated.
If the warning light in the instrument panel
flashes, there is a fault in the airbag sys-
tem. Contact a Škoda Dealer immediately
to have this rectified Warning
If the warning light flashes:


There is a risk of the passenger-
side airbag being deployed in the
event of an accident. For this reason,
do not install a child seat on the front
passenger seat.

If the front passenger seat is oc-
cupied, there is a risk of the airbag
being deployed unexpectedly and
also causing possible injuries to the
occupant of the front passenger seat.

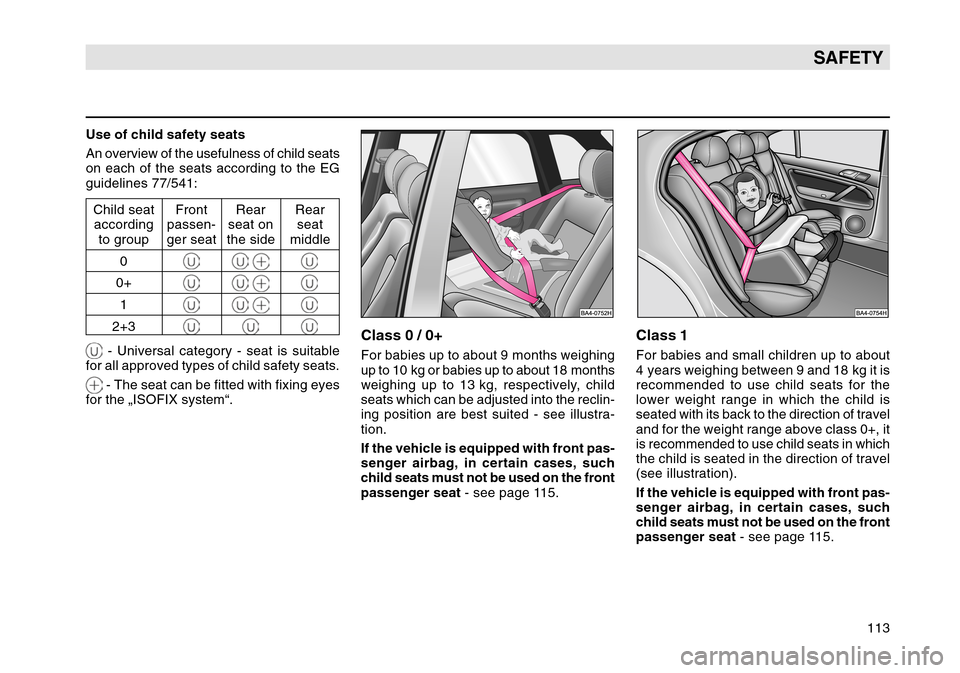

113
SAFETY
Class 0 / 0+For babies up to about 9 months weighing
up to 10 kg or babies up to about 18 months
weighing up to 13 kg, respectively, child
seats which can be adjusted into the reclin-
ing position are best suited - see illustra-
tion.
If the vehicle is equipped with front pas-
senger airbag, in certain cases, such
child seats must not be used on the front
passenger seat - see page 115.
Class 1For babies and small children up to about
4 years weighing between 9 and 18 kg it is
recommended to use child seats for the
lower weight range in which the child is
seated with its back to the direction of travel
and for the weight range above class 0+, it
is recommended to use child seats in which
the child is seated in the direction of travel
(see illustration).
If the vehicle is equipped with front pas-
senger airbag, in certain cases, such
child seats must not be used on the front
passenger seat - see page 115.
Use of child safety seats
An overview of the usefulness of child seats
on each of the seats according to the EG
guidelines 77/541:
Child seat Front Rear Rearaccording passen- seat on seat
to group ger seat the side middle
0

0+

1

2+3 - Universal category - seat is suitable
for all approved types of child safety seats. - The seat can be fitted with fixing eyes
for the „ISOFIX system“.

117
DRIVING TIPS
The first 1500 kilometres (1000 miles) - and afterRunning inDuring the first few operating hours the in-
ternal friction of the engine is higher than
later on when all the moving parts have
bedded down. How well this running-in
process is done depends to a considerable
extent on the way the vehicle is driven dur-
ing the first 1500 km (1000 miles).
Up to 1000 km (600 miles)
the following general rules apply:

Do not use full throttle

Do not drive faster than 3/4 of top speed

Avoid high engine speeds

Avoid towing a trailer, if possible
Warning

New tyres should also be „run in“
because they do not have maximum
adhesion at the start. This should be
taken into account by driving care-
fully during the first 500 km (300 mi-
les).

New brake pads have to „bed
down“ and do not therefore have
their ideal friction force during the
first 200 km (120 miles) or so. The
slightly reduced braking power can
be compensated for by applying
greater pressure on the brake pedal.
This also applies subsequently after
replacing the brake pads.
From 1000 - 1500 km (600 - 1000 miles)
It is possible to gradually increase up to the
maximum speed of the gear engaged or to
the maximum permissible engine speed,
respectively.
During and after the running-in pe-
riod:
Do not overrev the engine when cold -
either in Neutral when driving. All the
speeds and revs stated only apply when the
engine is properly warm .
Do not drive at unnecessarily high
engine speeds - changing up early
helps to save fuel, reduces noise and pro- tects the environment - see also page 118.

Do not let the engine labour - change down
when engine no longer runs smoothly.After the running-in periodOn cars fitted with a rev counter the maxi-
mum permissible engine speed is marked
by the start of the red range on the scale of
the rev counter. The needle of the rev coun-
ter must not move into this range.

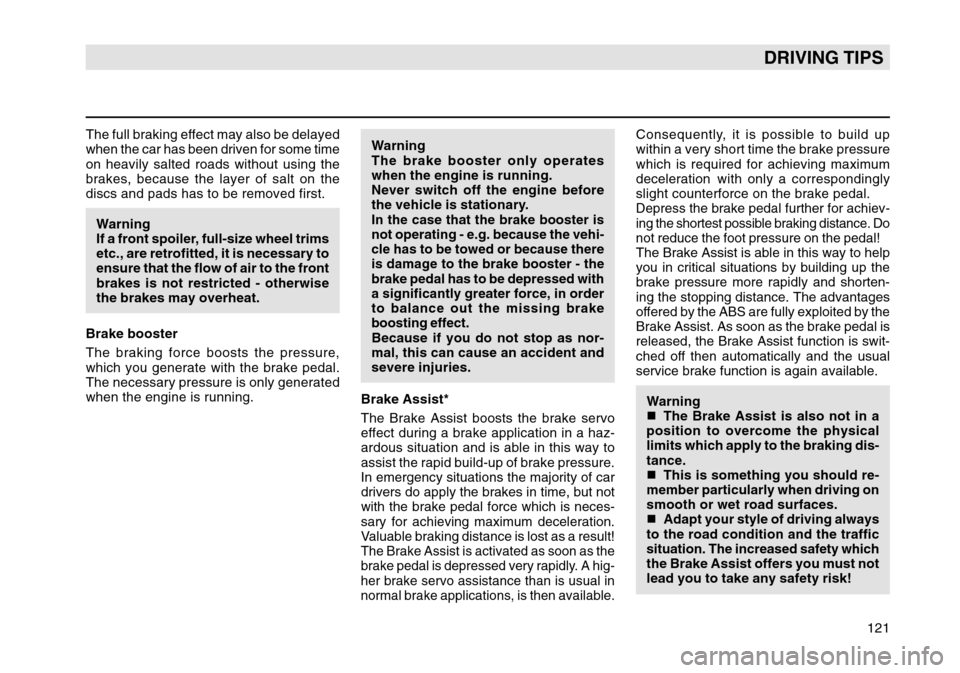

121
DRIVING TIPS
The full braking effect may also be delayed
when the car has been driven for some time
on heavily salted roads without using the
brakes, because the layer of salt on the
discs and pads has to be removed first.Warning
If a front spoiler, full-size wheel trims
etc., are retrofitted, it is necessary to
ensure that the flow of air to the front
brakes is not restricted - otherwise
the brakes may overheat.
Brake booster
The braking force boosts the pressure,
which you generate with the brake pedal.
The necessary pressure is only generated
when the engine is running. Warning
The brake booster only operates
when the engine is running.
Never switch off the engine before
the vehicle is stationary.
In the case that the brake booster is
not operating - e.g. because the vehi-
cle has to be towed or because there
is damage to the brake booster - the
brake pedal has to be depressed with
a significantly greater force, in order
to balance out the missing brake
boosting effect.Because if you do not stop as nor-
mal, this can cause an accident and
severe injuries.
Brake Assist*
The Brake Assist boosts the brake servo
effect during a brake application in a haz-
ardous situation and is able in this way to
assist the rapid build-up of brake pressure.
In emergency situations the majority of car
drivers do apply the brakes in time, but not
with the brake pedal force which is neces-
sary for achieving maximum deceleration.
Valuable braking distance is lost as a result!The Brake Assist is activated as soon as the
brake pedal is depressed very rapidly. A hig-
her brake servo assistance than is usual in
normal brake applications, is then available.
Consequently, it is possible to build up
within a very short time the brake pressure
which is required for achieving maximum
deceleration with only a correspondingly
slight counterforce on the brake pedal.Depress the brake pedal further for achiev-
ing the shortest possible braking distance. Do
not reduce the foot pressure on the pedal!The Brake Assist is able in this way to help
you in critical situations by building up the
brake pressure more rapidly and shorten-
ing the stopping distance. The advantages
offered by the ABS are fully exploited by the
Brake Assist. As soon as the brake pedal is
released, the Brake Assist function is swit-
ched off then automatically and the usual
service brake function is again available.
Warning

The Brake Assist is also not in a
position to overcome the physical
limits which apply to the braking dis-
tance.

This is something you should re-
member particularly when driving on
smooth or wet road surfaces.

Adapt your style of driving always
to the road condition and the traffic
situation. The increased safety which
the Brake Assist offers you must not
lead you to take any safety risk!

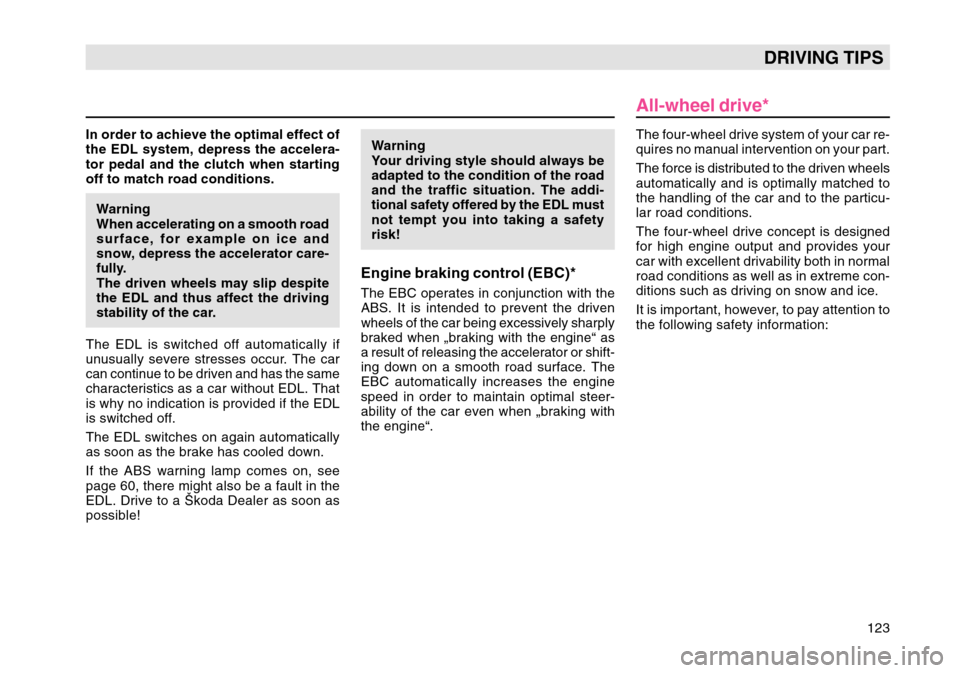

123
DRIVING TIPS
In order to achieve the optimal effect of
the EDL system, depress the accelera-
tor pedal and the clutch when starting
off to match road conditions.Warning
When accelerating on a smooth road
surface, for example on ice and
snow, depress the accelerator care-
fully.
The driven wheels may slip despite
the EDL and thus affect the driving
stability of the car.
The EDL is switched off automatically if
unusually severe stresses occur. The car
can continue to be driven and has the same
characteristics as a car without EDL. That
is why no indication is provided if the EDL
is switched off.
The EDL switches on again automatically
as soon as the brake has cooled down.
If the ABS warning lamp comes on, see
page 60, there might also be a fault in the
EDL. Drive to a Škoda Dealer as soon as
possible! Warning
Your driving style should always be
adapted to the condition of the road
and the traffic situation. The addi-
tional safety offered by the EDL must
not tempt you into taking a safety
risk!
Engine braking control (EBC)*The EBC operates in conjunction with the
ABS. It is intended to prevent the driven
wheels of the car being excessively sharply
braked when „braking with the engine“ as
a result of releasing the accelerator or shift-
ing down on a smooth road surface. The
EBC automatically increases the engine
speed in order to maintain optimal steer-
ability of the car even when „braking with
the engine“.
The four-wheel drive system of your car re-
quires no manual intervention on your part.
The force is distributed to the driven wheels
automatically and is optimally matched to
the handling of the car and to the particu-
lar road conditions.
The four-wheel drive concept is designed
for high engine output and provides your
car with excellent drivability both in normal
road conditions as well as in extreme con-
ditions such as driving on snow and ice.
It is important, however, to pay attention to
the following safety information:
All-wheel drive*

150GENERAL MAINTENANCEAfter connecting the battery- restore operation of the convenience sys-tem - see page 16
- set the time - see page 50
- if the radio is protected by a code, set the code - see operating instructions of
car radio
The data of the multifunction display are
erased - see page 50.Replacing batteryIf the battery has to be replaced, the new
battery should have the same capacity, volt-
age (12 volts), amperage, design and have
a plug seal. Škoda Dealers have available
a range of suitable batteries.
Because of the disposal problem in- volved with old batteries, it is best
to have the battery replaced by a Škoda Dealer. Batteries contain substancessuch as sulphuric acid and lead andmust on no account be disposed of in
domestic refuse.
Spark plugsThe spark plugs are replaced as part of the
Škoda Inspection Service.

Should it be necessary to replace the
spark plugs between the Inspection Service
intervals, proceed as follows:Spark plugs and ignition system are matched
to the engine and thus contribute to an ex-
haust with low emission levels.Only the spark plugs selected for the par-
ticular engine should be used in order to
avoid operational problems, engine dam-
age and any infringement of legal require-
ments in respect of emission levels or ra-
dio interference from the spark plugs. Par-
ticularly important aspects are the number
of electrodes, the thermal value and radio
interference suppression.

Spark plugs may also be subject to tech-
nical modifications at short notice. It is
therefore recommended to purchase them
only from Škoda Dealers as they are always
informed of the up-to-date situation.
Ribbed belt
The ribbed belt is one of the components
of the car which is subjected to the most
stress. It is therefore necessary to place
particularly high quality requirements in res-
pect of the belts.

When replacing a ribbed belt, it is not
sufficient to use any ribbed belt of whatever
size. For safety reasons, use only the
ribbed belts selected for your car.

Ribbed belts may also be subject to
technical modifications at short notice. It is
therefore recommended to purchase them
only from Škoda Dealers and to also have
the belts changed there as they are always
informed of the up-to-date situation.
