2004 SKODA OCTAVIA TOUR tow

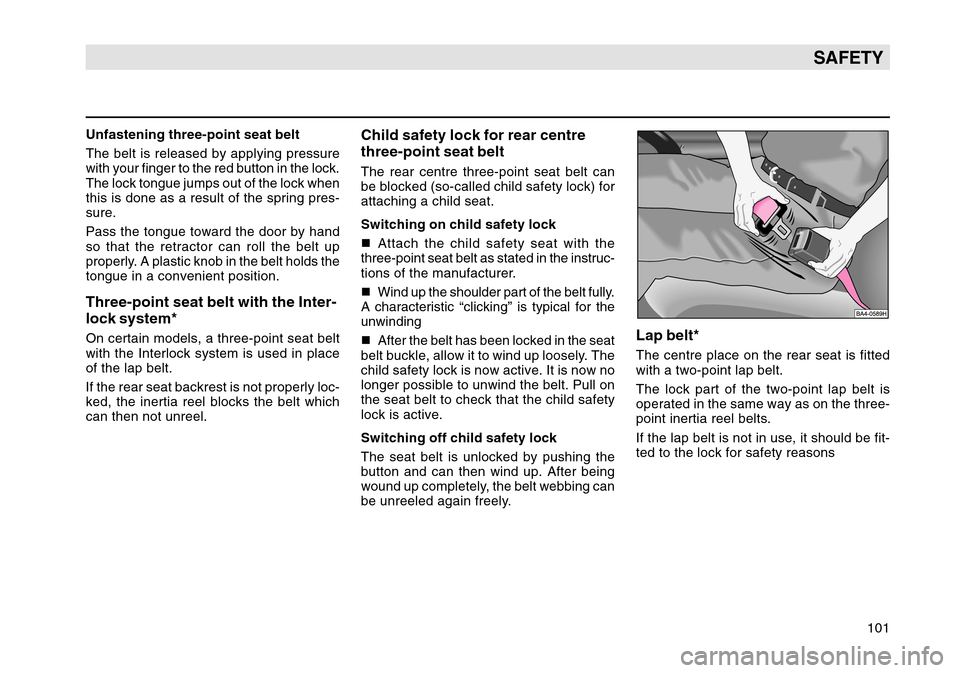

101
SAFETY
Unfastening three-point seat belt
The belt is released by applying pressure
with your finger to the red button in the lock.
The lock tongue jumps out of the lock when
this is done as a result of the spring pres-
sure.
Pass the tongue toward the door by hand
so that the retractor can roll the belt up
properly. A plastic knob in the belt holds the
tongue in a convenient position.Three-point seat belt with the Inter-
lock system*On certain models, a three-point seat belt
with the Interlock system is used in place
of the lap belt.
If the rear seat backrest is not properly loc-
ked, the inertia reel blocks the belt which
can then not unreel.
Child safety lock for rear centre
three-point seat beltThe rear centre three-point seat belt can
be blocked (so-called child safety lock) for
attaching a child seat.
Switching on child safety lock

Attach the child safety seat with the
three-point seat belt as stated in the instruc-
tions of the manufacturer.

Wind up the shoulder part of the belt fully.
A characteristic “clicking” is typical for the
unwinding

After the belt has been locked in the seat
belt buckle, allow it to wind up loosely. The
child safety lock is now active. It is now no
longer possible to unwind the belt. Pull on
the seat belt to check that the child safety
lock is active.
Switching off child safety lock
The seat belt is unlocked by pushing the
button and can then wind up. After being
wound up completely, the belt webbing can
be unreeled again freely.
Lap belt*The centre place on the rear seat is fitted
with a two-point lap belt.
The lock part of the two-point lap belt is
operated in the same way as on the three-
point inertia reel belts.
If the lap belt is not in use, it should be fit-
ted to the lock for safety reasons

109
SAFETY
Side airbag*The side airbags are installed in the sides
of the backrest upholstery of the driver and
front passenger seats. They are identified
by the inscriptions „AIRBAG“ in the top half
of the backrests - see illustration.The side airbag system in combination
with the three-point seat belts offers ad-
ditional protection for the upper body of the
driver and front passenger in the event of
a side collision of considerable severity.In the event of a side collision, the side
airbags reduce the risk of injury to the part
of the body of the front occupants facing
toward the point of impact. In addition to the normal protection which
they offer,
the seat belts are also designed
to hold the driver and front passenger in
position in the event of a side impact so that
the side airbag is able to offer maximum
protection.
Warning
The maximum protection offered by
the seat belts and the airbag system
is only achieved if the occupants are
correctly seated - see page 94.
The system consists essentially of

the electronic control and monitoring unit,

the side airbags installed in the sides of
the backrests of the front seats,

a warning lamp in the instrument panel -
see page 56.
Please refer to page 56 for information
on the operational readiness and possi-
ble faults in the system. The side airbag system is not activated
in the event of:


frontal collision

minor side collision

rear collision

rollover.
The airbag system is not a substitute for
the seat belt but is part of the entire pas-
sive vehicle safety concept. Please note
that the airbag system is only able to offer
optimal protection in combination with fas-
tened seat belts.
That is why, you should always use the
seat belts not only because this is a le-
gal requirement, but also for safety rea-
sons!
Please refer to the information on pages
98 to 103 in this connection.
Note
The airbag system is maintenance-free
throughout its entire operating life.

111
SAFETY

Only light items of clothing should
be hung up on the clothes hooks in
the car. No heavy or sharp-edged
objects should be stowed in the
pockets of the items of clothing.

Avoid any excessive force acting
on the side panels of the seats, such
as a sudden knock, or pressing with
your foot etc., otherwise the system
may be damaged. In this case, the
side airbags would not deploy!

On no account may seat or protec-
tive covers be fitted over the driver
or front passenger seats fitted with
side airbags. As the airbag inflates
out of the backrest of the seat, the
protective function offered by the
side airbags would be restricted if
seat protective covers were used.

If the original seat cover or the stit-
ching in the module area of the side
airbag is damaged, the seat cover in
question should be replaced imme-
diately by a Škoda Dealer.

The protection offered by the air-
bag system is sufficient only for one
accident. If the airbag has been de-
ployed, the system should be rene-
wed.

If the occupants lean forward or
adopt an incorrect seated position
when driving, they are exposing
themselves to an increased risk of an
injury in the event of an accident.

A child seat in which the child
faces with its back in the direction of
travel, may only be used in the front
passenger seat if the front passen-
ger airbag (in certain countries also
on child seats in which the child
faces the direction of travel) has
been deactivated - refer to page 107.
Otherwise, there is a risk of the child
suffering severe or even fatal injuries
if the airbag is deployed. In certain
countries, legal requirements neces-
sitate deactivating the side airbag. If
a child is nevertheless seated on the
front passenger seat, observe the le-
gal requirements for the use of child
seats.

The operating life of the airbag mod-
ule is 15 years from the date of manu-
facture of the vehicle. After this time,
it is necessary to have the modules re-
newed in a Škoda Dealership.
Safety of childrenAccident statistics reveal that children
who sit at the rear are generally better
protected than when seated on the front
passenger seat. Children younger than
12 years should normally travel on the
rear seat of the car
1). They should be
protected by a child restraint system or
by the standard car seat belts, depend-
ing on age, body size and weight. For
safety reasons, the child restraint sys-
tem should be installed behind the front
passenger seat.
Warning

All vehicle occupants, in particu-
lar children, must fasten their seat
belt when the car is moving.


Never allow your child to stand in
the car or to kneel on the seats when
the car is moving. If an accident oc-
curs, your child will be thrown through
the car and may suffer fatal injuries.
1)Pay attention to any varying legal requirements.

117
DRIVING TIPS
The first 1500 kilometres (1000 miles) - and afterRunning inDuring the first few operating hours the in-
ternal friction of the engine is higher than
later on when all the moving parts have
bedded down. How well this running-in
process is done depends to a considerable
extent on the way the vehicle is driven dur-
ing the first 1500 km (1000 miles).
Up to 1000 km (600 miles)
the following general rules apply:

Do not use full throttle

Do not drive faster than 3/4 of top speed

Avoid high engine speeds

Avoid towing a trailer, if possible
Warning

New tyres should also be „run in“
because they do not have maximum
adhesion at the start. This should be
taken into account by driving care-
fully during the first 500 km (300 mi-
les).

New brake pads have to „bed
down“ and do not therefore have
their ideal friction force during the
first 200 km (120 miles) or so. The
slightly reduced braking power can
be compensated for by applying
greater pressure on the brake pedal.
This also applies subsequently after
replacing the brake pads.
From 1000 - 1500 km (600 - 1000 miles)
It is possible to gradually increase up to the
maximum speed of the gear engaged or to
the maximum permissible engine speed,
respectively.
During and after the running-in pe-
riod:
Do not overrev the engine when cold -
either in Neutral when driving. All the
speeds and revs stated only apply when the
engine is properly warm .
Do not drive at unnecessarily high
engine speeds - changing up early
helps to save fuel, reduces noise and pro- tects the environment - see also page 118.

Do not let the engine labour - change down
when engine no longer runs smoothly.After the running-in periodOn cars fitted with a rev counter the maxi-
mum permissible engine speed is marked
by the start of the red range on the scale of
the rev counter. The needle of the rev coun-
ter must not move into this range.

118DRIVING TIPS
Driving economically while protecting the environmentVarious factors determine fuel consump-
tion, the impact on the environment and
wear-and-tear of the engine, brakes and
tyres.
Your personal style of driving
determines to a great extent the economi-
cal aspect and the development of exhaust
and noise:
Do not warm up engine when the vehicle is stationary.
At idling speed it takes a very long time until
the engine becomes operationally warm.
However, in the warm-up phase, wear and
the discharge of pollutants is particularly
high. For this reason, drive off immediately
the engine has started and avoid high en-
gine speeds.
The cold engine consumes approx. 15 - 20
litres/100 km of fuel immediately after start-
ing. Fuel consumption drops to 10 litres/100
km after just 1 kilometre. The engine
reaches its operating temperature (outside
temperature and engine dependent) only
after about 4 to 10 kilometres and the fuel
consumption then stabilizes. You should
therefore avoid driving short distances
whenever possible.
Avoid full throttle acceleration.
Accelerating with feeling not only consid-
erably improves fuel economy but also re-
duces the impact on the environment and
wear-and-tear.
Do not drive at unnecessarily highengine revs - change up as soon as
possible and only change down when the engine no longer runs smoothly.
Fuel consumption, for example, is more
than twice as high in 2nd gear than it is in
top gear. At the same time, the lower en-
gine speed means a reduction in engine
noise.
Try not to drive at maximum speed.
Fuel consumption, exhaust pollution and
noise increase disproportionately at high
speeds. If you make use of approximately
only 3-quarters of top speed, your fuel con-
sumption will be reduced by about half.
Experience has shown that the loss in time
is only marginal.
Drive as smoothly as possible andlook well ahead.
Unnecessary acceleration and braking has
to be paid for with higher fuel consumption
and a greater impact on the environment.
Switch off the engine when stand-
ing in traffic (traffic lights, railway
crosses etc.).
Individual operating conditions
naturally also affect fuel consumption.
The following factors, for instance, are not
favourable to good fuel consumption:

High traffic density, particularly in large
towns with numerous traffic lights.

Frequent stop/start driving, always re-
starting and warming up the engine.

Driving in heavy, slow moving traffic in
low gear so that the engine speed is rela-
tively high in relation to the speed driven.
Obviously, fuel consumption is also affected
by factors over which the driver has no con-
trol. It is, for example, normal for fuel con-
sumption to increase in the winter or in
severe conditions such as poor roads, tow-
ing a trailer etc.

119
DRIVING TIPS
The technical prerequisites
for low fuel consumption and efficiency we-
re „built in“ at the factory. Particular impor-
tance was placed on the lowest possible
effect on the environment. To retain and
make the best possible use of these char-
acteristics attention should be paid to the
following points:
The prescribed maintenance opera-tions should be carried out exactly
as specified in the Service Schedule.
Having your car serviced by a Škoda Dealer
at the specified intervals not only ensures
that it is always in proper roadworthy con-
dition but that it operates economically, with
minimal environmental impact and provides
you with many years of motoring.
Check the tyre pressures every 4 weeks.
Low tyre pressures increase the rolling re-
sistance. This not only increases the fuel
consumption and tyre wear, but the han-
dling is also impaired.
Do not carry any unnecessary loadsin the luggage compartment.
The weight of the car has a major effect on
fuel consumption, particularly when driving
in towns where you frequently have to ac-
celerate. The rule of thumb which applies
is that every 100 kilograms of weight in-
creases fuel consumption by about 1 litre/
100 km (1 litre/62 miles).
Do not fit the roof rack unless it is
really needed.
Particularly at high speeds the increased
air resistance makes itself felt in higher fuel
consumption.
Electrical consumers should onlybe switched on when they are ac-
tually required.
Heated rear window, fog lights etc. have a
considerable energy demand. The higher
alternator load also increases the fuel con-
sumption. For instance, over a period of 10
hours, the heated rear window will increase
fuel consumption by approximately 1 litre.
Keep a frequent check on your fuel consumption.
The fuel consumption should be checked
each time the tank is filled up. By doing this
inconsistencies on the vehicle which lead
to increased fuel consumption can be de-
tected sooner. Check the oil level each time you refuel.
The oil consumption depends to a great
extent on the engine load and speed. De-
pending on the style of driving the con-
sumption can be as much as 0.5 litre/
1000 km.
It is normal for the oil consumption of a new
engine to reach its lowest level after a cer-
tain mileage has been covered. The con-
sumption cannot be properly assessed until
the vehicle has run approx. 5000 km.
This also applies to the fuel consumption
and the engine output.

120DRIVING TIPS

Do not switch off the ignition when driv-
ing.

Do not overfill engine with oil - see page
140.

Do not tow start vehicle for more than
50 m - see page 179.
Warning
Due to the high temperatures which
can occur in catalytic converters in
very unfavourable conditions, the
vehicle should not be parked in such
a way that the catalytic converter can
come into contact with inflammable
materials.
Note
Even if the emission control system is op-
erating perfectly properly, there may be a
sulphurous exhaust smell in certain engine
operating conditions. This depends on the
sulphur content in the fuel being used.
Quite often this can be remedied by select-
ing another brand of fuel or filling up with
unleaded premium petrol.
Trouble-free operation of the
emission
control system is decisive for environmen-
tally friendly operation of the vehicle.
That is why it is important to note the fol-
lowing points:

Vehicles fitted with a catalytic converter
must only be driven on unleaded petrol -
see page 128.

Never drive until the fuel tank is comple-
tely empty on vehicles fitted with a catalytic
converter. The irregular fuel supply can
cause misfiring. This allows unburnt fuel in-
to the exhaust system which can cause
overheating and damage to the catalytic
converter.

If misfiring, a loss of power and rough
engine running occur when driving, this
may be caused by a fault in the ignition
system. In this case, uncombusted fuel can
get into the exhaust system and thus pass
to the atmosphere. In addition, the catalytic
converter may be damaged as a result of
overheating. Reduce your speed immedi-
ately and have the fault rectified at the near-
est Škoda Dealer. General notes


The wear of the brake pads depends to
a great extent on the driving conditions and
your style of driving. Consequently, it may
also be necessary to have the thickness of
the brake pads inspected at a Škoda Dealer
between the intervals stated in the Service
Schedule, particularly if your car is driven
frequently in towns or over short distances,
or in a very sporty manner.

Change down in good time when driv-
ing downhill, in order to make use of the
engine braking effect. This relieves the
strain on the brake system. When the bra-
kes are applied, do not keep them on con-
tinuously, apply and release the brakes al-
ternately.

Under certain operating conditions, for
example after driving through water, after
heavy rain or after washing the vehicle, the
braking effect may be retarded by wet, or
in winter iced-up brake discs and pads - the
brakes must be dried out first by applying
the footbrake.
Brakes

121
DRIVING TIPS
The full braking effect may also be delayed
when the car has been driven for some time
on heavily salted roads without using the
brakes, because the layer of salt on the
discs and pads has to be removed first.Warning
If a front spoiler, full-size wheel trims
etc., are retrofitted, it is necessary to
ensure that the flow of air to the front
brakes is not restricted - otherwise
the brakes may overheat.
Brake booster
The braking force boosts the pressure,
which you generate with the brake pedal.
The necessary pressure is only generated
when the engine is running. Warning
The brake booster only operates
when the engine is running.
Never switch off the engine before
the vehicle is stationary.
In the case that the brake booster is
not operating - e.g. because the vehi-
cle has to be towed or because there
is damage to the brake booster - the
brake pedal has to be depressed with
a significantly greater force, in order
to balance out the missing brake
boosting effect.Because if you do not stop as nor-
mal, this can cause an accident and
severe injuries.
Brake Assist*
The Brake Assist boosts the brake servo
effect during a brake application in a haz-
ardous situation and is able in this way to
assist the rapid build-up of brake pressure.
In emergency situations the majority of car
drivers do apply the brakes in time, but not
with the brake pedal force which is neces-
sary for achieving maximum deceleration.
Valuable braking distance is lost as a result!The Brake Assist is activated as soon as the
brake pedal is depressed very rapidly. A hig-
her brake servo assistance than is usual in
normal brake applications, is then available.
Consequently, it is possible to build up
within a very short time the brake pressure
which is required for achieving maximum
deceleration with only a correspondingly
slight counterforce on the brake pedal.Depress the brake pedal further for achiev-
ing the shortest possible braking distance. Do
not reduce the foot pressure on the pedal!The Brake Assist is able in this way to help
you in critical situations by building up the
brake pressure more rapidly and shorten-
ing the stopping distance. The advantages
offered by the ABS are fully exploited by the
Brake Assist. As soon as the brake pedal is
released, the Brake Assist function is swit-
ched off then automatically and the usual
service brake function is again available.
Warning

The Brake Assist is also not in a
position to overcome the physical
limits which apply to the braking dis-
tance.

This is something you should re-
member particularly when driving on
smooth or wet road surfaces.

Adapt your style of driving always
to the road condition and the traffic
situation. The increased safety which
the Brake Assist offers you must not
lead you to take any safety risk!
