142
Multi-Purpose Display and Instruments – in the sub-menu TYRE PRESSURE (filling infor-
mation):
as a required pressure for each axle if Tire
Pressure Monitoring has not yet been taught
the corresponding values,
– in the front left door aperture for each wheel,
– in the Technical Data chapter in this Owner’s
Manual: Please see the chapter “TIRE
PRESSURES, COLD (68 °F/20 °C)” on
Page 354.
If Tire Pressure Monitoring has been taught the
corresponding values, the deviations from the
required pressure are shown in the sub-menu
TYRE PRESSURE (filling information) indepen-
dently of the tire temperature. The correct tire
pressure adjustment can be made for a wheel on
the basis of this display information even if the
tires are warm.
Insufficient tire filling pressure can cause tires to
overheat when driving and thus be damaged –
even invisibly.
Hidden tire damage is not eliminated by subse-
quently correcting the tire pressure.
fFor this reason, always make sure that the tire
pressure is correct.
fFor further information on maintenance and
care of tires and wheels:
Please see the chapter “TIRES/WHEELS” on
Page 281.
Switching off passenger compart-
ment monitoring on the multi-
purpose displayThe passenger compartment monitoring system
can be temporarily deactivated in the ALARM sub-
menu.
When the doors are locked again, the ultrasound
passenger compartment monitoring system is
activated once more.
Further important information concerning this
topic can be found in a separate chapter:
fPlease see the chapter “TEMPORARILY
DEACTIVATING PASSENGER COMPARTMENT
MONITORING SYSTEM” on Page 246.
Notes on operation
fComfort settings can be made only when the
vehicle is stationary.
fFor information on the operating principle of
the multi-purpose display:
Please see the chapter “OPERATING
PRINCIPLE” on Page 124.
Switching passenger compartment
monitoring on/offThe alarm is triggered if motion is detected in the
interior with the doors closed (e.g. if a window is
broken in a theft).1.MAIN MENU
>SETTINGS
> COMFORT
> ALARM
Select and confirm.
2.Select INTERIOR.
3.Confirm selection.
Monitoring is activated.
Monitoring is deactivated.
10_Cayenne_21_KW17.book Seite 142 Donnerstag, 9. April 2009 3:33 15

284
Minor Repairs Overloading
Danger!
Risk of damage to vehicle parts, loss of con-
trol and serious personal injury or death.
fDo not overload your vehicle. Be careful about
the roof load.
fIf loading the vehicle also correct the tire pres-
sure. Tire pressure for loaded vehicle can be
found on the tire pressure plate and in the
chapter technical data.
fNever exceed the specified axle load.
Overloading can shorten the service life of the
tires and car, as well as lead to dangerous
vehicle reactions and long braking distances.
Damage due to overloading is not covered by the vehicle warranty.
fPlease see the chapter “LOADING
INFORMATION” on Page 231.
Example of a tire pressure plateTire Pressure plateInformation on the tire pressure plate
A Seating capacity
Maximum number of vehicle occupants,
including the driver.B Vehicle load limit
Is the maximum total weight limit specified of
the load (passengers and cargo) for the vehi-
cle. This is the maximum weight of passengers
and cargo that can be loaded into the vehicle.
If a trailer is being towed, the trailer tongue
weight must be included as part of the cargo
load.
Please see the chapter “LOADING
INFORMATION” on Page 231.
C Original tire size
Size of tires mounted at the factory.
D Recommended cold tire inflation pressure
These values are for cold tires (68 °F/20 °C).
E Approved tire sizes
F Size and tire pressure for the collapsible spare
wheel
Tire traction
Warning!
When driving on wet or slushy roads, a
wedge of water may build up between the
tires and the road. This phenomenon is
known as “hydroplane“ and may cause par-
tial or complete loss of traction, vehicle con-
trol or stopping ability.
fReduce speed on wet surfaces to prevent this.
10_Cayenne_21_KW17.book Seite 284 Donnerstag, 9. April 2009 3:33 15

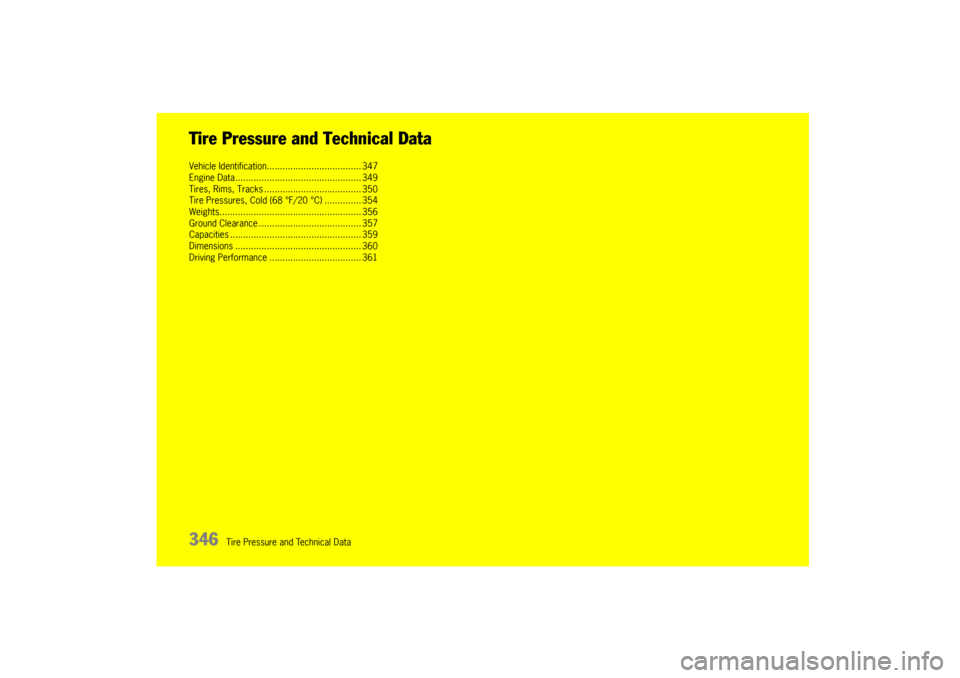

346
Tire Pressure and Technical Data
Tire Pressure and Technical DataVehicle Identification.................................... 347
Engine Data................................................ 349
Tires, Rims, Tracks ..................................... 350
Tire Pressures, Cold (68 °F/20 °C) .............. 354
Weights...................................................... 356
Ground Clearance ....................................... 357
Capacities .................................................. 359
Dimensions ................................................ 360
Driving Performance ................................... 361
10_Cayenne_21_KW17.book Seite 346 Donnerstag, 9. April 2009 3:33 15

Tire Pressure and Technical Data
347
Vehicle IdentificationWhen ordering spare parts or making inquiries,
please always quote the vehicle identification
number.Data bankThe data bank is located on the left under the
loadspace floor.This label contains the following information:
1. Vehicle Identification No.
2. Type/Type description
3. Engine code/Transmission code
4. Paint No./Interior
5. Optional equipment
A duplicate of this label is in your Maintenance
Booklet.
Note
The data bank cannot be reordered when lost or
damaged.
Vehicle identification numberIn accordance with Federal Safety Regulations,
the vehicle identification number of your car is lo-
cated at the bottom left of the windshield frame
and can be seen from the outside and in the lug-
gage compartment on the right in front of the tool
box.
10_Cayenne_21_KW17.book Seite 347 Donnerstag, 9. April 2009 3:33 15

348
Tire Pressure and Technical Data
Safety compliance stickerThe safety compliance sticker is your assurance
that your new Porsche complies with all applicable
Federal Motor Vehicle Safety Standards which
were in effect at the time the vehicle was manu-
factured.
The sticker also shows the month and year of pro-
duction and the vehicle identification number of
your car (perforations) as well as the Gross
Vehicle Weight Rating and the Gross Axle Weight
Rating.
Tire pressure plateThe tire pressure plate is attached to the left-hand-
door aperture.
The pressures shown on the tire pressure plate re-
fer to a fully loaded vehicle. In case the combined
weight of occupants and cargo does not exceed
260 kg or 573 lbs the pressures for ”PARTIALLY
LOADED“ may be used for greater driving com-
fort.
fPlease see the chapter “TIRE PRESSURES,
COLD (68 °F/20 °C)” on Page 354.
fPlease see the chapter “LOADING
INFORMATION” on Page 231.For setting “Partially Load”:
1. Correct the setting in the multi-purpose dis-
play.
Please see the chapter “SETTING VEHICLE
LOADING AND ADJUSTING TIRE PRESSURE”
on Page 135.
2. Correct the tire pressure.
10_Cayenne_21_KW17.book Seite 348 Donnerstag, 9. April 2009 3:33 15

Tire Pressure and Technical Data
349
Engine Data
Cayenne Cayenne S Cayenne GTS,
Cayenne S Transsyberia
Ty p e
6-cylinder V-engine
8-cylinder V-engine
8-cylinder V-engine
Number of cylinders 6 8 8
Bore
3.5 in. (89 mm)
3.78 in. (96 mm)
3.78 in. (96 mm)
Stroke 3.8 in. (96.4 mm) 3.27 in. (83 mm) 3.27 in. (83 mm)
Displacement
219.5 cu. in. (3598 cm
3)
293.3 cu. in. (4806 cm
3)
293.3 cu. in. (4806 cm
3)
Net-horsepower 213 kW (290 HP) 283 kW (385 HP) 298 kW (405 HP)
at engine speed
6200 rpm
6200 rpm
6500 rpm
Net. torque 273 ftlb. (370 Nm) 369 ftlb. (500 Nm) 369 ftlb. (500 Nm)
at engine speed
3000 rpm
3500 rpm
3500 rpm
Maximum permitted engine speed 6700 rpm 6700 rpm 6700 rpm
Engine oil consumption
up to 1.5 liters/1000 km
(1.6 quarts/622 miles)
up to 1.5 liters/1000 km
(1.6 quarts/622 miles)
up to 1.5 liters/1000 km (1.6
quarts/622 miles)
10_Cayenne_21_KW17.book Seite 349 Donnerstag, 9. April 2009 3:33 15

350
Tire Pressure and Technical Data
Tires, Rims, TracksCayenne Tires Wheel Rim offset Track
front/rear front/rear front rearSummer tires
235/65 R 17 108 V XL
7.5 J x 17
2.09 in. (53 mm)
65.2 in. (1655 mm)
65.7 in. (1670 mm)
255/55 R 18 109 Y XL 8 J x 18 2.24 in. (57 mm) 64.8 in. (1647 mm) 65.4 in. (1662 mm)
275/45 R 19 108 Y XL
9 J x 19
2.36 in. (60 mm)
64.6 in. (1641 mm)
65.2 in. (1656 mm)
275/40 R 20 106 Y XL 9 J x 20 2.36 in. (60 mm) 64.6 in. (1641 mm) 65.2 in. (1656 mm)
275/40 R 20 106 Y XL
9 J x 20/10 J x 20
2.36 in. (60 mm)/
2.17 in. (55 mm)
64.6 in. (1641 mm)
65.6 in. (1666 mm)
295/35 R 21 107 Y XL 10 J x 21 1.97 in. (50 mm) 65.4 in. (1661 mm) 66.0 in. (1676 mm)
295/35 R 21 107 Y XL
10 J x 21
1.97 in. (50 mm)/
1.77 in. (45 mm)
65.4 in. (1661 mm)
66.4 in. (1686 mm)
Winter tires
235/65 R 17 108 H XL
1)
7.5 J x 17
2.09 in. (53 mm)
65.2 in. (1655 mm)
65.7 in. (1670 mm)
255/55 R 18 109 V XL
2) 8 J x 18 2.24 in. (57 mm) 64.8in. (1647 mm) 65.4 in. (1662 mm)
255/50 R 19 107 V XL
3)
9 J x 19
2.36 in. (60 mm)
64.6 in. (1641 mm)
65.2 in. (1656 mm)
275/40 R 20 106 V XL
3)
9 J x 20 2.36 in. (60 mm) 64.6in. (1641 mm) 65.2 in. (1656 mm)
275/40 R 20 106 V XL
9 J x 20/10 J x 20
2.36 in. (60 mm)/
2.17 in. (55 mm)
64.6 in. (1641 mm)
65.6 in. (1666 mm)
All-Season
235/65 R 17 108 V XL
1)
7.5 J x 17
2.09 in. (53 mm)
65.2 in. (1655 mm)
65.7 in. (1670 mm)
255/55 R 18 109 V XL
2) 8 J x 18 2.24 in. (57 mm) 64.8in. (1647 mm) 65.4 in. (1662 mm)
275/45 R 19 108 V XL
3)
9 J x 19
2.36 in. (60 mm)
64.6 in. (1641 mm)
65.2 in. (1656 mm)
Collapsible spare wheel
195/75 - 18
6.5 x 18
2.09 in. (53 mm)
10_Cayenne_21_KW17.book Seite 350 Donnerstag, 9. April 2009 3:33 15
