2004 PONTIAC GRAND PRIX Owners Manual

Fold-Flat Front Passenger Seat
{CAUTION:
If you fold the seatback forward to carry longer
objects, such as skis, be sure any such cargo
is not near an air bag. In a crash, an in¯ating
air bag might force that object toward a
person. This could cause severe injury or even
death. Secure objects away from the area in
which an air bag would in¯ate. For more
information, see ªWhere Are the Air Bags?º
and ªLoading Your Vehicle,º in the Index.
If the vehicle has this feature, the front passenger seat
can be folded ¯at for more cargo space. Used with
the split folding rear seat, optimum cargo space
is gained for long, ¯at items. See
Split Folding Rear
Seat on page 1-8later in this section for more
information.Pull up on the lever located in the middle of the
seatback, lift up on the seatback, and push it forward.
To return the seat to normal use, raise the seatback
to the upright position. Push and pull on the seatback
to make sure it is locked.
1-3

Power Seat
If your vehicle has this feature, the control is located on
the outboard side of the driver's seat.To adjust the seat do the following:
·Move the seat forward or rearward by sliding the
control toward the front or rear of the vehicle.
·Raise or lower the seat cushion by sliding the
control up or down.
·Raise or lower the front portion of the seat by
sliding the front part of the control up or down.
·Raise or lower the rear portion of the seat by
sliding the rear part of the control up or down.
1-4

Power Lumbar
If your vehicle has this feature, the power lumber
control lets you adjust the amount of support in the
lower seatback.
The four-way control is
located on the outboard
side of the driver's
seat cushion.
To increase or decrease lumbar support, press and
hold the front or rear of the control. Release the control
when the lower seatback reaches the desired level
of support.
You can also raise and lower the lumbar support on
the lower seatback by pressing and holding the top or
bottom of the control.
Heated Seats
If your vehicle is equipped
with this feature, the
buttons to activate the
heat on each front seat
cushion are located on the
climate control panel.
The button for the driver's seat is located on the bottom
left side of the climate control panel. The button for
the passenger's seat is on the bottom right of the climate
control panel.
Push the button once to activate a high heat setting.
Both indicator lights next to the button will come
on. Push the button again to select a lower temperature
setting. Only the bottom indicator light will come on.
Press the button a third time to turn the heat off.
This feature only works when the ignition is turned on.
1-5

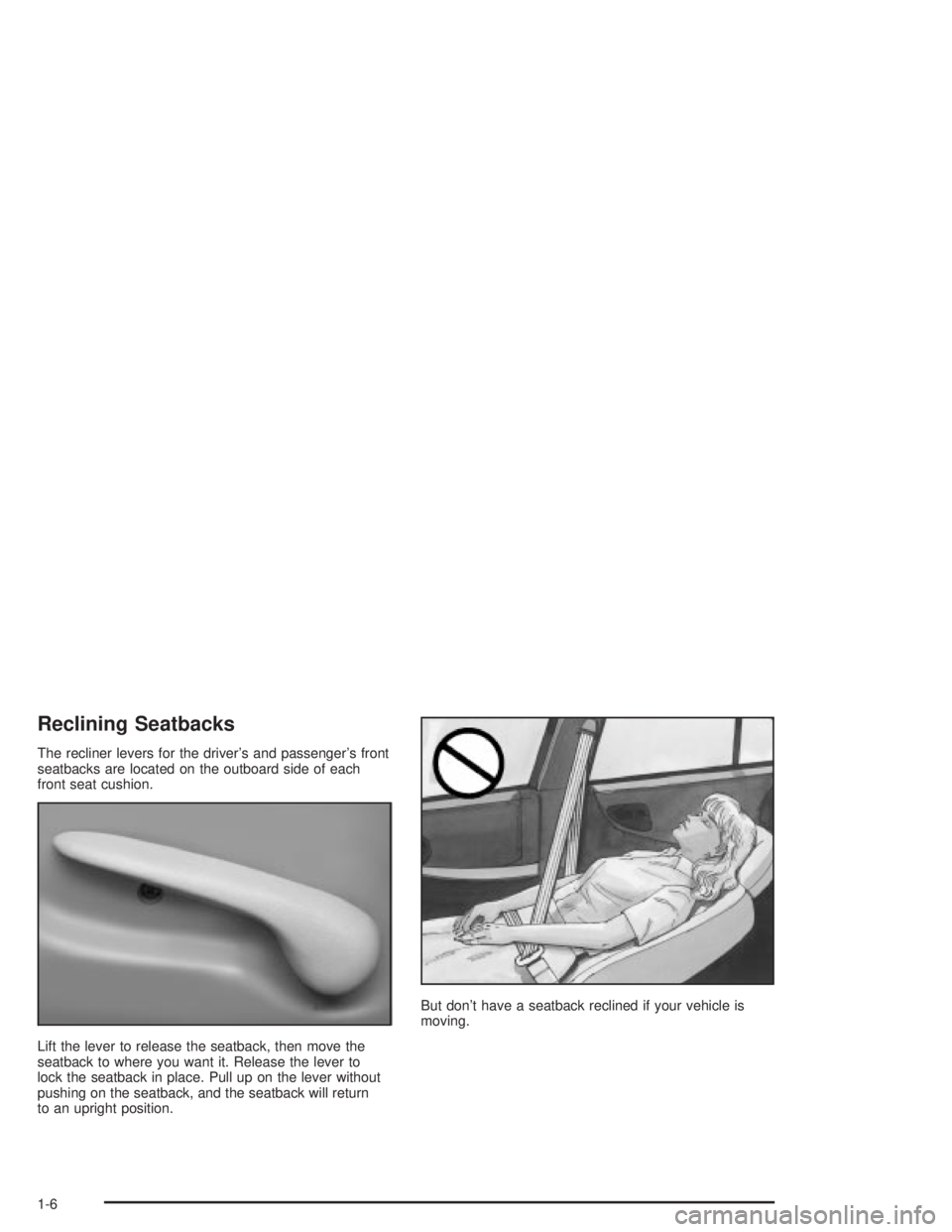

Reclining Seatbacks
The recliner levers for the driver's and passenger's front
seatbacks are located on the outboard side of each
front seat cushion.
Lift the lever to release the seatback, then move the
seatback to where you want it. Release the lever to
lock the seatback in place. Pull up on the lever without
pushing on the seatback, and the seatback will return
to an upright position.But don't have a seatback reclined if your vehicle is
moving.
1-6

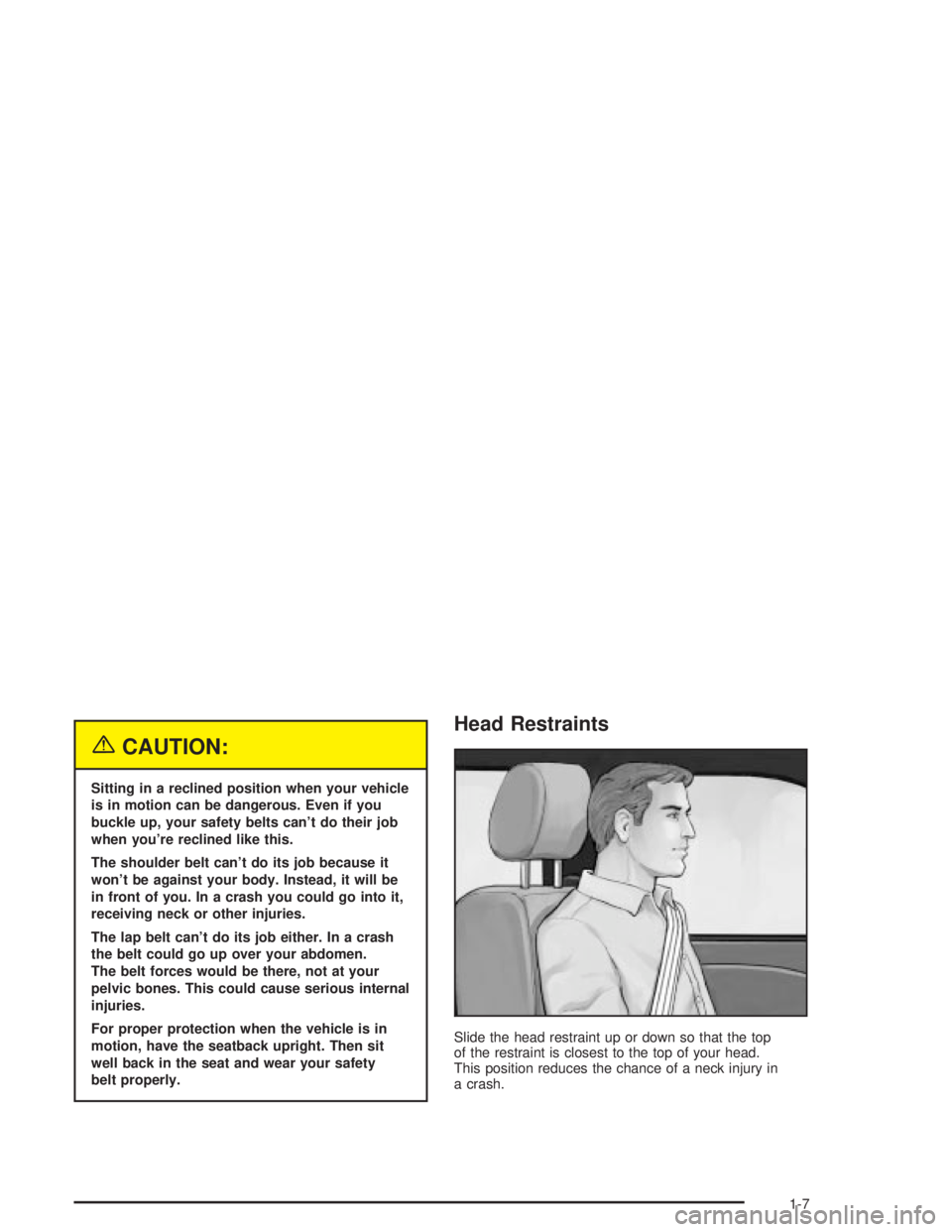

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts can't do their job
when you're reclined like this.
The shoulder belt can't do its job because it
won't be against your body. Instead, it will be
in front of you. In a crash you could go into it,
receiving neck or other injuries.
The lap belt can't do its job either. In a crash
the belt could go up over your abdomen.
The belt forces would be there, not at your
pelvic bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Head Restraints
Slide the head restraint up or down so that the top
of the restraint is closest to the top of your head.
This position reduces the chance of a neck injury in
a crash.
1-7

Rear Seats
Split Folding Rear Seat
You can fold either side or both sides of the seatback
down in your vehicle for more cargo space. Make sure
the front seat isn't reclined. If it is, the rear seatback may
not fold down all the way.
To lower the rear seatback, follow these steps:
1. Remove the rear center lap-shoulder belt latch by
using a pointed object to press the release button.1. Pull forward on the
seatback tab located
on the outboard side
of the rear seat
cushion to fold the
seatback down.
This will allow you direct access to the trunk.
1-8

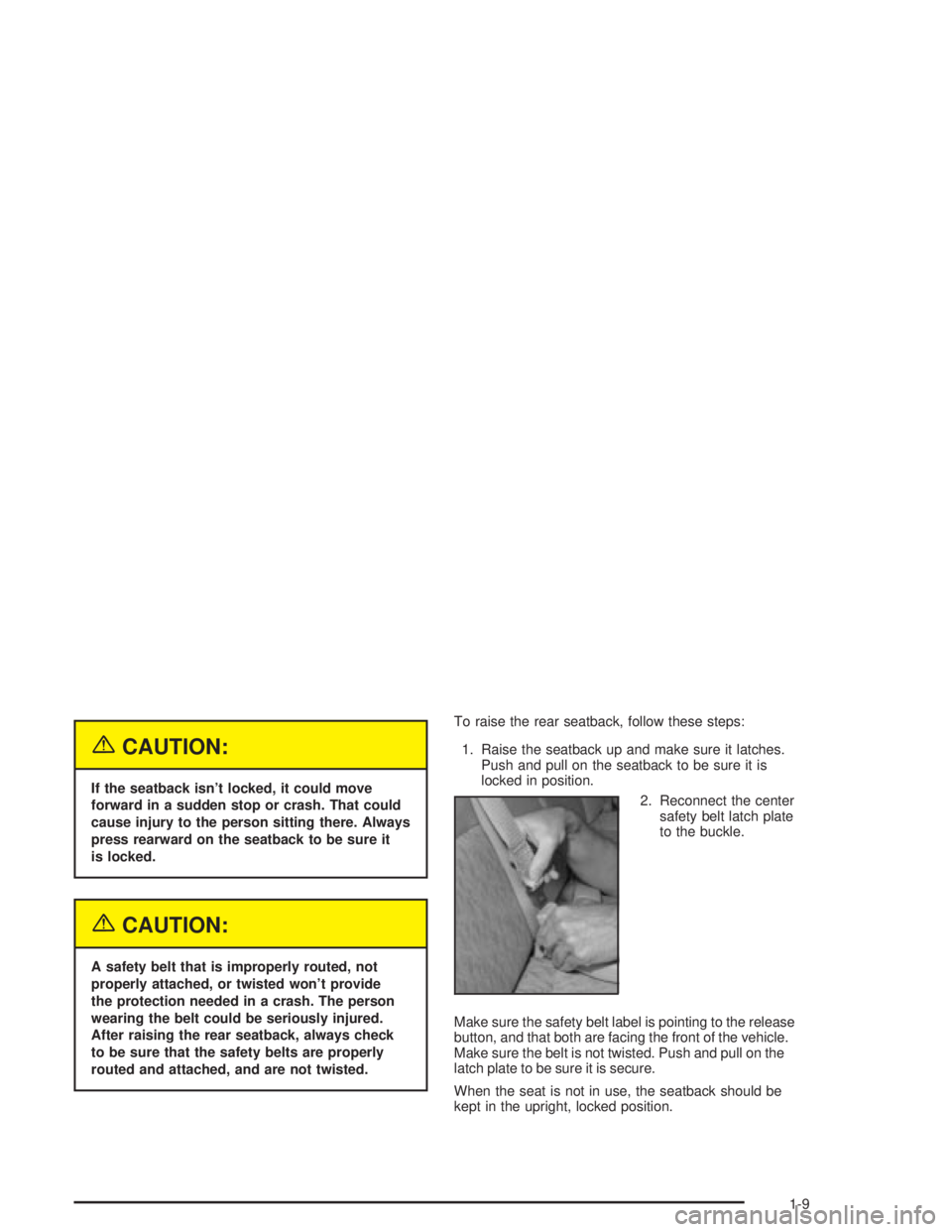

{CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.To raise the rear seatback, follow these steps:
1. Raise the seatback up and make sure it latches.
Push and pull on the seatback to be sure it is
locked in position.
2. Reconnect the center
safety belt latch plate
to the buckle.
Make sure the safety belt label is pointing to the release
button, and that both are facing the front of the vehicle.
Make sure the belt is not twisted. Push and pull on the
latch plate to be sure it is secure.
When the seat is not in use, the seatback should be
kept in the upright, locked position.
1-9

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use safety
belts properly. It also tells you some things you should
not do with safety belts.
{CAUTION:
Don't let anyone ride where he or she can't
wear a safety belt properly. If you are in a
crash and you're not wearing a safety belt,
your injuries can be much worse. You can hit
things inside the vehicle or be ejected from it.
You can be seriously injured or killed. In the
same crash, you might not be, if you are
buckled up. Always fasten your safety belt,
and check that your passengers' belts are
fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a cargo
area, inside or outside of a vehicle. In a
collision, people riding in these areas are more
likely to be seriously injured or killed. Do not
allow people to ride in any area of your vehicle
that is not equipped with seats and safety
belts. Be sure everyone in your vehicle is in a
seat and using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
See
Safety Belt Reminder
Light on page 3-34.
1-10
