YOUR 607 IN DETAIL129
Operating check
When a malfunction of the sys- tems occurs, the switch lightflashes and the warning lightcomes on, accompanied by anaudible signal and the mes-
sage 'ESP/ASR system faulty' on the
multi-function display.
Contact a PEUGEOT dealer to have the system checked.
Disarming the ASR/ESP systems In exceptional conditions (starting a vehicle which is bogged down, stuck
in snow, on soft ground...), it may be
advisable to disarm the ASR system,so that the wheels can move freelyand regain grip.
Press the 'ESP OFF'
switch, located under thesteering wheel to the left.
The switch lights up and thewarning light comes on,accompanied by an audiblesignal and the message
'ASR/ESP system de-acti-vated' on the multiÐfunction
display : the ASR and ESP systems
no longer have any effect on theengine operation. These are triggered again :
 automatically if the ignition is
switched off,
 manually by pressing the switchagain.DYNAMIC STABILITY
CONTROL (ESP) AND
TRACTION CONTROL (ASR) These systems are linked and com-
plementary to the ABS system. In the event of a significant variation between the trajectory of the vehicle
and the path required by the driver,
the ESP system acts automaticallyon the engine and on the brake ofone or more wheels, to put the vehi-cle back on course. The traction control (ASR) system optimises drive, in order to avoid thewheels slipping, by acting on thebrakes of the drive wheels and onthe engine. It also enables the direc-tional stability of the vehicle to beimproved during acceleration. Operation of the ESP
and ASR systems
When one of the two sys-tems is in operation, thisindicator light flashes.
The ESP system offers exceptional safety in nor-mal driving, but this shouldnot encourage the driver totake extra risks or drive at
high speed. The correct functioning of this sys- tem depends on observation of themanufacturer's recommendationsregarding wheels (tyres and rims),the braking components and theelectronic components, as well asthe PEUGEOT assembly andoperation procedures. After an impact, have the system checked by a PEUGEOT dealer

02-02-2004
YOUR 607 IN DETAIL131
CRUISE CONTROL Cruise control enables the vehicle to maintain a steady speed pro-
grammed by the driver, regardless ofthe road characteristics and withoutthe driver having to touch the accel-erator or brake pedals. In order for it to be memorised, the vehicle speed must be greater than25 mph (40 km/h) or 40 mph
(60 km/h), (according to engine),with at least 4th gear engaged
(2nd gear for the automatic gear-box).Operation
Place the ring of switch 1
in the ON position. The
indicator light will come onaccompanied by an audi-ble signal.
A speed can be memorised.  Place the ring of switch 1 in the OFF position to cancel.
Memorising a speed As soon as you reach the chosen speed, push stalk 1upwards or
downwards. This memorises thespeed, which will be maintained
automatically. Note : it is possible to accelerate
momentarily without disarming the cruise control. Cancelling the memorised speed
If you wish to cancel the memorisedspeed :
 Pull stalk 1towards you or press
the brake or clutch pedal.
Recalling the memorisedspeed
After cancellation, flick stalk 1 upwards or downwards. Your vehicle
will return to the last memorised speed.
Changing a memorised speed
To memorise a speed higher than the previous one:
 keep stalk 1pressed upwards;
 release it when you have reachedthe required speed.
To memorise a speed lower than theprevious one :  keep stalk 1pressed downwards;
 release it when you have reachedthe required speed.
Disarming the cruise control  place the ring in the OFFposition
or switch off the ignition.
Do not use cruise control on slippery roads or inheavy traffic.

02-02-2004
FRONT AIR BAGS These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.
They are deployed simultaneously,except in cases where the air bag isdisarmed. Front air bag malfunctionIf this warning light comes on, accompanied by abuzzer and the message"Air bag fault" on the multi-
function display, contact a
PEUGEOT dealer to have the sys-tem checked.
YOUR 607 IN DETAIL 133
AIR BAGS The air bags have been designed to maximise the safety of the occupantsin the event of serious collisions;they work in conjunction with theforce limiting seat belts. In the event of a serious collision, the electronic detectors record andanalyse any abrupt deceleration ofthe vehicle: if the triggering thresholdis reached, the air bags inflateinstantly and protect the occupantsof the vehicle. Immediately after the impact, the air
bags deflate rapidly, so that they donot hinder the visibility of the occu-pants nor their possible exit from thevehicle. The air bags will not be deployed in collisions which are not serious, for
which the seat belt is sufficient to
provide maximum protection. Theseriousness of the collision dependson the nature of the obstacle and thespeed of the vehicle at the momentof impact. Air bags only operate when the ignition is switched on. Note: the gas escaping from the air
bags can be a minor irritant.
Disarming the passenger air bag*
To ensure the safety of your child, it is essential to disarm the pas-senger air bag when you install arear-facing child seat on the frontpassenger seat. Otherwise, the child would risk being killed or seriously injured ifthe air bag were to inflate.  With the ignition switched of f,
insert the key into the passenger air bag disarming switch 1, turn it
to the "OFF"position, then
remove the key keeping the slotin this position. The air bag warning light on the instrument panel is lit throughoutthe disarming process.
* According to destination

02-02-2004
In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Disarming check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multifunc-
tion display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag deactivated" on the multifunc-
tion display, indicates that the pas-senger air bag is disarmed (switch inthe "OFF" position). SIDE AIR BAGS AND
CURTAIN AIR BAGS The side air bags are incorporated in the front and rear seat backs, on thedoor side. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multi-func-
tion display.
If this indicator light comes on, accompanied by anaudible signal and the mes-sage 'Air bag(s) faulty' ,
contact a PEUGEOT dealer
to have the system checked.
YOUR 607 IN DETAIL
134

02-02-2004
In the "OFF" position, the passenger
air bag will not be triggered in the event of an impact. As soon as the child seat is removed, turn the air bag slot to the"ON" position to re-activate the air
bag and thus ensure the safety ofyour passenger in the event of animpact. Disarming check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multifunc-
tion display.
With the ignition on (2ndnotch), illumination of thiswarning light accompaniedby an audible signal and themessage "Passenger air
bag deactivated" on the multifunc-
tion display, indicates that the pas-senger air bag is disarmed (switch inthe "OFF" position). SIDE AIR BAGS AND
CURTAIN AIR BAGS The side air bags are incorporated in the front and rear seat backs, on thedoor side. The curtain air bags are incorporated into the door pillars and the upperpart of the passenger compartment. They are deployed independently of each other depending on which sidethe collision occurs. Operating check This is confirmed by an indicator light, accompanied by an audible sig-nal and a message on the multi-func-
tion display.
If this indicator light comes on, accompanied by anaudible signal and the mes-sage 'Air bag(s) faulty' ,
contact a PEUGEOT dealer
to have the system checked.
YOUR 607 IN DETAIL
134

02-02-2004
PRACTICAL INFORMATION
144

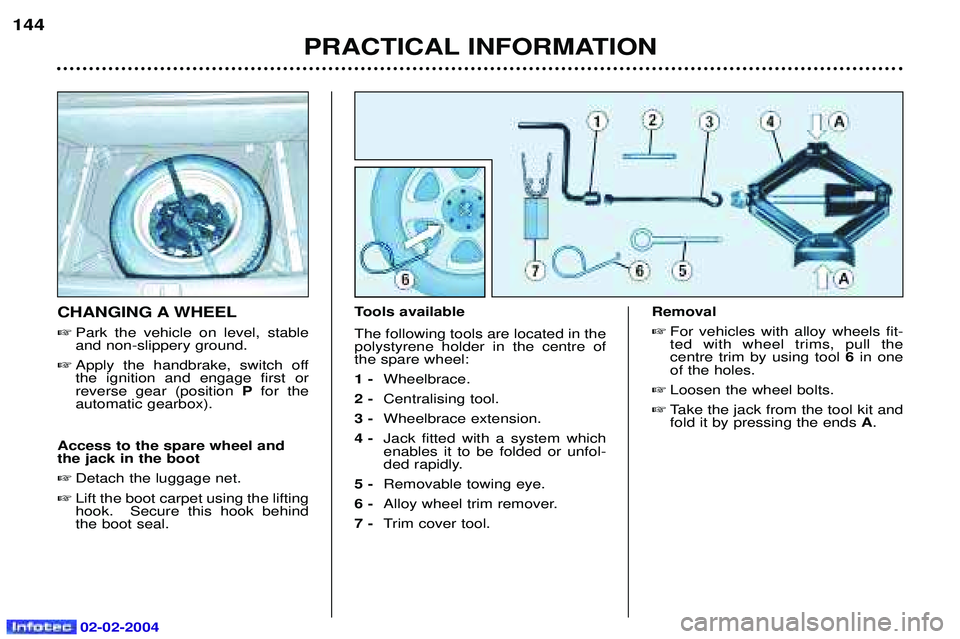

CHANGING A WHEEL
 Park the vehicle on level, stable and non-slippery ground.
 Apply the handbrake, switch offthe ignition and engage first orreverse gear (position Pfor the
automatic gearbox).
Access to the spare wheel andthe jack in the boot  Detach the luggage net.
 Lift the boot carpet using the liftinghook. Secure this hook behindthe boot seal. Tools available The following tools are located in the polystyrene holder in the centre ofthe spare wheel: 1 -
Wheelbrace.
2 - Centralising tool.
3 - Wheelbrace extension.
4 - Jack fitted with a system which enables it to be folded or unfol-
ded rapidly.
5 - Removable towing eye.
6 - Alloy wheel trim remover.
7 - Trim cover tool. Removal
 For vehicles with alloy wheels fit-ted with wheel trims, pull thecentre trim by using tool 6in one
of the holes.
 Loosen the wheel bolts.
 Take the jack from the tool kit andfold it by pressing the ends A.

02-02-2004
Fuse N¡ RatingFunctions
10* 20 AAutomatic headlamp lighting control unit.
11* 70 A Built-in systems interface.
12* 70 A Ignition supply (+ve accessories / ignition controlled +ve).
13* 20 A Automatic headlamp lighting control unit.
14 15 A Double injection relay supply.
15* - Not used.
16* - -
17* 30 A ESP hydraulic unit.
18 30 A Ignition supply (+ starter).
19 20 A Variable suspension control unit.
20 10 A Fan unit relay - Cruise control safety switch - Manual gearbox clutch switch - Manual gearbox reversing lights switch or automatic gearbox multi-function switch -
Automatic headlamp lighting control unit - Vehicle speed sensor -
Coolant level sensor - Water in diesel sensor - Power switch control unit relay.
21 5 A Automatic gearbox control unit - Automatic gearbox multi-function switch.
22 25 A ESP control unit.
23 15 A Diesel heating.
24 5 A Engine management control unit - Dual control control unit.
25 10 A Fuel pump.
26 30 A Driver's seat memory control unit.
27 25 A Double injection relay supply.
28 10 A Throttle housing de-icing resistor, Intake pilot solenoid valve - Flow meter - Piston de-activator injection pump -Oil heating.
29 30 A Air pump, diesel additive control unit - Diesel additive injector.
30 - Cannot be used.
31 5 A Automatic gearbox shift lock.
32 10 A ESP or ABS control unit.
33 15 A Automatic gearbox control unit - Automatic gearbox multi-function switch (except reversing lights) - Automatic gearbox sequential control.
34 5 A Oxygen sensors - Exhaust gas recirculation solenoid valve, Exhaust gas recirculation butterfly solenoid valve -
Turbo pressure regulation solenoid valve.
PRACTICAL INFORMATION 153

02-02-2004
PRACTICAL INFORMATION
154
CHANGING A WINDSCREEN WIPER BLADE Placing the wiper blades in the maintenance position Less than one minute after switch-
ing off the ignition, activate thewindscreen wiper stalk to positionthe blades in the centre of thewindscreen (maintenance posi-tion).
Replacing a blade  Lift the arm, then unclip the bladeand remove it.
 Fit the new blade and fold downthe arm.
To park the blades, switch on theignition and operate the wind-screen wiper stalk.
REMOVING A MAT When removing a mat on the driver's or passenger's side, push back theseat as far as possible and removethe clips.
To remove a rear mat, push the corresponding front seat forward andremove the clip. On refitting, position the mat and
tighten the securing clips fully.
LOAD REDUCTION FUNCTION When driving, certain functions (air conditioning, heated rear screen,heating system for passenger com-partment of diesel vehicles, etc.)
may be switched off temporarily,depending on the level of batterycharge. Reactivation of these functions is automatic, once the battery charge is
sufficient. Note:
at the risk of discharging the
battery, the functions that have been
switched off may be reactivated
manually.
A flat battery prevents the engine from starting.
ECONOMY MODE FUNCTION After the engine has stopped, certain
functions (windscreen wiper, electricwindows, sunroof, rear electric blind,electric seats, audio equipment, tele-phone etc) can only be used for thir-ty minutes, to prevent discharging
the battery.
Once the thirty minutes are over, the message "Economy mode active"
appears on the multiÐfunction dis-play and the active functions are put
on standby. These functions are automaticallyreactivated next time the vehicle isdriven. Note:
if the telephone is being used
when economy mode starts, it will still be possible to finish the call.
