2004 Peugeot 406 C Dag buttons

02-02-2004
YOUR 406 COUPE IN DETAIL53

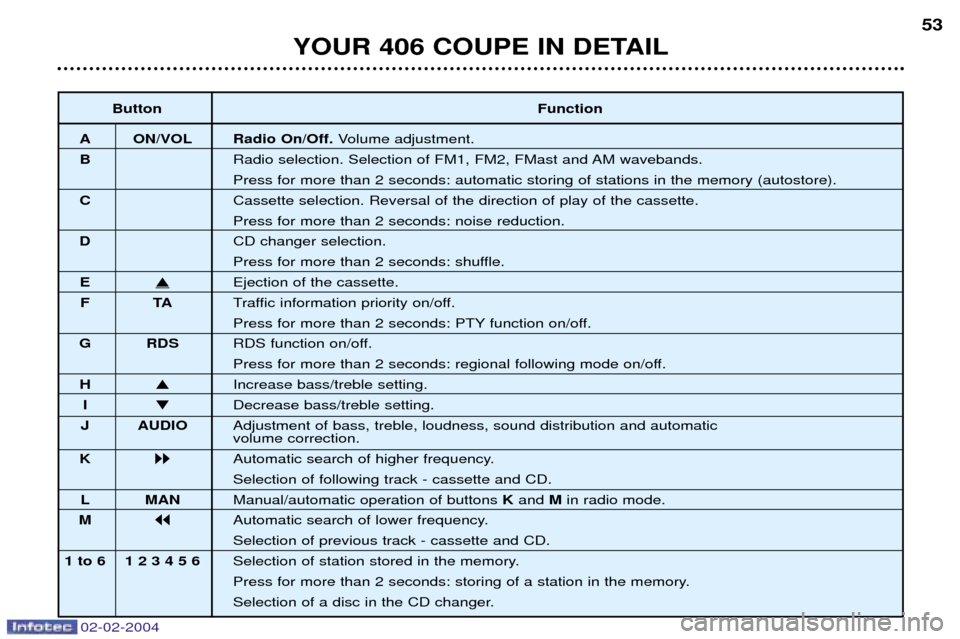

Button Function
A ON/VOL Radio On/Off. Volume adjustment.
B Radio selection. Selection of FM1, FM2, FMast and AM wavebands. Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C Cassette selection. Reversal of the direction of play of the cassette.Press for more than 2 seconds: noise reduction.
D CD changer selection.
Press for more than 2 seconds: shuffle.
E
Ejection of the cassette.
FT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
H Increase bass/treble setting.
I Decrease bass/treble setting.
J AUDIO Adjustment of bass, treble, loudness, sound distribution and automatic volume correction.
K Automatic search of higher frequency. Selection of following track - cassette and CD.
L MAN Manual/automatic operation of buttons Kand Min radio mode.
M Automatic search of lower frequency.Selection of previous track - cassette and CD.
1 to 6 1 2 3 4 5 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a disc in the CD changer.

02-02-2004
Adjusting the bassWhen "BASS" is displayed, press button Hor Ito vary the setting.
Ð "BASS Ð9" for a minimum bass setting,
Ð "BASS 0" for a normal setting,
Ð "BASS +9" for a maximum bass setting.
Adjusting the treble When "TREB" is displayed, press button Hor Ito vary the setting.
Ð "TREB Ð9" for a minimum treble setting,
Ð "TREB 0" for a normal setting,
Ð "TREB +9" for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low.Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader)When "FAD" is displayed, press button Hor I.
Button Hincreases the volume in the front.
Button Iincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor I.
Button Hincreases the volume on the right-hand side.
Button Iincreases the volume on the left-hand side.
Automatic Volume Correction (CAV) This function enables the volume to be adjusted automatically according to the level of noise produced by the speed of the vehi cle.
Press buttons Hor Ito switch the function on or off.
YOUR 406 COUPE IN DETAIL 55

02-02-2004
Manual station searchPress the "MAN"button.
Briefly press button Kor Mto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. The scrolling stops at the first station found as soon as the button is released.Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required.Press one of the buttons 1to 6for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore) Press button Bfor more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FMast waveband.
Ð If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press buttons 1to 6to recall the corresponding stored station.
The list of the 6 stations stored in the memory on the waveband is displayed each time one of the buttons 1to 6is pressed.
YOUR 406 COUPE IN DETAIL 57

02-02-2004
Regional following modeWhen they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme. Press the "RDS"button for more than two seconds to switch the function on or off.
PTY function This allows you to listen to stations broadcasting a specific type of programme (news, culture, sport, rock etc.). With FM selected, press the "TA"button for two seconds to switch this function on or off.
To search for a PTY programme: Ð select the PTYfunction,
Ð briefly press button Kor Mto scroll down the list of the various types of pro-
grammes offered.
Ð when the programme of your choice is displayed, keep one of the buttons Kor Mpressed for two seconds to carry out an
automatic search (after an automatic search the PTYfunction is switched off).
In PTY mode, the different types of programmes can be stored in the
memory. To do this, press the preselection buttons 1to 6for more
than two seconds. To recall the type of programme stored in the
memory, briefly press the corresponding button.
EON system
This connects stations which are part of the same network. It allows the broadcast of traffic information, by a station that is part of the same network as the station to which you are listening.
This service is available when you have selected the TA traffic information programme or the PTYfunction.
YOUR 406 COUPE IN DETAIL 59

02-02-2004
CD CHANGER Selecting CD changer modePress button D.
Selecting a disc Press one of the buttons 1to 6to select the corresponding disc.
Selecting a track Press button Kto select the following track.
Press button Mto return to the start of the current track or to select the previous
track.
Accelerated playPress and hold button Kor Mfor forwards or backwards accelerated play.
Accelerated play stops as soon as the button is released. Shuffle
When the CD changer is selected, keep button Dpressed for two seconds. The tracks will be played in ran-
dom sequence. Pressing button Dagain for two seconds returns you to normal play.
YOUR 406 COUPE IN DETAIL 61

02-02-2004
YOUR 406 COUPE IN DETAIL63
Button Function
A ON/VOL Radio On/Off . Volume adjustment.
B Radio selection. Selection of FM1, FM2, FMast and AM wavebands. Press for more than 2 seconds: automatic storing of stations in the memory (autostore).
C CD selection.
Press for more than 2 seconds: shuffle.
D CD changer selection.
Press for more than 2 seconds: shuffle.
E Ejection of the CD.
FT ATraffic information priority on/off.
Press for more than 2 seconds: PTY function on/off.
G RDS RDS function on/off.
Press for more than 2 seconds: regional following mode on/off.
H Increase bass/treble setting.
I Decrease bass/treble setting.
J AUDIO Selection of bass, treble, loudness, sound distribution and automatic volume correction.
K Automatic search of higher frequency. Selection of following CD track.
L MAN Manual/automatic operation of buttons Kand Min radio mode.
M Automatic search of lower frequency.Selection of previous CD track.
1 to 6 1 2 3 4 5 6 Selection of station stored in the memory.
Press for more than 2 seconds: storing of a station in the memory.
Selection of a disc in the CD changer.

YOUR 406 COUPE IN DETAIL65
Adjusting the bass When "BASS" is displayed, press button Hor Ito vary the setting.
Ð "BASS Ð9" for a minimum bass setting,
Ð "BASS 0" for a normal setting,
Ð "BASS +9" for a maximum bass setting.
Adjusting the treble When " TREB" is displayed, press button H or Ito vary the setting.
Ð "TREB Ð9" for a minimum treble setting,
Ð "TREB 0" for a normal setting,
Ð "TREB +9" for a maximum treble setting.
Adjusting the loudness
This function automatically emphasises bass and treble tones when the volume is low.Press button Hor Ito switch the function on or off.
Adjusting the front/rear sound distribution (Fader)When "FAD" is displayed, press button Hor Ito vary the setting
Button Hincreases the volume in the front.
Button Iincreases the volume in the rear.
Adjusting the right/left sound distribution (Balance)When "BAL" is displayed, press button Hor Ito vary the setting.
Button Hincreases the volume on the right-hand side.
Button Iincreases the volume on the left-hand side.
Automatic Volume Correction This function enables the volume to be adjusted automatically according to the level of noise produced by the speed of the vehi cle.
Press buttons Hor Ito switch the function on or off.
02-02-2004

02-02-2004
YOUR 406 COUPE IN DETAIL67
Manual station search Press the "MAN" button.
Briefly press button Kor Mto increase or decrease the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continu-
ous scrolling of the frequency.
The scrolling stops at the first station found as soon as the button is released. Pressing the "MAN"button again returns you to automatic station search.
Manual storing of stations in the memory Select the station required.Press one of the buttons 1to 6for more than two seconds.
The sound stops then becomes audible again, confirming that the station has been stored in the memory. Automatic storing of FM stations in the memory (autostore) Press button Bfor more than two seconds, to automatically store the 6 stations with the strongest signal in
FM. These stations are stored in the FMAST waveband.
Ð If it is not possible to find 6 stations, the remaining memories are empty.
Recalling stations stored in the memory For each waveband, briefly press the buttons 1to 6to recall the corresponding stored station.
