2004 Peugeot 406 C Dag Owner's Manual

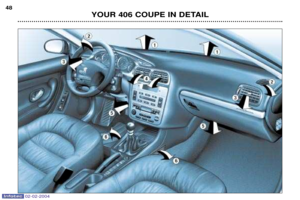

YOUR 406 COUPE AT A GLANCE
2
02-02-2004

02-02-2004
10 -Passenger air bag.
11 - Glove box.
12 - Side adjustable heating/ ventilation vents and air flowregulation.
13 - Window demisting vent.
14 - Speaker (tweeter) location.
15 - Multi-function display.
16 - Heating/ventilation controls.
17 - Radio.
18 - Gear lever.
19 - Front ashtray.
20 - Rear footwell heating vent.
21 - Lighter. 22 -
Heated seat switches. Coin storage. Passenger air bag disarming switch.
23 - Handbrake.
24 - Cup-holder.
25 - Rear ashtray.
26 - Steering lock and ignition.
27 - Steering wheel adjustment.

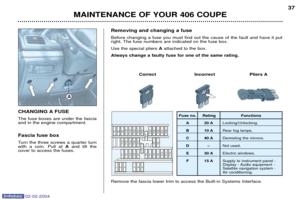

28 - Fuse box.
29 - Electronic stability programme (ASR/ESP)
30 - Headlamp height adjustment.
31 - Cruise control.
YOUR 406 COUPE AT A GLANCE
3
1 - Electric mirror controls. Window controls.
2 - Lights and direction indicators stalk.
3 - Driver's air bag.Horn.

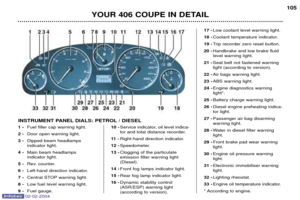

4 - Instrument dials.

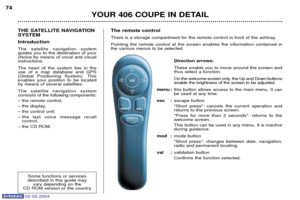

5 - Radio remote control stalk.
6 - Windscreen wash-wipe stalk.
Trip computer stalk.
7 - Hazard warning lights switch.
8 - Central adjustable heating/ventilation vents and air flowregulation.
9 - Windscreen demistingvents.

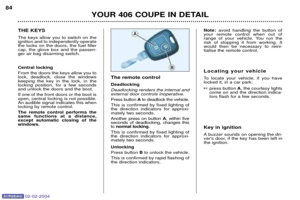

THE KEYS The keys allow you to switch on the ignition and to independentlyoperate the locks on the frontdoors, the fuel filler cap, the glovebox and the passenger air bagdisarming switch. Central lockingFrom the doors, the keys allow you to lock, deadlock, close thewindows keeping the key in thelock, in the locking position, for afew seconds and unlock thedoors and the boot. If one of the front doors or the boot is open, it is impossible tooperate the central locking; anaudible signal indicates this whenlocking by remote control. The remote control performs the same functions at a dis-tance except automatic closingof the windows.The remote control key Deadlocking Deadlocking renders the internal and external door locking con-trols inoperative. Press button
Ato deadlock the
vehicle.This is confirmed by fixed lighting of the direction indicators forapproximately two seconds.
A second press on button Ain
the five seconds following dead- locking, changes deadlocking tonormal locking .
This is confirmed by fixed lightingof the direction indicators forapproximately two seconds. Unlocking Press button
Bto unlock the vehi-
cle.This is confirmed by rapid flashing of the direction indicators.

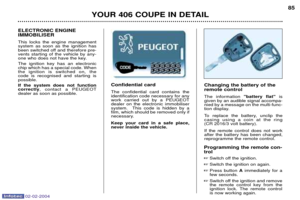

ELECTRONIC ENGINE IMMOBILISER This locks the engine control sys- tem a few moments after the igni-
tion has been switched off andtherefore prevents starting of thevehicle by anyone who does not
have the key. Operation Each key has an electronic chip which has a special code. When the ignition is switched on, the key code is recognised andstarting is possible. If the key does not have a code or
has a different code from that
stored in the system memory, thevehicle will not start.
YOUR 406 COUPE AT A GLANCE
4
84
Normal key
Remote
control key
02-02-2004

Steering lock Before starting, unlock the steer-
ing if necessary, by gently turningthe steering wheel at the same
time as you turn the key. It is advisable to press the clutch
pedal while operating the starter
to make starting easier. Starting a petrol engine
Do not press the accelerator.
Operate the starter, without
releasing the key, until the engineturns.
Starting a diesel engine
Do not press the accelerator.
Turn the key to the second notch.If the engine is warm enough, the pre-heat light does not come on
and you can start immediately. If the pre-heat light comes on, wait for it to go out before operat-
ing the starter. If the engine stalls, it is necessary
to return the key to the STOPposition before restarting. Never race a coldengine. Never run the engine in a confined space.
Do not make any modifications tothe steering lock.
STARTING
STOP position:
The ignition is off.
1st notch, Accessories position:
The ignition is off but the acces- sories can be used. 2nd notch, Running position: The ignition is on. Starting position:
Operates the starter. YOUR 406 COUPE AT A GLANCE
5
02-02-2004

Automatic wipe In the AUTO position, the wipers
operate automatically and adjust
their speed to the intensity of the rainfall .
STEERING WHEEL STALKS LIGHTS
Front and rear lights (ring A)
Lights off. Side lights.
Dipped/Main beam headlamp.Automatic switching on of lights. YOUR 406 COUPE AT A GLANCE
6
Front fog lamps and rear foglamp (ring B)
Turn the ring to the front to switch
on and to the rear to switch off.The status is shown by the indi-cator light on the instrumentpanel.Front fog lamps on (firstrotation of the ring for-wards)Front and rear foglamps on (2nd rota-tion of the ring for-wards). WINDSCREEN WIPERS
2 Rapid wipe(heavy rain).
1 Normal wipe(moderate rain).
AUTO Automatic wipe.
0 Off.
Single wipe
Windscreen wash: pull the stalktowards you.
102104
02-02-2004

Manual front seats 1 - Forwards-backwards adjustment.
2 - Seat cushion angle adjustment.
3 - Seat height adjustment
4 - Seat back angle adjustment.
5 - Lumbar adjustment.
6 - Seat back tilt. Electric front seatsA
-Forwards-backwards adjustment.
B -Seat cushion angleadjustment.
C -Seat height adjustment
D -Seat back angle adjustment.

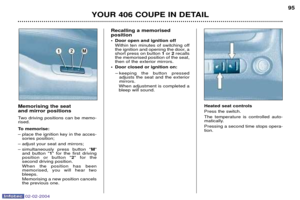

M - Memorises the settings. Switch on the ignition and adjust the seat and the mirrors. Press simultaneously on but- ton " M" and " 1" for the first
position or " M" and " 2" for the
second position.
1 - Recalls the first position.
2 - Recalls the second position.
YOUR 406 COUPE AT A GLANCE 7
THE SEATS
9294
02-02-2004

FRONT AIR BAGS Disarming the passenger air bag*
 Insert the ignition key in switch1and turn it to:
Ð the " ON" position, the passen-
ger air bag is armed.
Ð the " OFF" position, the passenger
air bag is disarmed.

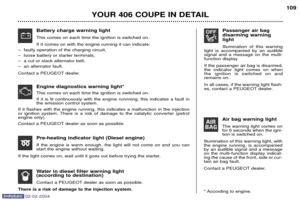

Operating check With the igntition
switched on (2nd notch) this warning light, accompanied by anaudible signal and the message"Passenger air bag deactivat-ed" on the multi-function display,
indicates that the passenger airbag is disarmed (switch in the"OFF" position).
The warning light remains on throughout the disarming process. Passenger air bagprecautions For a vehicle fitted with a disarm- ing switch:
Ð disarm the airbag if youinstall a rear-facing childseat.
Ð arm the air bag for anadult
passenger.
For a vehicle not fitted with a disarming switch: Ð do not install rear-facing child seats onthe front passengerseat.
Never place your feet or anyobject on the fascia. SIDE AIR BAGS These are incorporated into the front seat back, on the door side.
They are triggered independently, on the side on which the collisionoccurs.
Operating check
This is by means of the warning light on the instrument panel. It comes on for six seconds when the ignition is switched on. If the warning light:
Ð does not come on when the ignition is switched on or,
Ð does not switch off after six seconds or,
Ð flashes for five minutes then remains on,
Consult your PEUGEOT dealer.
* According to destination.129
8
YOUR 406 COUPE AT A GLANCE
02-02-2004

STEERING WHEEL HEIGHT
AND DEPTH ADJUSTMENT Pull handle Ato unlock the
steering wheel. Adjust the height and depth of the steering wheel then lock itby pushing handle Ain fully.

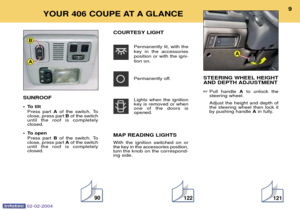

COURTESY LIGHT
Permanently lit, with the key in the accessoriesposition or with the igni-tion on.
Permanently off. Lights when the ignition key is removed or whenone of the doors isopened.
MAP READING LIGHTS With the ignition switched on or the key in the accessories position,turn the knob on the correspond-
ing side.
SUNROOF
¥ To tilt
Press part Aof the switch. To
close, press part Bof the switch
until the roof is completely closed.
¥ To open Press part Bof the switch. To
close, press part Aof the switch
until the roof is completelyclosed.
YOUR 406 COUPE AT A GLANCE 9
12112290
