ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore
prevents starting of the vehicle by
anyone who does not have the key.
The ignition key has an electronic
chip which has a special code.
When the ignition is switched on,
the code is recognised and starting
is possible.
If the system does not function
correctly, contact a PEUGEOT
dealer as soon as possible.

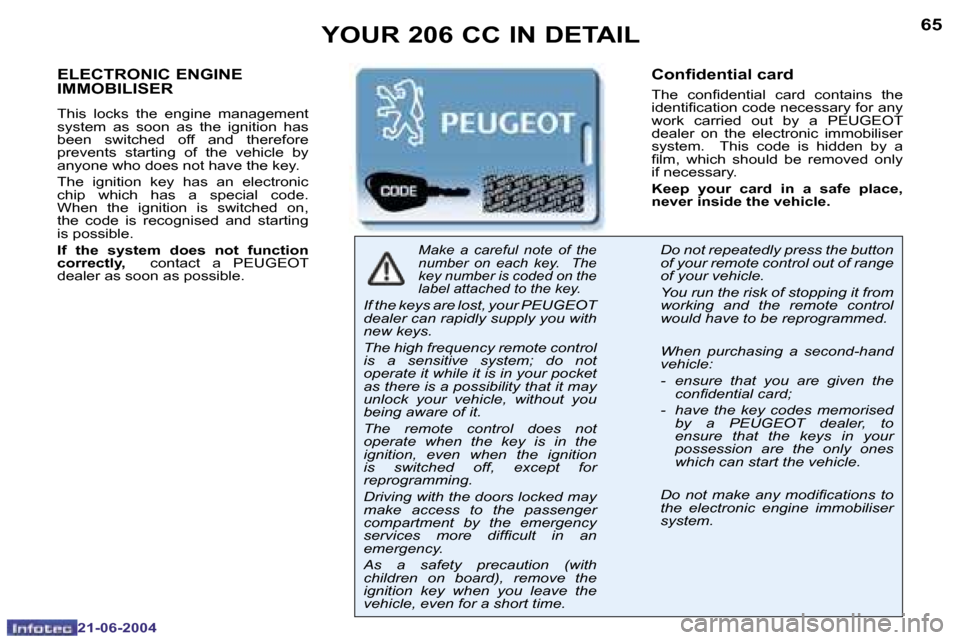

Conidential card
The conidential card contains the
identiication code necessary for any
work carried out by a PEUGEOT
dealer on the electronic immobiliser
system. This code is hidden by a
ilm, which should be removed only
if necessary.
Keep your card in a safe place,
never inside the vehicle.
YOUR 206 CC IN DETAIL
Make a careful note of the
number on each key. The
key number is coded on the
label attached to the key.
If the keys are lost, your PEUGEOT
dealer can rapidly supply you with
new keys.
The high frequency remote control
is a sensitive system; do not
operate it while it is in your pocket
as there is a possibility that it may
unlock your vehicle, without you
being aware of it.
The remote control does not
operate when the key is in the
ignition, even when the ignition
is switched off, except for
reprogramming.
Driving with the doors locked may
make access to the passenger
compartment by the emergency
services more dificult in an
emergency.
As a safety precaution (with
children on board), remove the
ignition key when you leave the
vehicle, even for a short time. Do not repeatedly press the button
of your remote control out of range
of your vehicle.
You run the risk of stopping it from
working and the remote control
would have to be reprogrammed.
When purchasing a second-hand
vehicle:
- ensure that you are given the
conidential card;
- have the key codes memorised by a PEUGEOT dealer, to
ensure that the keys in your
possession are the only ones
which can start the vehicle.
Do not make any modiications to
the electronic engine immobiliser
system.

66
21-06-2004
67
21-06-2004
YOUR 206 CC IN DETAIL

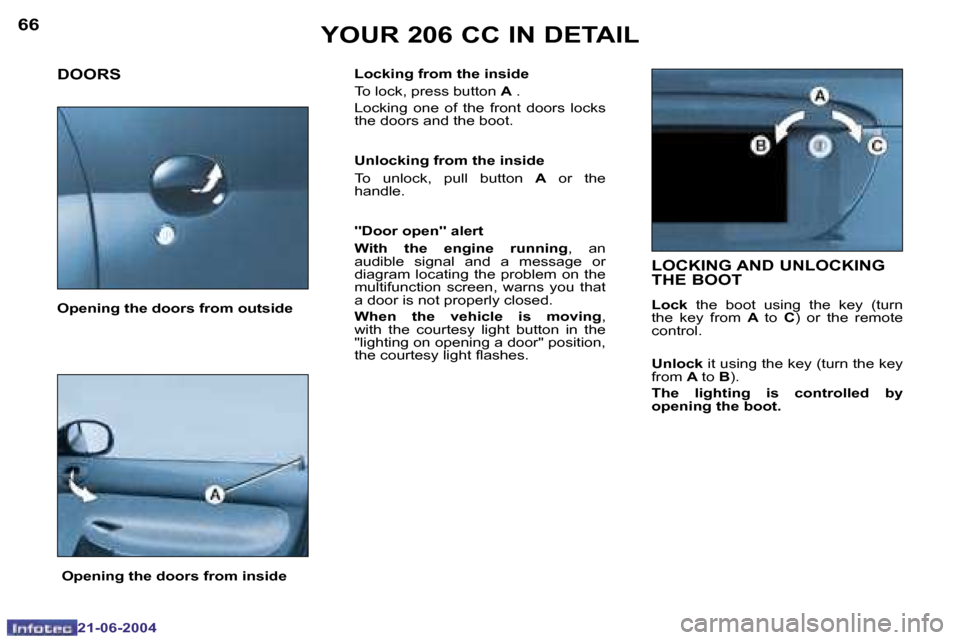

DOORS
Locking from the inside
To lock, press button A .
Locking one of the front doors locks
the doors and the boot.
Unlocking from the inside
To unlock, pull button A or the
handle.
''Door open'' alert
With the engine running , an
audible signal and a message or
diagram locating the problem on the
multifunction screen, warns you that
a door is not properly closed.
When the vehicle is moving ,
with the courtesy light button in the
"lighting on opening a door" position,
the courtesy light lashes.
Opening the doors from outside
Opening the doors from inside
LOCKING AND UNLOCKING
THE BOOT

Lock the boot using the key (turn
the key from A to C ) or the remote
control.
Unlock it using the key (turn the key
from A to B ).
The lighting is controlled by
opening the boot.

66
21-06-2004
67
21-06-2004

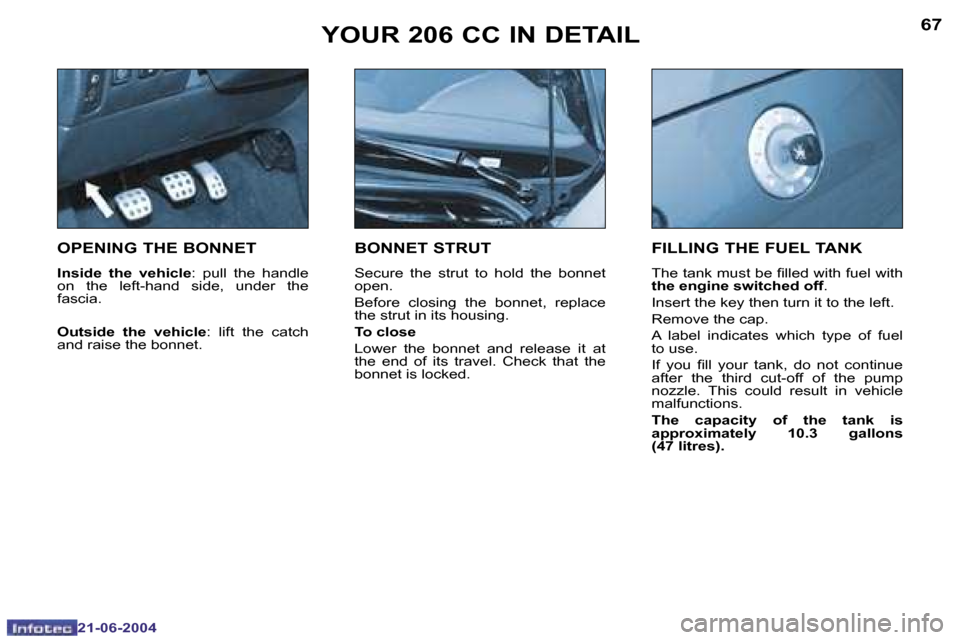

OPENING THE BONNET
Inside the vehicle: pull the handle
on the left-hand side, under the
fascia.
Outside the vehicle : lift the catch
and raise the bonnet.
YOUR 206 CC IN DETAIL
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
FILLING THE FUEL TANK
The tank must be illed with fuel with
the engine switched off .
Insert the key then turn it to the left.
Remove the cap.
A label indicates which type of fuel
to use.
If you ill your tank, do not continue
after the third cut-off of the pump
nozzle. This could result in vehicle
malfunctions.
The capacity of the tank is
approximately 10.3 gallons
(47 litres).

68
21-06-2004
69
21-06-2004
YOUR 206 CC IN DETAIL
THE ELECTRIC
RETRACTABLE ROOF
Opening the roof
Never switch the ignition off
during operation of the roof.
F Park the vehicle on horizontal
ground.
F Ensure that the screen 1 is
hooked on (no object must be
placed on the screen; if there is
luggage in the boot, this must not
push the screen upwards).
F Check that no object has been
placed on the rear parcel shelf.
F Close the boot correctly.
F With the vehicle stationary
and the handbrake applied, turn
the ignition switch to the running
position (2nd notch). F
Release the two hooks 2
completely ; this operation is
conirmed by an audible signal.
F Pull switch 3 until you hear a
signal which conirms that the roof
opening operation is complete.
When carrying out this manoeuvre,
the front windows and then the rear
quarter panel windows lower, the
boot lid opens, the roof folds up and
stores itself in the boot. Then the
boot lid closes and the moving shelf
positions itself.
Note: The control buttons for the
windows become operational again
at the end of the roof operation. Operating malfunction:
If the cycle does not begin, check
that the screen is pulled correctly and
that the boot is closed correctly.
If movement of the roof stops, a
continuous audible signal sounds:
F

Release switch 3, then press it
again to inish opening the roof.
If the malfunction persists, contact
a PEUGEOT dealer to have the
system checked.
After rain or washing the vehicle,
it is advisable to wait for the roof
to dry before opening it.

68
21-06-2004
69
21-06-2004
YOUR 206 CC IN DETAIL
Closing the roof
Never switch the ignition off
during operation of the roof.
F Ensure that the screen 1 is
hooked on (no object must be
placed on the screen; if there is
luggage in the boot, this must not
push the screen upwards).
F Close the boot correctly.
F With the vehicle stationary and
the handbrake applied, turn the
ignition key to the running position
(2nd notch).
F Press switch 3 until your hear a
signal which conirms that the roof
closing operation is complete.
When carrying out this operation,
the front windows and then the rear
quarter panel windows open, the
moving parcel shelf folds up, the
boot lid opens, the roof unfolds and
positions itself, then the boot lid
closes again.
F Only then, lock the two hooks 2.
Note: The control buttons for the
windows become operational again
at the end of the roof operation. Operating malfunction:
If the cycle does not begin, check
that the screen is pulled correctly and
that the boot is closed correctly.
If movement of the roof stops, a
continuous audible signal sounds:
F
Release switch
3, then press it
again to inish closing the roof.
If the problem persists, contact
a PEUGEOT dealer to have the
system checked.
When the vehicle is moving, if a
continuous audible signal can be
heard, this means that the roof or the
boot lid, or both, are not locked:
F Stop the vehicle and apply the
handbrake,
F Open the roof and close it again
completely, in accordance with
the procedure.
If the problem persists, contact
a PEUGEOT dealer to have the
system checked. In the case of an electric or
hydraulic malfunction of the roof,
it is possible to close the roof
manually.
When the side windows no longer
open completely, it is impossible
to operate the roof; however it
is possible to close it by using a
special procedure.
Please consult the breakdown
procedure described at the end
of this handbook.
The roof must not be
operated when a loaded
luggage carrier is itted to
the boot lid.
During roof opening and closing
operations, to avoid any risk of
injury, ensure that there is no-one
in the proximity of the moving
parts.
Never release button 3 for more
than ive minutes when the roof
is in an intermediate position
(neither completely open or
closed). However, in the event
of danger, release the control
knob and the operation will stop
instantly. You can resume the
cycle before the audible signal
ceases.

70
21-06-2004
71
21-06-2004
YOUR 206 CC IN DETAIL
Note: when the lights are switched
off automatically or when the dipped
headlamps are switched off manually,
the front fog lamps, the rear fog lamp
and the side lights remain on (turn
the ring backwards to switch off the
front fog lamps. The side lights then
switch off).
"Follow me home" lighting
When you leave your vehicle, the
side lights and dipped headlamps
can be left on for approximately 30
seconds.
To do this:
- place the key in the STOP
position,
- place the lights stalk in the 0
position,
- lash the headlamps,
- get out of the vehicle and lock it.
Dipped/Main beam change
Pull the stalk towards you.
Note:
with the ignition off and the
automatic lighting function switched
off, if the driver's door is open, a
buzzer sounds if you have left your
lights on.
THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A.
Lights off
Side lights Dipped/main beam
headlamps
Automatic switching
on of lights Front fog lamps (1st forwards
turn of the ring)
Front fog lamps and rear fog
lamp
Rotate the ring
B forwards to switch
on and backwards to switch off. The
status is conirmed by the light on the
instrument panel.
The front fog lamps operate with the
side lights and dipped headlamps.
When the main beam headlamps
are switched on, the front fog lamps
are switched off. They are switched
on again when the main beam
headlamps are switched off. Front fog lamps and
rear fog lamp (2nd
forwards turn of the
ring)
Note: to switch off the rear fog lamp
and the front fog lamps, turn the ring
twice backwards. In good or rainy weather,
both day and night, the
front fog lamps and the
rear fog lamp are dazzling
and are prohibited.
Do not forget to switch them off
when they are no longer needed.

70
21-06-2004
71
21-06-2004
YOUR 206 CC IN DETAIL
Direction indicators (lashers)AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam
headlamps switch on automatically
if the light is poor and when
the windscreen wipers operate
continuously and switch off when the
light becomes bright enough or the
windscreen wipers are switched off.
In foggy weather or in snow, the
brightness sensor can detect
suficient light, the lights will not
come on automatically.
This function is active when the
vehicle is supplied
to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Place the lights stalk in the AUTO/0
position,
- Press the end of the lights stalk for more than four seconds.
Operating check
Activation
The activated function is
accompanied by an audible signal
and a message on the multifunction
display.
Disarming The disarmed function is
accompanied by an audible signal.
When the driver uses the manual
lighting controls, the function is
temporarily disarmed.
If the brightness sensor does not
function correctly, the lights come
on accompanied by an audible signal
and a message on the multifunction
display.
Contact a PEUGEOT dealer.
Left:
downwards.
Right: upwards.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen, behind the
interior mirror. It is used for
automatic switching on of the
lights.

70
21-06-2004
71
21-06-2004
YOUR 206 CC IN DETAIL
Direction indicators (lashers)AUTOMATIC SWITCHING ON
OF LIGHTS
The side lights and dipped beam
headlamps switch on automatically
if the light is poor and when
the windscreen wipers operate
continuously and switch off when the
light becomes bright enough or the
windscreen wipers are switched off.
In foggy weather or in snow, the
brightness sensor can detect
suficient light, the lights will not
come on automatically.
This function is active when the
vehicle is supplied
to the customer.
To disarm or activate the function:
- Place the key in the accessories position (1st notch),
- Place the lights stalk in the AUTO/0
position,
- Press the end of the lights stalk for more than four seconds.
Operating check
Activation
The activated function is
accompanied by an audible signal
and a message on the multifunction
display.
Disarming The disarmed function is
accompanied by an audible signal.
When the driver uses the manual
lighting controls, the function is
temporarily disarmed.
If the brightness sensor does not
function correctly, the lights come
on accompanied by an audible signal
and a message on the multifunction
display.
Contact a PEUGEOT dealer.
Left:
downwards.
Right: upwards.
Do not cover the brightness
sensor, coupled with the rain
sensor, located in the centre
of the windscreen, behind the
interior mirror. It is used for
automatic switching on of the
lights.
