1. Hood (P.3-9)
2. Windshield wiper and washer
— Switch (P.2-20)
— Wiper replacement (P.8-20)
3. Interior light (P.2-37)
4. Power windows (P.2-35)
5. Towing hook installation (P.6-10)
6. Headlight, park and turn signal lights
— Switch (P.2-22)
— Bulbreplacement (P.8-25)
7. Tires
— Wheel and tires (P.8-30, P.9-9)
— Flat tire (P.6-2)
8. Outside mirrors (P.3-17)
9. Doors
— Keys (P.3-2)
— Door locks (P.3-3)
— Keyfob(P.3-4)
SSI0001
EXTERIOR FRONT0-2
Illustrated table of contents


04.5.17/Z33-D/V5.0


Coupe models1. Antenna (P.4-20)
2. Rear hatch release switch (P.3-10)
3. Rear window defroster (P.2-21)
4. High-mounted stop light (Bulb) (P.8-27)
5. Rear window wiper and washer
(P.2-21)
6. License plate lights (Bulbreplacement)
(P.8-27)
7. Rear hatch release (secondary) (P.3-10)
8. Luggage compartment light (P.2-39, P.8-27)
9. Back-up, Turn signal light (Bulbreplacement)
(P.8-27)
10. Side marker, Stop/Tail light (Bulbreplace-
ment) (P.8-27)
11. Fuel
— Fuel filler lid (P.3-13)
— Fuel recommendation (P.9-3)
SSI0002
EXTERIOR REAR
Illustrated table of contents
0-3


04.5.17/Z33-D/V5.0


Roadster models1. Antenna (P.4-20)
2. Trunk lid release switch (P.3-11)
3. Trunk light (P.2-39, P.8-27)
4. High-mounted stop light (Bulb) (P.8-27)
5. Rear window defroster (P.2-21)
6. Soft top (P.3-18)
7. Interior trunk lid release (P.3-12)
8. License plate lights (Bulbreplacement)
(P.8-27)
9. Back-up, Turn signal light (Bulbreplacement)
(P.8-27)
10. Side marker, Stop/Tail light (Bulbreplace-
ment) (P.8-27)
11. Fuel
— Fuel filler lid (P.3-13)
— Fuel recommendation (P.9-3)
SSI0003
0-4
Illustrated table of contents


04.5.17/Z33-D/V5.0


2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-4
Tachometer ........................................................................ 2-5
Engine coolant temperature gauge ............................. 2-5
Fuel gauge ......................................................................... 2-6
Engine oil pressure gauge ............................................. 2-6
Volt meter ......................................................................... 2-7
Trip computer .................................................................. 2-8
Warning/indicator lights and audible reminders ......... 2-11
Checking bulbs .............................................................. 2-11
Warning lights ................................................................ 2-11
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-17
Security systems.................................................................. 2-17
Vehicle security system................................................ 2-17
Nissan vehicle immobilizer system (NVIS) ............. 2-18
Windshield wiper and washer switch ............................ 2-20
Rear window wiper and washer switch
(Coupe models) .................................................................. 2-21
Rear window and outside mirror (if so equipped)
defroster switch .................................................................. 2-21Headlight and turn signal switch ................................... 2-22
Xenon headlights (if so equipped) .......................... 2-22
Headlight switch ........................................................... 2-23
Daytime running light system (Canada only) ........ 2-23
Turn signal switch ........................................................ 2-24
Instrument brightness control ................................... 2-24
Hazard warning flasher switch ....................................... 2-25
Horn ....................................................................................... 2-25
Heated seats (if so equipped) ........................................ 2-26
Vehicle dynamic control (VDC) off switch
(if so equipped) .................................................................. 2-27
Traction control system (TCS) off switch
(if so equipped) .................................................................. 2-27
Clock ..................................................................................... 2-28
Adjusting the time ........................................................ 2-28
Power outlet ........................................................................ 2-28
Storage ................................................................................. 2-29
Instrument pocket (except for navigation system
equipped models) ........................................................ 2-29
Sunglasses holder (Coupe models) ........................ 2-30
Tray .................................................................................. 2-31
Cup holders ................................................................... 2-31


04.5.17/Z33-D/V5.0


or
Anti-lock brake warning light
Low washer fluid warning light
Malfunction indicator lamp (MIL)
Automatic transmission check warning
light (A/T models)
Seat belt warning light
Slip indicator light
or
Brake warning light
Supplemental air bag warning light
Traction control system (TCS) off indica-
tor light (if so equipped)
Charge warning light
Automatic transmission position indicator
light (A/T models)
Vehicle dynamic control (VDC) off indica-
tor light (if so equipped)
Door open warning light
Cruise main switch indicator light
(if so equipped)
Soft top indicator light (Roadster models)
Engine oil pressure warning light
Cruise set switch indicator light
(if so equipped)
Turn signal/hazard indicator lights
Low tire pressure warning light
(if so equipped)
High beam indicator light (Blue)
CHECKING BULBSApply the parking brake and turn the ignition key
to ON without starting the engine. The following
lights will come on:
,
or
,
,
The following lights come on briefly and then go
off:
,
or
,
,
,
,
,
If any light fails to come on, it may indicate a
burned-out bulb or an open circuit in the elec-trical system. Have the system repaired
promptly.
WARNING LIGHTS
or
Anti-lock brake
warning light
When the ignition switch is turned to the ON
position, the anti-lock brake warning light will
illuminate and then turn off. This indicates the
anti-lock brake system (ABS) is operational.
If the light comes on while the engine is running,it may indicate the anti-lock brake system is not
functioning properly. Have the system checked
by your NISSAN dealer.
If a malfunction occurs in the system, the anti-
lock function of the brake will cease operation
but the ordinary brakes will continue to operate.
See “Anti-lock brake system (ABS)” in the “5.
Starting and driving” section for further details.
If the light comes on while you are driving,
contact your NISSAN dealer for repair.
WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS
Instruments and controls
2-11


04.5.17/Z33-D/V5.0


or damage the rear window de-
froster.

Do not use the rear window defroster
switch while the soft top is being
operated or fully opened. The heat
may damage the top material and/or
components. (for Roadster models)
XENON HEADLIGHTS (if so
equipped)
WARNINGHIGH VOLTAGE

When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.

Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
The life of xenon headlights will be
shortened by frequent on-off operation.
It is generally desirable not to turn off
the headlights for short intervals (for
example, when the vehicle stops at a
traffic signal). Even when the daytime
running lights are active (Canada only),
the xenon headlights do not turn on.
This way the life of the xenon headlights
is not reduced.

If the xenon headlight bulb is close to
burning out, the brightness will drasti-
cally decrease, the light will start blink-
ing, or the color of the light will become
reddish. If one or more of the above
signs appear, contact a NISSAN dealer.
HEADLIGHT AND TURN SIGNAL
SWITCH
2-22
Instruments and controls


04.5.17/Z33-D/V5.0


HEADLIGHTS
ReplacingIf replacement is required, see a NISSAN dealer.
Xenon headlight bulb:
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble the headlight assembly.
Always have your xenon headlights re-
placed at a NISSAN dealer. For addi-
tional information, see “Headlight and
turn signal switch” in the “2. Instru-
ments and controls” section.
Halogen headlight bulb:
The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb. A
bulb can be replaced from under the engine
compartment without removing the headlight
assembly.
CAUTION

High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.

When handling the bulb, do not touch
the glass envelope.

Do not touch the bulb.

Use the same number and wattage as
originally installed:
Bulb no. (Wattage)
D2R (35W) - Xenon low-beam
H7 (55W) - High-beam
or
H7 (55W) - Halogen low-beam
H1 (55W) - High-beam

Do not leave the bulb out of the
headlight reflector for a long period
of time as dust, moisture, and smoke
may enter the headlight body and
affect the performance of the head-
light.
8-26
Maintenance and do-it-yourself


04.5.17/Z33-D/V5.0

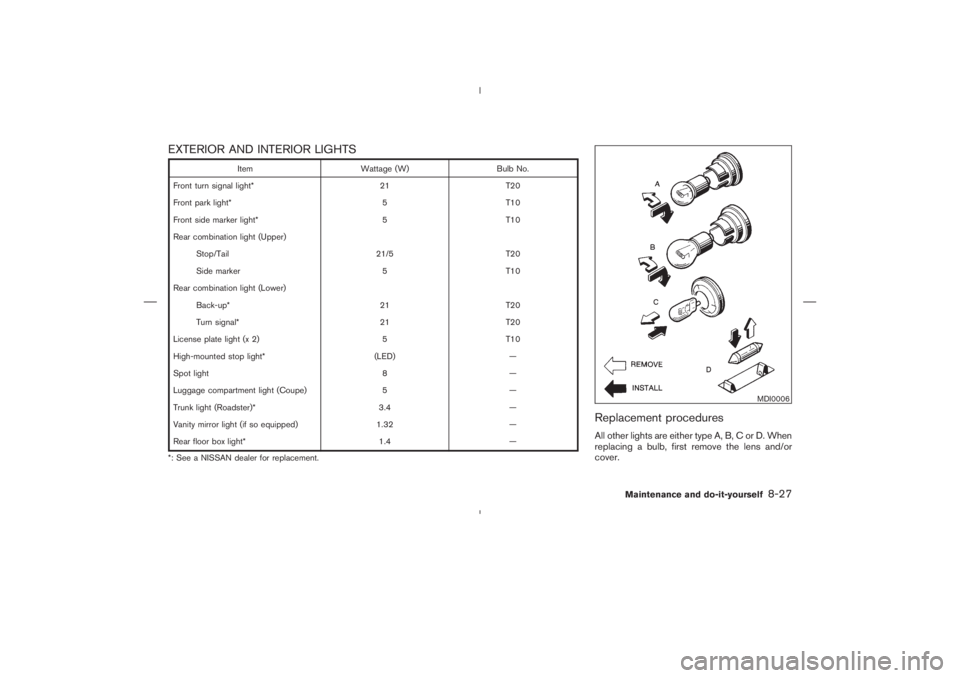

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W) BulbNo.
Front turn signal light* 21 T20
Front park light* 5 T10
Front side marker light* 5 T10
Rear combination light (Upper)
Stop/Tail 21/5 T20
Side marker 5 T10
Rear combination light (Lower)
Back-up* 21 T20
Turn signal* 21 T20
License plate light (x 2) 5 T10
High-mounted stop light* (LED) —
Spot light 8 —
Luggage compartment light (Coupe) 5 —
Trunk light (Roadster)* 3.4 —
Vanity mirror light (if so equipped) 1.32 —
Rear floor box light* 1.4 —
*: See a NISSAN dealer for replacement.
Replacement proceduresAll other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens and/or
cover.
MDI0006
Maintenance and do-it-yourself
8-27
