2004 NISSAN 350Z child lock

Seatback tilt cancel switch:
When the seatback tilt cancel switch
C
is
pushed to the CANCEL position, the
tilting/reclining operation using the power seat-
back tilt switch
B
will be cancelled. Only the
sliding/reclining switches (located on the seat
cushion) are operational. Push the seatback tilt
cancel switch to the AUTO position to reactivate
the power seatback tilt switch.
This cancel switch is linked with the automatic
passenger seatback tilt function of the soft top
operation. See “Soft top operation” in the “3.
Pre-driving checks and adjustments” section.
CAUTION
When a child restraint is installed in the
passenger seat, be sure to turn the seat-
back tilt cancel switch to the CANCEL
position. Otherwise, the child restraint
may be damaged.
HEAD RESTRAINT ADJUSTMENTTo raise the head restraint, just pull it up. To
lower, push the lock knob
Aand push the head
restraint down.
The ventilated net seats (if so equipped for
Roadster models) have non-adjustable head
restraints.
SSS0275
SSS0204
Safety — Seats, seat belts and supplemental restraint system
1-9


04.5.17/Z33-D/V5.0


Fastening the seat belts1. Adjust the seat. See “Seats” earlier in this
section.
2. Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until it
clicks.
The retractor is designed to lock during a
sudden stop or on impact. A slow pulling
motion will permit the belt to move, and
allow you some freedom of movement in
the seat.
3. Position the lap belt portionlow and snug
on the hipsas shown.4. Pull the shoulder belt portion toward the
retractor to take up extra slack. Make sure the
shoulder belt is routed over your shoulder
and across your chest.
The front passenger seat belt has a cinching
mechanism for child restraint installation. It is
referred to as the automatic locking mode. (Also
remember, if you need to install a child restraint,
first obtain an air bag ON/OFF switch and turn
the passenger air bag OFF.)
When the cinching mechanism is activated the
seat belt cannot be withdrawn again until the
seat belt tongue is detached from the buckle and
fully retracted. For additional information, see“Child restraints” later in this section.
The automatic locking mode should be
used only for child restraint installation.
During normal seat belt use by a passen-
ger, the locking mode should not be acti-
vated. If it is activated it may cause uncom-
fortable seat belt tension.
WARNING
When fastening the seat belts, be cer-
tain that seatbacks are completely se-
cured in the latched position. If they are
not completely secured, passengers
may be injured in an accident or sudden
stop.
SSS0018B
SSS0020B
Safety — Seats, seat belts and supplemental restraint system
1-27


04.5.17/Z33-D/V5.0


Unfastening the seat beltsTo unfasten the belt, press the button on the
buckle. The seat belt will automatically retract.Checking seat belt operationYour seat belt retractors are designed to lock
belt movement using two separate methods:

when the belt is pulled quickly from the
retractor.

when the vehicle slows down rapidly.
You can check their operation as follows:

grasp the shoulder belt and pull quickly for-ward. The retractor should lock and restrict
further belt movement.
If the retractor does not lock during this check or
if you have any questions about belt operation,
see your NISSAN dealer.
SEAT BELT EXTENDERSIf, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender is available. The ex-
tender adds approximately 8 inches (200 mm) of
length and may be used for either the driver or
passenger seating position. See your NISSAN
dealer for assistance if the extender is required.
WARNING

Only NISSAN seat belt extenders,
made by the same company which
made the original equipment belts,
should be used with NISSAN seat
belts.

Persons who can use the standard
seat belt should not use an extender.
Such unnecessary use could result in
serious personal injury in the event
of an accident.

Never use seat belt extenders to in-
stall child restraints. If the child re-
straint is not secured properly, the
child could be seriously injured in a
collision or a sudden stop. (Also re-
SSS0021
1-28
Safety — Seats, seat belts and supplemental restraint system


04.5.17/Z33-D/V5.0

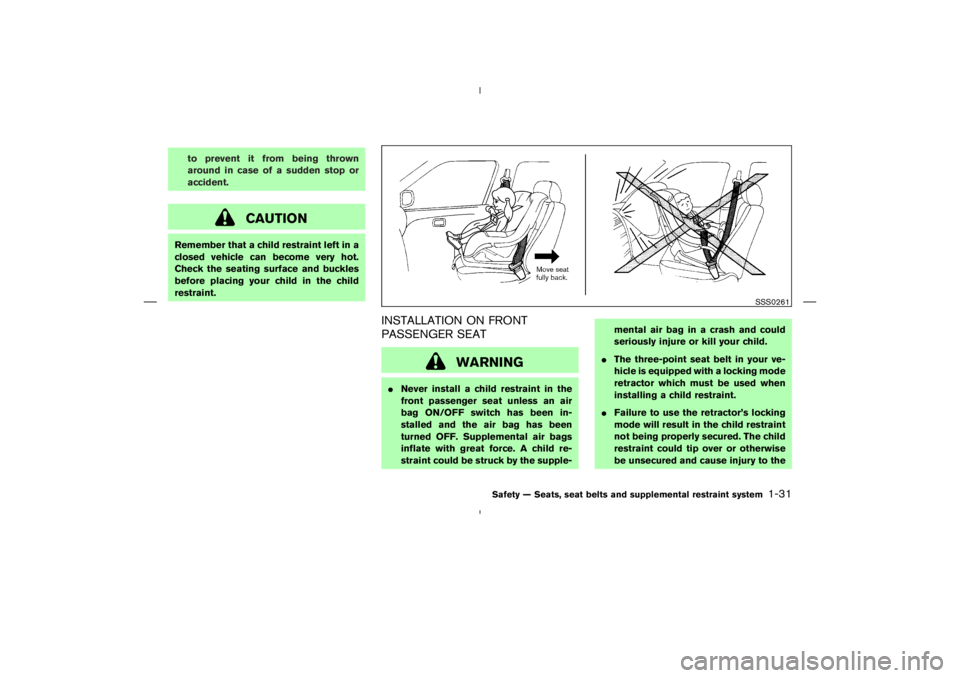

to prevent it from being thrown
around in case of a sudden stop or
accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
INSTALLATION ON FRONT
PASSENGER SEAT
WARNING

Never install a child restraint in the
front passenger seat unless an air
bag ON/OFF switch has been in-
stalled and the air bag has been
turned OFF. Supplemental air bags
inflate with great force. A child re-
straint could be struck by the supple-mental air bag in a crash and could
seriously injure or kill your child.

The three-point seat belt in your ve-
hicle is equipped with a locking mode
retractor which must be used when
installing a child restraint.

Failure to use the retractor’s locking
mode will result in the child restraint
not being properly secured. The child
restraint could tip over or otherwise
be unsecured and cause injury to the
SSS0261
Safety — Seats, seat belts and supplemental restraint system
1-31


04.5.17/Z33-D/V5.0


4. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.5. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.6. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
7. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
8. Check to make sure that the child restraint is
properly secured prior to each use. If the lap
belt is not locked, repeat steps 4 through 7.
SSS0113A
SSS0056A
SSS0264A
Safety — Seats, seat belts and supplemental restraint system
1-33


04.5.17/Z33-D/V5.0


After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
Rear facingWhen you install a child restraint in the front
seat, follow these steps:
1. Turn the air bag ON/OFF switch to the OFF
position.
Turn the seatback tilt cancel switch to the
CANCEL position. (Roadster models only)
2. Position the child restraint on the front pas-
senger seat. Move the seat to the rearmost
position. The direction of the child restraint
depends on the type of the child restraint and
the size of the child. Always follow the re-
straint manufacturer’s instructions.3. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manufac-
turer’s instructions for belt routing.
SSS0211
SSS0212
1-34
Safety — Seats, seat belts and supplemental restraint system


04.5.17/Z33-D/V5.0


4. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.5. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.6. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
7. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
8. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 4 through 7.
SSS0213
SSS0214
SSS0215
Safety — Seats, seat belts and supplemental restraint system
1-35


04.5.17/Z33-D/V5.0


After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
TOP TETHER STRAP CHILD
RESTRAINT (Coupe models)An anchor for a child restraint with a top tether is
provided in this vehicle.However, a child
restraint of this type should not be used in
this vehicle unless an air bag ON/OFF
switch has been installed and is being
properly used.See “Obtaining an air bag
ON/OFF switch” earlier in this manual.
If your child restraint has a top tether strap, it
must be secured to the provided anchor point.
Secure the child restraint with the seat belt.
Guide the top tether strap under the head
restraint as illustrated, and secure it to theanchor bracket. Tighten the strap according to
manufacturer instructions to remove any slack.
WARNING
The child restraint anchor point is de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstance is it to
be used for adult seat belts or har-
nesses.
SSS0207
1-36
Safety — Seats, seat belts and supplemental restraint system


04.5.17/Z33-D/V5.0
