2004 NISSAN 350Z ECO mode

Roadster modelsNormally, one standard golf bag C can be
stowed in the trunk. Insert the top of the golf bag
into left side of the trunk
1
then put the bag
down
2.The hooks are located above the side windows
as shown in the illustration.
CAUTION:
Do not place items which are more than 2
lb (1 kg) on the hook.
POWER WINDOWS
WARNING

Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before clos-
ing the windows. Use the window
lock switch to prevent unexpected
use of the power windows.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
and become trapped in a window.
Unattended children could become
involved in serious accidents.
SIC2237
SIC2378
COAT HOOK WINDOWS
Instruments and controls
2-35


04.5.17/Z33-D/V5.0


The power windows operate when the ignition
key is in the ON position and for about 45
seconds, after the ignition key is turned to the
OFF position. If the driver’s door or the front
passenger’s door is opened during this period of
about 45 seconds, power to the windows is
canceled.
To open or close the window, push down or pull
up the switch and hold it. The main switch (driver
side switches) will open or close all the win-
dows.The passenger side switch will open or close
only the corresponding window. To open or
close the window, hold the switch down or up.
The power window switches will be deactivated
during the soft top operation. (Roadster models)
Locking passenger’s windowWhen the lock button is pushed in, only the
driver side window can be opened or closed.
Push it in again to cancel.
Automatic operationTo fully open or close the window, completely
press or lift the switch and release it; it need not
be held. The window will automatically open or
close all the way. To stop the window, just press
or lift the switch on the opposite side.Auto reverse functionIf the control unit detects something caught in a
window as it moves up, the window will be
immediately lowered.
The auto reverse function can be activated when
a window is closed by automatic operation when
the ignition key is in the ON position or for about
SIC1978
SIC1892
SIC1979
2-36
Instruments and controls


04.5.17/Z33-D/V5.0


45 seconds after the ignition key is turned to the
OFF position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the window
occurs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the win-
dow.Automatic window lowering (Roadster
models)When the soft top operating switch is pressed,
the power windows will automatically be low-
ered completely. The windows do not rise auto-
matically after the soft top open/close operation
is completed. Use the power window switches
to raise them.
AUTOMATIC ADJUSTING
FUNCTION
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work,
and the side roof panel/top side rail
may be damaged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to avoid
contact between the window and the side roof
panel/top side rail. When the door is closed, the
window is automatically raised slightly.
INTERIORThe interior light has a two-position switch. (
A:
DOOR,
B: OFF)
When the switch is in the DOOR position, the
light will illuminate when a door is opened.
The light will stay on for about 30 seconds when:

The doors are unlocked by the keyfob, a key
or the power door lock switch while all doors
are closed.

The driver’s door is opened and then closed
while the key is removed from the ignition
switch.
SIC1980A
Coupe models
INTERIOR LIGHTS
Instruments and controls
2-37


04.5.17/Z33-D/V5.0


The key is removed from the ignition switch
while all doors are closed.
The interior light will turn off while the 30 second
timer is activated, when:

The driver’s door is locked either with the
keyfob, a key or the power door lock switch.

The ignition switch is turned ON.MAPTo turn on the light, push the plastic surface
C
of the light. Push it again to turn off the light.
When the map light stays on, it will auto-
matically turn off 30 minutes after theignition switch has been turned to the OFF
position. To turn on the light again, turn the
ignition switch to the ONposition.
The map and vanity mirror lights will automati-
cally turn off 30 minutes after the latest operation
of the following with the ignition switch in the
ACC or OFF position:

Opening or closing any door

Locking or unlocking with the keyfob, a key or
the power door lock switch

Inserting or removing a key from the ignition
switch
These lights will turn on again when any of the
above operations is performed after the lights
have turned off automatically. (The lights will turn
off 30 minutes after the latest operation of the
above as well.)
CAUTION

Turn off the lights when you leave the
vehicle.

Do not use the lights for extended
periods of time with the engine
stopped. This could result in a dis-
charged battery.The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the vanity mirror light stays on, it will
automatically turn off 30 minutes after the
ignition switch has been turned to the OFF
position. To turn on the light again, turn the
ignition switch to the ONposition.
SIC2238
Roadster models
SIC1859
VANITY MIRROR LIGHT (if so
equipped)
2-38
Instruments and controls


04.5.17/Z33-D/V5.0


WARNING

Do not use the HomeLink
Universal
Transceiver with any garage door
opener that lacks safety stop and
reverse features as required by fed-
eral safety standards. (These stan-
dards became effective for opener
models manufactured after April 1,
1982). A garage door opener which
cannot detect an object in the path of
a closing garage door and then auto-
matically stop and reverse, does not
meet current federal safety stan-
dards. Using a garage door opener
without these features increases the
risk of serious injury or death.

During programming, your garage
door or gate may open or close.
Make sure that people and objects
are clear of the garage door or gate
that you are programming.

Your vehicle’s engine should be
turned off while programming the
HomeLink
Universal Transceiver.
PROGRAMMING HomeLinkTo program your HomeLink
Transceiver to op-
erate a garage door, gate, or entry door opener,
home or office lighting, you need to be at the
same location as the device. Note: Garage door
openers (manufactured after 1996) have “rolling
code protection”. To program a garage door
opener equipped with “rolling code protection”;
you will need to use a ladder to get up to the
garage door opener motor to be able to access
the “smart or learn” program button.
1. To begin, press and hold the 2 outer
HomeLink
buttons (to clear the memory)
until the indicator light blinks slowly (after 20
seconds). Release both buttons.
2. Position the end of the hand-held transmitter
1-3 inches away from the HomeLink
sur-
face.
SIC2247
2-40
Instruments and controls


04.5.17/Z33-D/V5.0


3. Using both hands, simultaneously press and
hold both the HomeLink
button you want to
program and the hand-held transmitter but-
ton.
DO NOT release the buttons until step 4 has
been completed.
4. Hold down both buttons until the indicator
light on the HomeLinkflashes, changing
from a “slow blink” to a “rapidly flashing
blink”. This could take up to 90 seconds.
When the indicator light flashes rapidly, both
buttons may be released. The rapidly flashing
light indicates successful programming. To
activate the garage door or other pro-
grammed device, press and hold the pro-grammed HomeLink
button - releasing
when the device begins to activate.
5. If the indicator light on the HomeLink
blinks
rapidly for two seconds and then turns solid,
HomeLink
has picked up a “rolling code”
garage door opener signal. You will need to
proceed with the next steps to train the
HomeLinkto complete the programming
which may require a ladder and another
person for convenience.
6. Press and release the “smart” or “learn”
program button located on the garage door
opener’s motor to activate the “training
mode”. This button is usually located near the
antenna wire that hangs down from the mo-
tor. If the wire originates from under a light
lens, you will need to remove the lens to
access the program button.
NOTE:
Once you have pressed and released the
program button on the garage door open-
er’s motor and the “training light” is lit, you
have 30 seconds in which to perform step
7. Use the help of a second person for
convenience to assist when performing
this step.
7. Quickly within 30 seconds of pressing and
releasing the garage door opener programbutton, firmly press and release the
HomeLink
button you’ve just programmed.
Press and release the HomeLink
button up
to three times to complete the training.
8. Your HomeLink
button should now be pro-
grammed. (To program the remaining
HomeLink
buttons for additional door or
gate openers, follow steps 2-8 only.
NOTE:
Do not repeat step one unless you want to
“clear” all previously programmed
HomeLinkbuttons).
If you have any questions or are having difficulty
programming your HomeLink
buttons, please
refer to the HomeLink
website at: ww-
w.homelink.com or call 1-800-NISSAN-1 (1-
800-647-7261).
PROGRAMMING HomeLink
FOR
CANADIAN CUSTOMERS
Prior to 1992, D.O.C. regulations required hand-
held transmitters to stop transmitting after 2
seconds. To program your hand-held transmitter
to HomeLink
, continue to press and hold the
HomeLinkbutton (note steps 2 through 4
under “Programming HomeLink
”) while you
press and re-press (“cycle”) your hand-held
transmitter every 2 seconds until the indicator
SIC2248
Instruments and controls
2-41


04.5.17/Z33-D/V5.0


3 Pre-driving checks and adjustmentsKeys ......................................................................................... 3-2
Doors ....................................................................................... 3-2
Locking with key ............................................................. 3-3
Locking with inside lock knob..................................... 3-3
Locking with power door lock switch ....................... 3-4
Remote keyless entry system ............................................ 3-4
How to use remote keyless entry system ................ 3-5
Battery replacement ....................................................... 3-8
Hood ........................................................................................ 3-9
Rear hatch (Coupe models) .............................................. 3-9
Opener operation ......................................................... 3-10
Secondary rear hatch release .................................... 3-10
Trunk lid (Roadster models) ............................................ 3-11
Opener operation ......................................................... 3-11
Interior trunk lid release ............................................... 3-12
Secondary trunk lid release ........................................ 3-13
Fuel filler lid ......................................................................... 3-13Opener operation ......................................................... 3-13
Fuel filler cap ................................................................. 3-14
Steering wheel .................................................................... 3-15
Tilt operation .................................................................. 3-15
Extension sun visor (if so equipped) ........................... 3-16
Mirrors ................................................................................... 3-16
Inside mirror ................................................................... 3-16
Automatic anti-glare inside mirror
(if so equipped) ........................................................... 3-17
Outside mirrors ........................................................... 3-17
Soft top operation (Roadster models) ........................... 3-18
Before operating the top ............................................. 3-18
When operating the top .............................................. 3-20
Opening the top ............................................................ 3-23
Closing the top .............................................................. 3-24
If the top does not open or close electrically ........ 3-24
Care of the soft top and the vehicle body.............. 3-27


04.5.17/Z33-D/V5.0

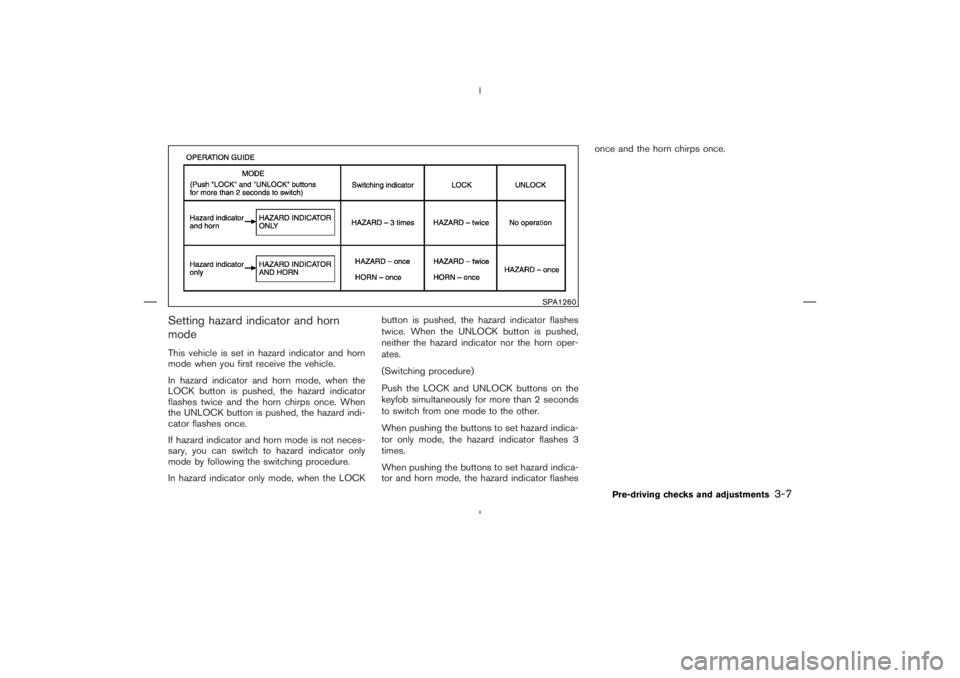

Setting hazard indicator and horn
modeThis vehicle is set in hazard indicator and horn
mode when you first receive the vehicle.
In hazard indicator and horn mode, when the
LOCK button is pushed, the hazard indicator
flashes twice and the horn chirps once. When
the UNLOCK button is pushed, the hazard indi-
cator flashes once.
If hazard indicator and horn mode is not neces-
sary, you can switch to hazard indicator only
mode by following the switching procedure.
In hazard indicator only mode, when the LOCKbutton is pushed, the hazard indicator flashes
twice. When the UNLOCK button is pushed,
neither the hazard indicator nor the horn oper-
ates.
(Switching procedure)
Push the LOCK and UNLOCK buttons on the
keyfobsimultaneously for more than 2 seconds
to switch from one mode to the other.
When pushing the buttons to set hazard indica-
tor only mode, the hazard indicator flashes 3
times.
When pushing the buttons to set hazard indica-
tor and horn mode, the hazard indicator flashesonce and the horn chirps once.
SPA1260
Pre-driving checks and adjustments
3-7


04.5.17/Z33-D/V5.0
