RIVET DRILL

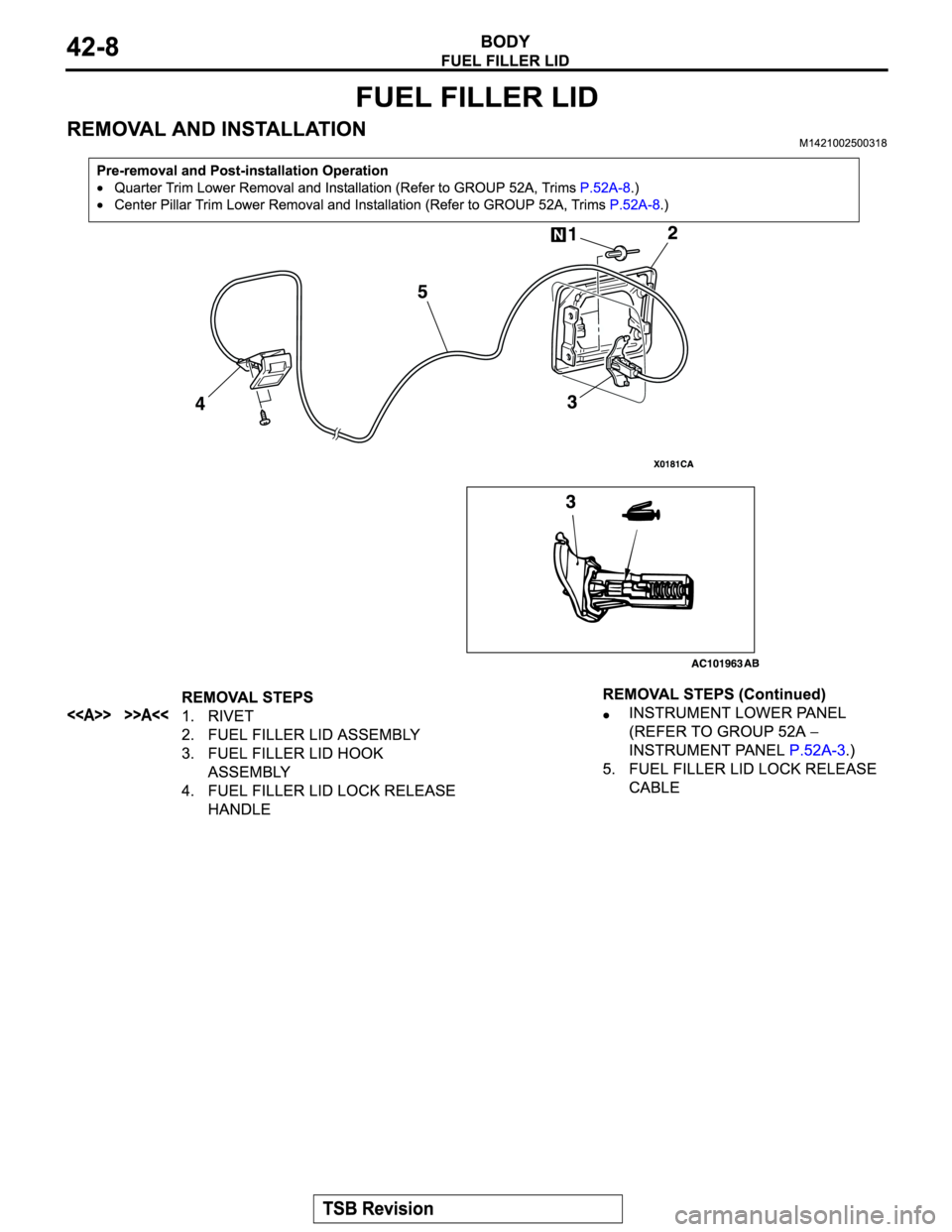

FUEL FILLER LID
ASSEMBLY
RIVETER
BODY
PA N E LFUEL FILLER LID
ASSEMBLY
RIVETER RIVET
FLANGE SURFACE
RIVETA
1
2
3
4

CUT OFF THE RESIDUAL ADHESIVE
UNTIL THE THICKNESS IS LESS THAN
2 mm (0.08 inch). CLEAN THE ADHESION
SURFACE WITH 3M™ AAD PART
NO. 8906 OR EQUIVALENT, AND LET
DRY FOR 3 MINUTES OR MORE.COMPLETELY CUT OFF ALL OF THE
RESIDUAL ADHESIVE. CLEAN THE
ADHESIVE SURFACE WITH 3M™ AAD
PART NO. 8906 OR EQUIVALENT, AND
LET DRY FOR 3 MINUTES OR MORE.CLEAN OFF ANY DIRT ADHERING TO
THE ADHESION SURFACE WITH 3M™
AAD PART NO. 8906 OR EQUIVALENT,
AND LET DRY FOR 3 MINUTES OR
MORE.
ATTACH THE WINDOW SPACER TO SET
THE POSITIONS FOR THE GLASS TO BE
INSTALLED.GLUE THE WINDOW DAM AND WINDOW SPACER TO THE GLASS, FOLLOWING THE
STANDARD POSITION ALL THE WAY AROUND THE INSIDE EDGE OF THE GLASS.
WITHIN 30 MINUTES AFTER APPLYING THE PRIMER, APPLY THE ADHESIVE EVENLY
ALL THE WAY AROUND THE INSIDE EDGE OF THE GLASS.
AFTER APPLYING THE ADHESIVE, LIGHTY PRESS THE GLASS
EVENLY SO THAT IT ADHERES COMPLETELY.
AFTER REMOVING EXCESS ADHESIVE FROM THE BODY OR
GLASS WITH A SPATULA, ETC. CLEAN OFF WITH 3M™ AAD
PART NO. 8906 OR EQUIVALENT.
CARRY OUT A SHOWER TEST TO CHECK THAT NO WATER

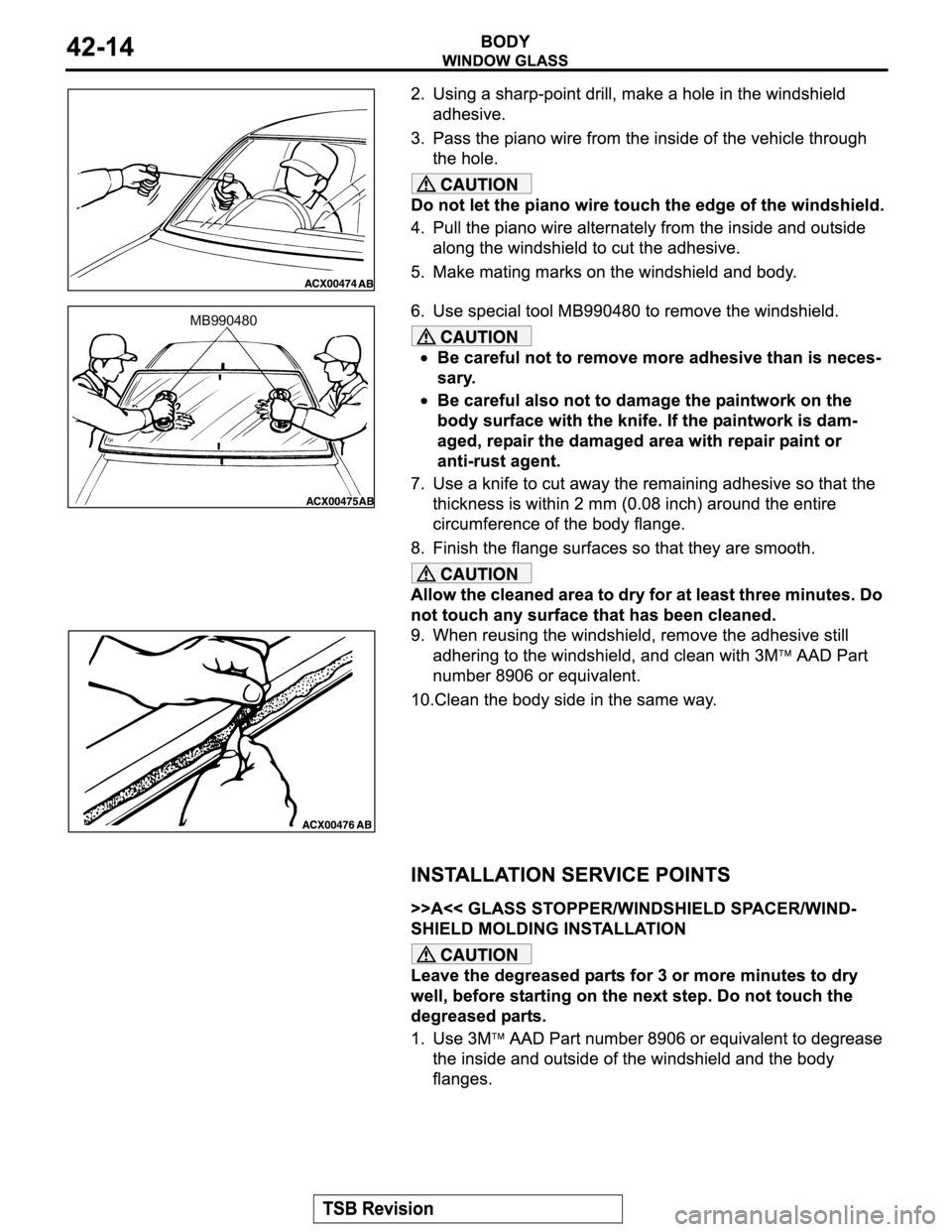

LEAKS THROUGH.REPLACE THE GLASS REUSING THE GLASS WINDOW GLASS INSTALLATION
PROCEDURE
BODY SIDE WINDOW GLASS SIDE
DO NOT APPLY PRIMER ON RESIDUAL ADHESIVE AS DOING SO MAY AFFECT ADHESION. APPLY ENOUGH PRIMER ON ADHESION
SURFACE EVENLY TAKING CARE NOT TO APPLY IT ON THE RESIDUAL ADHESIVE. AFTER APPLYING PRIMER, LET IT DRY FOR
3 MINUTES OR MORE.

7.7(0.30)9.8(0.38)
PRIMER PRIMER32.5(1.3)
PRIMER
2.0(0.08)8.0(0.31)
PRIMER

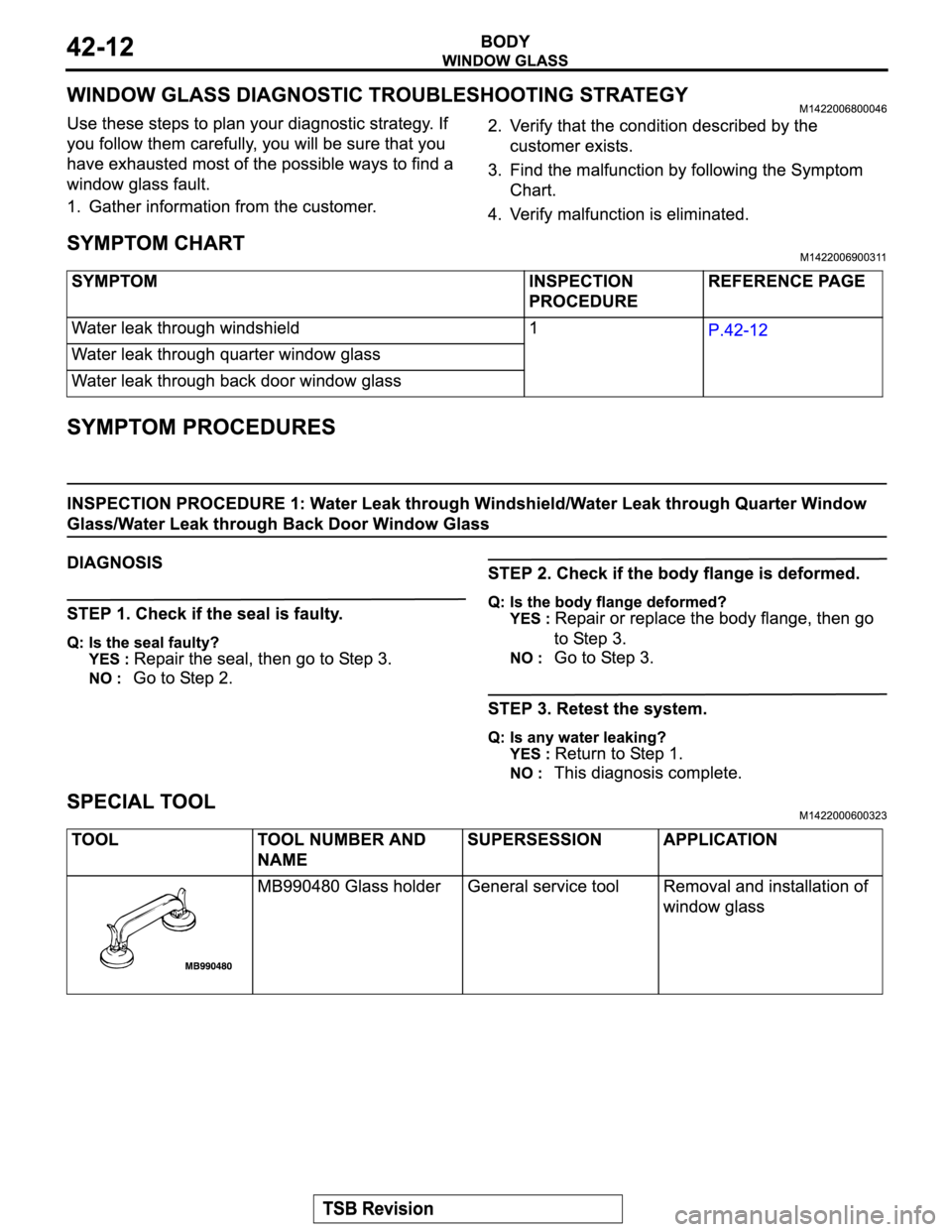

MB990480
