2004 Mercury Sable headlamp

2. Make sure the headlamps and electrical accessories are off.
•Make sure the parking brake is
set.
•Make sure the gearshift is in P
(Park).
•Turn the key to 4 (ON) without
turning the key to 5 (START).
PRNDD1
1
23
4
5
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
130

To remove a fuse use the fuse puller tool provided on the fuse panel
cover.
The fuses are coded as follows.
Fuse/relay
locationFuse amp
ratingPassenger compartment fuse
panel description
1—Accessory delay relay
2—Driver one touch down relay
3—Blower motor relay
4—Flasher relay
5—Not used
6—Not used
7 20A Rear defrost grid feed (wagon
only)/Rear defrost relay coil feed
(sedan only)
8 40A Blower motor
9—Rear defrost relay
10 30A CB Power seats, Delayed accessory,
Adjustable pedals
11 10A Right headlamp
12 15A Highbeam headlamps
13—Not used
14—Not used
15 10A Left headlamp
16 10A Foglamps
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
152

Fuse/relay
locationFuse amp
ratingPassenger compartment fuse
panel description
32 10A Cluster, Flex fuel module, ICP logic,
Passive anti-theft module (GEM
power)
33 15A Hazard flasher, Cluster power, ICP
power, EATC
34 5A GEM logic
35 10A Backlighting
36 2A Powertrain Control Module (PCM)
relay, Fuel pump relay, A/C clutch
37 25A Autolamp, Daytime Running Lamps
(DRL), Flash-to-pass, Headlamp
switch
38 15A Horn, Diagnostic connector (OBD II)
39—Not used
40—Not used
41—Not used
42—Not used
CB - Circuit Breaker
Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
154

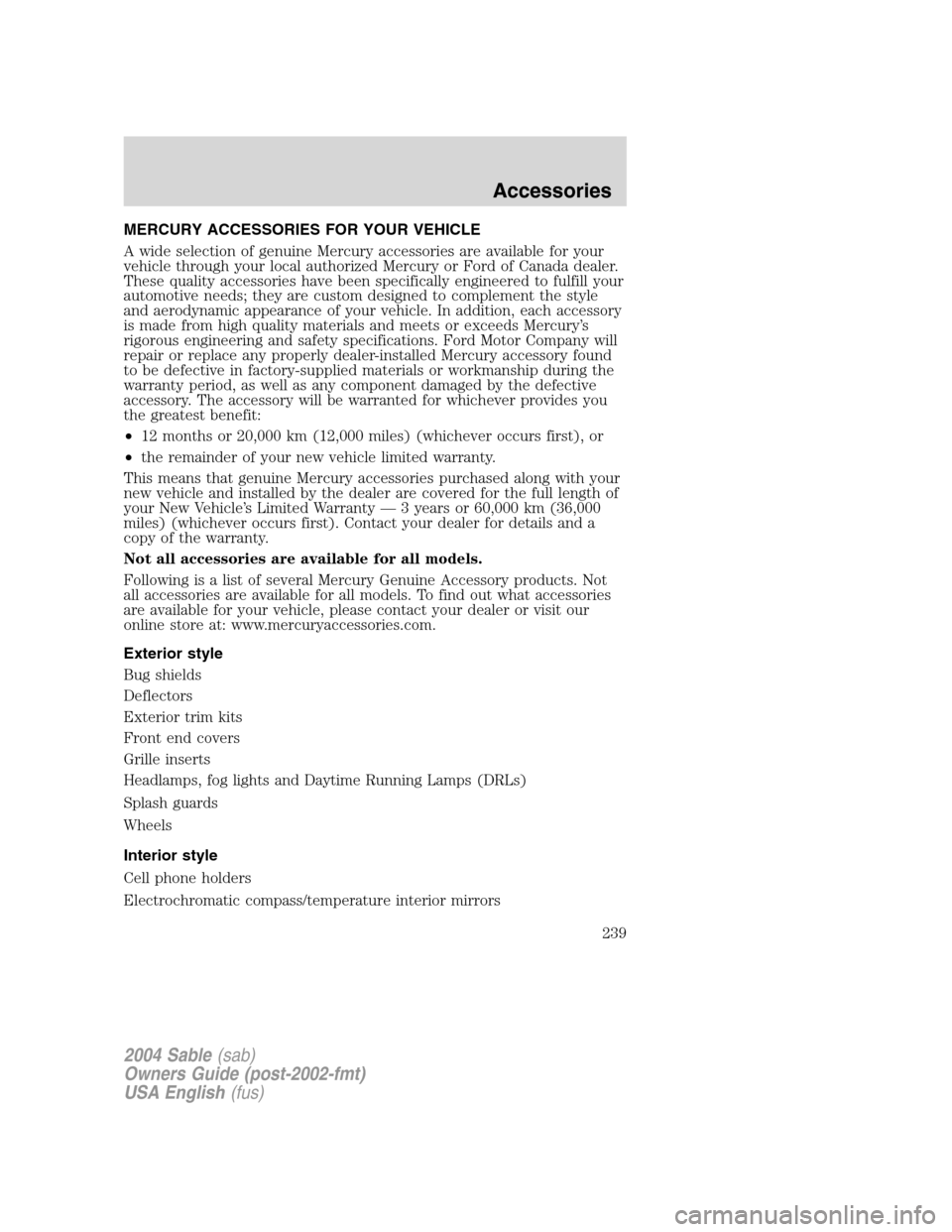

MERCURY ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Mercury accessories are available for your
vehicle through your local authorized Mercury or Ford of Canada dealer.
These quality accessories have been specifically engineered to fulfill your
automotive needs; they are custom designed to complement the style
and aerodynamic appearance of your vehicle. In addition, each accessory
is made from high quality materials and meets or exceeds Mercury’s
rigorous engineering and safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Mercury accessory found
to be defective in factory-supplied materials or workmanship during the
warranty period, as well as any component damaged by the defective
accessory. The accessory will be warranted for whichever provides you
the greatest benefit:
•12 months or 20,000 km (12,000 miles) (whichever occurs first), or
•the remainder of your new vehicle limited warranty.
This means that genuine Mercury accessories purchased along with your
new vehicle and installed by the dealer are covered for the full length of
your New Vehicle’s Limited Warranty—3 years or 60,000 km (36,000
miles) (whichever occurs first). Contact your dealer for details and a
copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Mercury Genuine Accessory products. Not
all accessories are available for all models. To find out what accessories
are available for your vehicle, please contact your dealer or visit our
online store at: www.mercuryaccessories.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
Grille inserts
Headlamps, fog lights and Daytime Running Lamps (DRLs)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior mirrors
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
Accessories
239

dipstick ....................................190
filter, specifications ........193, 229
recommendations
...................193
refill capacities
........................230
specifications
..................231, 233
Exhaust fumes
..........................132
F
Flexible Fuel Vehicle (FFV)
....201
Floor mats
...................................67
Fluid capacities
.........................230
Foglamps
.....................................29
Fuel
............................................201
calculating fuel
economy
............................59, 206
cap
...........................................203
capacity
...................................230
choosing the right fuel
...........204
comparisons with EPA fuel
economy estimates
.................209
detergent in fuel
.....................206
filling your vehicle with
fuel
...........................201, 203, 207
filter, specifications
........206, 229
fuel pump shut-off switch
.....149
improving fuel economy
........206
octane rating
...................204, 233
quality
......................................205
running out of fuel
.................206
safety information relating
to automotive fuels
................201
Fuel - flex fuel vehicle
(FFV)
.................................201, 204
Fuses
..........................................151G
Garage Door Opener
(see Homelink wireless control
system) ........................................53
Gas cap (see Fuel cap) ............203
Gas mileage (see Fuel
economy) ...................................206
Gauges .........................................13
H
Hazard flashers .........................149
Headlamps ...................................29
aiming ........................................31
autolamp system .......................29
bulb specifications ....................34
daytime running lights .............29
flash to pass ..............................30
high beam .................................30
replacing bulbs .........................36
turning on and off ....................29
Heating
heating and air conditioning
system .................................23, 25
HomeLink universal
transceiver (see Garage door
opener) ........................................57
Homelink wireless control
system ..........................................53
Hood ..........................................186
I
Ignition ...............................128, 233
Infant seats
(see Safety seats) .....................118
Inspection/maintenance (I/M)
testing ........................................211
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
243

Instrument panel
cleaning ...................................182
cluster ........................................10
lighting up panel and
interior .......................................30
J
Jack ............................................157
positioning ...............................157
storage .....................................157
Jump-starting your vehicle ......162
K
Keyless entry system .................80
Keys
positions of the ignition .........128
L
Lamps
autolamp system .......................29
bulb replacement
specifications chart ..................34
daytime running light ...............29
fog lamps ...................................29
headlamps .................................29
headlamps, flash to pass ..........30
instrument panel, dimming .....30
interior lamps .....................32–35
replacing
bulbs ..................34, 36, 38–41, 43
Lane change indicator
(see Turn signal) ........................32
Liftgate ........................................68
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........133
Load limits .................................140Locks
childproof ..................................73
doors ..........................................72
Lubricant specifications ...231, 233
Luggage rack ...............................71
Lumbar support, seats ...............88
M
Message center ...........................57
english/metric button ...............62
system check button ................63
warning messages .....................63
Mirrors ...................................47–48
automatic dimming rearview
mirror ........................................48
heated ........................................49
side view mirrors (power) .......49
Moon roof ....................................53
Motorcraft parts ................206, 229
O
Octane rating ............................204
Oil (see Engine oil) ..................190
Overdrive ...................................137
P
Parking brake ............................134
Parts (see Motorcraft parts) ....229
Passenger Occupant
Classification Sensor ...................92
Pedals (see Power adjustable
foot pedals) .................................50
Power adjustable foot pedals .....50
Power distribution box
(see Fuses) ...............................154
2004 Sable(sab)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
244
