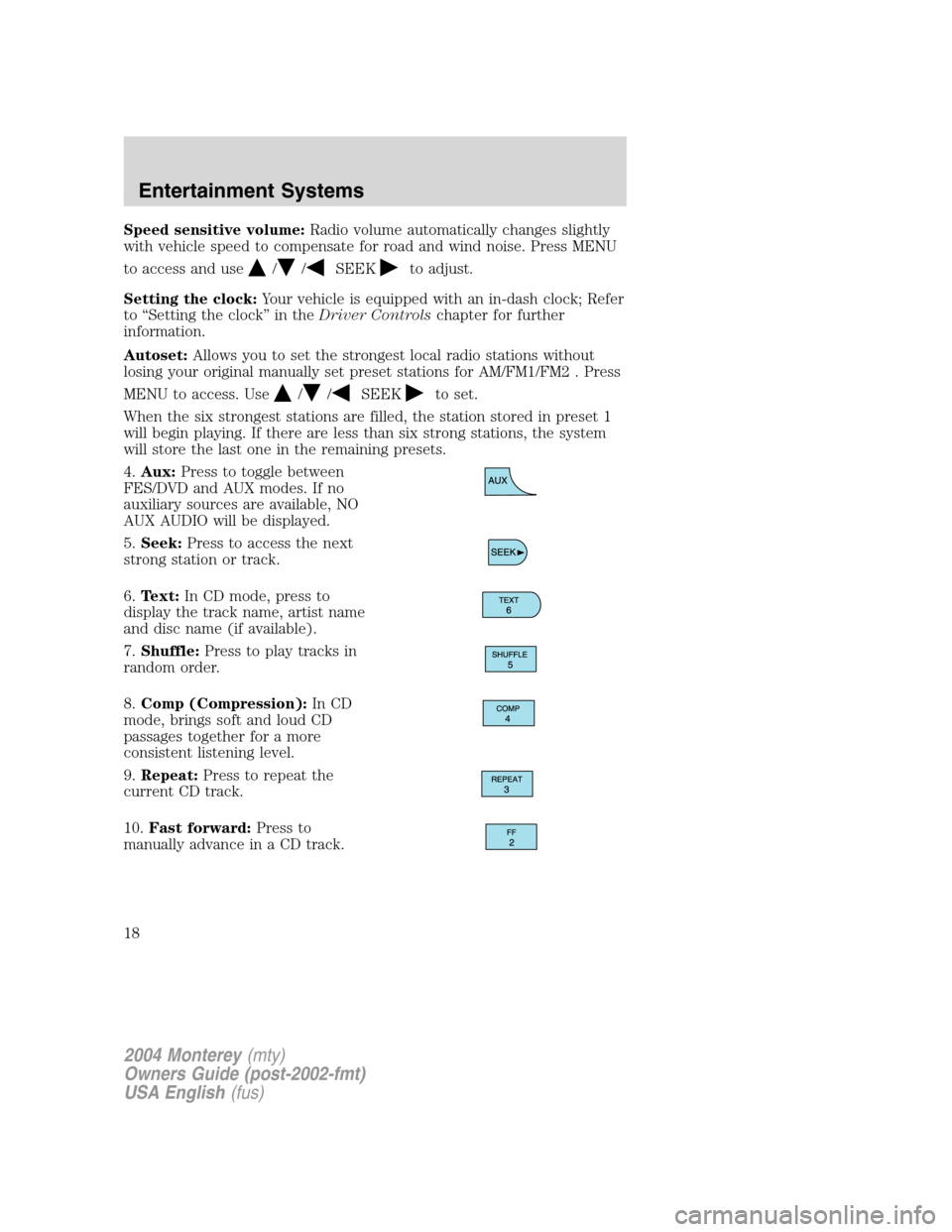

2004 Mercury Monterey set clock

Speed sensitive volume:Radio volume automatically changes slightly
with vehicle speed to compensate for road and wind noise. Press MENU
to access and use
//SEEKto adjust.
Setting the clock:Your vehicle is equipped with an in-dash clock; Refer
to“Setting the clock”in theDriver Controlschapter for further
information.
Autoset:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use
//SEEKto set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
4.Aux:Press to toggle between
FES/DVD and AUX modes. If no
auxiliary sources are available, NO
AUX AUDIO will be displayed.
5.Seek:Press to access the next
strong station or track.
6.Text:In CD mode, press to
display the track name, artist name
and disc name (if available).
7.Shuffle:Press to play tracks in
random order.
8.Comp (Compression):In CD
mode, brings soft and loud CD
passages together for a more
consistent listening level.
9.Repeat:Press to repeat the
current CD track.
10.Fast forward:Press to
manually advance in a CD track.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
18

Balance:Press to adjust the audio between the left and right speakers.
Use
//SEEK.
Fade:Press to adjust the audio between the front and rear speakers.
Use
//SEEK.
Speed sensitive volume:Radio volume automatically changes slightly
with vehicle speed to compensate for road and wind noise. Press MENU
to access and use
//SEEKto adjust.
Setting the clock:Your vehicle is equipped with an in-dash clock. Refer
to“Setting the clock”in theDriver Controlschapter for further
information.
Autoset:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2 . Press
MENU to access. Use
//SEEKto set.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets.
Clean tape reminder:After 20 hours of cassette operation, the radio
will notify you that it is time to clean the cassette player head. After
cleaning the player head, you can clear the reminder through menu
control and selecting YES.
Dolby:
Dolbynoise reduction:Reduces tape noise and hiss.
Use
//SEEKto cycle Dolby ON/OFF. The Dolbynoise
reduction system is manufactured under license from Dolby Laboratories
Licensing Corporation. Dolbyand the double-D symbol are registered
trademarks of DolbyLaboratories Licensing Corporation.
5.AUX:Press to toggle between
FES/DVD and AUX modes. If no
auxiliary sources are available, NO
AUX AUDIO will be displayed. To return to radio mode, press AM/FM.
6.Tape eject:Press to eject a tape.
7.Text:In CD mode, displays track
title, artist name, and disc title (if
available).
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
21

Removing the spare tire
To remove the spare tire:
1. Open the liftgate and open the
plastic cover from the carpeting on
cargo floor to expose the hex nut.
2. Insert the lug nut wrench on the
hex nut in cargo floor.
3. Turn the wrench
counterclockwise until tire is
lowered to the ground and the cable
is slightly slack.
4. Remove the retainer from the
spare tire.
To install the spare tire:
1. Reverse the removal steps 2
through 4. When the tire is raised to
the stowed position underneath the
vehicle, the hex nut ratchets and will not allow you to overtighten.
2. Check seating position of tire for looseness against the underbody
supports and retighten if necessary.
Ensure the position of the tire is not too far forward to avoid
contact with the axle.
Tire change procedure
When one of the front wheels is off the ground, the transaxle
alone will not prevent the vehicle from moving or slipping off the
jack, even if the vehicle is in P (Park).
To help prevent the vehicle from moving when you change a tire,
be sure the parking brake is set, then block (in both directions)
the wheel that is diagonally opposite (other side and end of the
vehicle) to the tire being changed.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
189

6. With your foot on the brake pedal and with the A/C on, put the
vehicle in D (Drive) and allow the engine to idle for at least one minute.
7. Drive the vehicle to complete the relearning process.
•The vehicle may need to be driven 16 km (10 miles) or more to
relearn the idle and fuel trim strategy.
•If you do not allow the engine to relearn its idle trim, the idle
quality of your vehicle may be adversely affected until the idle
trim is eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
If the battery has been discharged, disconnected or a new battery has
been installed, the power sliding door may need to be reset. Refer to
Power Sliding Door-Resetting the PSDin theControls and Features
chapter.
•Always dispose of automotive
batteries in a responsible manner.
Follow your local authorized
standards for disposal. Call your
local authorized recycling center
to find out more about recycling
automotive batteries.
ENGINE COOLANT
Checking engine coolant
The concentration and level of engine coolant should be checked at the
mileage intervals listed in the scheduled maintenance guide. The coolant
concentration should be maintained at 50/50 coolant and distilled water,
which equates to a freeze point of -36°C (-34°F). Coolant concentration
testing is possible with a hydrometer or antifreeze tester (such as the
Rotunda Battery and Antifreeze Tester, 014–R1060). The level of coolant
should be maintained at the“cold full”of“cold fill range”level in the
coolant reservoir. If the level falls below, add coolant per the instructions
in theAdding engine coolantsection.
Your vehicle was factory-filled with a 50/50 engine coolant and water
concentration. If the concentration of coolant falls below 40% or above
LEAD
RETURN
RECYCLE
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
224

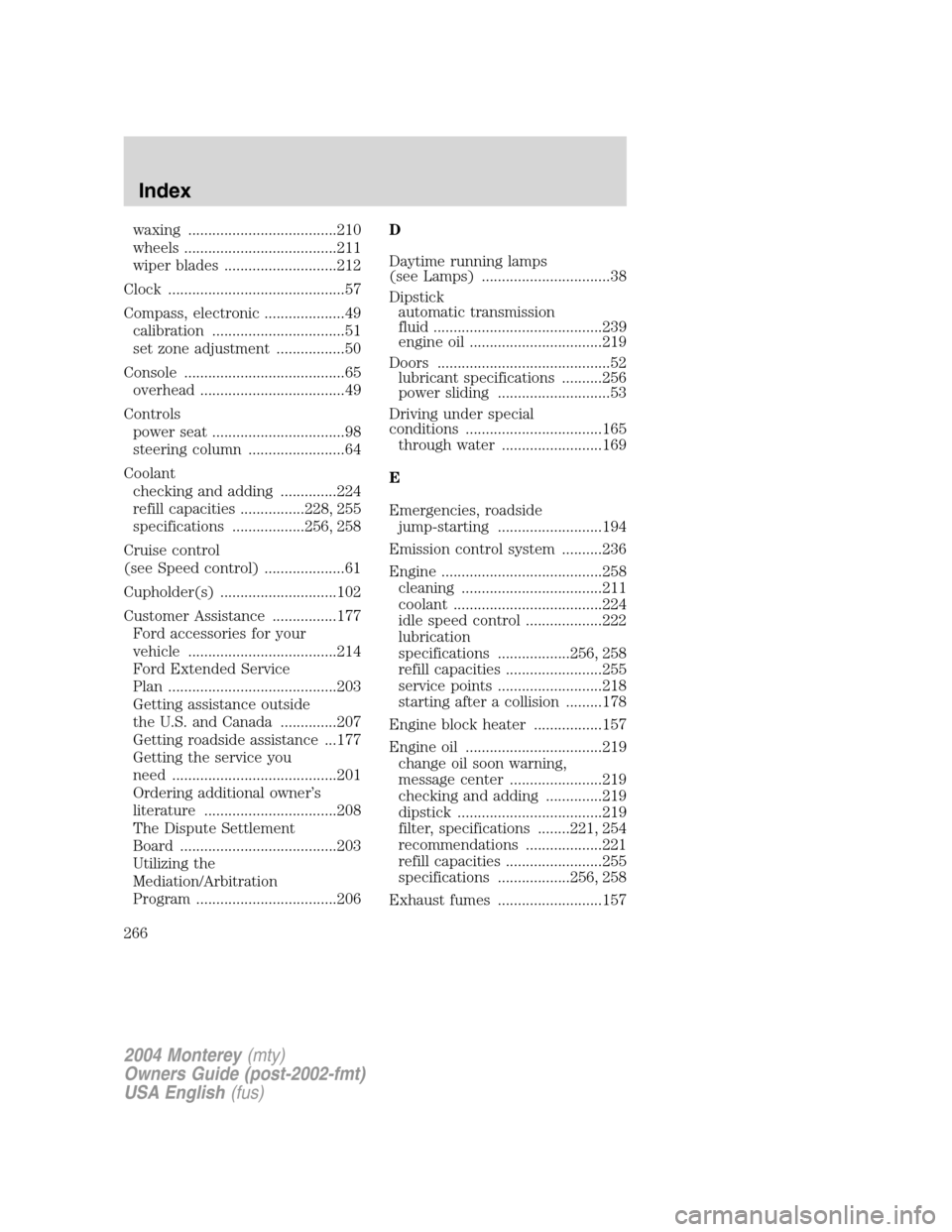

waxing .....................................210
wheels ......................................211
wiper blades ............................212
Clock ............................................57
Compass, electronic ....................49
calibration .................................51
set zone adjustment .................50
Console ........................................65
overhead ....................................49
Controls
power seat .................................98
steering column ........................64
Coolant
checking and adding ..............224
refill capacities ................228, 255
specifications ..................256, 258
Cruise control
(see Speed control) ....................61
Cupholder(s) .............................102
Customer Assistance ................177
Ford accessories for your
vehicle .....................................214
Ford Extended Service
Plan ..........................................203
Getting assistance outside
the U.S. and Canada ..............207
Getting roadside assistance ...177
Getting the service you
need .........................................201
Ordering additional owner’s
literature .................................208
The Dispute Settlement
Board .......................................203
Utilizing the
Mediation/Arbitration
Program ...................................206D
Daytime running lamps
(see Lamps) ................................38
Dipstick
automatic transmission
fluid ..........................................239
engine oil .................................219
Doors ...........................................52
lubricant specifications ..........256
power sliding ............................53
Driving under special
conditions ..................................165
through water .........................169
E
Emergencies, roadside
jump-starting ..........................194
Emission control system ..........236
Engine ........................................258
cleaning ...................................211
coolant .....................................224
idle speed control ...................222
lubrication
specifications ..................256, 258
refill capacities ........................255
service points ..........................218
starting after a collision .........178
Engine block heater .................157
Engine oil ..................................219
change oil soon warning,
message center .......................219
checking and adding ..............219
dipstick ....................................219
filter, specifications ........221, 254
recommendations ...................221
refill capacities ........................255
specifications ..................256, 258
Exhaust fumes ..........................157
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
266
