Some drivers may notice a slight movement of the brake pedal when the
AdvanceTrac
performs a system self-check. During AdvanceTrac

operation you may experience the following:
•A rumble or grinding noise
•A slight deceleration of the vehicle
•The TRAC ACTIVE indicator light will illuminate
•If your foot is on the brake pedal, you will feel a vibration in the
pedal.
•If the driving condition is severe and your foot is not on the brake, the
brake pedal will move to apply higher brake forces. You may also hear
a whoosh of air from under the instrument panel during this severe
condition.
All these conditions are normal during AdvanceTrac
operation.
If the AdvaceTrac system is activated for an extended period of time, the
brake portion of the system will shut down to allow the brakes to cool
down. A limited AdvanceTrac
function using only engine power
reduction will still help control the wheels from over-spinning. When the
brakes have cooled down, the system will again function normally.
Anti-lock braking is not affected by this condition and will function
normally during the cool-down period.
Do not alter or modify your vehicle’s suspension or steering; the
resulting changes to the vehicle’s handling can adversely affect
the AdvanceTrac
system. Also, do not install a stereo
loudspeaker near the front center console or under either front
seat. The speaker vibrations can adversely affect the
AdvanceTrac
sensors located in this area.
Aggressive driving in any road conditions can cause you to lose
control of your vehicle increasing the risk of severe personal
injury or property damage. The occurrence of an AdvanceTrac
event
is an indication that at least some of the tires have exceeded their
ability to grip the road; this may lead to an increased risk of loss of
vehicle control, vehicle rollover, personal injury and death. If you
experience a severe road event, SLOW DOWN.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
161

STEERING
To prevent damage to the power steering system:
•Never hold the steering wheel at its furthest turning points (until it
stops) for more than a few seconds when the engine is running.
•Do not operate the vehicle with a low power steering pump fluid level
(below the MIN mark on the reservoir).
If the power steering system breaks down (or if the engine is turned
off), you can steer the vehicle manually, but it takes more effort.
If the steering wanders or pulls, check for:
•an improperly inflated tire
•uneven tire wear
•loose or worn suspension components
•loose or worn steering components
•improper steering alignment
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
AUTOMATIC TRANSAXLE OPERATION
Brake-shift interlock
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the RUN position unless the brake pedal is depressed.
If you cannot move the gearshift lever out of P (Park) with the ignition
in the RUN position and the brake pedal depressed:
1. Apply the parking brake.
2. Insert the key and turn it to the
position between 2 (OFF/LOCK)
and 3 (RUN). A detent position will
be felt between positions 2 and 3.
Apply the brake pedal and shift
to N (Neutral). The positions of
the ignition are as follows: 1–
ACCESSORY, 2–OFF/LOCK, 3–
RUN and 4–START.
4
3
2
1
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
162

When the key is in position between OFF/LOCK and RUN, the
automatic transmission shift lever can be moved from the P
(Park) position without the brake pedal depressed. To avoid unwanted
vehicle movement, always set the parking brake.
3. Start the vehicle.
If it is necessary to use the above procedure to move the gearshift lever,
it is possible that a fuse has blown or the vehicle’s brakelamps are not
operating properly. Refer toFuses and relaysin theRoadside
emergencieschapter.
Do not drive your vehicle until you verify that the brakelamps
are working.
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your dealer or a qualified service technician.
Driving with an automatic overdrive transaxle with column gearshift
Your transaxle is equipped with an adaptive learning strategy found in
the vehicle computer. This feature is designed to increase durability and
provide consistent shift feel over the life of the vehicle. A new vehicle or
transaxle may have firm and/or soft shifts. This operation is considered
normal and will not affect function or durability of the transaxle. Over
time, the adaptive learning process will fully update transaxle operation.
Additionally, whenever the battery is disconnected or a new battery
installed, the strategy must be relearned.
Your automatic overdrive transaxle provides fully automatic operation in
either D (Drive) or 3. Driving with the gearshift lever in D (Drive) gives
the best fuel economy for normal driving conditions. For manual control
start in 1 (First) and then shift manually.
To put your vehicle in gear, start the engine, depress the brake pedal,
then move gearshift lever out of P (Park). Once you place the gearshift
lever securely into position, gradually release the brake pedal and use
the accelerator as necessary.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
163

Understanding the gearshift positions of the 4–speed automatic
transaxle
P (Park)
This position locks the transaxle and prevents the front wheels from
turning.
To put your vehicle in gear:
•Start the engine
•Depress the brake pedal
•Move the gearshift lever into the desired gear
To put your vehicle in P (Park):
•Come to a complete stop
•Move the gearshift lever and securely latch it in P (Park)
Always set the parking brake fully and make sure the gearshift is
latched in P (Park). Turn the ignition to the LOCK position and
remove the key whenever you leave your vehicle.
R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R
(Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle can be started and is
free to roll. Hold the brake pedal down while in this position.
D (Drive) with Overdrive
The normal driving position for the best fuel economy. The transaxle
operates in gears one through four.
3 (Third)
•This position allows for all forward gears except overdrive.
•Provides more engine braking than D (Drive).
•Use when driving conditions cause excessive shifting from D (Drive)
to other gears. Examples: city traffic, hilly terrain, heavy loads, trailer
towing and when engine braking is required.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
164

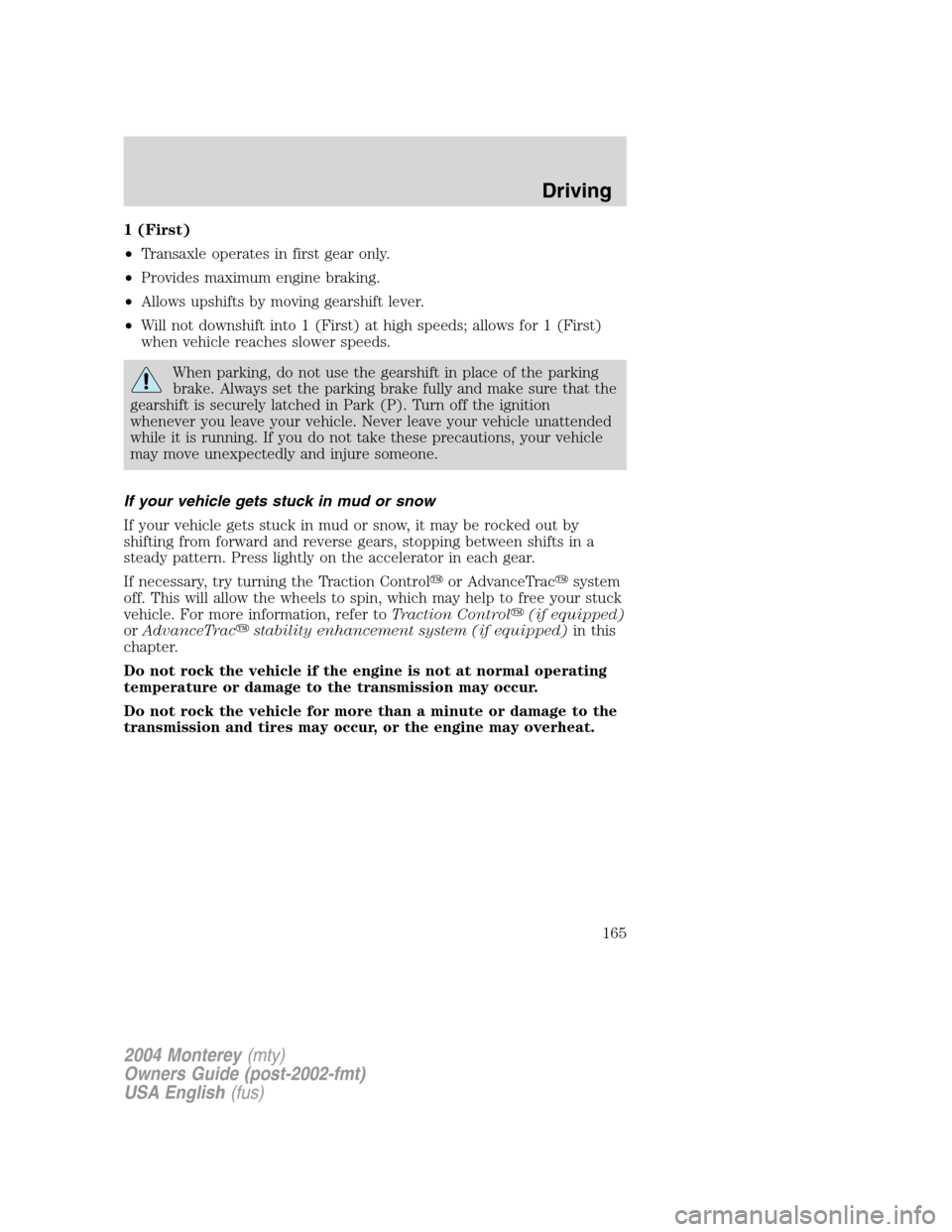

1 (First)
•Transaxle operates in first gear only.
•Provides maximum engine braking.
•Allows upshifts by moving gearshift lever.
•Will not downshift into 1 (First) at high speeds; allows for 1 (First)
when vehicle reaches slower speeds.
When parking, do not use the gearshift in place of the parking
brake. Always set the parking brake fully and make sure that the
gearshift is securely latched in Park (P). Turn off the ignition
whenever you leave your vehicle. Never leave your vehicle unattended
while it is running. If you do not take these precautions, your vehicle
may move unexpectedly and injure someone.
If your vehicle gets stuck in mud or snow
If your vehicle gets stuck in mud or snow, it may be rocked out by
shifting from forward and reverse gears, stopping between shifts in a
steady pattern. Press lightly on the accelerator in each gear.
If necessary, try turning the Traction Control
or AdvanceTrac
system
off. This will allow the wheels to spin, which may help to free your stuck
vehicle. For more information, refer toTraction Control
(if equipped)
orAdvanceTrac
stability enhancement system (if equipped)in this
chapter.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a minute or damage to the
transmission and tires may occur, or the engine may overheat.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
165

FORWARD AND REVERSE SENSING SYSTEM
The forward and reverse sensing
system will warn the driver of
obstacles within a certain range of
the front and rear bumpers. The
front sensors will be active when the
gearshift is in any position other
than P (Park) and the vehicle speed
is below 13 km/h (8 mph). The rear
sensors will only be active when the
gearshift is in R (Reverse). The
front sensors cover an area up to 80
cm (31.5 in.) from the front of the
vehicle and about 25–50 cm (10–20
in.) to the side of the front end of
the vehicle. See the illustration for
approximate sensor area coverage.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
166

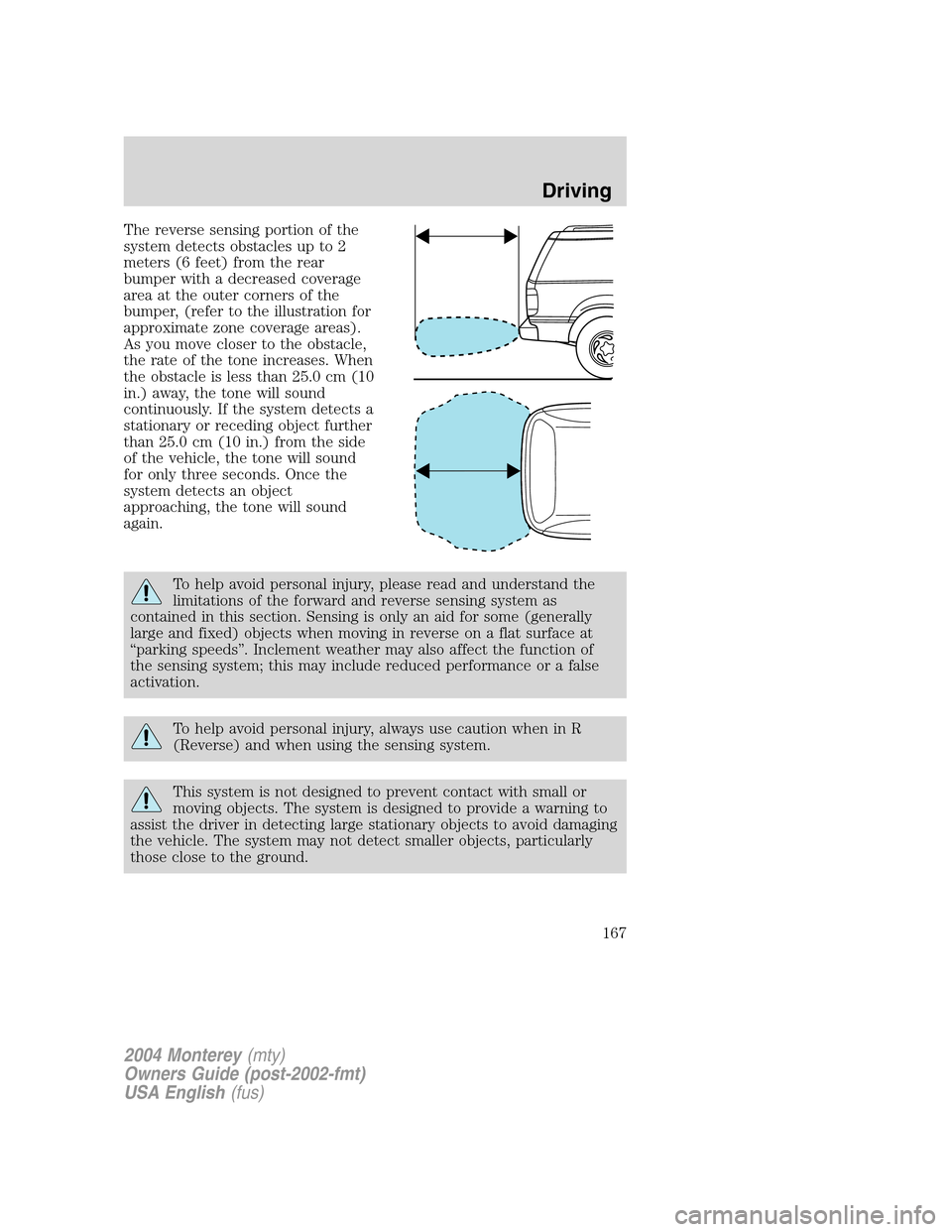

The reverse sensing portion of the
system detects obstacles up to 2
meters (6 feet) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the illustration for
approximate zone coverage areas).
As you move closer to the obstacle,
the rate of the tone increases. When
the obstacle is less than 25.0 cm (10
in.) away, the tone will sound
continuously. If the system detects a
stationary or receding object further
than 25.0 cm (10 in.) from the side
of the vehicle, the tone will sound
for only three seconds. Once the
system detects an object
approaching, the tone will sound
again.
To help avoid personal injury, please read and understand the
limitations of the forward and reverse sensing system as
contained in this section. Sensing is only an aid for some (generally
large and fixed) objects when moving in reverse on a flat surface at
“parking speeds”. Inclement weather may also affect the function of
the sensing system; this may include reduced performance or a false
activation.
To help avoid personal injury, always use caution when in R
(Reverse) and when using the sensing system.
This system is not designed to prevent contact with small or
moving objects. The system is designed to provide a warning to
assist the driver in detecting large stationary objects to avoid damaging
the vehicle. The system may not detect smaller objects, particularly
those close to the ground.
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
167

Certain add-on devices such as large trailer hitches, bike or
surfboard racks and any device that may block the normal
detection zone of the forward and reverse sensing system may create
false beeps.
The system will sound a tone to warn the driver of obstacles near either
bumper in the following manner:
•The front sensors will sound a high pitched tone which will appear to
come from the dashboard
•The rear sensors will sound a lower pitched tone which will appear to
come from the rear interior of the vehicle
•The sensing system will report the obstacle which is closest to the
front or rear of the vehicle. For example, if an obstacle is 30 cm (12
in.) from the front of the vehicle and, at the same time, an obstacle is
only 15 cm (6 in.) from the rear of the vehicle, the lower pitched tone
will sound.
The reverse sensing portion of the system will assist the driver in
detecting certain objects while:
•the vehicle is in R (Reverse) and moving toward a stationary object at
a speed of 5 km/h (3 mph) or less.
•the vehicle is in R (Reverse) but not moving, and a moving object is
approaching the front or rear of the vehicle at a speed of 5 km/h (3
mph) or less.
•the vehicle is in R (Reverse) and moving at a speed of less than 5
km/h (3 mph) and a moving object is approaching the rear of the
vehicle at a speed of less than 5 km/h (3 mph).
The system is automatically enabled
when the gear selector is placed in
D (Drive) or R (Reverse) and the
ignition is ON. The park aid disable
switch allows the driver to disable
the system only when the ignition is
ON, and the gear selector is in D
(Drive) or R (Reverse). The OFF
indicator remains illuminated when
the system is disabled. If the indicator light illuminates when the system
is enabled, it may indicate a failure in the RSS.
The system defaults toenabledevery time the ignition is turned on.
Press the control to disable or enable the system
OFF
2004 Monterey(mty)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
168
