2004 MERCEDES-BENZ SL600 check engine

ContentsOperation......................................... 237
The first 1000 miles (1500 km) ......... 238
Driving instructions ............................ 239
Drive sensibly – save fuel ............. 239
Drinking and driving ..................... 239
Pedals .......................................... 239
Power assistance ......................... 240
Brakes .......................................... 240
Driving off..................................... 242
Parking ......................................... 242
Tires ............................................. 243
Hydroplaning ................................ 243
Tire traction .................................. 244
Tire speed rating .......................... 244
Winter driving instructions ........... 245
Standing water ............................. 246
Passenger compartment .............. 246
Driving abroad .............................. 246Control and operation of radio
transmitters ................................. 247
Catalytic converter ....................... 247
Emission control .......................... 248
Coolant temperature .................... 249
At the gas station .............................. 250
Refuelling ..................................... 250
Check regularly and before
a long trip ..................................... 252
Engine compartment ......................... 253
Hood ............................................ 253
Engine oil ..................................... 255
Transmission fluid level ................ 258
Oil level in the ABC system .......... 258
Coolant ........................................ 258
Battery ......................................... 260
Windshield washer system and
headlamp cleaning system ........... 261Tires and wheels................................ 262
Important guidelines .................... 262
Life of tires................................... 263
Direction of rotation..................... 263
Checking tire inflation pressure ... 263
Rotating wheels ........................... 267
Winter driving .................................... 268
Winter tires .................................. 268
Block heater (Canada only) .......... 269
Snow chains................................. 269
Maintenance...................................... 271
Clearing the service indicator ...... 271
Service term exceeded ................ 272
Calling up the service indicator .... 272
Resetting the service indicator .... 272
Vehicle care....................................... 274
Cleaning and care of the vehicle .. 274

31 Getting started
Unlocking
Starter switch positionsStarter switch0For removing SmartKey
1Power supply to some electrical con-
sumers, such as seat adjustment
2Ignition (power supply for all electrical
consumers) and driving position
3Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take the
SmartKey with KEYLESS-GO* with you and
lock the vehicle. Do not leave children unat-
tended in the vehicle, or with access to an
unlocked vehicle. Unsupervised use of vehi-
cle equipment may cause an accident
and/or serious personal injury.iThe SmartKey can only be removed
from the starter switch with the gear
selector lever in position P.
!If the SmartKey cannot be turned in the
starter switch, the starter battery may
not be sufficiently charged.

Check the starter battery and
charge it if necessary (
page 358).


Get a jump start (
page 363).
To prevent accelerated battery dis-
charge or a completely discharged bat-
tery, always remove the SmartKey from
the starter switch when the engine is
not in operation.

49 Getting started
Driving
Problems while driving
The engine runs erratically and misfires

An ignition cable may be damaged.


The engine electronics may not be op-
erating properly.


Unburned gasoline may have entered
the catalytic converter and damaged it.

Give very little gas.

Have the problem repaired by an au-
thorized Mercedes-Benz Center as
soon as possible.
!If anything blocks the windshield wiper
(leaves, snow, etc.), switch them off im-
mediately.

For safety reasons,

turn off the engine by turning
the SmartKey to position 0 and
withdraw the SmartKey from
the starter switch
or


turn off the engine by pressing
the KEYLESS-GO* start/stop
button and open the driver’s
door (with the driver’s door
open, the starter switch is in po-
sition 0, same as with the
SmartKey removed from the
starter switch)
before attempting to remove any
blockage.


Remove blockage.


Turn the windshield wipers on
again.
If windshield wipers fail to function at
all in switch positionI,


set the combination switch to the
next highest wiper speed


have the windshield wipers
checked at the nearest authorized
Mercedes-Benz Center

50 Getting startedDrivingThe coolant temperature gauge is
above 248°F (120°C)
The coolant is too hot and is no longer
cooling the engine.
Stop the vehicle as soon as possible
and turn off the engine. Allow engine
and coolant to cool.

Check the coolant level and add cool-
ant if necessary (
page 258).In case of accident
If the vehicle is leaking gasoline:

Do not start the engine under any cir-
cumstances.

Notify local fire and/or police authori-
ties.
If the extent of the damage cannot be de-
termined:

Notify an authorized Mercedes-Benz
Center.
If no damage can be determined on the


major assemblies


fuel system


engine mount:

Start the engine in the usual manner.

131 Controls in detail
Control system
Menus, submenus and functions
Menu 1
Menu 2
Menu 3
Menu 4
Menu 5
Menu 6
Menu 7
Menu 8
Standard dis-
play
AUDIO
NAVI
Distronic*
Malfunction
memory
Settings
Trip computer
Telephone
Commands/submenusDigital speed-
ometer
Select radio
station
Activate
route guid-
ance
Call up set-
tings
Call up malfunc-
tion messages
Reset to factory
settings
Fuel consump-
tion statistics af-
ter start
Load phone
book
Call up FSS
Select satel-
lite radio sta-
tion*
(USA only)
Instrument clus-
ter submenu
Fuel consump-
tion statistics
since the last re-
set
Search for
name in
phone book
Check tire
pressure*
Operate CD
player
Lighting sub-
menu
Call up range
Check engine
oil level
Vehicle sub-
menuConvenience
submenu

132 Controls in detailControl system
Standard display menu
You can select the functions in the stan-
dard display menu with button k or
j.
The following functions are available:
Display digital speedometer
Press button j once.
The current vehicle speed is shown in
the right display field.
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO off
is shown in the
right display.
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Call up digital speedometer
132
Call up FSS
272
Check tire pressure*
264
Check engine oil level
255
Function
Page
Select radio station
133
Select satellite radio station*
(USA only)
133
Operate CD player
134

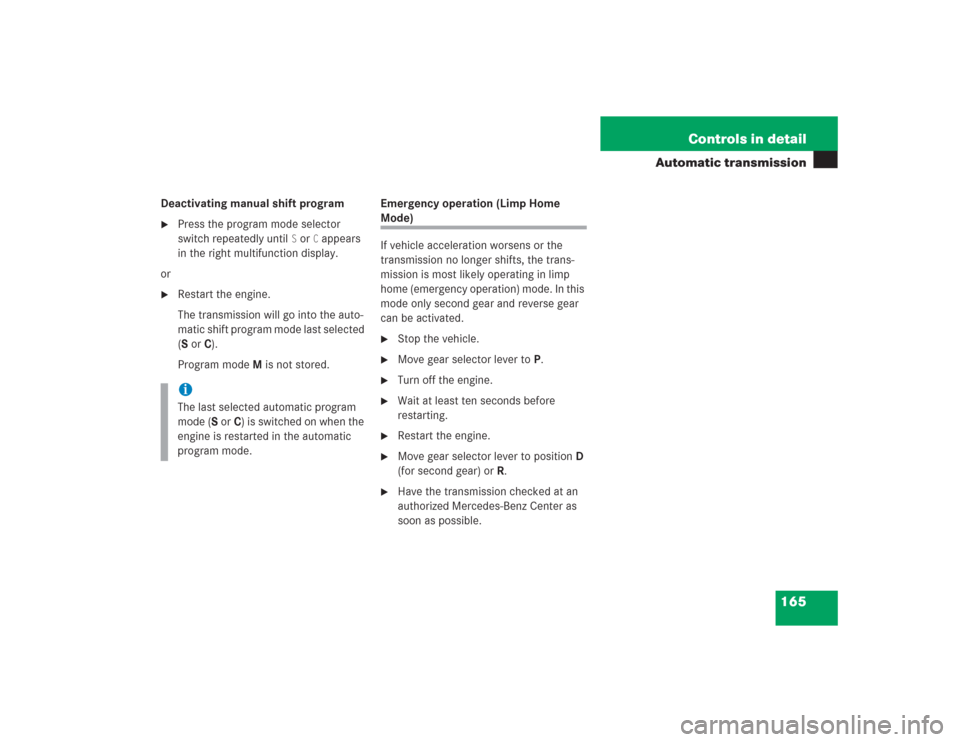

165 Controls in detail
Automatic transmission
Deactivating manual shift program
Press the program mode selector
switch repeatedly until
S or
C appears
in the right multifunction display.
or

Restart the engine.
The transmission will go into the auto-
matic shift program mode last selected
(SorC).
Program modeM is not stored.Emergency operation (Limp Home
Mode)
If vehicle acceleration worsens or the
transmission no longer shifts, the trans-
mission is most likely operating in limp
home (emergency operation) mode. In this
mode only second gear and reverse gear
can be activated.
Stop the vehicle.

Move gear selector lever toP.

Turn off the engine.

Wait at least ten seconds before
restarting.

Restart the engine.

Move gear selector lever to positionD
(for second gear) orR.

Have the transmission checked at an
authorized Mercedes-Benz Center as
soon as possible.
iThe last selected automatic program
mode (S orC) is switched on when the
engine is restarted in the automatic
program mode.

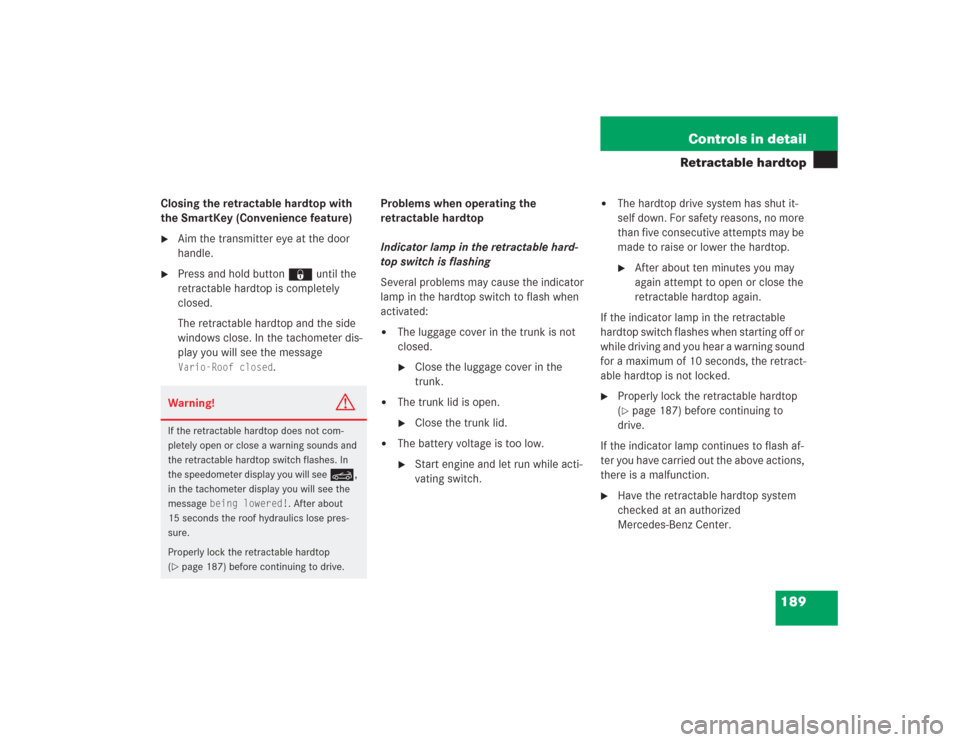

189 Controls in detail
Retractable hardtop
Closing the retractable hardtop with
the SmartKey (Convenience feature)
Aim the transmitter eye at the door
handle.

Press and hold button ‹ until the
retractable hardtop is completely
closed.
The retractable hardtop and the side
windows close. In the tachometer dis-
play you will see the message Vario-Roof closed
.Problems when operating the
retractable hardtop
Indicator lamp in the retractable hard-
top switch is flashing
Several problems may cause the indicator
lamp in the hardtop switch to flash when
activated:


The luggage cover in the trunk is not
closed.
Close the luggage cover in the
trunk.


The trunk lid is open.
Close the trunk lid.


The battery voltage is too low.
Start engine and let run while acti-
vating switch.


The hardtop drive system has shut it-
self down. For safety reasons, no more
than five consecutive attempts may be
made to raise or lower the hardtop.
After about ten minutes you may
again attempt to open or close the
retractable hardtop again.
If the indicator lamp in the retractable
hardtop switch flashes when starting off or
while driving and you hear a warning sound
for a maximum of 10 seconds, the retract-
able hardtop is not locked.

Properly lock the retractable hardtop
(page 187) before continuing to
drive.
If the indicator lamp continues to flash af-
ter you have carried out the above actions,
there is a malfunction.

Have the retractable hardtop system
checked at an authorized
Mercedes-Benz Center.
Warning!
G
If the retractable hardtop does not com-
pletely open or close a warning sounds and
the retractable hardtop switch flashes. In
the speedometer display you will see
K
,
in the tachometer display you will see the
message
being lowered!
. After about
15 seconds the roof hydraulics lose pres-
sure.
Properly lock the retractable hardtop
(
page 187) before continuing to drive.
