2004 MERCEDES-BENZ S430 Cockpit

Contents
Introduction.......................................... 9
Product information ................................ 9
Operator’s Manual ............................... 10
Service and warranty information .. 10
Important notice for California
retail buyers and lessees of
Mercedes-Benz automobiles .......... 11
Maintenance .................................. 12
Roadside Assistance ...................... 12
Change of address or ownership.... 12
Operating your vehicle outside
the USA or Canada......................... 13
Where to find it .................................... 14
Symbols ............................................... 15
Operating safety .................................. 16
Proper use of the vehicle ............... 16
Problems with your vehicle .................. 17
Reporting safety defects...................... 18
Reporting safety defects ................ 18
At a glance.......................................... 19
Cockpit ................................................. 20
Instrument cluster ................................ 22
Multifunction steering wheel ................ 24
Center console ..................................... 25
Upper part ...................................... 25
Lower part ...................................... 26
Overhead control panel ........................ 27
Door control panel................................ 28
Getting started................................... 29
Unlocking ............................................. 30
Unlocking with the SmartKey ......... 30
Unlocking with KEYLESS-GO*......... 32
Adjusting .............................................. 34
Seats .............................................. 34
Steering wheel ................................ 37
Mirrors ............................................ 38
Driving .................................................. 40
Fastening the seat belts ................. 40
Starting the engine ......................... 43
Switching on headlamps ................. 47
Turn signals and high beam ............ 47
Windshield wipers........................... 48
Problems while driving .................... 50
Parking and locking .............................. 51
Parking brake ................................. 52
Switching off headlamps................. 53
Turning off the engine..................... 53

19 At a glance
Cockpit
Instrument cluster
Multifunction steering wheel
Center console
Overhead control panel
Door control panel

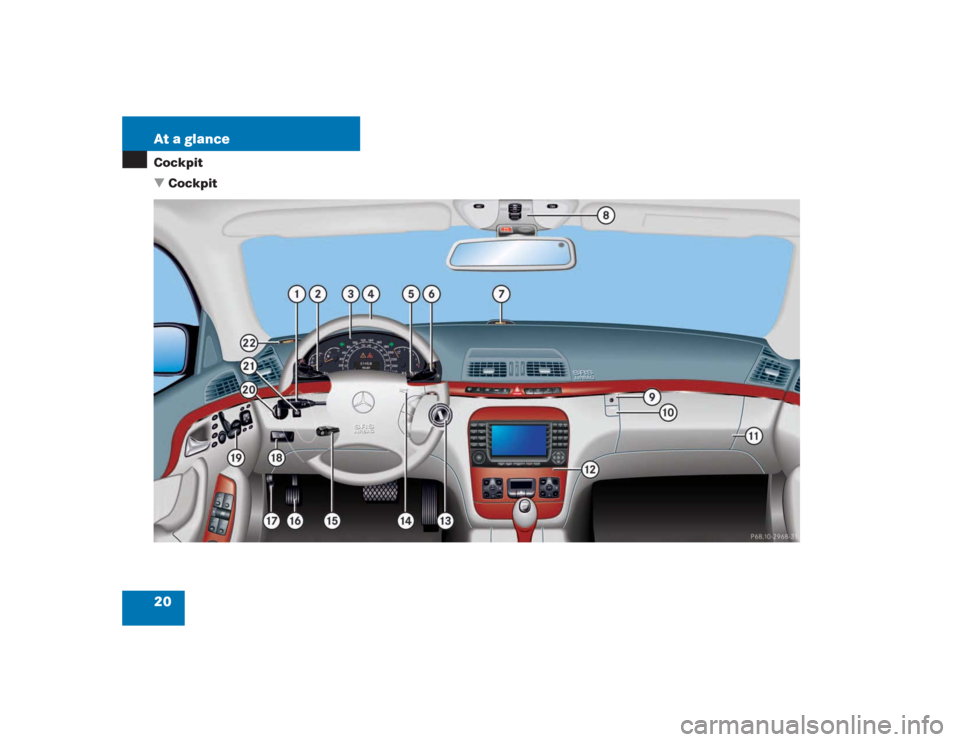

20 At a glanceCockpit
Cockpit

21 At a glance
Cockpit
Item
Page
1
Combination switch

Turn signals


Windshield wipers


High beam
47
48
128
2
Cruise control lever

Cruise control


Distronic*
210
203
206
3
Instrument cluster
22
4
Multifunction steering
wheel
24
5
Gear range indicator, clock
22
6
Lever for voice control sys-
tem*, see separate operat-
ing instructions
Item
Page
7
Front Parktronic* (Parking
assist) warning indicator
for right front area
226
8
Overhead control panel
27
9
Glove box lock
231
a
Glove box lid release
231
b
Glove box
231
c
Center console
25
d
Starter switch
31
e
Horn
f
Steering wheel adjustment
stalk
Heated steering wheel*
37
240
Item
Page
g
Parking brake pedal
45
h
Hood lock release
272
j
Parking brake release
45
k
Door control panel
28
l
Exterior lamp switch
124
m
Headlamp washer button*
177
n
Front Parktronic* (Parking
assist) warning indicator
for left front area
226
