Controls in detail
Automatic transmiss ion*

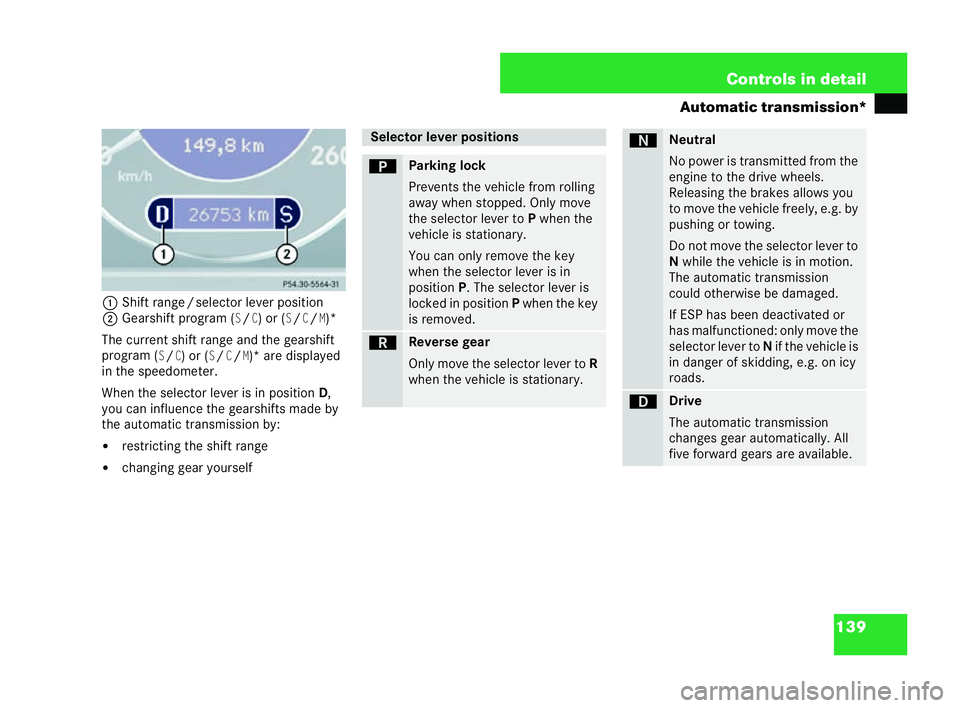

1 Shiftran ge/s elector lever position
2 Gearshif tprogram (S/C) or (S/C/M)*
The current shift range and the gearshift
program (
S/C) or (S/C/M)* are displayed
in the speedometer.
When the selector lever is in position D,
you can influence the gearshifts made by
the automatic transmissi onby:
! restricting the shift range
! chang ing gear yourself P 54.30-
5564-31 Selec
tor lever positions ì Parking lock
Prevents the vehicle from rolling
away when stopped. Only
move
the selector lever toPwhen the
ve hicle isstationary.
You can only remove the key
when the selector lever isin
position P. The selector lever is
lo cked in position Pwh en the key
is re moved. í Reverse gear
Only mo
vethe selector lever to R
when the vehicle is statio nary. ë Neutral
No power is transmitted
from the
engine to the dr ive wheels.
Releasing the brakes allows you
to move the vehicle freely, e.g. by
pushing or towing.
Do not move the selector lever to
N while the vehicle is in motion.
The automatic transmission
co uld otherwise bedamag ed.
If ESP has been deactivated or
has malfunctioned: only move the
selector lever to Nif the vehicle is
in danger of skidding, e.g. on icy
roads. ê Drive
The automatic transmission
chan
ges gear automatically. All
fi ve forward gears are available. 209en_d2.boo Seite
139 Dienstag, 25. Mai 2004 7:26 19

142 Controls in detail
Automatic transmission*
! Only press program selector switch 1
whe nthe selector lever isin position P,N or D.
6 Press program selector switch 1
repeatedly until the letter (S/C) for the
ge arshift program appears in the dis-
play (= page 141).
Se lect Cfor comfort mode:
! The vehicle pulls away and reverses
more gently unless full thrott leis
applied.
! Traction is increased. This means
that driving stability is increased on
slippery road sur faces, for example.
! The automatic transmission shifts
up sooner. This means that you
drive at lower engine speeds and
the wheels are less likely to spin. Accelerator pedal pos
ition
Your style of driving influences ho wthe
automatic transmission shifts gear:
! Little throttle:
early upshifts
! More throttle:
later upshi fts
Kickdown
Use kickd ownfor ma ximum accel eratio n:
6 Depress the accelerator pedal beyond
the pressure point.
The automatic transmission shifts to a
lower gear, depend ing on the engine
speed.
6 Release the accelerator pedal as soon
as the desired speed has been
reached.
The automatic transmission shifts back
up. Stopping
If you are only stopping briefly:
6
leave the selector lever in the drive
position
6 apply the brake to prevent the vehicle
from rolling away Manoeuvring
If you are manoeuvring in a tight space:
6
control the speed of the vehicle by
brak ing carefully
6 accelerate gently and smoothly Tr
ailertowing
6 Allow the engine to run inthe middle
engine speed range when dri ving on
uphill gradients.
6 Depending on the steepness of the
uphill or downhill gradient, shift down
to shift range 3or 2(
= page 140), even
if cruise control is acti vated. Driving
tips 209en_d2.boo Seite
142 Dienstag, 25. Mai 2004 7:26 19

215
Controls in detail
Driving systems Ac
tivatin gand de activa tingPTS

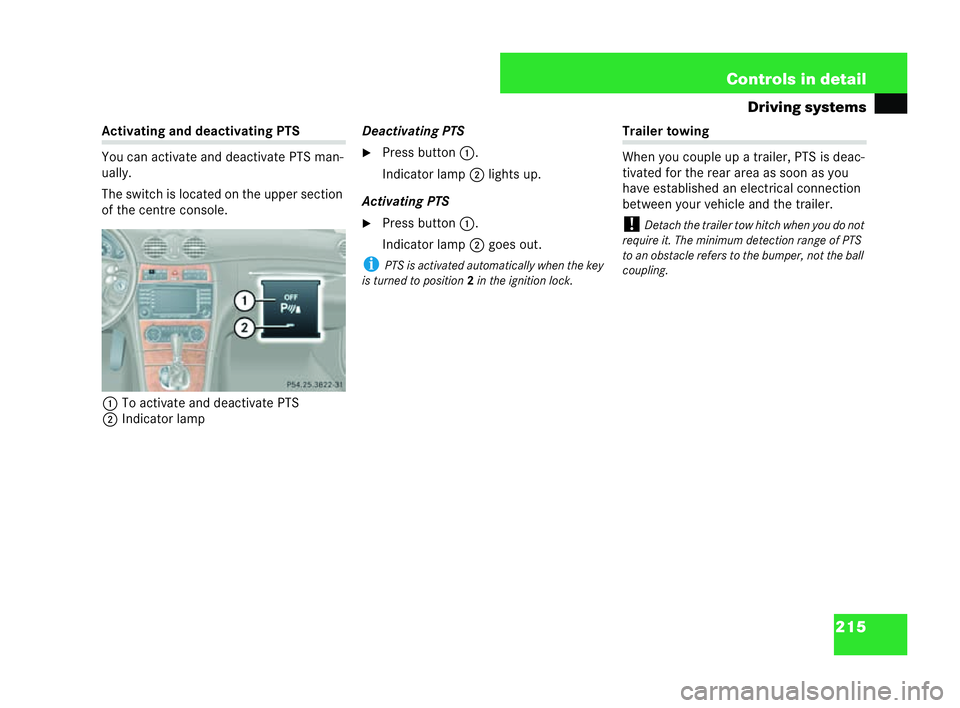

You can activate and deactivate PTS man-
ually.
The switch is located on the upper section
of the centre console.
1 To act ivat e and deact ivat e PTS
2 Indicator lamp Deactivating PTS
6 Press button 1.
Indicator lamp 2lights up.
Ac tivating PTS
6 Press button 1.
Indicator lamp 2goes out.
i PTS is activated automatically when the key
is tur ned to position 2in the igniti onlock. Trailer towing
When you cou
ple up a trailer, PTS isdeac-
tivated for the rear area as soon as you
have established an electrical connection
between your vehicle and the trailer.
! Detach th etrailer tow hitch when you do not
require it. The minimum detection range of PTS
to an obstacle refers to the bumper, not the ball
co up ling.
P54.25-3822-31 209en_d2.boo Seite
215 Dienstag, 25. Mai 2004 7:26 19

239
Operation
The first 1,500 km
Refuelling
Engine compartment Tyres and wheels Driving tips
Winter driving
Driving abroad Trailer towing ServiceCare 209en_d2.boo Seite
239 Dienstag, 25. Mai 2004 7:26 19

260 Operation
Trailer towing
The detachable ball coupling is located in
the stowage
wellunder the boot floor.
You wil lfind details of installation dimen-
sions and loads in the "Technical data"
section.
Make a note of the key number in this
Owner's Manual, for example. This will
help you to obtain a replacement key from
a Mercedes-Benz Serv ice Ce ntre quickly,
shou ldyou lose it.
Key nu mber.: ________________ Removing the cover

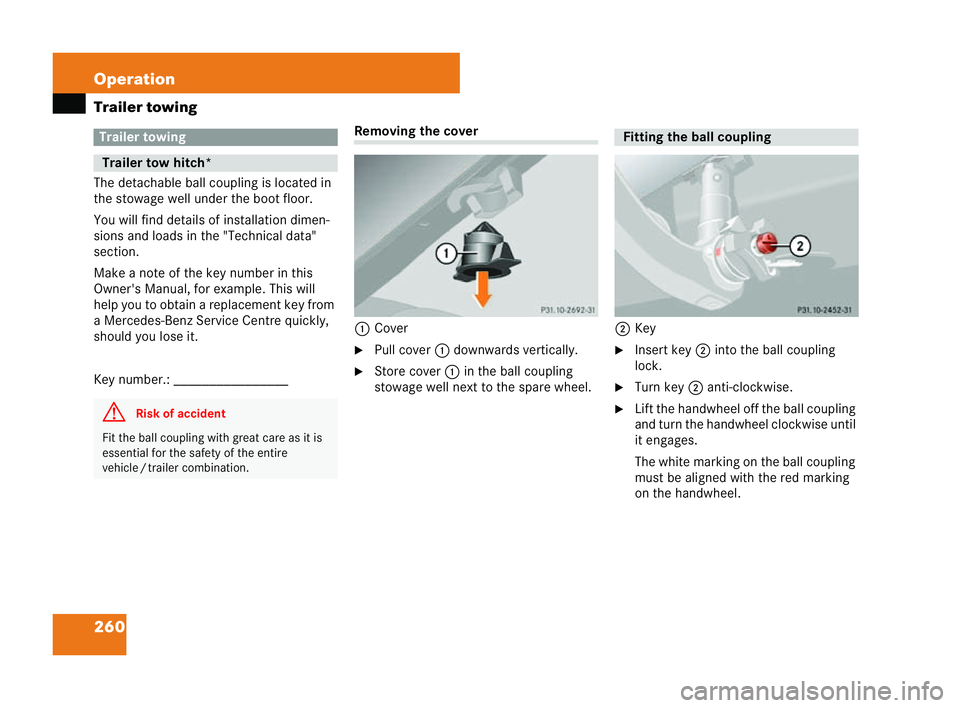

1 Cover
6 Pull cover 1downwards vertically.
6 Store cover 1in the ball coupling
stowage well next to the spare whee l.2
Key
6 Insert key 2into the ball coupling
lock.
6 Turn key 2anti-cloc kwise.
6 Lift the handwheel off the ball coupling
and turn th ehandw heel clockwise until
it engages.
The whi temarking on the ball coupling
must be aligned with the red marking
on the handwheel. Trailer towing
Trailer tow hitch*
G
Risk of accident Fit the ball coupling with great care as it is
essential for the safety of th
eentire
vehicle /trailer combination. P 31.10-2451-31 Fitting the
ball coupling P 31.10-2452-31209en_d2.boo Seite
260 Dienstag, 25. Mai 2004 7:26 19

261
Operation
Trailer towing

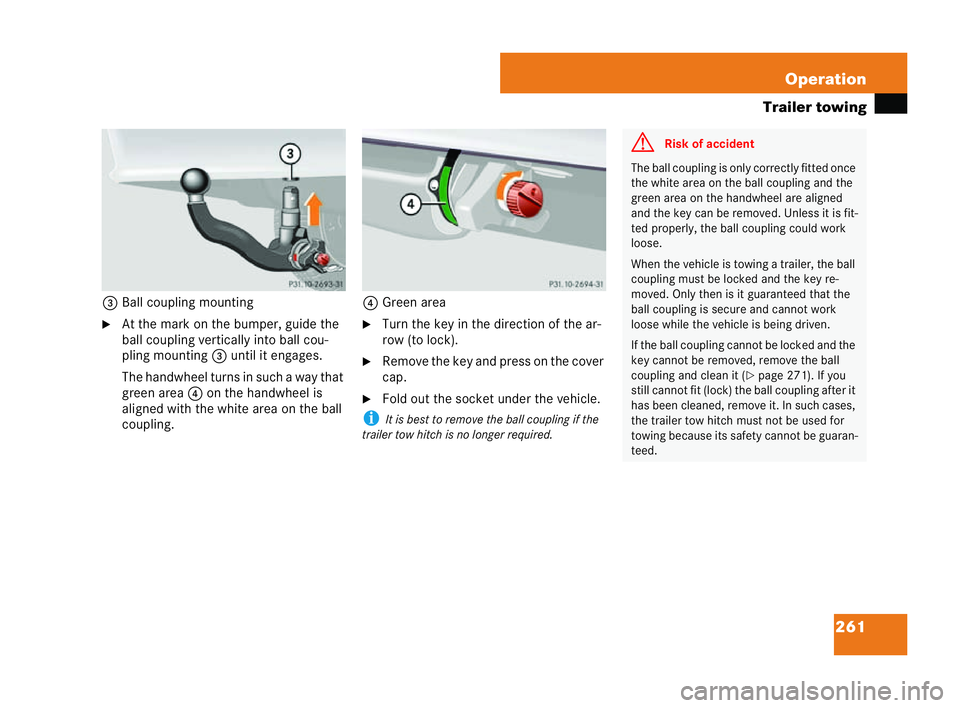

3 Ball coupling mounting
