2004 MERCEDES-BENZ CLK COUPE towing

383
Practical advice
Towing Securing the towing eye
6
Remove the towing eye and the wheel
wrench from the vehicle tool kit
(= page 276).
6 Screw in the towing eye clockw ise to
the stop.
6 Insert the wheel wrench handle into the
towing eye and tighten. Removing the towing eye
6
Remove the wheel wrench from the ve-
hicle to olkit.
6 Insert the wheel wrench handle into the
towing eye and turn the wheel wrench
anti-clockwise.
6 Unscrew the to wing eye.
6 Insert the top of cover 1byits tab in
the front bumper and press the bottom
of the cover inuntil it engages.
or St
andard vehicles:
6 Insert the bottom of cover 2by its tab
in the rear bumper and press the top of
the cover in until it engages.
or
AMG veh icles:
4 To fit the cover
6 Hook the cover in the rear bumper on
the right-hand side and slide it fully
over to the right (direction of arrow) 4.
6 Apply light pressure on the left-hand
side of the cover.
6 Put the towing eye and the wheel
wrench back into the vehicle tool kit. !
Theengine must not be running ifyo ua re
towing the vehicle with the front axle raised. Ap-
pli ca tion of the brakes by ESP would otherwise
da ma ge the braking sy stem on the rear axle be-
yond repair. Vehicles with manua
l transmission
6 Switch on the ignition (key inposition 2
in the ignition lock).
6 Make sure that no gear is engaged. P 88.20-2440-31 Towing the vehicle209en_d2.boo Seite
383 Dienstag, 25. Mai 2004 7:26 19

384 Practical advice
TowingVehicles with automati
ctransmission*
6 Switch on the ignition (key in position 2
in the ignition lock ).
6 Move the selector lever to N.
! Do not tow the vehicle further than 50 km.
Do not exceed a towing spe edof 50 km /h,ot h-
erw ise the trans mission could be damag ed.
Only tow the ve hicle with the rear axl e
raised if:
! you need to tow the vehicle for a longer
distance
! the transmission has been damaged
Instead of raising the rear axle, the propel-
ler shaft to the driven axl ecan be removed. Points to bea
rin mi nd:
! Vehicles with automatic transmission*
must not be tow-started.
! The battery must be connected.
! The engine and the catalytic converter
must be cold.
! Avoid repea ted or lengthy attempts to
start the engine. Vehicles with
manual transmission
6 Switch on the ignition (key in position 2
in the ignition lock).
6 Make sure that no gear isengaged.
6 Tow the vehicle to set it in motion, or al-
low it to roll.
6 Engage a suit able gear and gradually
release the clutch. Do not depress the
accelerator.
! The engine is started. The towing
eyes can be used to pull the ve-
hic leonto a trailer or transporter for trans-
po rting purposes.
Make su rethat no gea ris engag ed. On ve-
hicles with automatic transmission*, the
selector lever must be in position N
! Lash the vehicle securely ,and only by the
wheels or wheel rim s.
Your vehicle could otherwise be damaged. Tow-starting the vehicle
(emer
gencyengine start) Tr
an sporting thev ehicle 209en_d2.boo Seite
384 Dienstag, 25. Mai 2004 7:26 19

408 Technical data
Ve
hicle weights
The unladen wei ghtin cludes the driver
(7 5k g)and all fluid s(fuel tank 90% full).
Items of optional equipment increase the
unladen weigh tand reduc eth ema ximum
payload. Ve
hicle weights Coupé
CLK 200
KOMPR
ESSOR CLK 200 CGI CLK 240 CL
K320 CLK 500 CLK 55 AMG CLK 270 CDI
Unladen weight 1,540 kg 1,5
50 kg 1,575 kg 1,605 kg 1,
660 kg 1,69
5kg 1,645 kg
Maximum permissible
gross vehicl
eweight 2,010 kg 2,02
0kg 2,030 kg 2,060 kg 2,
115 kg 2,10
0kg 2,100
kg Maximum permissible
fr
ont axle load 995 kg 1,0
05 kg 1,020 kg 1,035 kg 1,
090 kg 1,065 kg 1,085 kg
Maximum permi
ssible rear
axle load 1,07
5kg 1,075 kg 1,07
0k
g 1,085 kg 1,
085 kg 1,05
0kg 1,075
kg Trailer towing only:
ma
ximu mpe rm issible rear
axle load 1,10
5kg 1,105 kg 1,100 kg 1,115 kg 1,
125 kg – 1,120 kg
Maximum
boot load 10
0kg 100 kg 100 kg 10
0 kg 100 kg 100 kg 10
0 kg Maximum roof load 100 kg 100 kg 100 kg 10
0 kg 100 kg 100 kg 10
0 kg 209en_d2.boo Seite
408 Dienstag, 25. Mai 2004 7:26 19

409

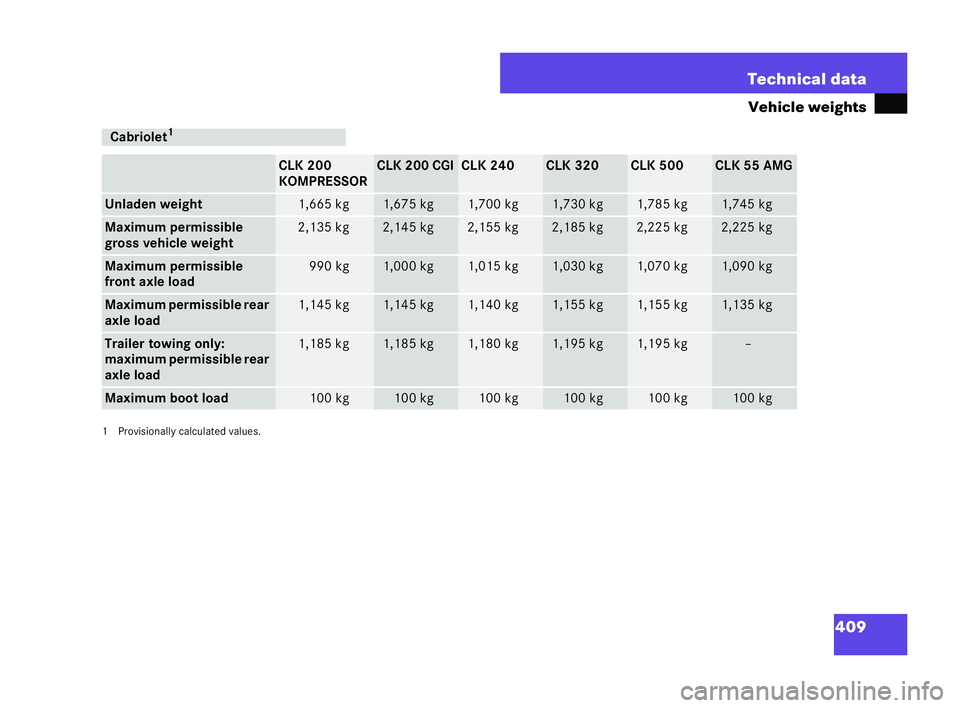

Te
chnical data
Vehicle weights
1P rovisionally calcula tedv alues. Cabr
iolet 1 CLK 200
KOMP
RESSOR CLK 200 CGI CLK 240 CLK 320 CLK 500 CLK 55 AMG
Unladen weight 1,
66 5 kg 1,675 kg 1,700 kg 1,730 kg 1,785 kg 1,745 kg
Maximum permissible
gross vehicle weight 2,135 kg 2,145 kg 2,155 kg 2,185 kg 2,225 kg 2,225 kg
Maximum permissible
fr
on taxle load 99
0kg 1,000 kg 1,015 kg 1,030 kg 1,070 kg 1,090 kg
Maximum permissibl
erear
axle load 1,145 kg 1,145 kg 1,140 kg 1,155 kg 1,155 kg 1,135 kg
Trailer towing
only:
maximum permissible rear
axle load 1,185 kg 1,185 kg 1,180 kg 1,195 kg 1,195 kg –
Maximum boot load 10
0 kg 100 kg 100 kg 10
0 kg 100 kg 100 kg209en_d2.boo Seite
409 Dienstag, 25. Mai 2004 7:26 19

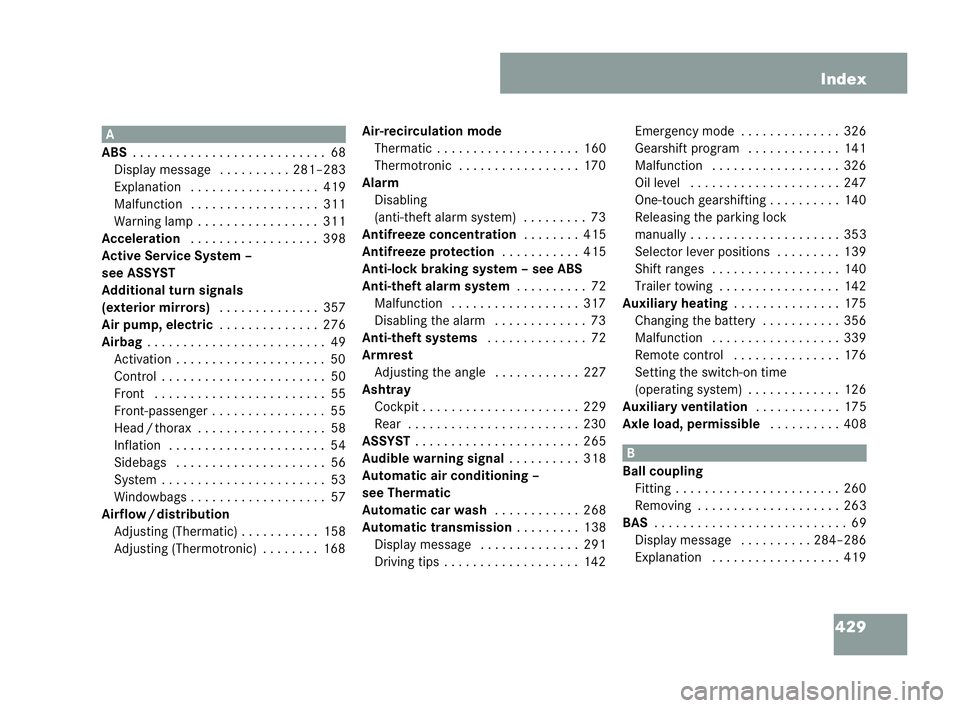

429
