2004 MERCEDES-BENZ CLK COUPE service indicator

313
Practical advice
Tr ou bleshooting Problem Possible cause Suggested solutions
3
The red brake system indicator
lamp lights up while you are driv-
ing. There is ins
ufficient brake fluid in the fluid
reservoir. 6
Do not drive any further and contact a
qualified specia list worksho pwhich
has the necessary specialist know-
ledge and tools to carry out the work
requi red. Mercedes-Benz recom-
mends that you use a Mercedes-Benz
Service Centre for this purpose. In
particular, work relevant to safety or
on safety-related systems must be
carried out at a qualified specialist
workshop.
Under nocircums tances should you
top up the brake fluid. This will not
solve the pro blem.
G Otherwise, there is a risk ofan
accident.
6 Observe the additional messages in
the display (=
page 280). 209en_d2.boo Seite
313 Dienstag, 25. Mai 2004 7:26 19

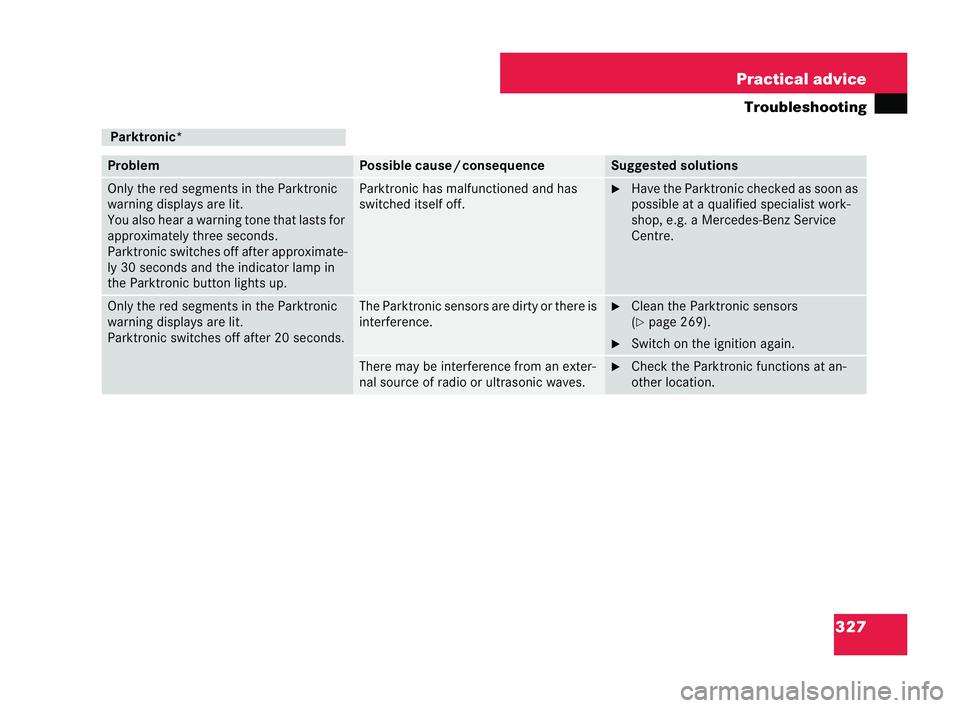

327
Practical advice
Tr ou bleshooting Parktronic*
Problem Possible cause
/consequ ence Suggested sol
utions Only the red segments in the Parktronic
warning dis
plays are lit.
You also hear a warning tone that lasts for
approximate lythree seconds.
Parktronic switches off after approximate-
ly 30 seconds and the indicator lamp in
the Parktronic button lights up. Parktronic has malfunctioned and has
switched itself off. 6
Have the Parktronic checked as soon as
possible at a qualified specialist work-
shop, e.g. a Mercedes-Benz Service
Centre. Only the red segments in the Parktronic
warning dis
plays are lit.
Parktronic switches off after 20 seconds. The Parktronic sensors are dirty or there is
in
terference. 6
Clean the Parktronic sensors
(=
page 269).
6 Switch on the ignition again. There may be interference from an exter-
nal source of radio or ultrasonic waves. 6
Check the Parktronic functions at an-
other location. 209en_d2.boo Seite
327 Dienstag, 25. Mai 2004 7:26 19

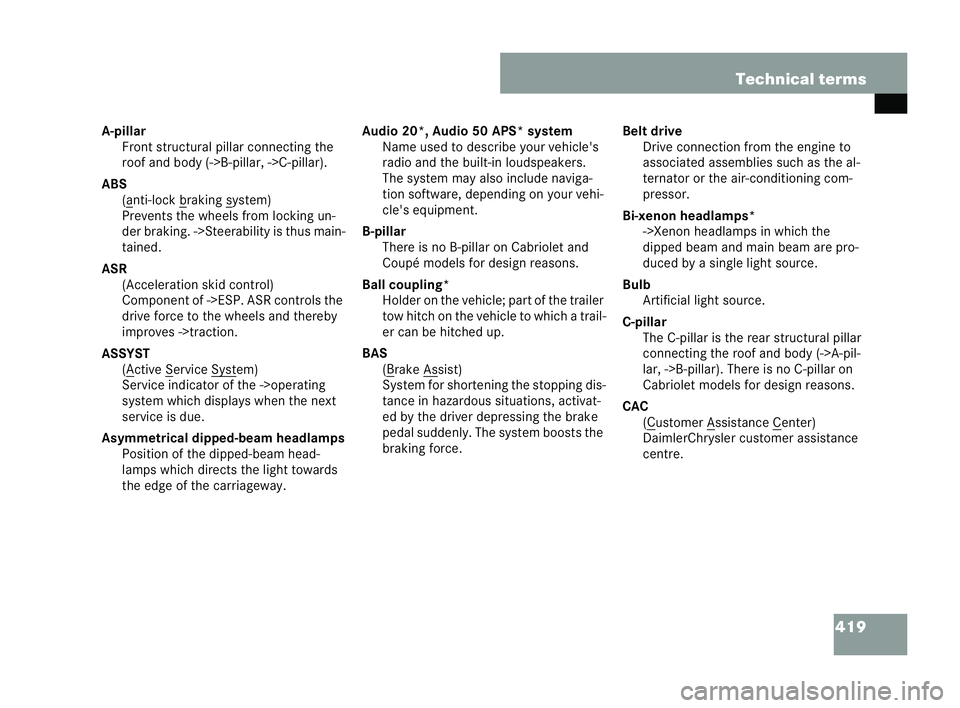

419
Technical terms
A- pillar
Front structural pillar connecting the
roof and body (->B-pillar, ->C-pillar).
ABS (a nti-lock b rak
ing s ystem)
Prevents the wheels from locking un-
der braking. ->Steerability isthus main-
tained.
ASR (Acceleratio nskid control)
Component of ->ESP. ASR controls the
drive force to the wheels and thereby
improves ->traction.
ASSYST (A ctive S ervice Syst em)
Service indicator ofthe ->operating
system which displays when the next
service is due.
Asymmetric aldipped-beam headlamps
Po sition of the dipped-beam head-
lamps which directs the light towards
the edg eof the carriageway. Audi
o20*, Audio 50 APS* system
Nam eused to describe your vehicle's
radio and the built- inloudspeakers.
The system may also include na viga-
tion software, depending on your vehi-
cle's equipment.
B-pillar There is no B-pillar on Cabriolet and
Coupé models for design reasons.
Ball coupling* Holder on the vehicle; part of the trailer
tow hitch on the vehic leto which a trail-
er canbe hitched up.
BAS (B rake As sist)
System for shortening the stopping dis-
tance in hazardous situations, activat-
ed by the driver depressing the brake
pedal suddenly. The system boosts the
braking force. Belt drive
Drive connection from the engine to
associated assemblie ssuch as the al-
ternator or the air-cond itioning com-
pressor.
Bi-xenon headlamps* ->Xenon headlamps inwhich the
di pp ed beam and main beam are pro-
duced by a single light source.
Bulb Artificial ligh tsource.
C-p illar
The C-pillar is the rear structural pillar
connecting the roof and body (->A-pil-
lar, ->B-pillar). There is no C-pillar on
Ca briolet models for design reasons.
CAC (C ustomer A ssistance C enter)
DaimlerChrysler customer assistance
centre. 209en_d2.boo Seite
419 Dienstag, 25. Mai 2004 7:26 19

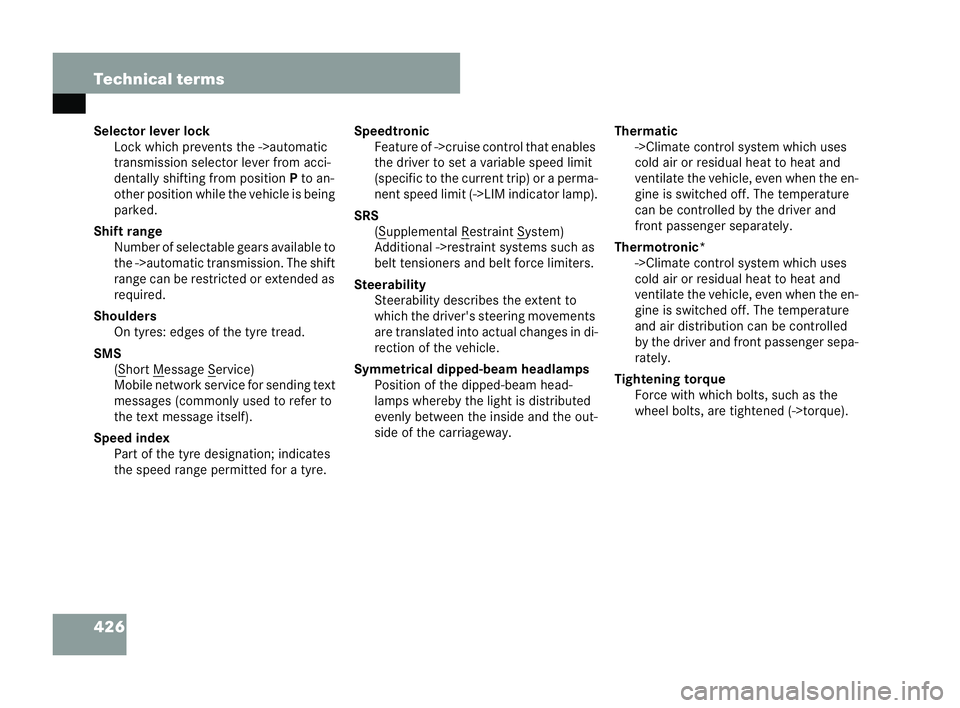

426 Technical terms
Selector lever lock Lock wh ich prevents the ->automatic
tra nsmission selector lever from acci-
dentally shifting from position Pto an-
other position while the vehicle is being
parked.
Shift range Numb er of selectable gears available to
the ->automatic transmis sion. The shift
range can be restricted or extended as
re qu ired.
Shoulders On tyres: edges of the tyre tread.
SMS (S hor
t M essage S er
vice)
Mobile network service for sending text
messag es(commonly used to refer to
the text message itself).
Speed index Part of the tyre designation; indicates
the spe edran gepermitted for a tyre. Speedtronic
Feature of ->cruise control that enables
the driver to set a variab lespeed limit
(specific to the current trip) or a perma-
nent speed limit (->LIM indicator lamp).
SRS (S upplemental R estraint S ystem)
Additional ->restraint system ssuch as
belt tensioners and bel tforce limiters.
Steerability Steerability describes the extent to
which the dri ver's steering movements
ar e translated int oactua l ch anges in di-
rection of the vehicle.
Symmetrical dipped -bea mh eadlamps
Position of the dipped-beam head-
lamps whereby the light isdistributed
evenly between the inside and the out-
side of the carriageway. Th
erma tic
->Climate control system which uses
co ld air or residual hea t toheat and
ventilate the vehicle, even when the en-
gine is switched off. The temperature
can be contro lled by the driver and
front passenger separately.
Th ermo tronic*
->Climate control system which uses
co ld air or residual hea t toheat and
ventilate the vehicle, even when the en-
gine is switched off. The temperature
and air distribution can be controlled
by the driver and front passenger sepa-
rately.
Tightening torque Force with which bolts, such as the
whee lbol ts, are tightened (->torque). 209en_d2.boo Seite
426 Dienstag, 25. Mai 2004 7:26 19

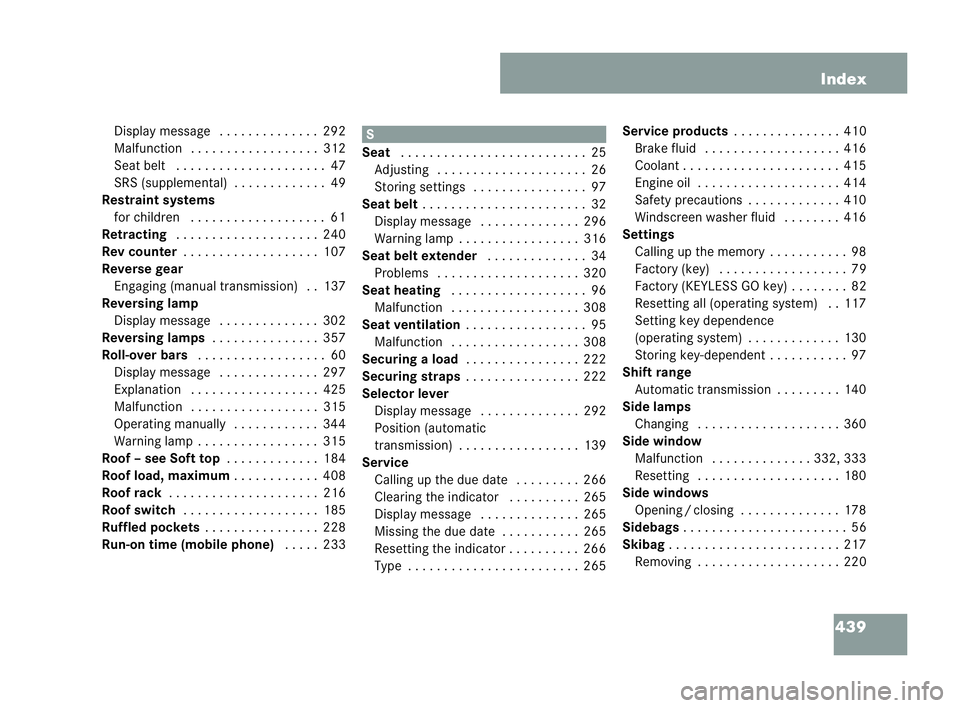

439
Index
Di splay message . . . . ..... . . . ..292
Malfu nction . . . . . . . .. . . . . . . ... 312
Se at belt . . ..... . . ..... . . . ....47
SRS (supplemental) . .. . . . . . . .. ..49
Restraint systems for children . . . . . . . .. . . . . . . .. ..61
Retracting . ..... . . . ..... . . . ...240
Rev counter ..... . . . ..... . . . ...107
Reverse gear Engaging (manual transmission) . .137
Reversin glamp
Di splay message . . . . ..... . . . ..302
Reversing lamps .. . . . .... . . . ...357
Roll-over bars . . .. . . . . . . . . . . .. ..60
Di splay message . . . . ..... . . . ..297
Exp lanation . . . . . . . .. . . . . . . ... 425
Malfunction . . . . . . . .. . . . . . . ... 315
Ope rating manually . . ..... . . . ..344
Warn ing lamp .... . . . .... . . . ...315
Roo f– see Soft top . . ..... . . . ...184
Roof load, maximum . ..... . . . ...408
Roof rack . . ..... . . . ..... . . . ...216
Roof switch ..... . . . ..... . . . ...185
Ruffled pocke ts... . . . .... . . . ...228
Run -ont ime (mobile phone) . . ...233 S
Seat . . ..... . . . ..... . . . ..... . ..25
Adjusting . . . . . .. . . . . . . .. . . . . ..26
Storing settings .. . . . . . . .. . . . . ..97
Seat belt. . . . . . . .. . . . . . . .. . . . . ..32
Display message . . . . . . . .. . . . .. 296
War ning lamp . . .. . . . . . . .. . . . .. 316
Seat belt extender . . .. . . . . . . . . ..34
Problems . . . . . .. . . . . . . .. . . . .. 320
Seat heating . . . ..... . . . ..... . ..96
Ma lfunction . . . . ..... . . ..... .. 308
Seat ventilation . .. . . . . . . .. . . . . ..95
Ma lfunction . . . . ..... . . ..... .. 308
Se curing a load . .. . . . . . . .. . . . .. 222
Secu ring straps . .. . . . . . . .. . . . .. 222
Selecto rlever
Display message . . . . . . . .. . . . .. 292
Position (automatic
transmission) . . .. . . . . . . .. . . . .. 139
Servi ce
Calling up the due date . . . ...... 266
Clearing the indicator . . . .. . . . .. 265
Display message . . . . . . . .. . . . .. 265
Missin gthe due date . . . . .. . . . .. 265
Re setting the ind icat or . . . . ...... 266
Type . .. . . . . . . .. . . . . . . .. . . . .. 265 Service products
.. . . . . .... . . . . .410
Brake fluid . . .... . . . . .... . . . . .416
Coolant . . . . . .... . . . . .... . . . . .415
En gine oil . . . .... . . . . .... . . . . .414
Saf ety precautions . . . . .... . . . . .410
Windscreen washer fluid . . . . . . . .416
Settings Calling up the memory . . . . . . . . . . .98
Factory (key) .... . . . . .... . . . . ..79
Factory (KEYLESS GOkey) .. . . . . ..82
Re setting all (oper ating system )..1 17
Setting key dependen ce
(operating system) . . . . . . . . . . . . .130
Storing key-de pendent . .... . . . . ..97
Shift range Automatic transmission .... . . . . .140
Side lamps Changing . . . .... . . . . .... . . . . .360
Side window Ma lfunction . .... . . . . ..... 332, 333
Rese tting . . . .... . . . . .... . . . . .180
Side windows Op ening /closing . . . . . .... . . . . .178
Sidebags . . . . ..... . . . . .... . . . . ..56
Skibag ... . . . . .... . . . . .... . . . . .217
Rem oving . . . .... . . . . .... . . . . .220 209en_d2.boo Seite
439 Dienstag, 25. Mai 2004 7:26 19
