ContentsSafety and Security........................... 55
Occupant safety................................... 56
Airbags ........................................... 57
Seat belts ....................................... 62
Children in the vehicle .................... 65
Blocking of rear door window
operation ........................................ 72
Panic alarm* ........................................ 73
Activating ....................................... 73
Deactivating ................................... 73
Driving safety systems ......................... 74
ABS ................................................ 74
BAS ................................................ 75
ESP ................................................. 76
Four wheel electronic traction
system (4MATIC) with the ESP ....... 79
Anti-theft systems................................ 80
Immobilizer..................................... 80
Anti-theft alarm system* ................ 80
Tow-away alarm* ........................... 81
Controls in detail............................... 83
Locking and unlocking ......................... 84
SmartKey ....................................... 84
Opening the doors from
the inside ....................................... 87
Opening the tailgate ....................... 87
Closing the tailgate ........................ 88
Automatic central locking .............. 88
Locking and unlocking from
the inside ....................................... 89
Seats ................................................... 90
Easy-entry/exit feature* ................ 90
Removing and installing front seat
head restraints ............................... 91
Rear seat head restraints ............... 92
Multicontour seat* ......................... 95
Heated seats* ................................ 95
Memory function* ............................... 97
Storing positions into memory ....... 98
Recalling positions from memory ... 98
Storing exterior rear view mirror
parking position ............................. 99Lighting ............................................. 100
Exterior lamp switch .................... 100
Combination switch ..................... 103
Hazard warning flasher ................ 104
Interior lighting ............................ 105
Door entry lamps ......................... 106
Instrument cluster ............................. 107
Instrument cluster illumination .... 107
Coolant temperature display........ 108
Trip odometer .............................. 109
Tachometer .................................. 109
Outside temperature indicator ..... 109
Control system .................................. 111
Multifunction display.................... 111
Multifunction steering wheel........ 112
Menus .......................................... 114
Standard display menu ................ 116
AUDIO menu ................................ 116
NAVI* menu ................................. 119
Malfunction memory menu .......... 120
Settings menu .............................. 121
Trip computer menu..................... 134
TEL menu* ................................... 136

35 Getting started
Adjusting
Power seat* adjustment
The seat adjustment switches are located
in each front door.
1Head restraint height
2Seat height
3Seat cushion tilt
4Seat fore and aft adjustment
5Seat backrest tilt
Turn the SmartKey in the starter switch
to position1 or2 (
page 31).
or

Open the driver’s or front passenger
door.Seat fore and aft adjustment

Press switch forward or backward in
direction of arrow4.
Adjust seat to a comfortable seating
position that still allows you to reach the
accelerator/brake pedal safely. The posi-
tion should be as far rearward as possible,
consistent with ability to properly operate
controls.Seat cushion tilt

Press switch up or down in direction of
arrow3 until your upper legs are
lightly supported.
Seat backrest tilt

Press switch forward or backward in
direction of arrow5 until your arms
are slightly angled when holding the
steering wheel.
Seat height

Press switch up or down in direction of
arrow2.
Head restraint height

Press switch up or down in direction of
arrow1.
iWhen moving the seat, be sure that
there are no items in the footwell or
behind the seat. Otherwise you could
damage the seat.
The memory function* (
page 97) lets
you store the setting for the seat posi-
tion together with the settings for the
steering wheel and exterior rear view
mirrors.

97 Controls in detail
Memory function*
Memory function*
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per SmartKey.
The following settings are saved for each
stored position:

Driver’s seat and backrest position


Steering wheel position


Driver’s side exterior rear view mirror
position


Passenger side exterior rear view mir-
ror position


Front passenger seat position
These key-dependent memory settings
can be deactivated if desired
(
page 133).The memory button and stored position
button are located on the door.
1Memory button
2Stored position button

Make sure the ignition is switched on
or the relevant door is open and the
SmartKey is inserted in the starter
switch.
!Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to
ensure adequate control, reach and
comfort. The head restraint should also
be adjusted for proper height. See also
the section on airbags (
page 57) for
proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be
adjusted for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!
G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.

98 Controls in detailMemory function*Storing positions into memory
Adjust the seats, steering wheel and
rear view mirrors to the desired posi-
tion (
page 32).

Turn button2 to selected memory
position.

Press memory button1.

Release memory button and push
button2 within three seconds.
All the settings are stored at the
selected position.
Recalling positions from memory
Turn button2 to selected memory
position.

Press and hold button2 until the seat,
steering wheel and rear view mirrors
have fully moved to the stored posi-
tions.iReleasing the button immediately
stops movement to the stored posi-
tions.
Warning!
G
Do not operate the power seats using the
memory button if the seat backrest is in an
excessively reclined position. Doing so
could cause damage to front or rear seats.
First move backrest to an upright position.

99 Controls in detail
Memory function*
Storing exterior rear view mirror parking position
For easier parking, you can adjust the
passenger-side exterior rear view mirror so
that you can see the right rear wheel as
soon as you engage reverse gearR.
For information on activating the parking
position, see “Setting parking position for
exterior rear view mirror” (
page 134).
1Memory button
2Adjustment button
3Passenger side exterior rear view
mirror button

Stop the vehicle.

Switch on ignition (if not already on).

Press button3.
The passenger-side exterior rear view
mirror is selected.

Adjust the exterior rear view mirror
with button2 so that you see the rear
wheel and the road curb.

Press memory button1.

Within three seconds, press bottom of
adjustment button2.
The parking position is stored if the
mirror does not move.
iYou can store a parking position for the
passenger-side exterior rear view
mirror for each SmartKey.
iIf the mirror does move, repeat the
above steps. After the setting is stored
you can move the mirror again.

123 Controls in detail
Control system
The table below shows what settings can
be changed within the various menus.
Detailed instructions on making individual
settings can be found on the following
pages.INSTRUMENT CLUSTER
LIGHTING
VEHICLE
CONVENIENCE
Set time (hours)
Set daytime running lamp mode
(USA only)
Set station selection mode
(radio)
Activate easy-entry/exit feature
Set time (minutes)
Set locator lighting
Set automatic locking
Set key-dependency
Select time display mode
Exterior lamps delayed shut-off
Set parking position for exterior
rear view mirror
Select temperature display
mode
Interior lighting delayed shut-off
Select speedometer display
modeSelect languageSelect display (speed display or
outside temperature)

132 Controls in detailControl systemConvenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE

submenu to change the settings for a
number of convenience features. The
following functions are available:
Activating easy-entry/exit feature*
Use this function to activate and
deactivate the easy-entry/exit feature.
When the feature is activated, the steering
wheel and driver’s seat will move back to
facilitate exiting when you


remove the SmartKey from the starter
switch


open the driver’s doorHowever, the engine must be turned off. After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when you


close the driver’s door with the
SmartKey in starter switch position2.


you put the SmartKey in the starter
switch with the driver’s door closed.
Function
Page
Activate easy-entry/exit
feature*
132
Set key-dependency
133
Set parking position for exterior
rear view mirror
134
Warning!
G
You must make sure no one can become
trapped or injured by the moving steering
wheel and the driver’s seat when the
easy-entry/exit feature* is activated and
the driver’s door is being opened and the en-
gine is turned off or the SmartKey is re-
moved from the starter switch.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature*, which could result in an accident
and/or personal injury.
iTo cancel seat/steering wheel
movement, do one of the following:

press the seat adjustment switch*
(page 35)


move the steering column stalk*
(page 37)


press the stored position button*
(page 97)

133 Controls in detail
Control system

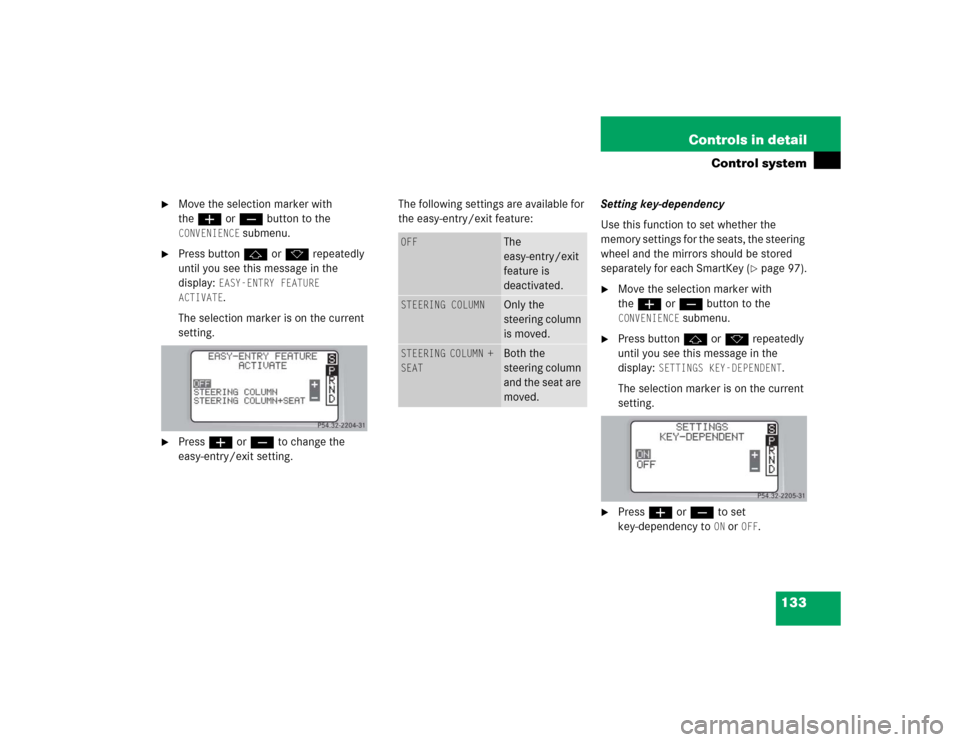

Move the selection marker with
theæ orç button to the CONVENIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the
display:
EASY-ENTRY FEATURE
ACTIVATE.
The selection marker is on the current
setting.

Pressæ orç to change the
easy-entry/exit setting.The following settings are available for
the easy-entry/exit feature:Setting key-dependency
Use this function to set whether the
memory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each SmartKey (
page 97).

Move the selection marker with
theæ orç button to the CONVENIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the
display:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Pressæ orç to set
key-dependency to
ON or
OFF
.
OFF
The
easy-entry/exit
feature is
deactivated.
STEERING COLUMN
Only the
steering column
is moved.
STEERING COLUMN +
SEAT
Both the
steering column
and the seat are
moved.
