2004 MERCEDES-BENZ C230 KOMPRESSOR COUPE Owner's Manual

129 Controls in detail
Control system

Press buttonj ork repeatedly
until you see this message in the dis-
play:
PRESS BUTTON IN AUDIO MODE
.
The selection marker is on the current
setting.

Pressæ orç to select the de-
sired station selection mode. You can
select:

STATION SEARCH


MEMORY
selects next stored stationSetting automatic locking
Use this function to activate or deactivate
the automatic central locking. With the au-
tomatic central locking system activated,
the vehicle is centrally locked at vehicle
speeds of approximately 9 mph
(15 km/h).

Move the selection marker with
theæ orç button to the Vehicle
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AUTOMATIC DOOR LOCK
.
The selection marker is on the current
setting.

Pressæ orç to switch AUTOMATIC DOOR LOCK
ON or
OFF
.Convenience submenu
Access the
CONVENIENCE
submenu via the
SETTINGS
menu. Use the
CONVENIENCE
sub-
menu to change the settings for a number
of convenience features. The following
functions are available:
Function
Page
Activate easy-entry/exit feature
130
Set key-dependency
131
Set parking position for exterior
rear view mirror
132

130 Controls in detailControl systemActivating easy-entry/exit feature*
Use this function to activate and deacti-
vate the easy-entry/exit feature. When the
feature is activated, the steering wheel and
driver’s seat will move back to facilitate ex-
iting when you

remove the SmartKey from the starter
switch


open the driver’s door
However, the engine must be turned off.After entering the vehicle, the steering
wheel and seat will move into the position
stored in memory when


the driver’s door is closed


you put the SmartKey in the starter
switch and


press the appropriate stored position
button on the memory switch
(page 96)
Warning!
G
You must make sure that no one can be-
come trapped or injured by the moving
steering wheel and the driver’s seat when
the easy-entry/exit feature is activated and
the driver’s door is being opened or the
SmartKey is removed from the starter
switch.
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door and
unintentionally activate the easy-entry/exit
feature*, which could result in an accident
and/or serious personal injury.
iTo cancel seat/steering wheel move-
ment, do one of the following:

Press the seat adjustment
switch*(
page 35).


Move the steering column stalk*
(page 38).


Press the memory switch*
(page 96).

131 Controls in detail
Control system

Move the selection marker with
theæ orç button to the
CONVE-
NIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the
display:
EASY-ENTRY FEATURE ACTI-
VATE
.
The selection marker is on the current
setting.

Pressæ orç to change the
easy-entry/exit setting.The following settings are available for
the easy-entry/exit feature:Setting key-dependency
Use this function to set whether the mem-
ory settings for the seats, the steering
wheel and the mirrors should be stored
separately for each SmartKey (
page 95).

Move the selection marker with
theæ orç button to the
CONVE-
NIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
SETTINGS KEY-DEPENDENT
.
The selection marker is on the current
setting.

Pressæ orç to set
key-dependency to
ON or
OFF
.
OFF
The
easy-entry/exit
feature is
deactivated.
STEERING COLUMN
Only the
steering column
is moved.
STEERING COLUMN +
SEAT
Both the
steering column
and the seat are
moved.

132 Controls in detailControl systemSetting parking position for exterior rear
view mirror
Use the
MIRROR SETTING WHEN PARKING

function to select whether the passen-
ger-side exterior rear view mirror should be
turned downward during parking maneu-
vers when reverse gear is engaged. For ad-
ditional information, see “Activating
exterior rear view mirror parking position”
(
page 147).
You can store a parking position for the
passenger exterior rear view mirror using
the memory switch (
page 97).

Move the selection marker with
theæ orç button to the
CONVE-
NIENCE
submenu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
MIRROR SETTING WHEN PARKING
.
The selection marker is on the current
setting.

Pressæ orç to switch function ON or
OFF
.
Trip computer menu
Use the trip computer menu to call up sta-
tistical data on your vehicle. The following
information is available:Function
Page
Fuel consumption statistics after
start
133
Fuel consumption statistics
since last reset
133
Call up range (distance to empty)
134

133 Controls in detail
Control system

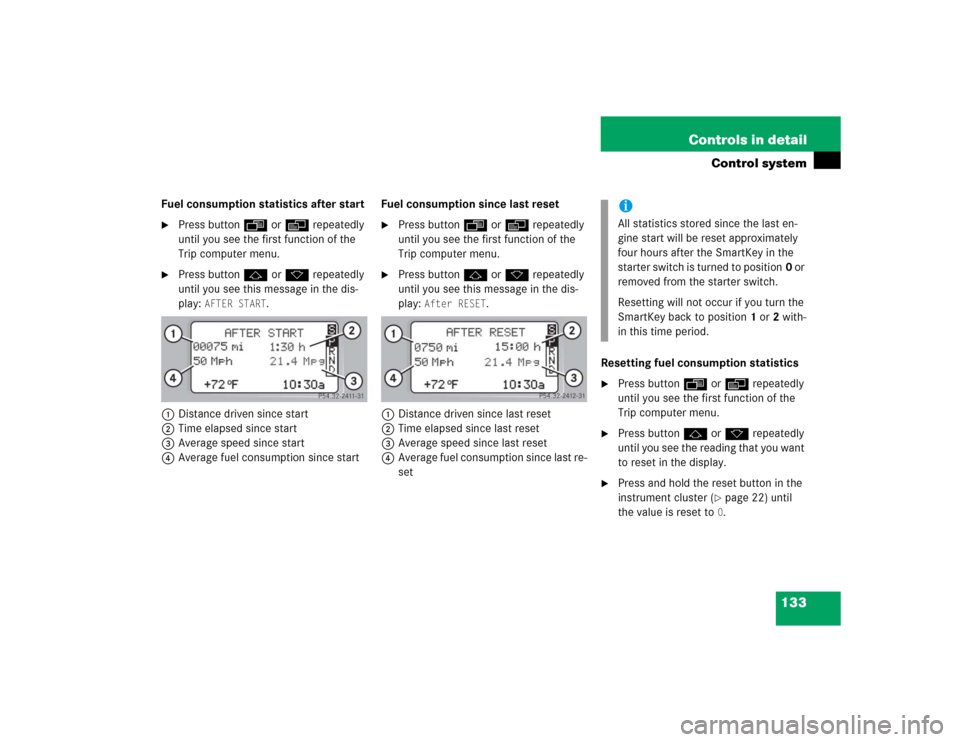

Fuel consumption statistics after start
Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
AFTER START
.
1Distance driven since start
2Time elapsed since start
3Average speed since start
4Average fuel consumption since startFuel consumption since last reset

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
After RESET
.
1Distance driven since last reset
2Time elapsed since last reset
3Average speed since last reset
4Average fuel consumption since last re-
setResetting fuel consumption statistics

Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see the reading that you want
to reset in the display.

Press and hold the reset button in the
instrument cluster (
page 22) until
the value is reset to 0.
iAll statistics stored since the last en-
gine start will be reset approximately
four hours after the SmartKey in the
starter switch is turned to position0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position1 or2 with-
in this time period.

134 Controls in detailControl systemCall up range (distance to empty)
Press buttonÿ orè repeatedly
until you see the first function of the
Trip computer menu.

Press buttonj ork repeatedly
until you see this message in the dis-
play:
RANGE
.
In the display you will see the calculat-
ed range based on the current fuel tank
level.
TEL menu*
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and
COMAND*.

Press buttonÿ orè on the
steering wheel repeatedly until you see
the
TEL
menu in the display.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we rec-
ommend that you pull over to a safe location
and stop before placing or taking a tele-
phone call. If you choose to use the tele-
phone while driving, please use the
hands-free device and only use the tele-
phone when weather, road and traffic condi-
tions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a ve-
hicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of approximately
44 feet (approximately 13.5 m) every sec-
ond.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system, pos-
sibly resulting in an accident and/or
personal injury.

135 Controls in detail
Control system
Which messages will appear in the display
field depends on whether your telephone is
switched on or off:

If the telephone is off, the message in
the multifunction display is:
TEL OFF
.


If the telephone is on:
The telephone will then search for a
network. During this time the display is
empty.
As soon as the telephone has found a
network,
READY
is indicated in the dis-
play.
1Signal strengthThis standby message indicates that your
telephone is ready for use and you can op-
erate it using the control system.Answering a call
When your telephone is ready to receive
calls, you can answer a call at any time. In
the display you will then see the message:

Press buttoní.
You have answered the call. In the dis-
play you see the length of the call.
Ending a call

Press buttonì.
You have ended the call. In the display
you will again see the standby mes-
sage.
iVehicles with Audio system:
the signal strength is indicated in the
top right corner, for example “S9”. The
higher the number, the stronger the
signal from the cellular network.
Vehicles with COMAND*:
the signal strength is indicated by bars
in the top left corner. The higher the
number of bars, the stronger the signal
from cellular network.

136 Controls in detailControl systemDialing a number from the phone book
If your telephone is ready to receive calls,
you may select and dial a number from the
phone book at any time.
Press buttonÿ orè repeatedly
until you see the
TEL
menu in the
display.

Press buttonj ork.
The control system reads the phone
book which is stored in the telephone.
This may take up to 30 seconds. In the
display you will see the message PLEASE WAIT
.
When the message
PLEASE WAIT
disap-
pears, the phone book has been load-
ed.

Press buttonj ork repeatedly
until the desired name appears in the
display.
The stored names are displayed in as-
cending or descending alphabetical or-
der.

Press buttoní.
The system dials the selected phone
number.

If the connection is successful, the
name of the party you called and
the duration of the call will appear
in the display.


If no connection is made, the con-
trol system stores the dialed num-
ber in the redial memory.Redialing
The control system stores the most recent-
ly dialed phone numbers. This eliminates
the need to search through your entire
phone book.

Press buttonÿ orè repeatedly
until you see the
TEL
menu in the dis-
play.

Press buttoní.
In the display you see the first number
in the redial memory.

Press buttonj ork repeatedly
until the desired name appears in the
display.

Press buttoní.
The control system dials the selected
phone number.
iIf you press and holdj ork for
longer than one second, the system
scrolls rapidly through the list of names
until you release the button again.
Cancel the quick search mode by
pressingì.
