2004 MAZDA MODEL SPEED MX-5 MIATA headlights

1-4
Your Vehicle at a Glance
Form No. 8T02-EA-03L
Exterior Overview
Door and keys
Outside mirrors
Side-marker lights
Headlights
Fuel-filler lid
Tires
Windshield wiper blades
Washer fluid
Hood
Front turn signal lights/
Parking lights Rear turn signal lights
Brake lights/Taillights
Power windows
Rear window defroster
Trunk lid
High-mount brake light
License plate
lights/Trunk lights
Reverse lights
Convertible top
Antenna
(page 3-10)
(page 8-32)
(page 8-32)
(page 8-32) (page 5-35)
(page 3-2)
(page 8-28)
(page 8-32)
(page 8-32) (page 3-15) (page 6-9)
(page 3-18)
(page 8-25)
(page 8-22)
(page 3-17)
(page 8-32) (page 8-32) (page 8-32) (page 3-32) (page 3-14)
J07S_8T02-EA-03L_Edition1.book Page 4 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

3-33
Knowing Your Mazda
Mirrors
Form No. 8T02-EA-03L

Rearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Day/Night lever
Day Night
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don ’t stack
things higher than the seatbacks.
Objects in the Storage Area:
Putting heavy or sharp objects in the
top storage area is dangerous.
During a sudden stop or collision,
they can become projectiles that
might hit and injure passengers.
Don ’t place heavy or sharp objects in
the top storage area.
Standing in a Moving Vehicle:
Standing in the vehicle, or sitting on
the convertible top storage area or
center console when it’ s moving is a
dangerous way to ride. During a
sudden maneuver or collision you
could be seriously injured or even
killed.
Sit in the seat with the seat belt on
when the vehicle is moving.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 33 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-29
Driving Your Mazda
Warning/Indicator Lights and Beep Sounds
Form No. 8T02-EA-03L

Immobilizer System Warning
Light*
If the immobilizer system is working
properly, the light will come on when the
ignition switch is turned to the ON or
START position. The light will go out
when confirmation by the immobilizer
system is completed.
If the light flashes rapidly, fails to come
on, or comes on and stays on, it indicates
a system malfunction. If any of these
occur, contact an Authorized Mazda
Dealer as soon as possible.

Headlight High-Beam Indicator
Light
This light indicates one of two things:
• The high-beam headlights are on.
• The turn signal lever is in the flash-to-
pass position.


O/D OFF Indicator Light
(Automatic transmission)
This light comes on when the overdrive
has been turned off.

Cruise Set Indicator Light*
This light comes on when a cruising speed
is set.
If the overdrive-off indicator light
flashes, the transmission has an
electrical problem. Continuing to drive
your Mazda in this condition could
cause damage to your transmission.
Consult an Authorized Mazda Dealer
as soon as possible.
CAUTION
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 29 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-31
Driving Your Mazda
Form No. 8T02-EA-03L
Switches and Controls

Headlights
To turn on the lights, turn the headlight
switch on the end of the control lever.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep sound
will be heard when any door is opened.

Headlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.

Flashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
Lighting Control
Switch Position OFF
Headlights Off Off OnTaillights
Parking lights
License lights
Side-marker lights Off On On
NOTE
To prevent discharging the battery,
don't leave the lights on while the
engine is off.
OFF
High beam
Low beam
J07S_8T02-EA-03L_Edition1.book Page 31 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-32
Driving Your Mazda
Switches and Controls
Form No. 8T02-EA-03L

Turn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change —until the
indicator flashes
— and hold it there. It
will return to the off position when
released. Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
To turn on the fog lights, first turn the
headlight switch to the position.
Then press the fog light switch.
To turn the fog lights off:
(Type A)

Press the fog light switch again or turn the
headlight switch to the or OFF
position.
(Type B)
Press the left part of the fog light switch
or turn the headlight switch to the or
OFF position.
Turn and Lane-Change
Signals
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Right turn
Left turn Right lane
change
Left lane
change OFF
Fog Lights*
NOTE
The fog lights will turn off when the
headlights are set at high beam.
Type A
Type B
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 32 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-33
Driving Your Mazda
Switches and Controls
Form No. 8T02-EA-03L
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.The ignition switch must be in the ON
position.
Daytime Running Lights
(Canada)
NOTE
The running lights go off when the
parking brake is applied.
Windshield Wipers and
Washer
Frozen Washer Fluid:
Using windshield washer fluid
without anti-freeze protection in
freezing temperatures is dangerous.
The washer fluid could freeze on the
windshield and block your vision. You
could have an accident. Don
’t use the
washer without first warming the
windshield and never use plain tap
water.
NOTE
Because heavy ice and snow can jam
the wiper blades, the wiper motor is
protected from motor breakdown,
overheating and possible fire by a
circuit breaker. This mechanism will
automatically stop operation of the
blades, but only for about 5 minutes.
If this happens, turn off the wiper
switch and park off the right-of-way,
and remove the snow and ice.
After 5 minutes, turn on the switch and
the blades should operate normally. If
they don ’t resume functioning, consult
an Authorized Mazda Dealer as soon
as possible.
WARNING
J07S_8T02-EA-03L_Edition1.book Page 33 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-32
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Light Bulbs
Front turn signal lights/
Parking lights
Side-marker lights Overhead light
License plate lights/
Trunk lights
High-mount brake light
Rear turn signal lights Brake lights/Taillights Reverse lights
Headlights
Fog lights*
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 32 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

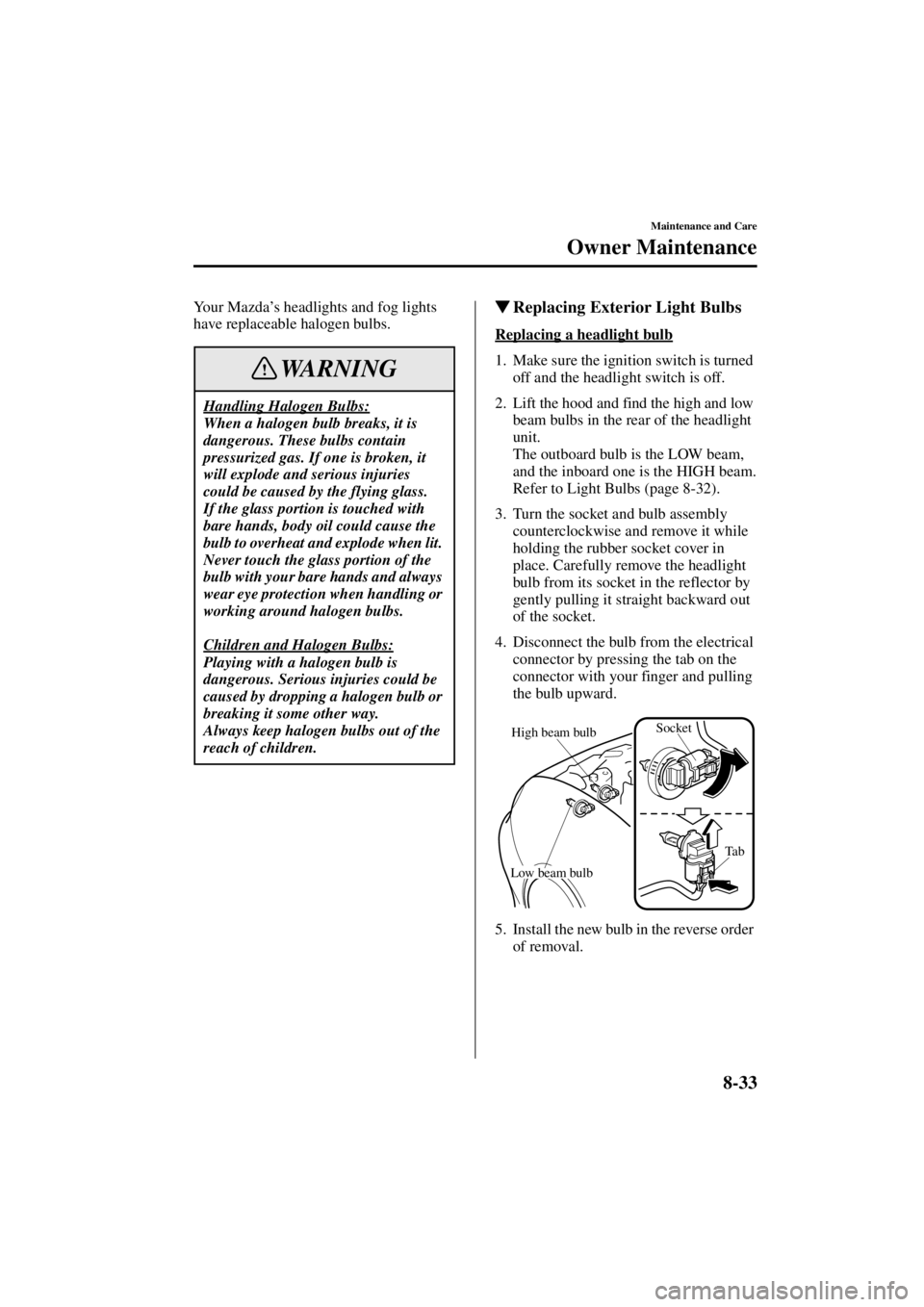

8-33
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Your Mazda’s headlights and fog lights
have replaceable halogen bulbs.
Replacing Exterior Light Bulbs
Replacing a headlight bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood and find the high and low beam bulbs in the rear of the headlight
unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
Refer to Light Bulbs (page 8-32).
3. Turn the socket and bulb assembly counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
5. Install the new bulb in the reverse order of removal.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries
could be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
WARNING
High beam bulb
Ta b
Low beam bulb
Socket
J07S_8T02-EA-03L_Edition1.book Page 33 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI
