With cruise control, you can set and
automatically maintain any speed of more
than about 40 km/h (25 mph).

Cruise Set Indicator Light
This light comes on when a cruising speed
is set.

Activation/Deactivation
To activate the system, press the CRUISE
MAIN switch.
To deactivate the system, push the switch
again.
Cruise Control*
Cruise Control Use:
Using cruise control in the following
conditions could cause you to lose
control of the vehicle:
•
Hilly terrain
• Steep inclines
• Heavy or unsteady traffic
• Slippery or winding roads
• Similar restrictions that require
inconsistent speed
Don ’t use cruise control in these
situations.
WARNING
Cruise Main Switch:
Leaving the CRUISE MAIN switch
on when not using the cruise control
is dangerous as it may be switched on
accidentally. This could result in loss
of vehicle control. Keep the CRUISE
MAIN switch off when cruise control
is not in use.
Indicator light
WARNING
*Some models.
J07S_8T02-EA-03L_Edition1.book Page 15 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-16
Driving Your Mazda
Starting and Driving
Form No. 8T02-EA-03L

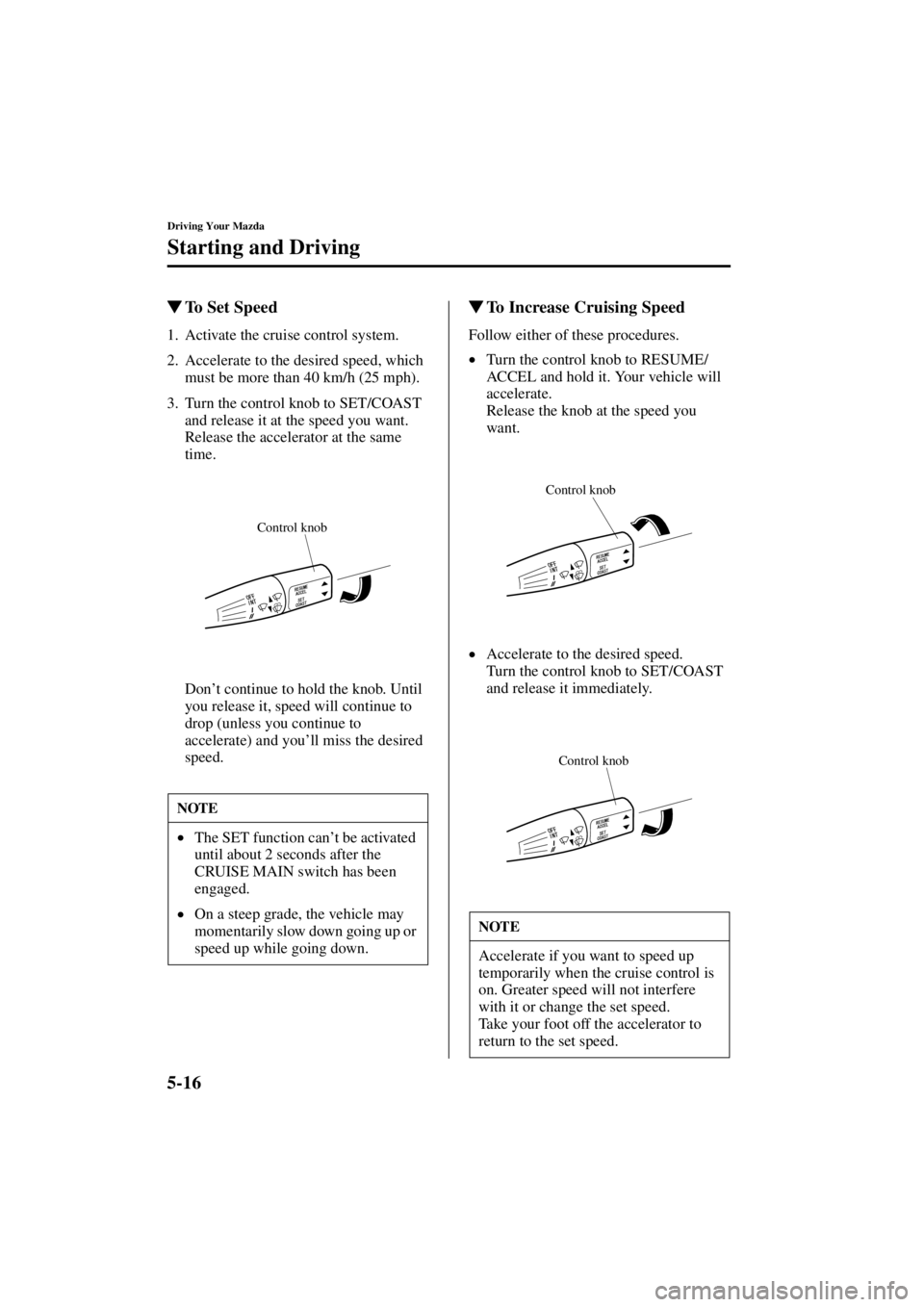

To Set Speed
1. Activate the cruise control system.
2. Accelerate to the desired speed, which
must be more than 40 km/h (25 mph).
3. Turn the control knob to SET/COAST and release it at the speed you want.
Release the accelerator at the same
time.
Don ’t continue to hold the knob. Until
you release it, speed will continue to
drop (unless you continue to
accelerate) and you ’ll miss the desired
speed.

To Increase Cruising Speed
Follow either of these procedures.
• Turn the control knob to RESUME/
ACCEL and hold it. Your vehicle will
accelerate.
Release the knob at the speed you
want.
• Accelerate to the desired speed.
Turn the control knob to SET/COAST
and release it immediately.
NOTE
•The SET function can
’t be activated
until about 2 seconds after the
CRUISE MAIN switch has been
engaged.
• On a steep grade, the vehicle may
momentarily slow down going up or
speed up while going down.
Control knob
NOTE
Accelerate if you want to speed up
temporarily when the cruise control is
on. Greater speed will not interfere
with it or change the set speed.
Take your foot off the accelerator to
return to the set speed.
Control knob
Control knob
J07S_8T02-EA-03L_Edition1.book Page 16 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

5-17
Driving Your Mazda
Starting and Driving
Form No. 8T02-EA-03L

To Decrease Cruising Speed
Turn the control knob to SET/COAST and
hold it. The vehicle will gradually slow.
Release the knob at the speed you want.

To Resume Cruising Speed at
More Than 40 km/h (25 mph)
If some other method besides the CRUISE
MAIN switch was used to cancel cruising
speed and the system is still activated, the
most recent set speed will automatically
resume when the control knob is turned to
RESUME/ACCEL.
If vehicle speed is below 40 km/h (25
mph), increase the vehicle speed up to 40
km/h (25 mph) and turn the control knob
to RESUME/ACCEL.

To Cancel
To turn off the system, use one
of these
methods:
• Press the CRUISE MAIN switch.
• Slightly depress the brake pedal.
• Depress the clutch pedal. (Manual
transmission only)
The system is off when the ignition is off.
Control knob
Control knob
NOTE
Cruise control will cancel at about 15
km/h (9 mph) below the preset speed
or below 40 km/h (25 mph).

J07S_8T02-EA-03L_Edition1.book Page 17 Monday, November 10, 2003 11:21 AM
Black process 45.0 ° 240.0 LPI

8-39
Maintenance and Care
Owner Maintenance
Form No. 8T02-EA-03L
Fuse panel (Driver’s side)
*1 MX-5/miata*2 MAZDASPEED MX-5
DESCRIPTION FUSE
RATING PROTECTED
COMPONENT
1 AD FAN
*120A Add fan motor,
Magnet clutch
2 HEAD.LH 15A Headlights (LH)
3 HEAD.RH 15A Headlights (RH)
4 —— —
5ST.SIG 7.5A Instrument
cluster, Cruise
control
*
6
FA N*230A Cooling fan,
Additional fan
(air conditioner)
7 CIGAR 20A Cigar lighter
8 RADIO 10A Audio
*
9 F.FOG 15AFog lights*
10 TAIL 15A Taillights, Front
parking lights,
Side-marker
lights
11 ENGINE 15A Engine control
system
12 METER 15A Instrument
cluster
DESCRIPTIONFUSE
RATING PROTECTED
COMPONENT
13 TURN 7.5A Tu r n s ig na l
lights
14 A/B 10A Supplemental
restraint system,
Antilock brake
system
*
15 WIPER 20A
Windshield
wipers and
washer
16 P.WIND 30A Power windows
17 A/C 7.5A Air conditioner
*
18 HAZARD 10ATu r n s ig na l
lights
19 D.LOCK 10A
Power door lock*
20 AUDIO 20A Audio amp*
21 DEFOG 15A Rear defroster
22 ROOM 10AInterior light,
Auto antenna,
Warning buzzers
*Some models.
