2004 MAZDA MODEL RX 8 warning light

5-46
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Headlight Auto-Leveling
Malfunction Indicator Light*
This indicator light stays on far a few
seconds when the ignition switch is turned
to the ON position.
Thereafter, the indicator light will
illuminate when the headlight auto-
leveling system has a malfunction.
If the indicator light illuminates, contact
an Authorized Mazda Dealer.

Turn-Signal/Hazard Warning
Indicator Lights
When operating the turn-signal lights, the
left or right turn-signal indicator light
flashes to indicate which turn-signal light
is operating (page 5-50).
When operating the hazard warning
lights, both turn-signal indicator lights
flash (page 5-55).
NOTE
The power steering system is
inoperable when the malfunction
indicator light illuminates. Manual
steering is possible, but requires more
physical effort.
NOTE
If an indicator light remains
illuminated (does not flash) or if it
flashes abnormally, the turn signal bulb
may be burned out.
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 46 Saturday, April 26, 2003 1:48 PM

5-47
Driving Your Mazda
Warning/Indicator Lights and Beeps
Form No. 8R65-EA-03C

Seat Belt Warning Beep
If the driver’s seat belt is not fastened
when the ignition switch is turned to the
ON position, a beep will sound for about
6 seconds.

Ignition Key Reminder
If the ignition switch is in the LOCK or
ACC position, a beep will sound when the
driver’s door is opened.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when the driver’s door is opened.

Engine Overrev Warning Beep
The beep sounds to indicate engine
overrev when the tachometer needle
enters the striped zone (page 5-31).

Tire Inflation Pressure Warning
Beep*
The warning beep sounds for about 3
seconds when there is any abnormality in
tire inflation pressures.
(page 5-24)
Beeps
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 47 Saturday, April 26, 2003 1:48 PM

5-48
Driving Your Mazda
Form No. 8R65-EA-03C
Switches and Controls

Headlights
To turn on the lights, turn the headlight
switch on the end of the control lever.
Xenon fusion headlight bulbs*
The low-beam bulbs of the headlights
have xenon fusion bulbs that produce a
bright white beam over a wide area.

Lights-On Reminder
If lights are on and the key is removed
from the ignition switch, a beep will
sound when the driver’s door is opened.

Headlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.
Lighting Control
Switch Position OFF
Headlights Off Off On
Taillights
Parking lights
License lights
Side-marker lightsOff On On
NOTE
To prevent discharging the battery,
don’t leave the lights on while the
engine is off.
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs by
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs by yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
NOTE
If the headlights flash, or the
brightness weakens, the bulb-life may
be depleted and a replacement is
necessary. Consult an Authorized
Mazda Dealer.
WARNING
Low beamHigh beam
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 48 Saturday, April 26, 2003 1:48 PM

5-55
Driving Your Mazda
Switches and Controls
Form No. 8R65-EA-03C
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all four turn signals will flash at once.The HomeLink system replaces up to 3
hand-held transmitters with a single built-
in component in the auto-dimming mirror.
Pressing the HomeLink button on the
auto-dimming mirror activates garage
doors, gates and other devices
surrounding your home.
Hazard Warning Flasher
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher
HomeLink Wireless
Control System*
NOTE
HomeLink and HomeLink house are
registered trademarks of Johnson
Controls.
HomeLink buttonIndicator light
*Some models.
J60E_8R65-EA-03C_Edition2.book Page 55 Saturday, April 26, 2003 1:48 PM

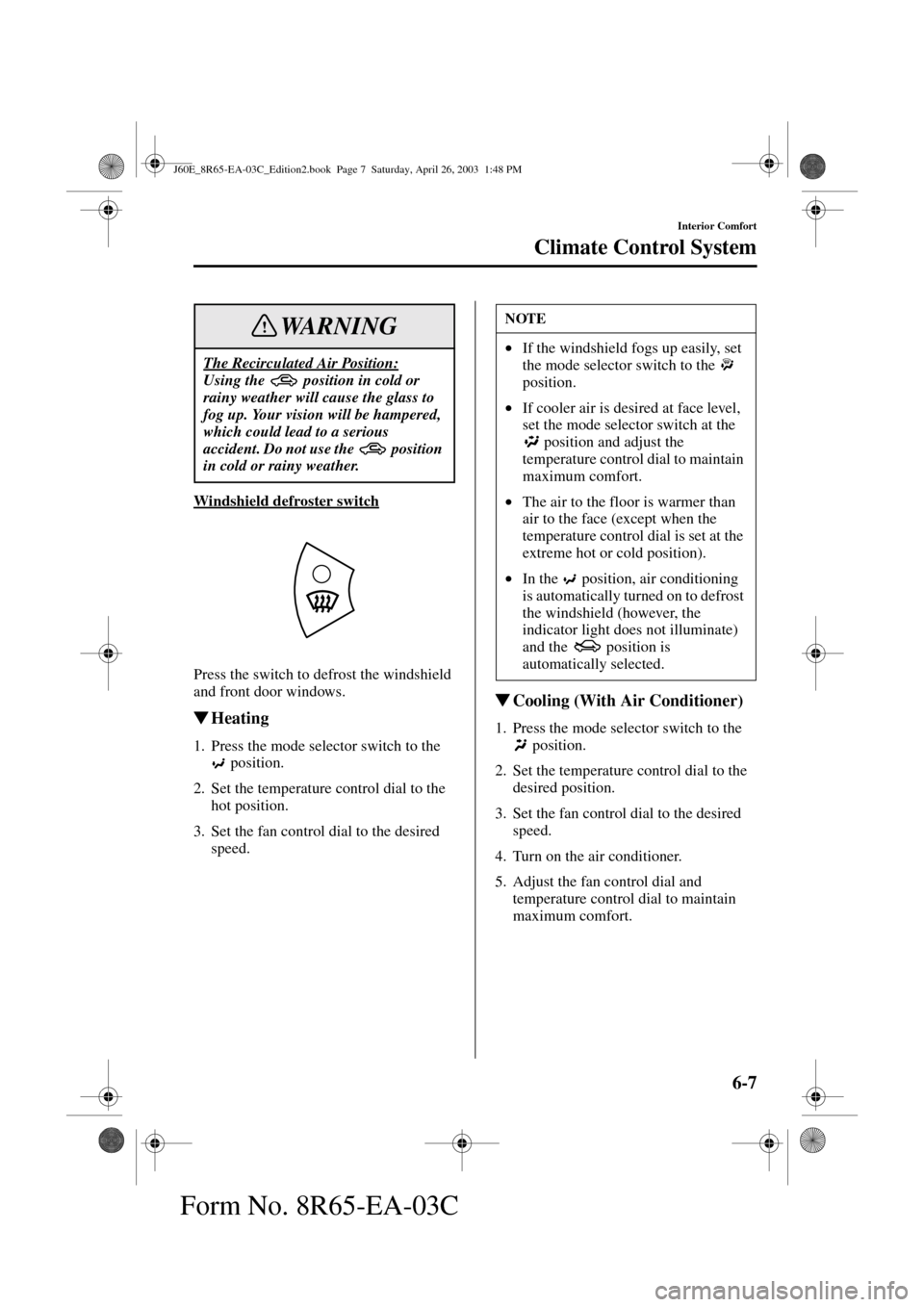

6-7
Interior Comfort
Climate Control System
Form No. 8R65-EA-03C
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.

Heating
1. Press the mode selector switch to the
position.
2. Set the temperature control dial to the
hot position.
3. Set the fan control dial to the desired
speed.

Cooling (With Air Conditioner)
1. Press the mode selector switch to the
position.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed.
4. Turn on the air conditioner.
5. Adjust the fan control dial and
temperature control dial to maintain
maximum comfort.
The Recirculated Air Position:
Using the position in cold or
rainy weather will cause the glass to
fog up. Your vision will be hampered,
which could lead to a serious
accident. Do not use the position
in cold or rainy weather.
WARNINGNOTE
•If the windshield fogs up easily, set
the mode selector switch to the
position.
•If cooler air is desired at face level,
set the mode selector switch at the
position and adjust the
temperature control dial to maintain
maximum comfort.
•The air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
•In the position, air conditioning
is automatically turned on to defrost
the windshield (however, the
indicator light does not illuminate)
and the position is
automatically selected.
J60E_8R65-EA-03C_Edition2.book Page 7 Saturday, April 26, 2003 1:48 PM

6-8
Interior Comfort
Climate Control System
Form No. 8R65-EA-03C

Ventilation
1. Press the mode selector switch to the
position.
2. Set the air intake selector to the
position.
3. Set the temperature control dial to the
desired position.
4. Set the fan control dial to the desired
speed.

Windshield Defrosting and
Defogging
1. Press the windshield defroster switch.
2. Set the temperature control dial to the
desired position.
3. Set the fan control dial to the desired
speed. When using the air conditioner while
driving up long hills or in heavy traffic,
closely monitor the temperature gauge
(page 5-32).
The air conditioner may cause engine
overheating. If the gauge indicates
overheating, turn the air conditioner
off.
NOTE
•When maximum cooling is desired,
set the temperature control dial to
the extreme cold position and set
the air intake selector to the
position, then set the fan control dial
to position 4.
•If warmer air is desired at floor
level, set the mode selector switch
at the position and adjust the
temperature control dial to maintain
maximum comfort.
•The air to the floor is warmer than
air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).
CAUTION
Foggy Windshield:
Using the position with the
temperature control set to the cold
position will cause the outside of the
glass to fog up. Your vision will be
hampered, which could lead to a
serious accident. Set the temperature
control to the hot or warm position
when using the position.
NOTE
•For maximum defrosting, set the
temperature control dial to the
extreme hot position and the fan
control dial to position 4.
•If warm air is desired at the floor,
set the mode selector switch to the
position.
•In the or position, air
conditioning is automatically turned
on to defrost the windshield quickly
(however, the indicator light does
not illuminate) and the
position is automatically selected.
The air intake selector switch
cannot be changed to the
position.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 8 Saturday, April 26, 2003 1:48 PM

6-45
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C

Overhead Console
This console box is designed to store
accessories. Push and release to open.

Coin Box
To open, press the release catch down and
pull the lid downward.

Glove Box
To open the glove box, pull the latch
toward you.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.
Storage Compartments
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility
of injury in an accident or a sudden
stop, keep the storage boxes closed
when driving.
In hot weather, don’t leave
combustible materials such as lighters
or objects which will deform in
extreme heat such as eye glasses in the
vehicle.
WARNING
CAUTION
Don’t leave eyeglasses or lighters in
the overhead console while parked
under the sun. A lighter could explode
or the plastic material in eyeglasses
could deform and crack from high
temperature.
CAUTION
Unlock
Lock
J60E_8R65-EA-03C_Edition2.book Page 45 Saturday, April 26, 2003 1:48 PM

7-2
In Case of an Emergency
Form No. 8R65-EA-03C
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and
all four turn signals will flash at once.
Parking in an Emergency
NOTE
•The turn signals don’t work when
the hazard warning lights are on.
•Check local regulations about the
use of hazard warning lights while
the vehicle is being towed. They
may forbid it.
Hazard warning flasher
J60E_8R65-EA-03C_Edition2.book Page 2 Saturday, April 26, 2003 1:48 PM
