2004 MAZDA MODEL RX 8 clock

6-47
Interior Comfort
Interior Equipment
Form No. 8R65-EA-03C
To open, squeeze the latch and pull the lid
down.
When closing the storage box, put the
storage box back in its original position
until you hear a click sound.
Insert the master key and turn it clockwise
to lock, counterclockwise to unlock.Loading long objects with storage box
removed
The storage box can be removed for
convenient loading of long objects such as
skis placed through the trunk.
NOTE
When using the storage box to store
heavy accessories, remove the storage
box before placing or removing the
accessories.
Lock Unlock
Loading Long Objects Through
Removed Storage Box Area:
Sudden braking or maneuvering
while long objects are loaded through
the removed storage box area and into
the trunk is dangerous. Operation of
the shift/selector lever could be
obstructed resulting in a serious
accident. Secure long objects in the
trunk so that they cannot be thrown
forward in the cabin and avoid
sudden braking or maneuvering.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 47 Saturday, April 26, 2003 1:48 PM

7-4
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C

Jack
To remove the jack
1. Open the tool box.
2. Turn the jack screw counterclockwise.
To secure the jack
Perform the removal procedure in reverse.

Spare Tire
A temporary spare tire is not equipped with
your Mazda. If an emergency tire repair is
needed, repair the flat tire with the
emergency flat tire repair kit (page 7-5). If
you require a temporary spare tire, consult
an Authorized Mazda Dealer.When
installing a temporary spare tire, follow
the manufacturer’s instructions for the
temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
Jack screw
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the rear
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the front axle and move a
regular tire to the rear.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 4 Saturday, April 26, 2003 1:48 PM

7-8
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
6. Remove the cap from the bottle. Screw
on the injection hose with the bottle’s
inner cap left on to break the inner cap.
7. Remove the valve cap from the flat tire.
Press the back of a valve core tool to
the core of the tire valve and bleed all
the remaining air.8. Turn the valve core counterclockwise
with the valve core tool and remove the
valve core.
9. Remove the plug from the injection
hose and insert the injection hose into
the valve.
NOTE
The tire sealant can be used at outside
temperatures down to -30
°C.
In extremely cold temperatures (0
°C
(32
°F) or below), the tire sealant
hardens easily and injection of the
sealant will be difficult. Warm the
sealant inside the vehicle before doing
the injection work.
Injection hose
Bottle
Valve core tool Valve
Valve cap
If there is air remaining in the tire
when the valve core is removed, the
valve core could fly out. Remove the
valve core carefully.
NOTE
Store the valve core in a place where it
won’t get dirty.
CAUTION
Valve
Valve core
Injection hose Plug
J60E_8R65-EA-03C_Edition2.book Page 8 Saturday, April 26, 2003 1:48 PM

7-9
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
10. Hold the bottom of the bottle upright,
squeeze the bottle with your hands,
and inject the entire amount of tire
sealant into the tire.
11. Pull out the injection hose from the
valve. Reinsert the valve core into the
valve and turn it clockwise to install
it.
12. Attach the sticker that indicates
completion of the tire repair on a flat
outer surface of the repaired tire.13. Attach the vehicle speed restriction
sticker in a place where the driver can
easily see it.
NOTE
The tire sealant cannot be reused.
Purchase new tire sealant at an
Authorized Mazda Dealer.
Valve
Repaired tire sticker
NOTE
Do not throw away the empty tire
sealant bottle as the sealant in the
bottle can be replenished when
replacing the tire. Take the bottle to an
Authorized Mazda Dealer.
Attaching Sticker to the Steering
Wheel Pad:
Attaching the vehicle speed restriction
sticker to the steering wheel pad is
dangerous. The sticker could interfere
with air bag inflation and cause
serious injury. Also, do not attach the
sticker to the meter panel, as it would
obstruct vision of areas such as
warning light indicators or the
speedometer.
Speed restriction sticker
WARNING
J60E_8R65-EA-03C_Edition2.book Page 9 Saturday, April 26, 2003 1:48 PM

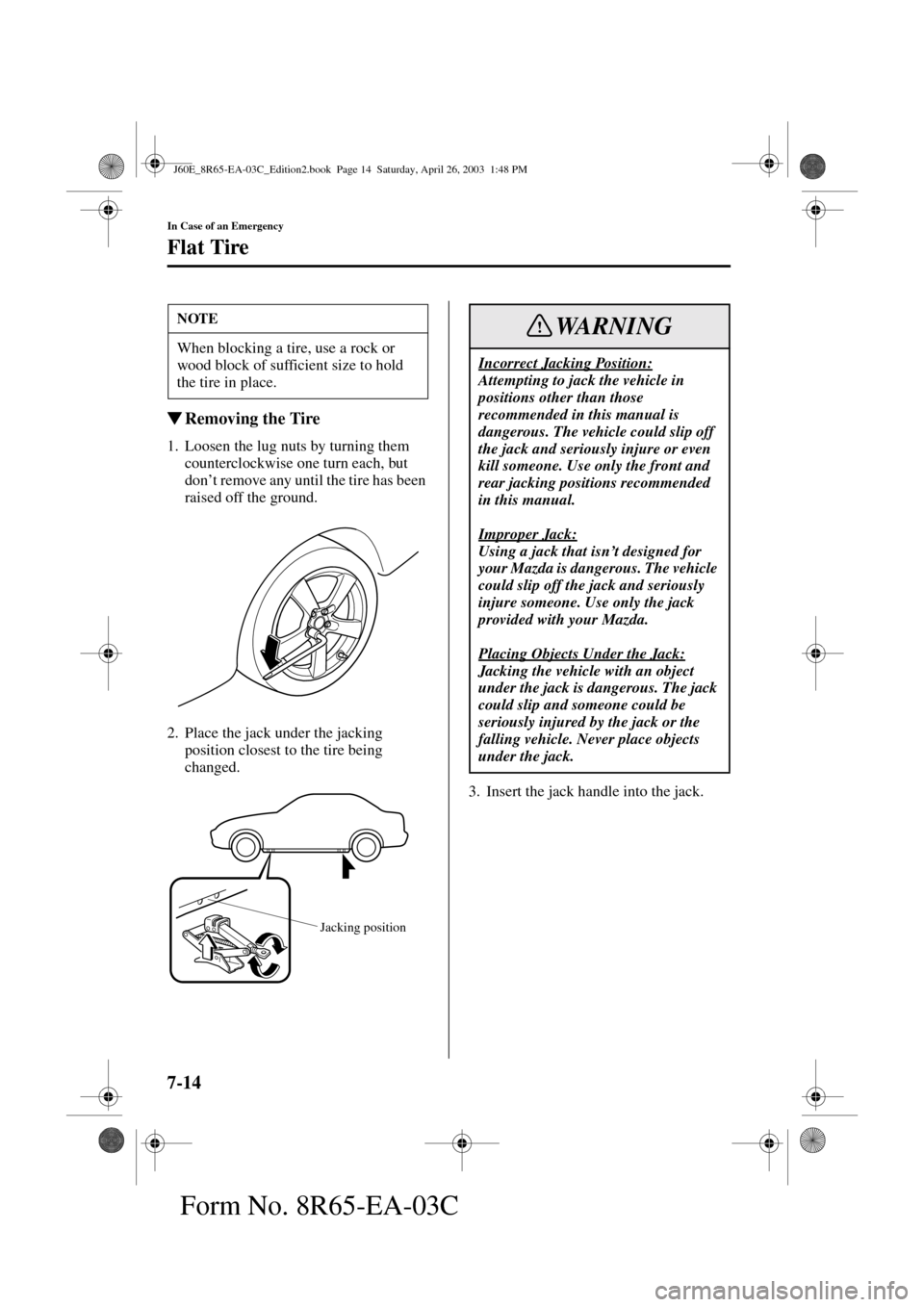

7-14
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C

Removing the Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don’t remove any until the tire has been
raised off the ground.
2. Place the jack under the jacking
position closest to the tire being
changed.
3. Insert the jack handle into the jack.
NOTE
When blocking a tire, use a rock or
wood block of sufficient size to hold
the tire in place.
Jacking position
Incorrect Jacking Position:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn’t designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 14 Saturday, April 26, 2003 1:48 PM

7-15
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
4. Turn the jack handle clockwise and
raise the vehicle high enough so that
the tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
5. Remove the lug nuts by turning them
counterclockwise, then remove the
wheel.
Locking Lug Nuts
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it in
the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer’s
order form, which is with the registration
card.
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure to
hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don’t use a power
impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
Jack handleAntitheft lug nutSpecial key
J60E_8R65-EA-03C_Edition2.book Page 15 Saturday, April 26, 2003 1:48 PM

7-16
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.

Mounting the Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
2. Mount the tire.3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
WARNING
Don’t Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the
tire to come off, resulting in an
accident. In addition, lug nuts and
bolts could be damaged if tightened
more than necessary. Do not apply oil
or grease to lug nuts and bolts and do
not tighten the lug nuts beyond the
recommended tightening torque.
WARNING
J60E_8R65-EA-03C_Edition2.book Page 16 Saturday, April 26, 2003 1:48 PM

7-17
In Case of an Emergency
Flat Tire
Form No. 8R65-EA-03C
4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you’re unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque:

N·m (kgf·m, ft·lbf) 88—118 (9—12, 65—87)
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
Metric Studs and Lug Nuts:
Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip
off and cause an accident. Be sure to
reinstall the same nuts you removed
or replace them with metric nuts of
the same configuration.
Incorrect Tire Air Pressure:
Driving on tires with incorrect air
pressure is dangerous. Tires with
incorrect pressure could affect
handling and result in an accident.
Don’t drive with any tires that have
incorrect air pressure.
NOTE
To prevent the jack and tool from
rattling, store them properly.
WARNING
