Your Vehicle at a Glance
Form No. 8S15-EA-03G
Exterior Overview
Door and keys
Outside mirrors
Side-marker lights
Headlights
Fuel-filler lid
Tires
Windshield wiper blades
Washer fluid
Hood
Front turn signal lights/
Parking lights Rear turn signal lights
Brake lights/Taillights
Power windows
Rear window defroster
Trunk lid
High-mount brake light
License plate
lights/Trunk lights
Reverse lights
Convertible top
Antenna
(page 3-10)
(page 8-32)
(page 8-32)
(page 8-32) (page 5-35)
(page 3-2)
(page 8-28)
(page 8-32)
(page 8-32) (page 3-15) (page 6-9)
(page 3-18)
(page 8-25)
(page 8-22)
(page 3-17)
(page 8-32) (page 8-32) (page 8-32) (page 3-32) (page 3-14)
J07S_8S15-EA-03G_Edition2.book Page 4 Thursday, August 21, 2003 10:04 AM

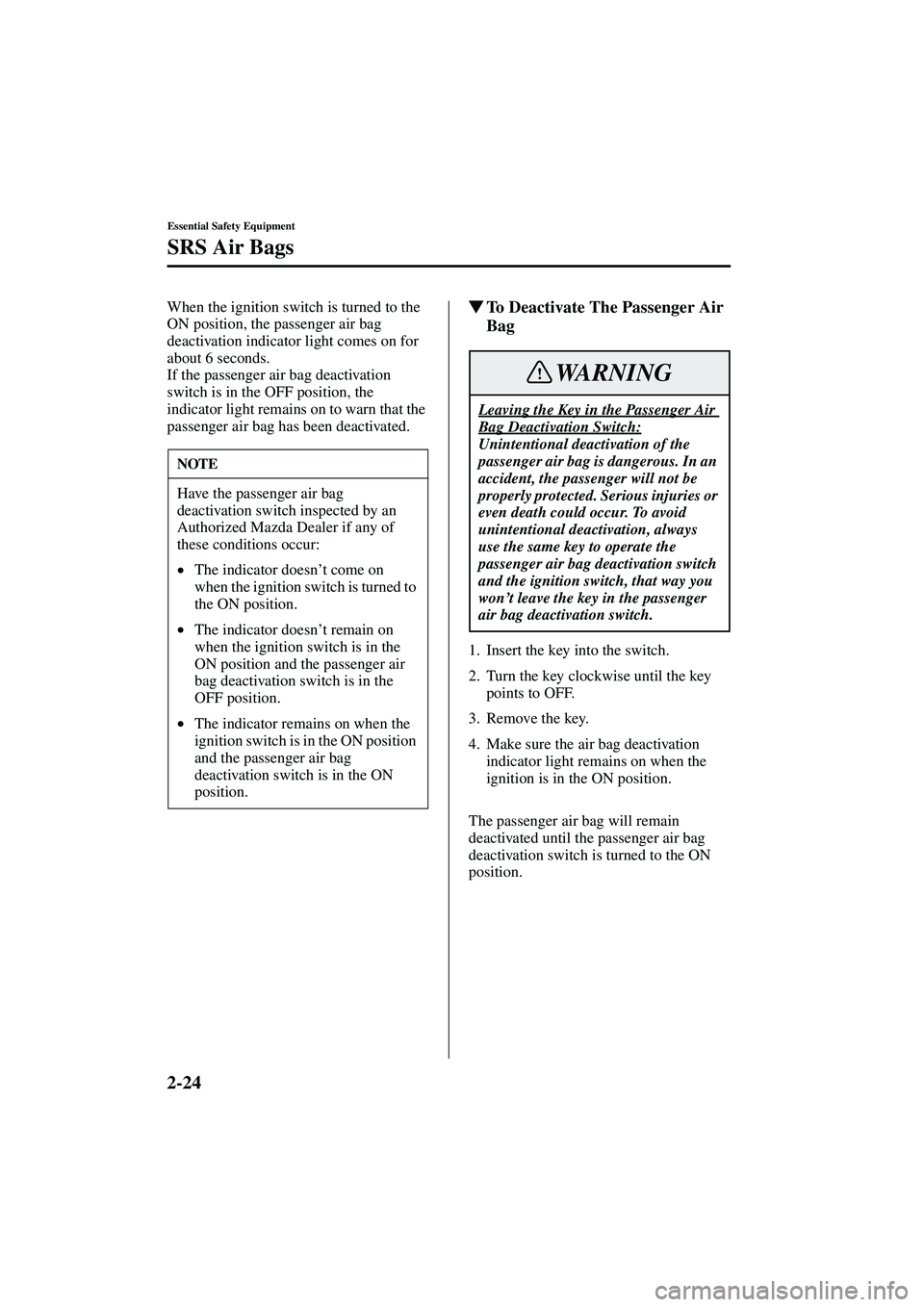

2-24
Essential Safety Equipment
SRS Air Bags
Form No. 8S15-EA-03G
When the ignition switch is turned to the
ON position, the passenger air bag
deactivation indicator light comes on for
about 6 seconds.
If the passenger air bag deactivation
switch is in the OFF position, the
indicator light remains on to warn that the
passenger air bag has been deactivated.
To Deactivate The Passenger Air
Bag
1. Insert the key into the switch.
2. Turn the key clockwise until the key
points to OFF.
3. Remove the key.
4. Make sure the air bag deactivation indicator light remains on when the
ignition is in the ON position.
The passenger air bag will remain
deactivated until the passenger air bag
deactivation switch is turned to the ON
position.
NOTE
Have the passenger air bag
deactivation switch inspected by an
Authorized Mazda Dealer if any of
these conditions occur:
• The indicator doesn
’t come on
when the ignition switch is turned to
the ON position.
• The indicator doesn
’t remain on
when the ignition switch is in the
ON position and the passenger air
bag deactivation switch is in the
OFF position.
• The indicator remains on when the
ignition switch is in the ON position
and the passenger air bag
deactivation switch is in the ON
position.
Leaving the Key in the Passenger Air
Bag Deactivation Switch:
Unintentional deactivation of the
passenger air bag is dangerous. In an
accident, the passenger will not be
properly protected. Serious injuries or
even death could occur. To avoid
unintentional deactivation, always
use the same key to operate the
passenger air bag deactivation switch
and the ignition switch, that way you
won
’t leave the key in the passenger
air bag deactivation switch.
WARNING
J07S_8S15-EA-03G_Edition2.book Page 24 Thursday, August 21, 2003 10:04 AM

2-25
Essential Safety Equipment
SRS Air Bags
Form No. 8S15-EA-03G

To Ready The Passenger Air Bag
1. Insert the key into the switch.
2. Turn the key counterclockwise until the
key points to ON.
3. Remove the key.
4. Make sure the air bag deactivation indicator light goes off after 6 seconds
when the ignition switch is turned to
the ON position.
J07S_8S15-EA-03G_Edition2.book Page 25 Thursday, August 21, 2003 10:04 AM

3-1
Form No. 8S15-EA-03G
3Knowing Your Mazda
Explanation of basic operations and controls; opening/closing and adjustment
of various parts.
Doors and Locks ............................................................................ 3-2
Keys ........................................................................................... 3-2
Keyless Entry System* .............................................................. 3-3
Door Locks ................................................................................ 3-7
Trunk Lid ................................................................................. 3-10
Trunk Release Handle ............................................................. 3-12
Power Windows ....................................................................... 3-14
Fuel-Filler Lid and Cap ........................................................... 3-15
Hood ........................................................................................ 3-17
Convertible Top ....................................................................... 3-18
Detachable Hardtop* ............................................................... 3-23
Security System ........................................................................... 3-29
Immobilizer System* .............................................................. 3-29
Mirrors ......................................................................................... 3-32
Mirrors ..................................................................................... 3-32
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 1 Thursday, August 21, 2003 10:04 AM

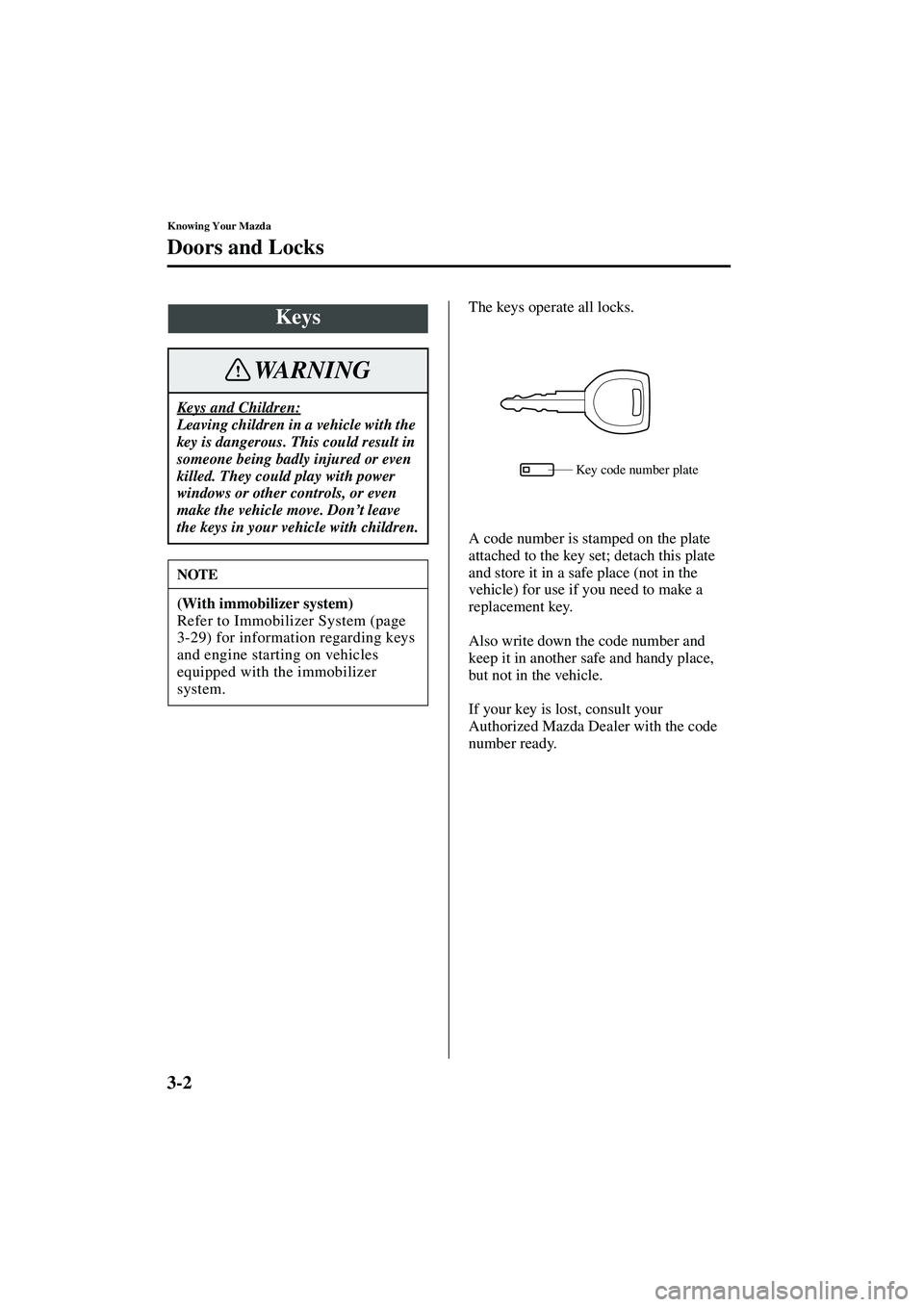

3-2
Knowing Your Mazda
Form No. 8S15-EA-03G
Doors and Locks
The keys operate all locks.
A code number is stamped on the plate
attached to the key set; detach this plate
and store it in a safe place (not in the
vehicle) for use if you need to make a
replacement key.
Also write down the code number and
keep it in another safe and handy place,
but not in the vehicle.
If your key is lost, consult your
Authorized Mazda Dealer with the code
number ready.Keys
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don’t leave
the keys in your vehicle with children.
NOTE
(With immobilizer system)
Refer to Immobilizer System (page
3-29) for information regarding keys
and engine starting on vehicles
equipped with the immobilizer
system.
WARNING
Key code number plate
J07S_8S15-EA-03G_Edition2.book Page 2 Thursday, August 21, 2003 10:04 AM

3-3
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G
This system locks and unlocks the doors
and opens the trunk.
It can also help you signal for attention in
an emergency.
Press the button slowly and accurately.
Keyless Entry System*
To avoid damage to the transmitter, do
not:
•Drop it.
• Get it wet.
• Disassemble it.
• Expose it to heat or sunlight.
CAUTION
NOTE
•The keyless entry system is
designed to operate up to about 2.5
m (8 ft) from the center of the
vehicle, but this may vary because
of local conditions.
• The system doesn
’t operate when
the ignition switch is in the ON
position.
• If the transmitter does not operate
when pressing a button or the
operation range becomes too small,
the battery may be dead. To install a
new battery, refer to Maintenance
(page 3-5).
• Additional transmitters can be
obtained at an Authorized Mazda
Dealer. Up to 3 transmitters can be
used with the keyless entry system
per vehicle. Bring all transmitters to
an Authorized Mazda Dealer when
the electronic codes need to be
reset.
*Some models.
J07S_8S15-EA-03G_Edition2.book Page 3 Thursday, August 21, 2003 10:04 AM

3-6
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G
Replacing the transmitter battery
1. Insert a small screwdriver into the slot and gently pry open the transmitter.
2. Press the portion of the battery indicated by A and remove the battery. 3. Install a new battery (CR2025 or the
equivalent) into the front portion of the
holder with the positive pole ( )
facing up. Press on the B portion of the
battery to set the battery.
4. Align the front and back covers and snap the transmitter shut.
Slot
Back cover
A
Do not press any buttons when
replacing the battery. The electronic
code could be altered and cause the
keyless entry system to malfunction.
If the keyless entry system fails to
operate, contact an Authorized Mazda
Dealer.
B Back cover
Front
cover Front o
f
holder
CAUTION
J07S_8S15-EA-03G_Edition2.book Page 6 Thursday, August 21, 2003 10:04 AM

3-7
Knowing Your Mazda
Doors and Locks
Form No. 8S15-EA-03G

Service
If you have a problem with the keyless
entry system, consult an Authorized
Mazda Dealer.
If your transmitter is lost or stolen, bring
all remaining transmitters to an
Authorized Mazda Dealer as soon as
possible for a replacement and to make
the lost or stolen transmitter inoperative.
Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user ’s authority to operate the
equipment.
CAUTION
Door Locks
Unattended Children and Pets:
Leaving a child or an animal
unattended in a parked vehicle is
dangerous. In hot weather,
temperatures inside a vehicle can
become high enough to cause brain
damage or even death. Always take all
children and animals with you or
leave a responsible person with them.
Keys and Children:
Leaving children in a vehicle with the
key is dangerous. This could result in
someone being badly injured or even
killed. They could play with power
windows or other controls, or even
make the vehicle move. Don ’t leave
the keys in your vehicle with children.
Unlocked Doors:
Unlocked doors in a moving vehicle
are dangerous. Passengers can fall
out if a door is accidentally opened
and can more easily be thrown out in
an accident. So keep all doors locked
when driving.
NOTE
Always remove the key from the
ignition switch, close all windows, and
lock all doors when leaving your
vehicle unattended. This discourages
intruders and thieves.
WARNING
